Product Description

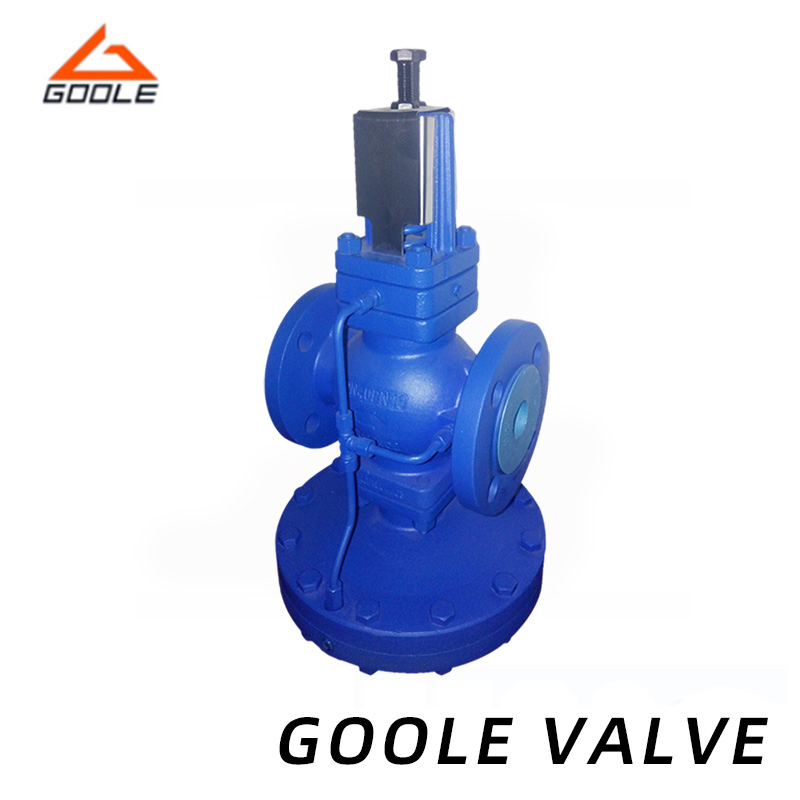

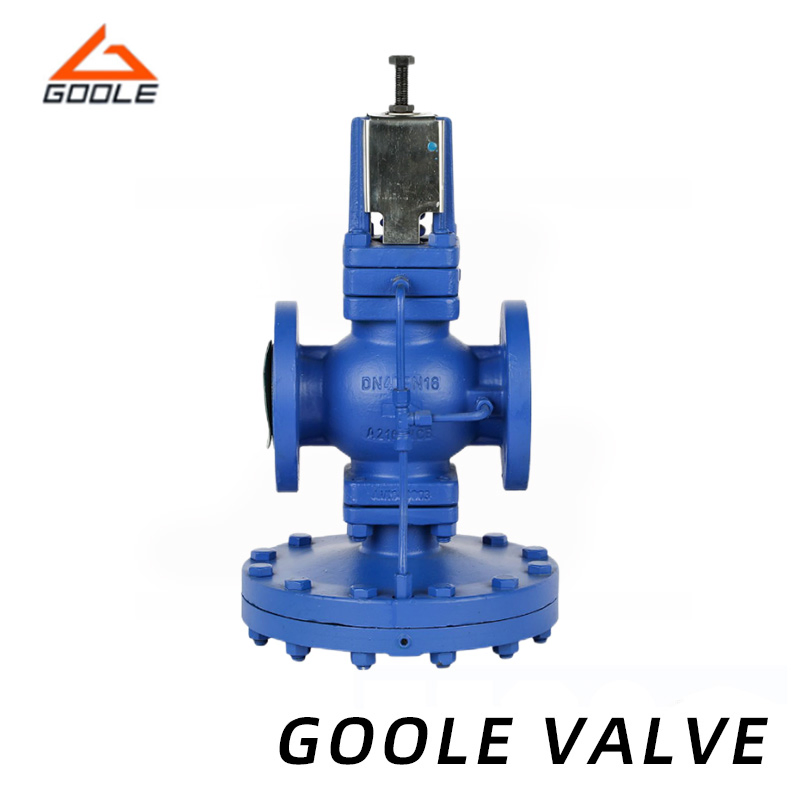

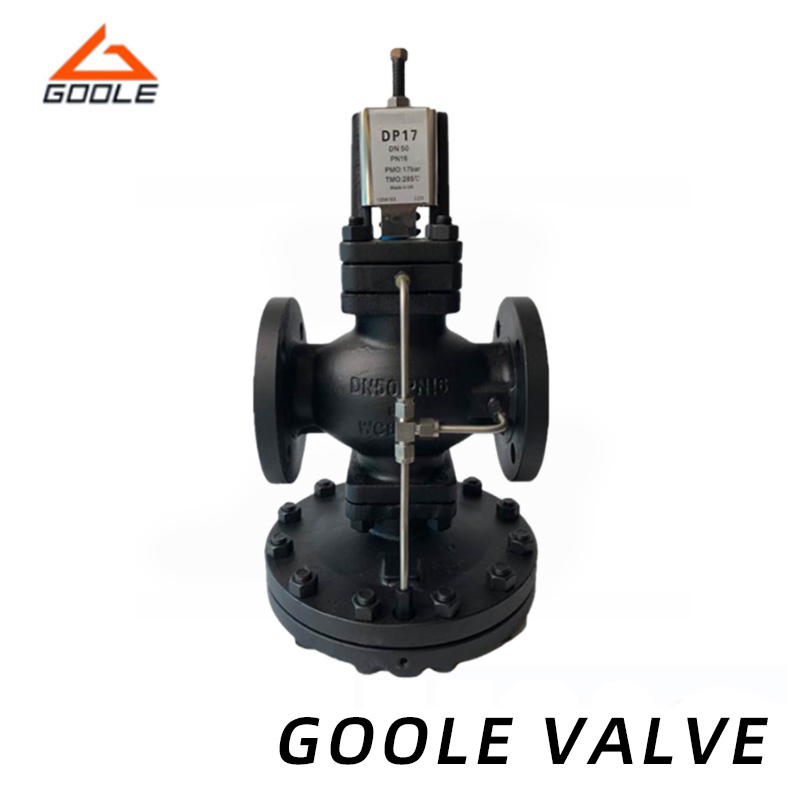

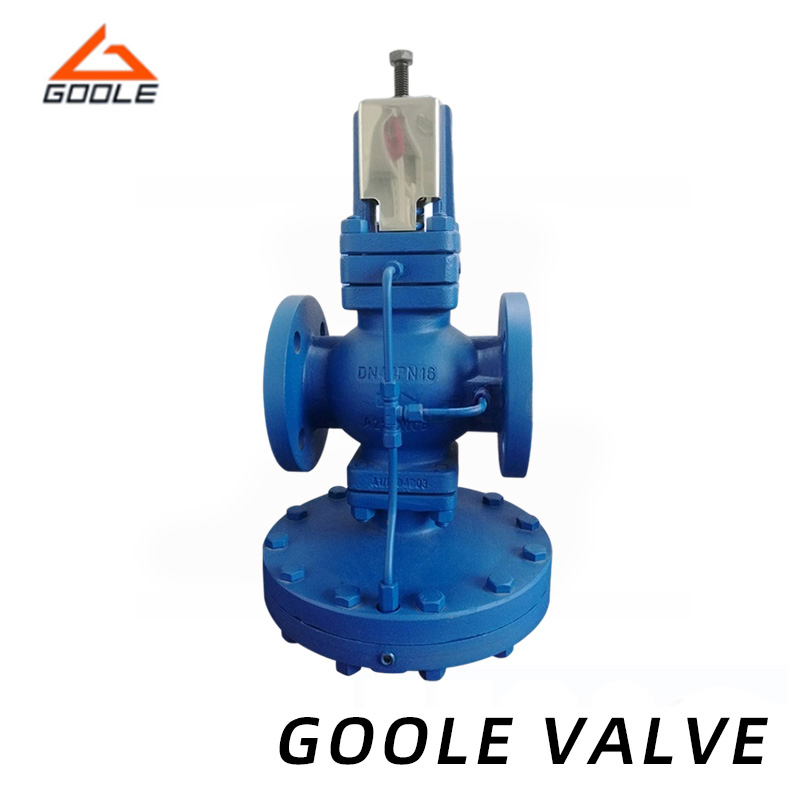

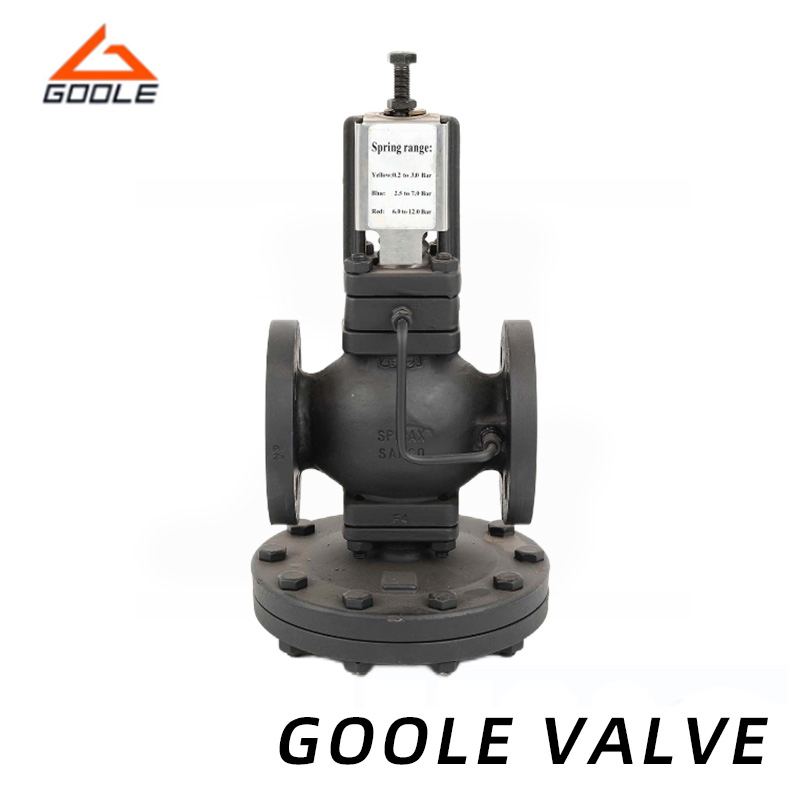

Pilot Diaphragm Type Pressure Reducing and Regulating Control Valve
Brief Introduction: DP Pilot Operated Pressure Reducing Valve is primarily designed for steam systems to provide precise pressure reduction. Its performance is superior to standard piston-type steam pressure reducing valves.
Key Features: The modular body design allows for the installation and exchange of various pilot valves to realize temperature control, upstream pressure control, or remote switch control within the same system.
Frequently Asked Questions
Q1: What is the main advantage of a pilot-operated valve?
A1: Compared to standard piston valves, pilot-operated diaphragm valves provide much more precise pressure control and stability, especially in steam systems.
Q2: Can this valve handle media other than steam?
A2: Yes, while primarily used for steam, it is also suitable for compressed air and other compatible industrial gases.
Q3: What is the maximum working temperature?
A3: The valve is rated for temperatures up to 285°C depending on the specific model and material configuration.
Q4: Are different flange standards available?
A4: Yes, we provide standard flanges including DIN, ANSI, and JIS to meet international installation requirements.
Q5: Is it possible to realize remote control with this valve?
A5: Yes, the modular pilot design allows for the integration of remote switch controls or temperature control pilots.
Q6: What materials are used for the main body?
A6: The main body and cover are constructed from high-quality WCB (Cast Steel) for durability and pressure resistance.
