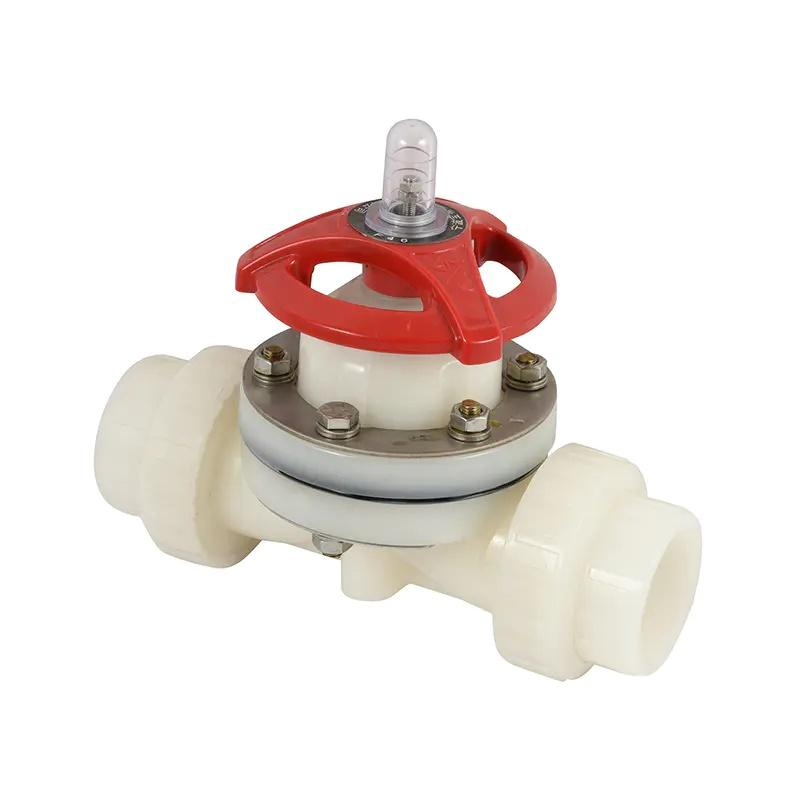

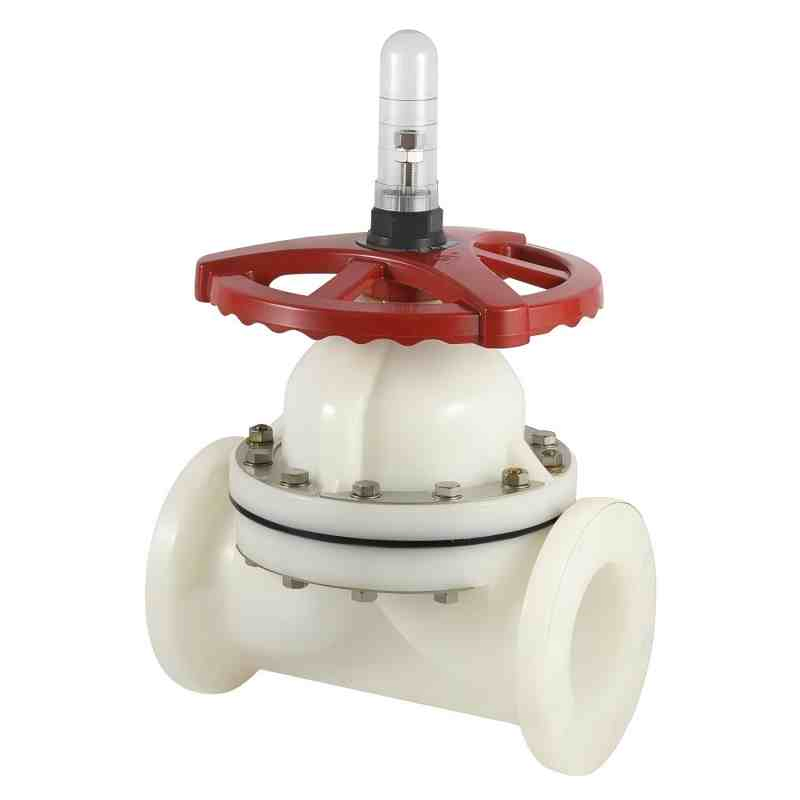

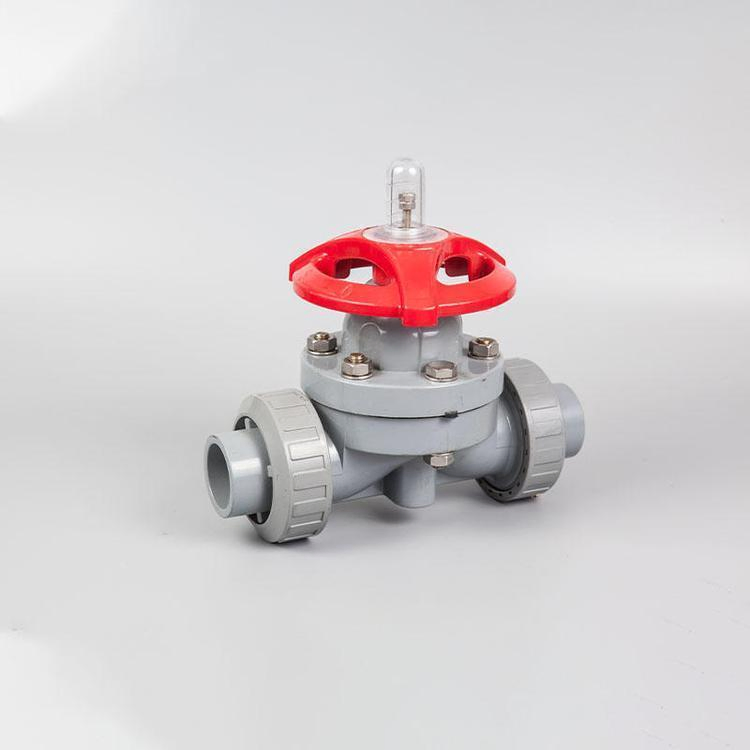

Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve
1 / 5
Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve

Full Plastic Socket Fusion Diaphragm Valve

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
G61F-10F2
Structure
Single-Eccentric Sealing
Seal Form
Force Sealed
Valve Stem
Orbit
Work Pressure
Pn10
Working Temperature
-20℃~95℃
Material of Seal Surface
Soft Sealed
Valve Body
Casting
Application
Water Industrial Usage
Structural Length
DIN3202, GB12221
Drive Mode
Manual, Pneumatic, Turbine Drive
Body Material
Pph, PVDF, CPVC, UPVC
Connection Type
Hot Melt
Specification
DN15-DN50
HS Code
8481804090
Product Display

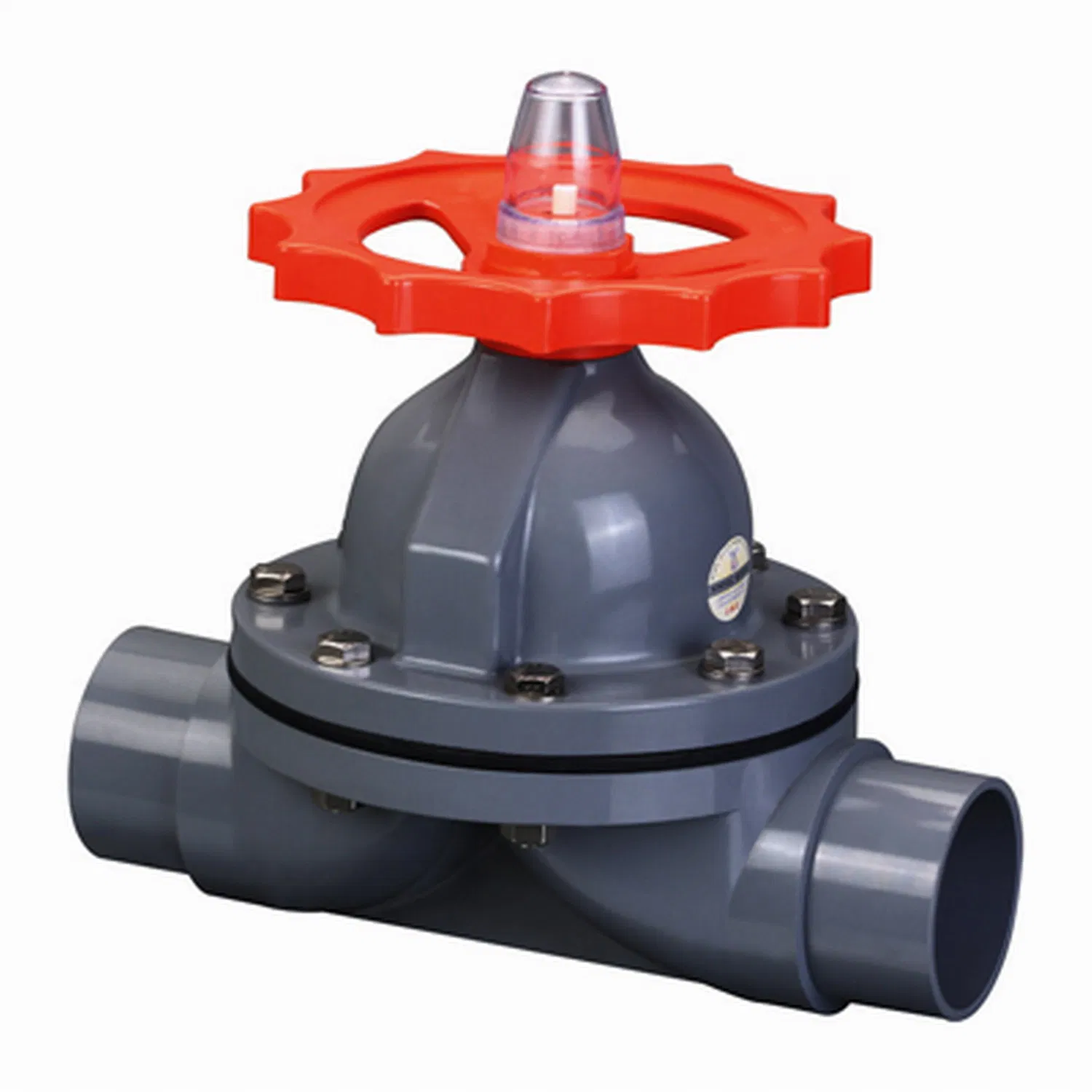

Full Plastic Socket Fusion Diaphragm Valve
Full Plastic Socket Fusion Diaphragm Valve
Technical Specifications
Product NameBall Valve / Diaphragm Valve
Suitable MediumWater
Work Temperature-20~95℃ / -20-120℃
Basic ModeG61F-10F2
Nominal DiameterDN15-DN50
Structure LengthDIN3202, GB12221, EN558-1, JISB2002
MaterialPPH, PVDF, CPVC, UPVC
Connection MethodWafer / Hot Melt
Max Operating PressurePN10

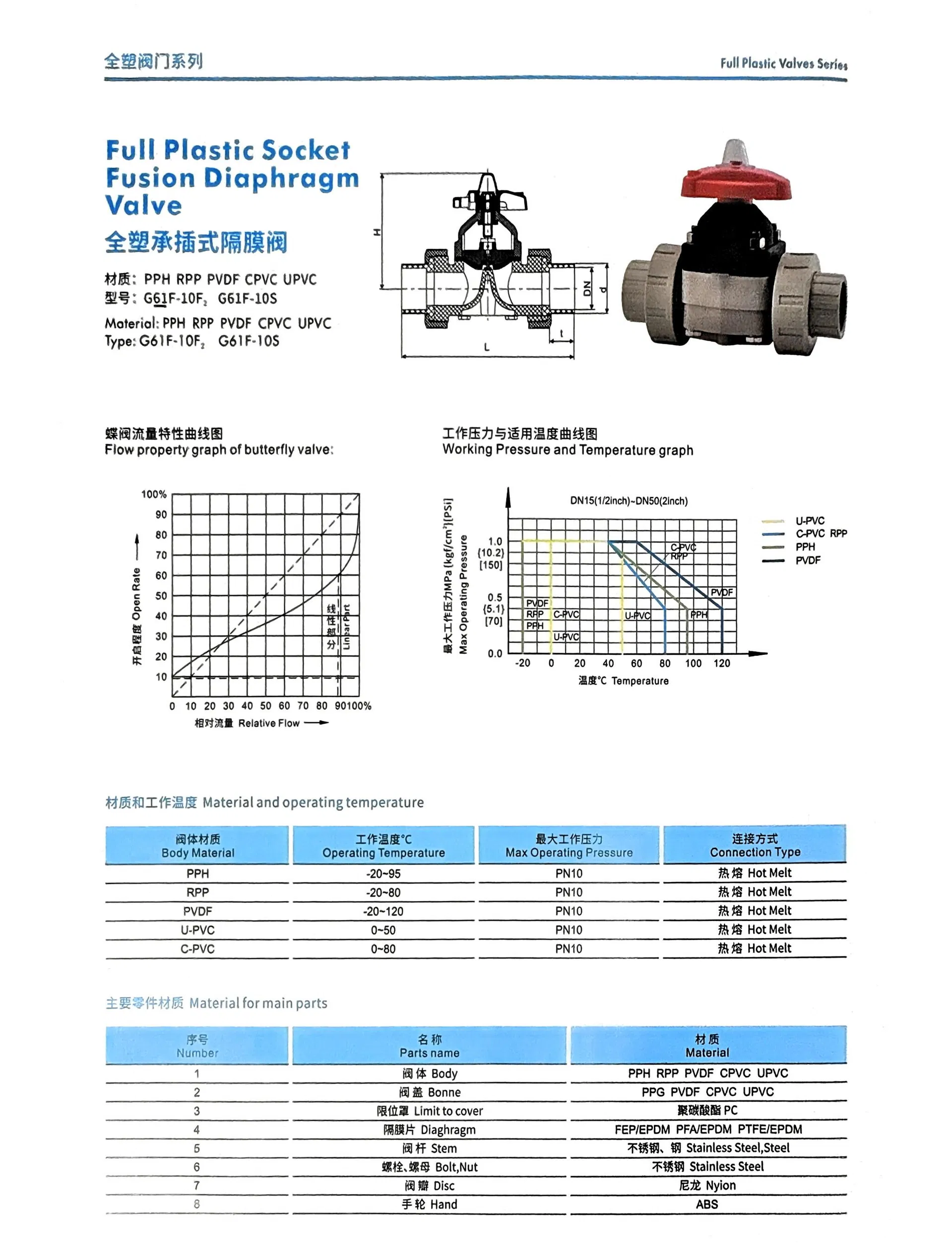

Technical Specifications

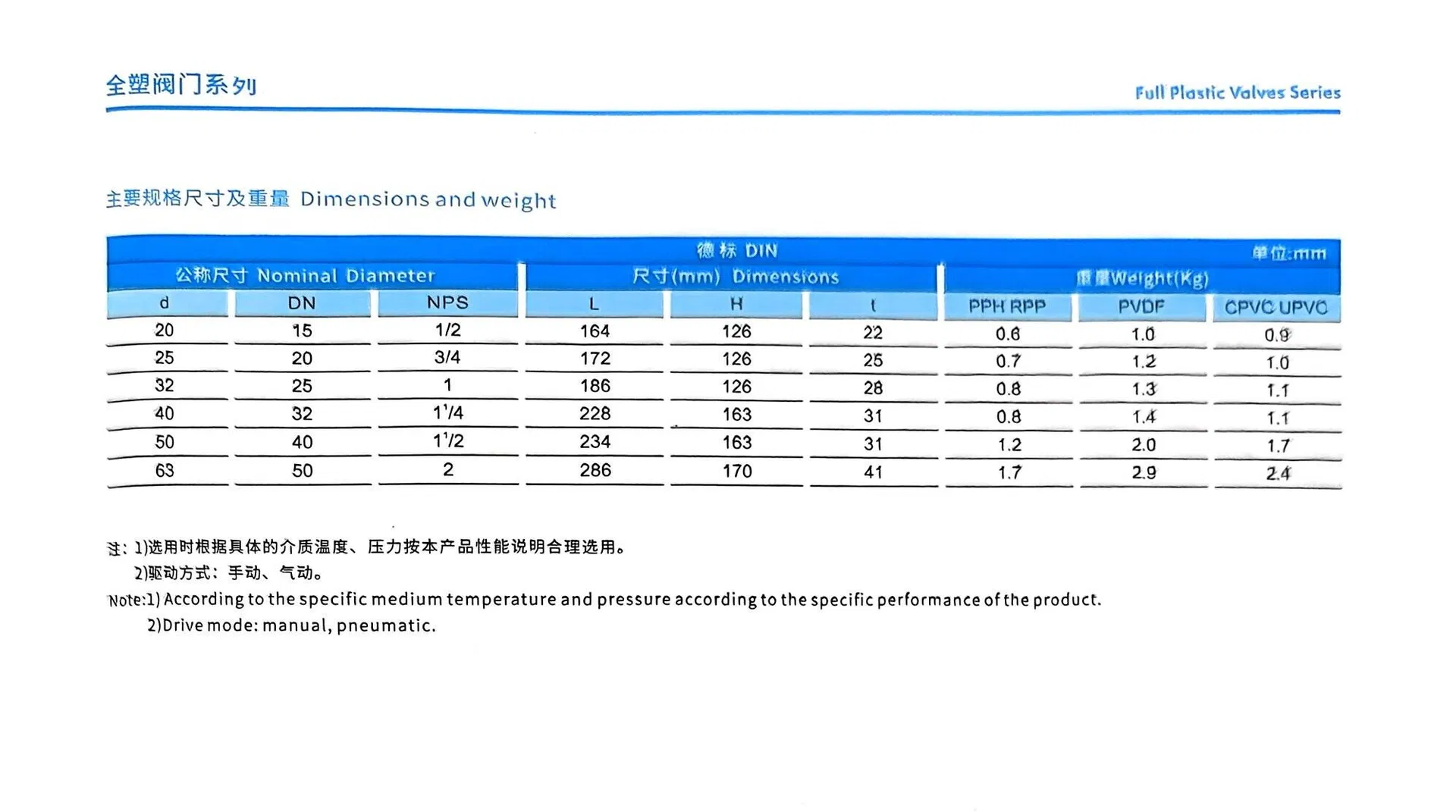

Product Dimensions
Packing & Delivery
Packing Details

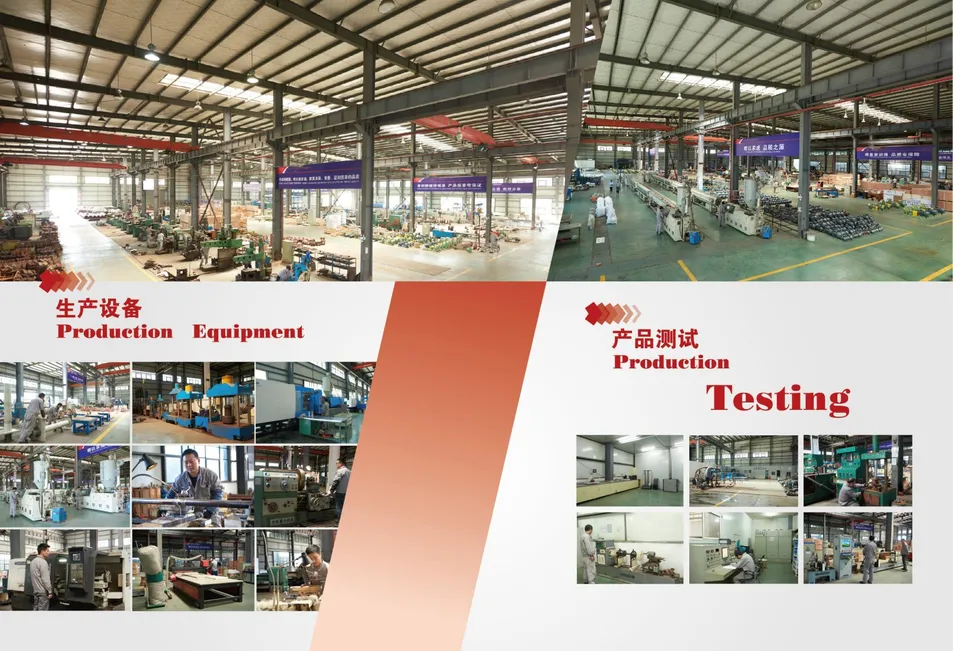

Packing Process
Logistics

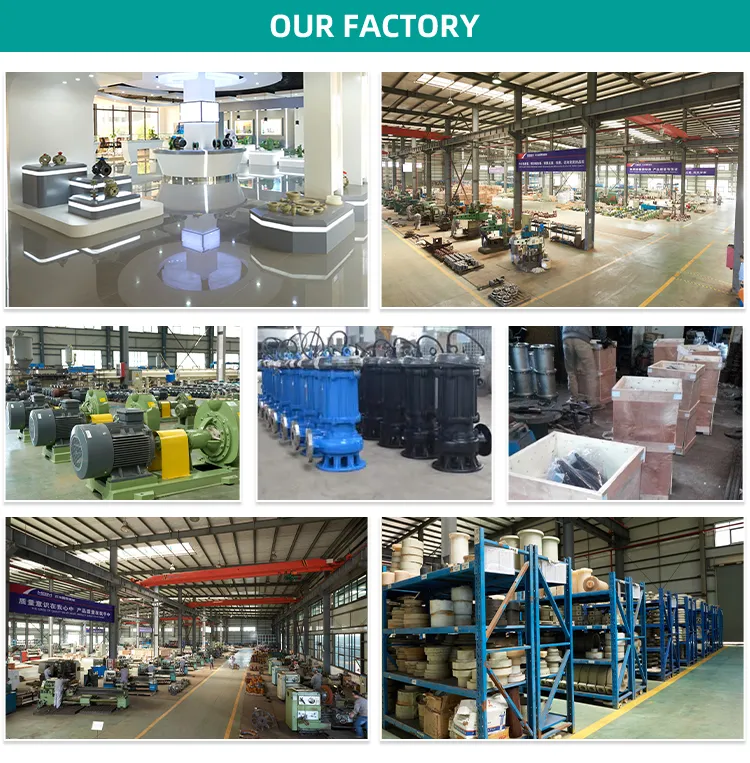

Production & Facility

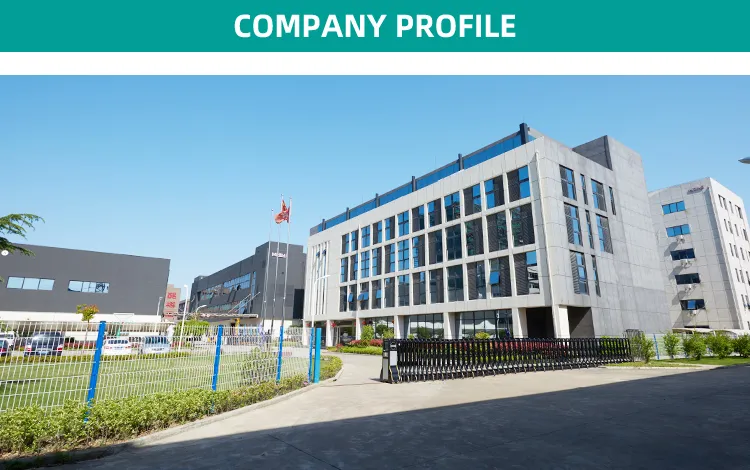

Facility 1
Facility 2
Facility 3
Facility 4
Quality Control
Quality Assurance

We ensure quality through a rigorous process including a pre-production sample before mass production and a final inspection before shipment.

Product Range

Our expertise covers centrifugal pumps, industrial valves, PTFE lined pipes, chemical pumps, and plastic pipes.

Service Capabilities

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP, DDU, DAF
Accepted Payment Currencies: USD, EUR, CNY
Accepted Payment Types: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union

Frequently Asked Questions
What are the available materials for the valve body?
The valve body can be manufactured from PPH, PVDF, CPVC, or UPVC, depending on your specific chemical resistance requirements.
What is the working temperature range for this diaphragm valve?
The standard working temperature range is from -20℃ to 95℃, making it suitable for a wide variety of industrial water applications.
What type of connection methods do you support?
We support multiple connection methods including Hot Melt (Socket Fusion) and Wafer connections to ensure compatibility with your piping system.
What is the maximum operating pressure (PN) for the G61F-10F2 model?
The maximum working pressure for this model is rated at PN10.
How is the product quality guaranteed before shipping?
We perform a pre-production sample check and a mandatory final inspection before every shipment to ensure the highest quality standards.
What industrial applications is this valve suitable for?
This valve is primarily designed for water industrial usage, scrubbing, steel pickling, electroplating, and chemical processing.
