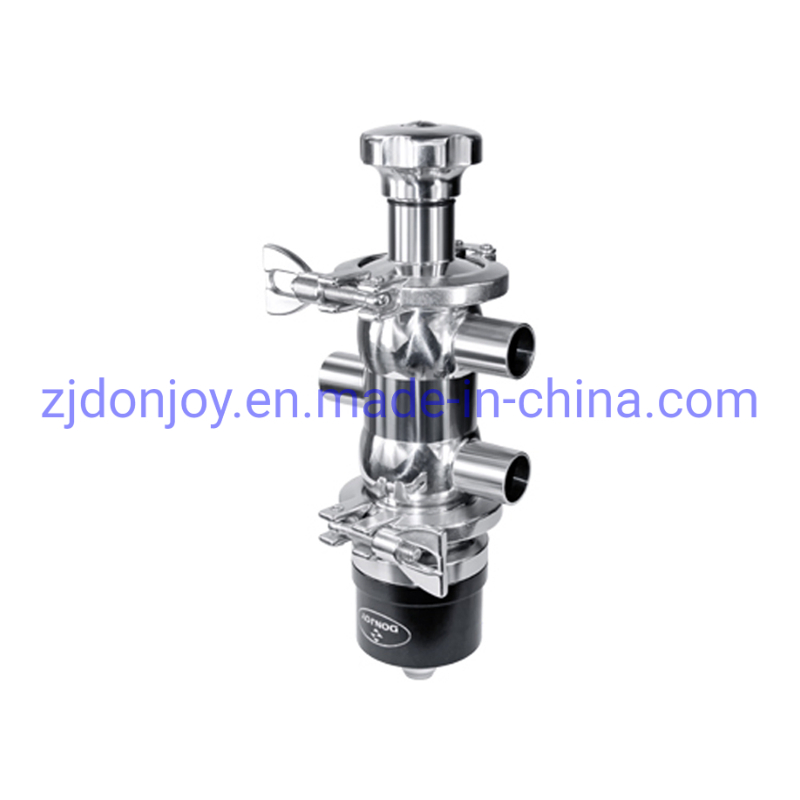

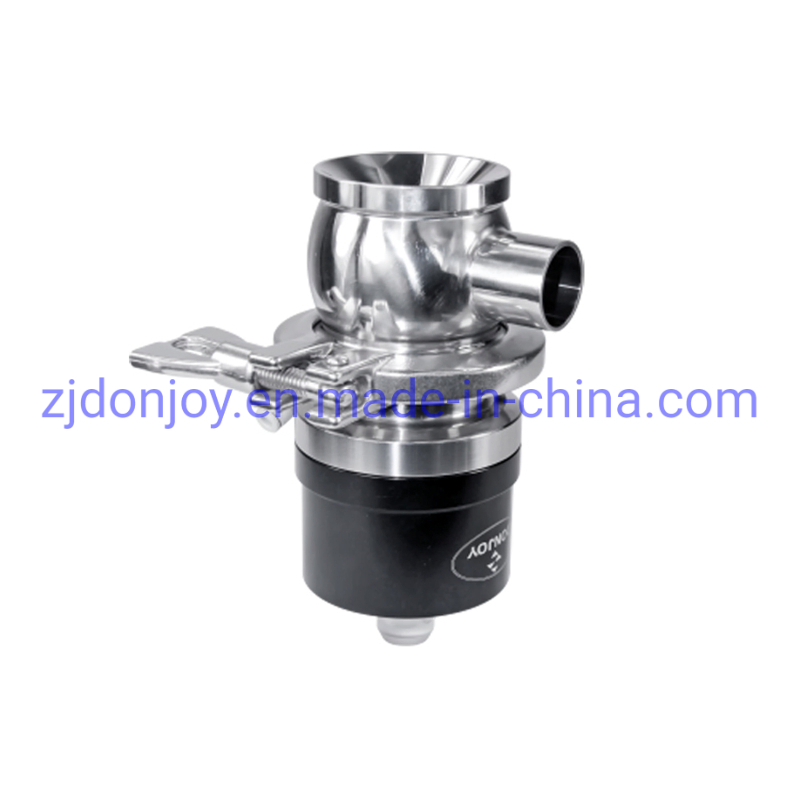

Pneumatic Radial Diaphragm Valve Multi Port Welding

1 / 5

Pneumatic Radial Diaphragm Valve Multi Port Welding

Customization:	Available
Media:	Water
Temperature:	Ordinary Temperature

Send Inquiry

Product Description

Basic Specifications

Actuator

Pneumatic

Connection

Welded Diaphragm Valve

Material

Stainless Steel

Pressure

Low Pressure

Usage

Flow Control

Standard

DIN, GB, ANSI

Max. Pressure

6 Bar

Working Temp

-10°C to 120°C (EPDM/Silicon)

Actuator Pressure

5-6 Bar

Gasket

EPDM+PTFE

Specification

1/2"-3", Dn10-Dn80

HS Code

8481804090

Capacity

500PCS/Month

Product Description

Pneumatic Radial Diaphragm Valve Mult Port Clamped

Diaphragm valve, with manual and pneumatic operation, is specially used in the hygiene and aseptic process in pharmaceutical industries. The valve is specially suitable for flow control and on/off operation.

Such valve, compared with other valves in design, will be more easily to be cleaned, with better operation on media with particles.

Technical Specifications:

ITEM:	Radial Diaphragm valve
Material of valve body:	SS316L
Seal material:	EPDM+PTFE, EPDM
Size:	1/2-3 INCH
Max. temperature:	-10~120 degree centigrade (up to diaphragm gasket)
Max. pressure:	Standard NC: EPDM (6BAR), PTFE (4.5BAR) \| Optional NC/NO/AA up to 8BAR
Casting valve body:	1.4404/316L
Forging valve body:	1.4404/316L, ASME BPE/1.4435 Nb2 Fe <0.5%
Connection way:	Welded, clamped, flanged, threaded
Optional operation:	By pneumatic actuator, electric actuator, control unit, positioner etc.
Optional flow port:	2 way, 3 way, multi-port
Application:	Dairy, food, beverage, pharmacy, cosmetic etc
Certification:	3A, CE, ISO, FDA
Standard:	3A/BPE/DIN/ISO/IDF
Packing details:	Bubble pack for each valve, outside packing by carton or plywood case.

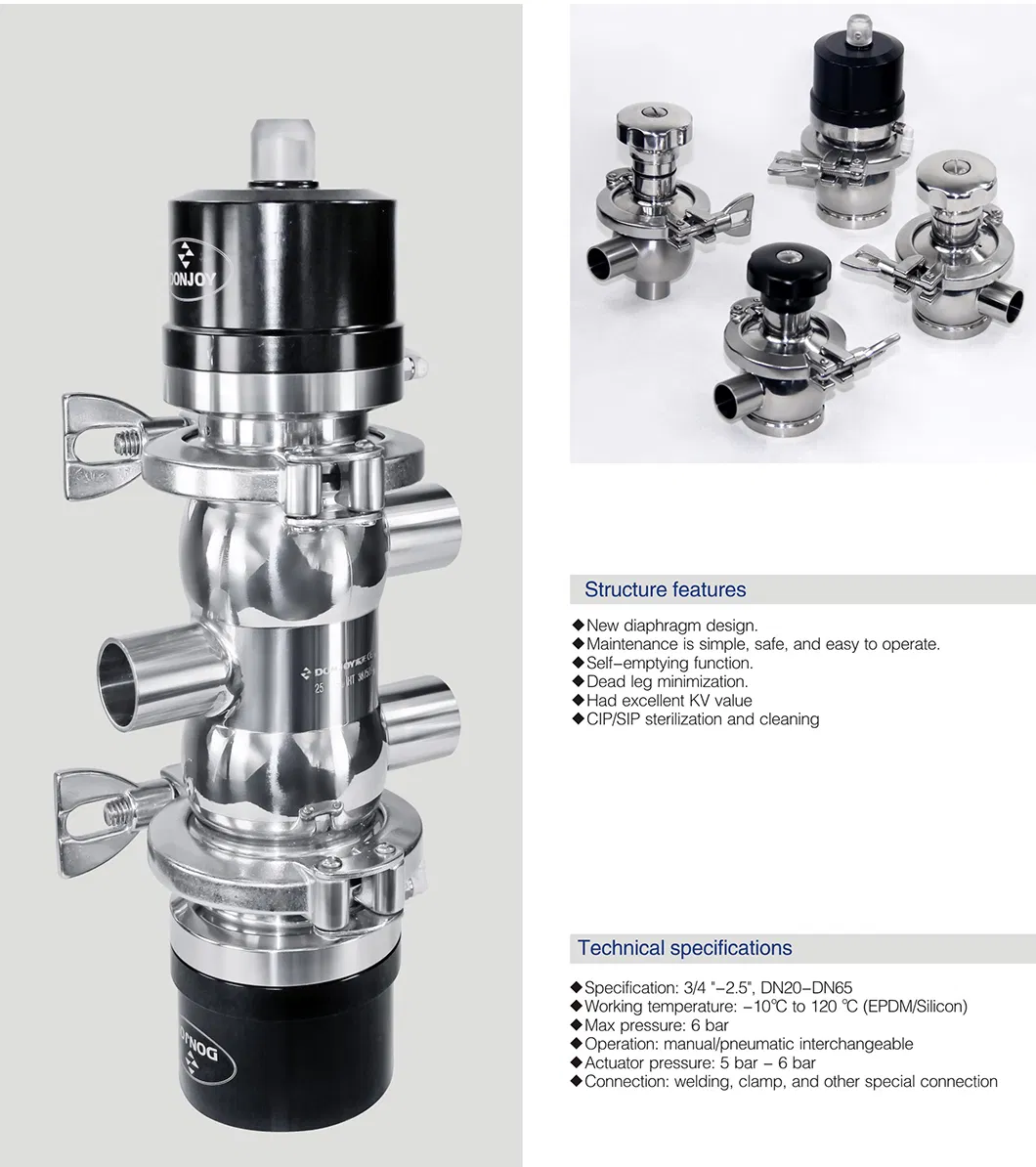

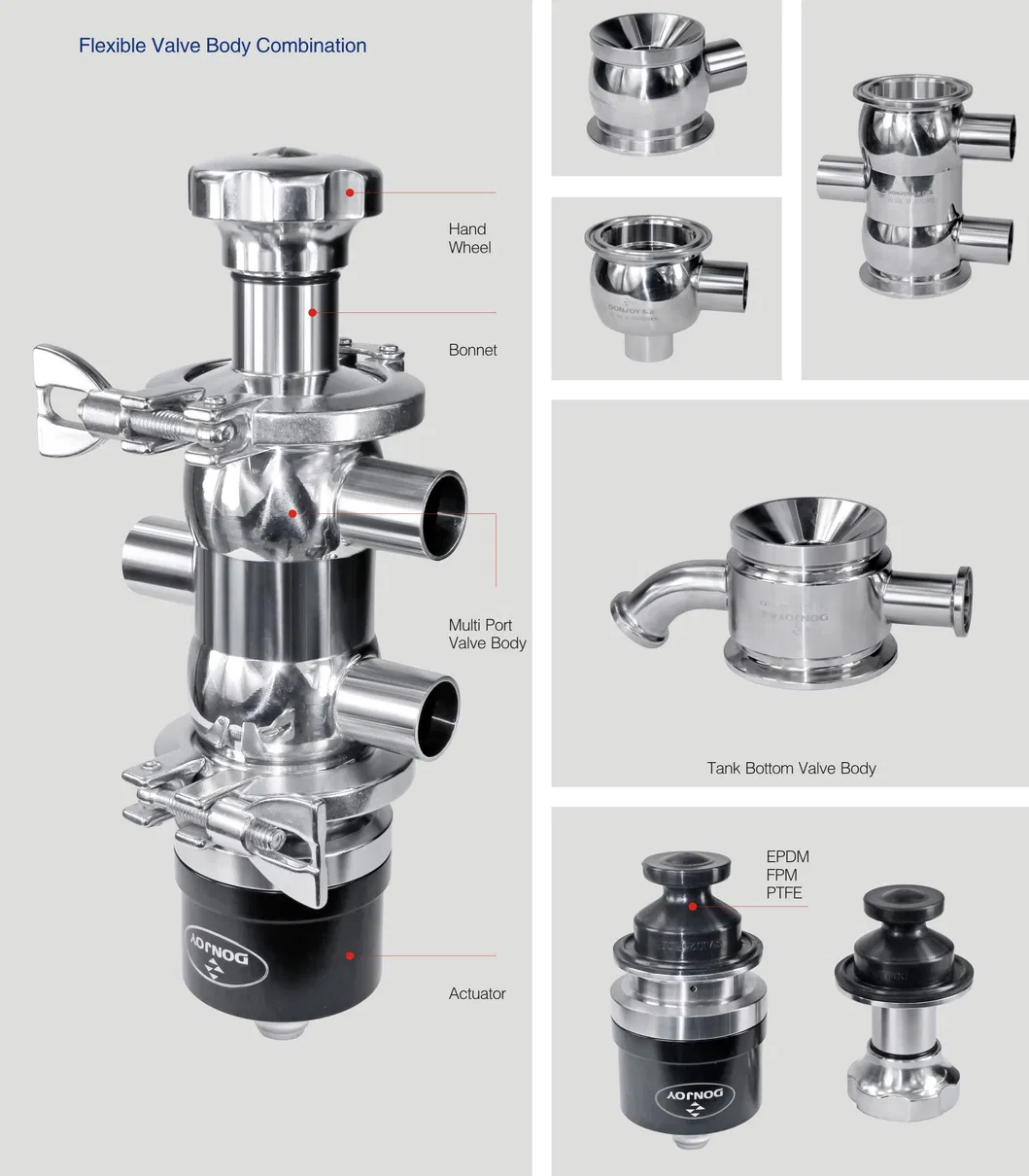

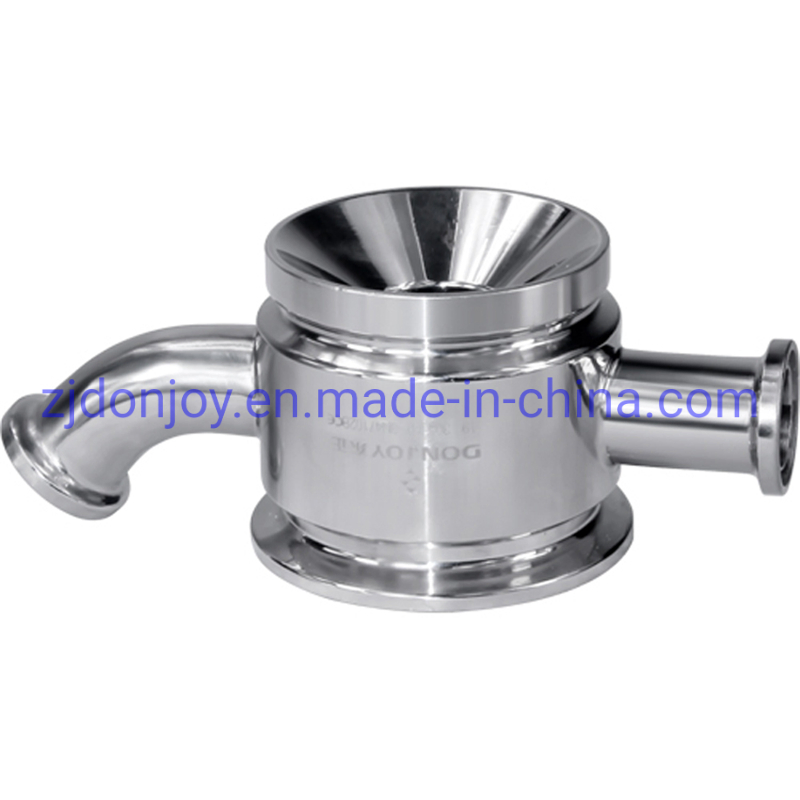

Pneumatic Radial Diaphragm Valve Detail 1

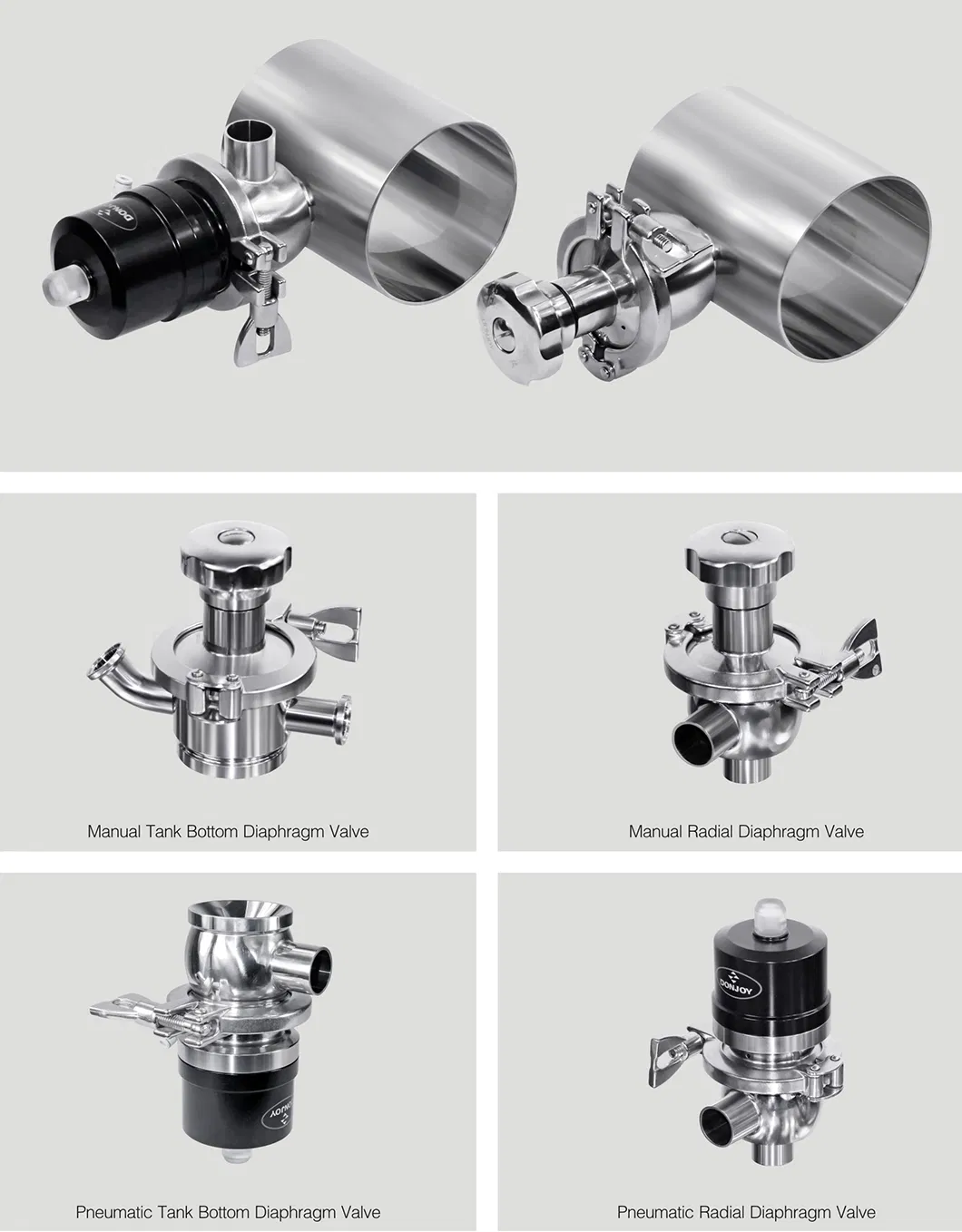

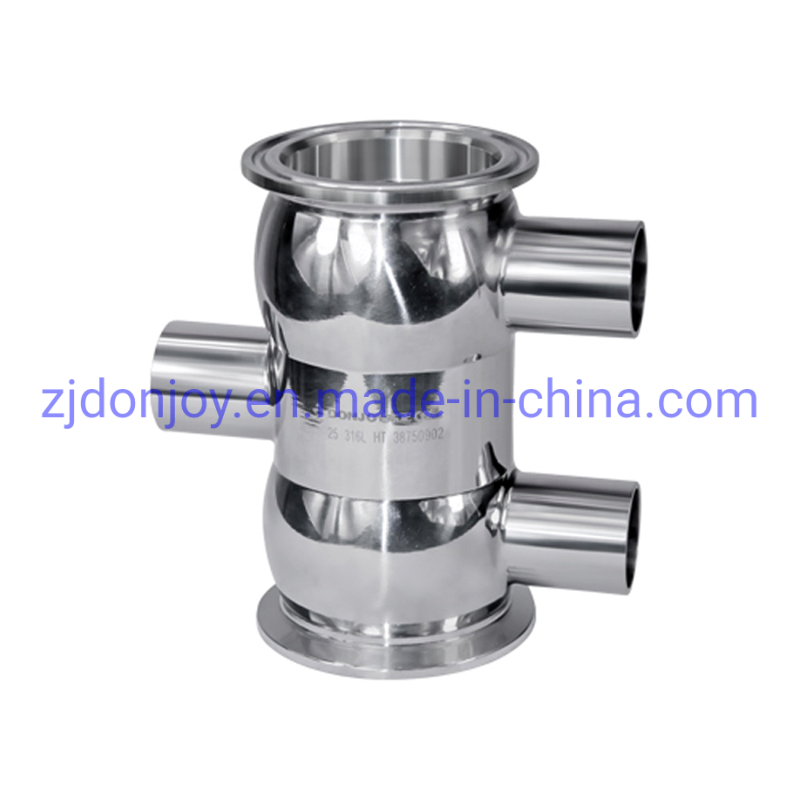

Pneumatic Radial Diaphragm Valve Detail 2

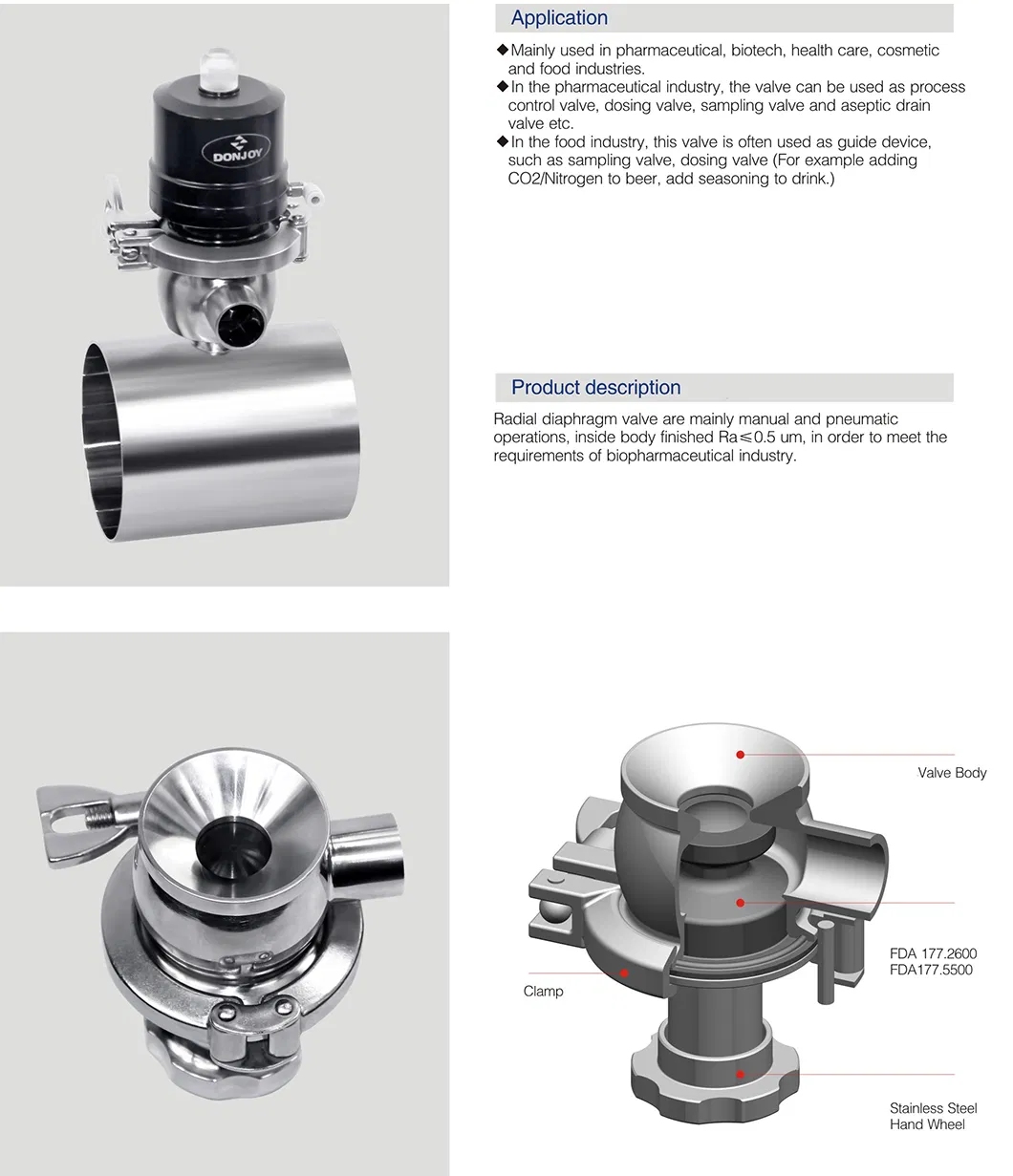

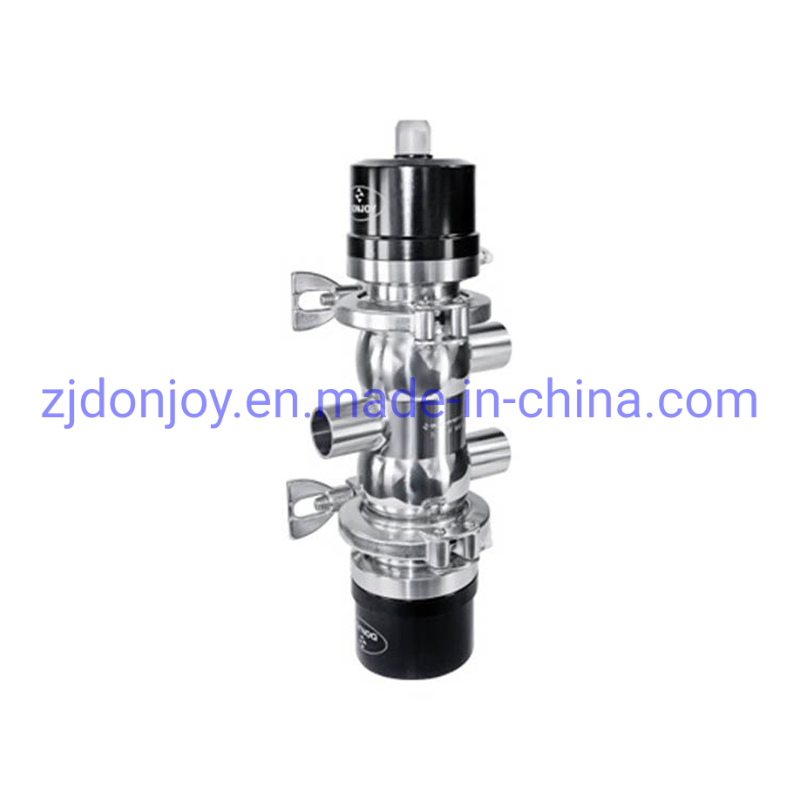

Pneumatic Radial Diaphragm Valve Detail 3

Pneumatic Radial Diaphragm Valve Detail 4

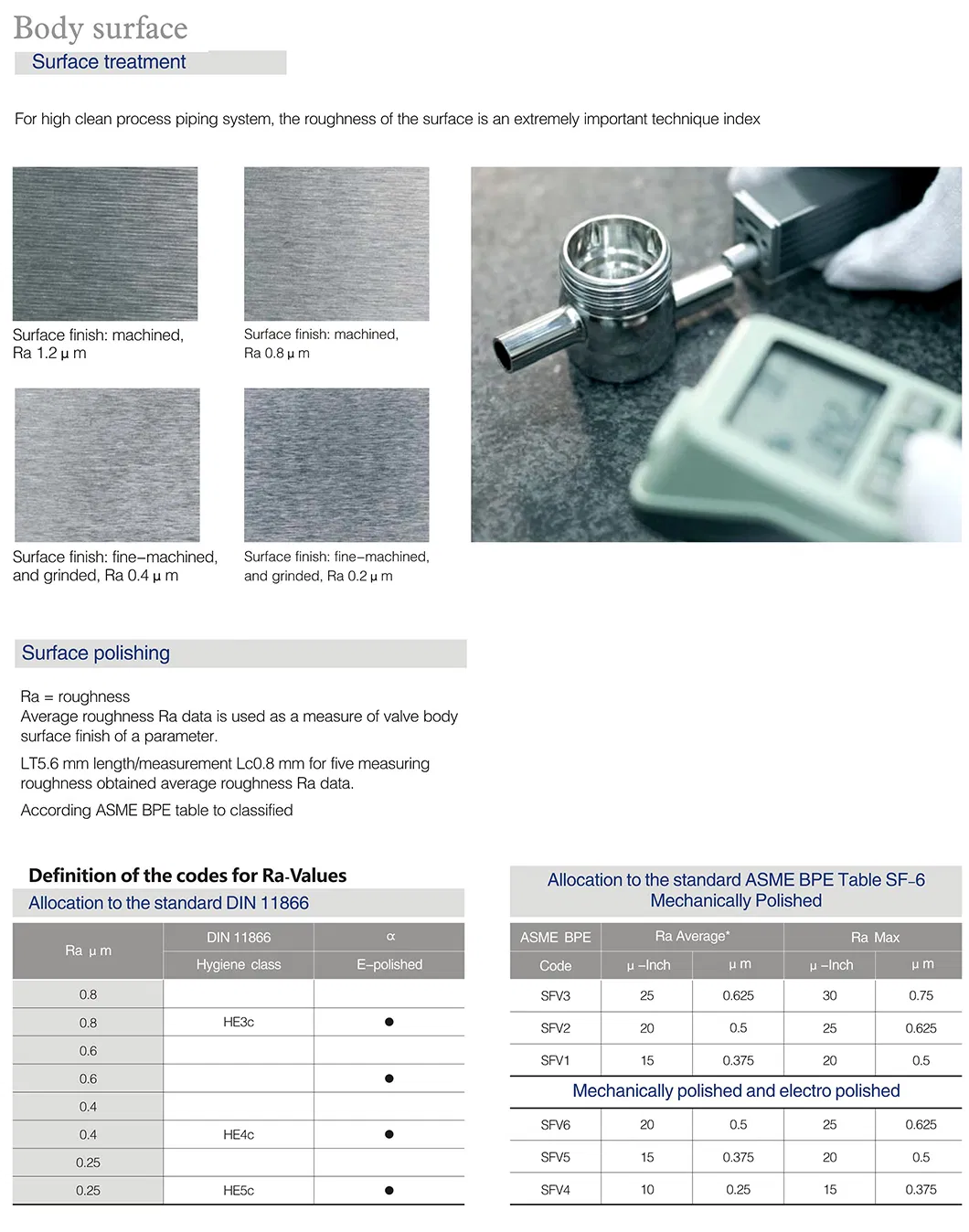

Pneumatic Radial Diaphragm Valve Detail 5

Pneumatic Radial Diaphragm Valve Detail 6

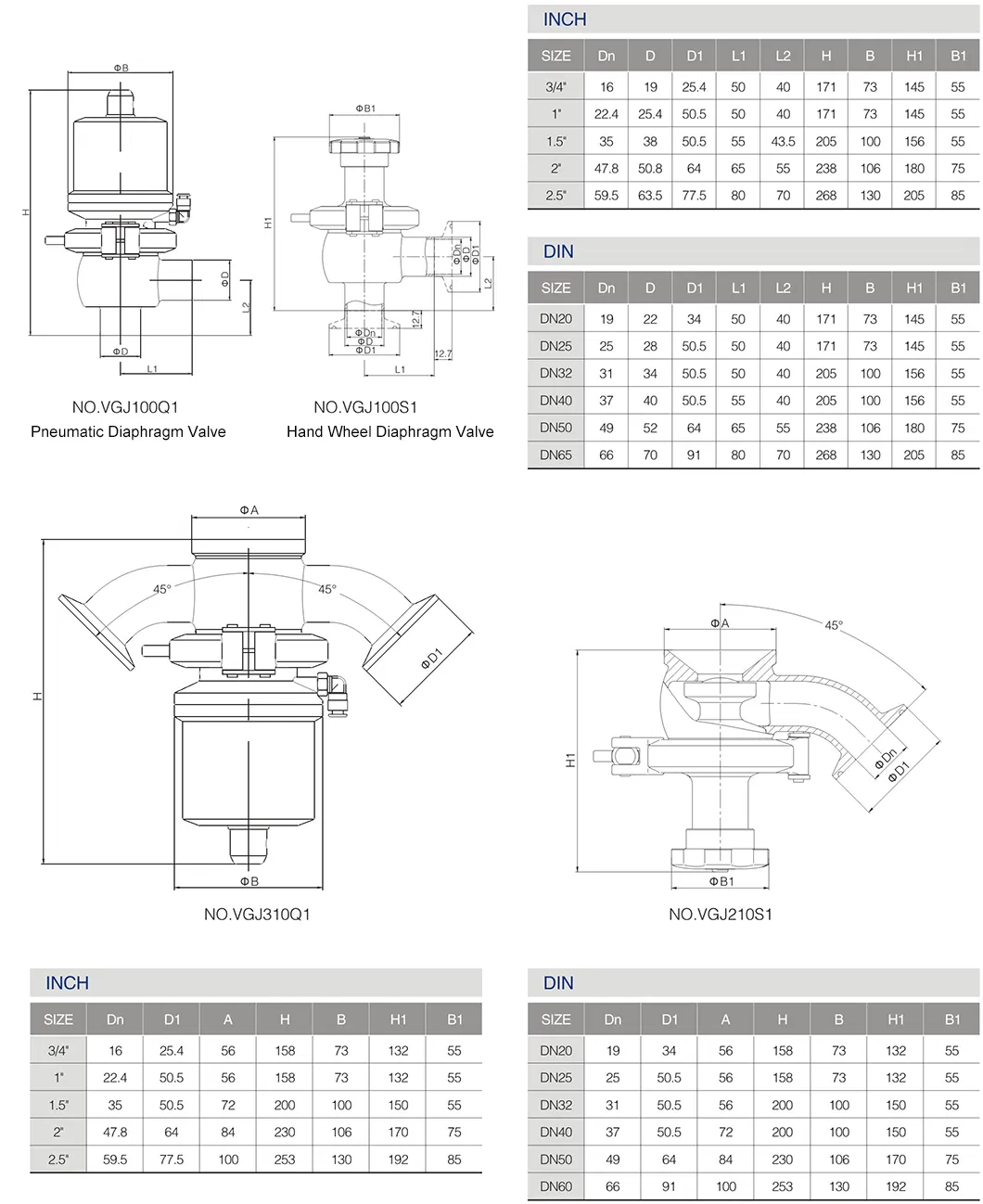

Pneumatic Radial Diaphragm Valve Dimension Chart

Frequently Asked Questions

What are the primary applications for this pneumatic radial diaphragm valve?

These valves are specifically designed for hygienic and aseptic processes in the pharmaceutical, dairy, food, beverage, and cosmetic industries, where cleanliness and sterile conditions are paramount.

Which materials are used for the valve construction?

The valve body is made from high-grade Stainless Steel (SS316L/1.4404). Forging options are also available complying with ASME BPE standards. Seal materials include EPDM and PTFE.

Can these valves handle particulate-heavy media?

Yes, the radial diaphragm design is specifically engineered to handle media containing particles more effectively than traditional valve designs, while remaining easy to clean.

What pressure and temperature ranges are supported?

The valve operates within a temperature range of -10°C to 120°C. It supports standard pressures up to 6 Bar, with optional configurations reaching up to 8 Bar depending on the seal material.

What international standards do these valves meet?

Our diaphragm valves comply with major international standards including 3A, CE, ISO, FDA, and BPE/DIN/IDF/ISO specifications.

What connection options are available?

We provide multiple connection ways to suit your piping system, including welded, clamped, flanged, and threaded options.
