Plastic Diaphragm Valve/PVC Diaphragm Valve/PVDF Diaphragm Valve/Thermoplastic Diaphragm Valve

1 / 5

Plastic Diaphragm Valve/PVC Diaphragm Valve/PVDF Diaphragm Valve/Thermoplastic Diaphragm Valve

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

G41F-10F

Actuator

Manual

Connection

Flanged Diaphragm Valve

Material

Plastic

Structure

Roof Type Diaphragm Valve

Pressure

Low Pressure

Flow Direction

Bidirectional

Function

Field Bus

Usage

Flow Control

Standard

DIN, GB, ANSI, JIS

Transport Package

Carton

Specification

ANSI, DIN, JIS, GB

Origin

China

HS Code

8481804090

Capacity

1,000,000 / Year

Product Overview

Type: PLASTIC DIAPHRAGM VALVE (PVC / PVDF / CPVC / UPVC / FRPP / PPH)
Size Range: 1/2" ~ 10"
Pressure Rating: PN10, CLASS150, JIS10K

Material Features

Anti-corrosion & Corrosion Resistant
Highly Durable Service Life
Lightweight Construction
Easy Installation & Maintenance
Cost-efficient Solution

Wide Applications

Chemicals, Petroleum, Chlor-alkali, Smelting, Pharmacy, Dyeing, Food, Electroplating, Environment, Purified Water, Waste Water treatment.

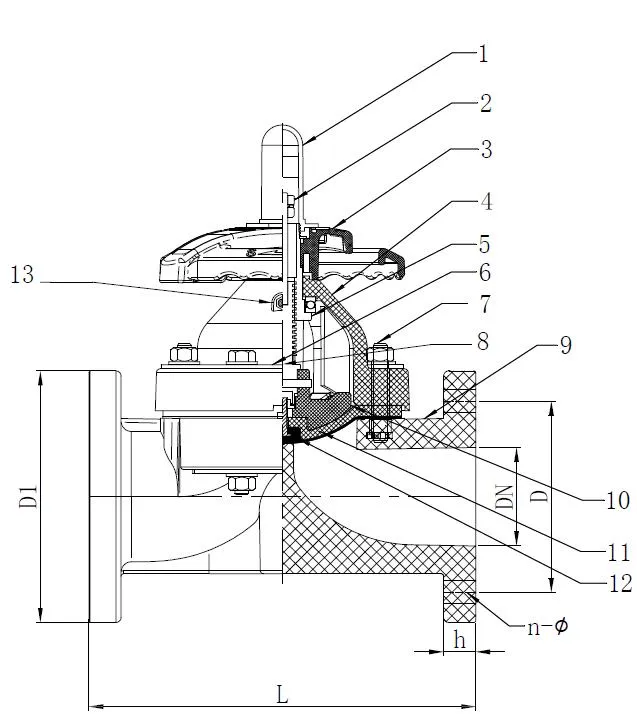

Dimensional Data

DN	D1 (mm)			D (mm)			L (mm)			h (mm)	n			φ (mm)
DN	GB/DIN	JIS	ANSI	GB/DIN	JIS	ANSI	GB/DIN	JIS	ANSI	h (mm)	GB/DIN	JIS	ANSI	GB/DIN	JIS	ANSI
15	95	95	95	65	70	60	125	110	125	14	4	4	4	14	15	16
20	105	100	105	75	75	70	135	120	135	16	4	4	4	14	15	16
25	115	125	115	85	90	79	145/160	130	145	16	4	4	4	14	15	16
32	135	135	135	100	100	89	160/180	160	160	16	4	4	4	18	19	16
40	145	145	145	110	105	98	180	180	180	16	4	4	4	18	19	16
50	160	160	160	125	120	121	210	210	210	18	4	4	4	18	19	19
65	180	180	180	145	140	140	250	250	250	22	4	4	4	18	19	19
80	195	205	195	160	150	152	300	300	280	25	8	8	4*	18	19	19
100	215	215	220	180	175	190	350	350	340	25	8	8	8	18	19	19
125	245	245	245	210	210	216	400	400	400	30	8	8	8	18	19	22
150	280	280	280	240	240	241	460	460	480	30	8	8	8	22	23	22
200	340	340	340	295	290	298	575	575	575	38	8	12*	8	22	23	22
250	395	395	395	350	355	362	690	690	690	38	12	12	12	22	25	26
300	455	455	455	400	400	432	790	790	790	40	12	16*	12	22	25	26

Why Choose Our Solutions?

🔬 Expert R&D
Experienced in professional R&D since 2006.

💰 Competitive Pricing
Cost-effective products with high performance.

🛠️ Professional Support
Expert solutions for all technical challenges.

Working Temperature Ranges:

FRPP: -20ºC to +90ºC
UPVC: -40ºC to +60ºC
PVDF: -40ºC to +120ºC
CPVC: -40ºC to +95ºC

Workshop & Product Display

Exhibition Gallery

Frequently Asked Questions

What materials are available for the diaphragm valves?

We offer a wide range of thermoplastic materials including PVDF, CPVC, UPVC, FRPP, and PPH to suit different chemical and temperature requirements.

What is the maximum working temperature for these valves?

The maximum temperature depends on the material. PVDF valves can handle up to +120ºC, while CPVC goes up to +95ºC and FRPP up to +90ºC.

Which international standards do your valves comply with?

Our products are designed and manufactured according to JIS, DIN, ANSI, and GB standards to ensure global compatibility.

What size ranges do you provide for flow control valves?

For diaphragm valves, we offer 1/2" to 10". For other series, ball valves range from 1/2" to 12", butterfly valves from 1" to 24", and check valves from 1" to 6".

Are these valves suitable for corrosive environments?

Yes, the plastic materials (especially PVDF and UPVC) provide excellent anti-corrosion properties, making them ideal for chemicals, chlor-alkali, and electroplating industries.

Can these valves handle high-pressure systems?

These specific diaphragm valves are designed for low-pressure applications, with standard pressure ratings including PN10, CLASS150, and JIS10K.
