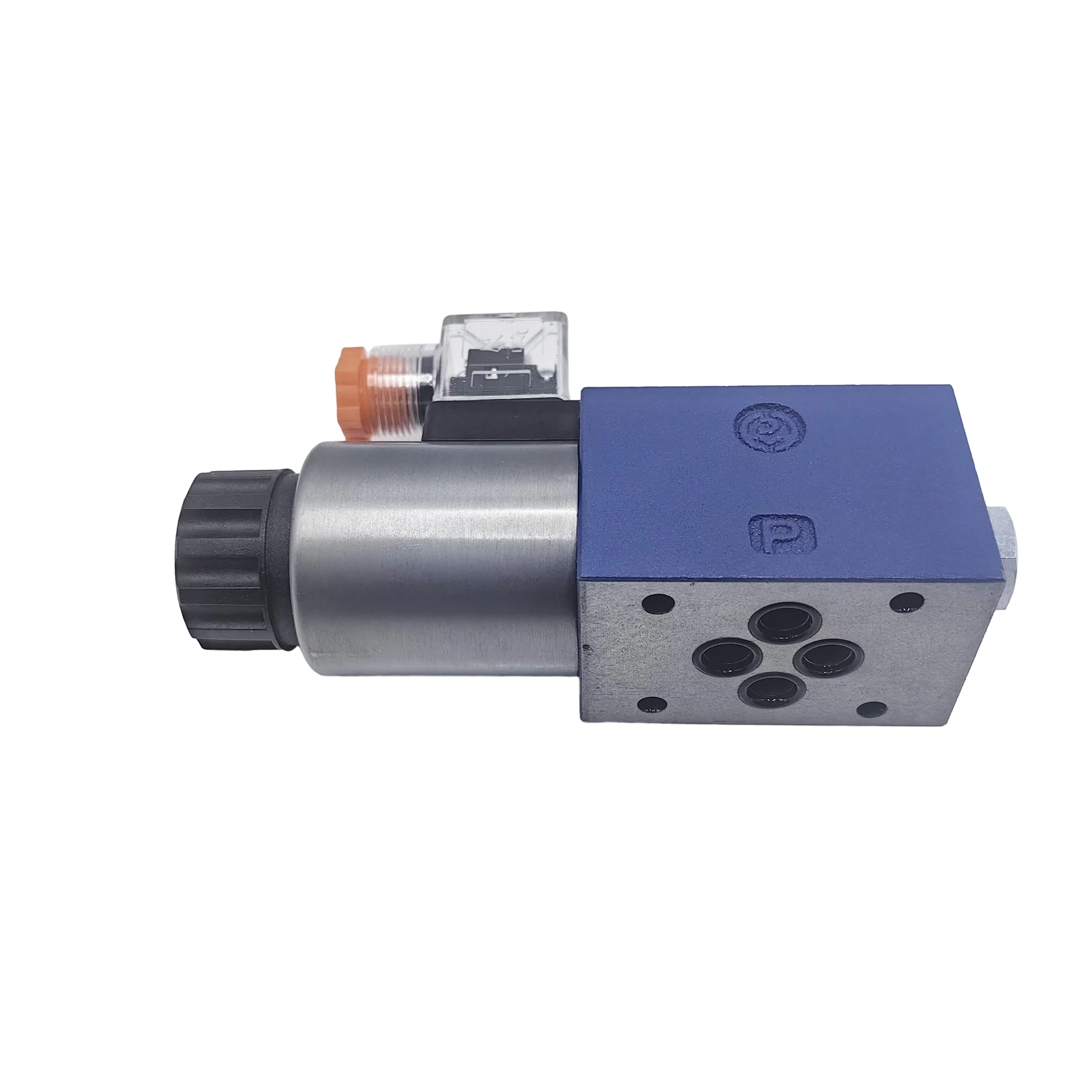

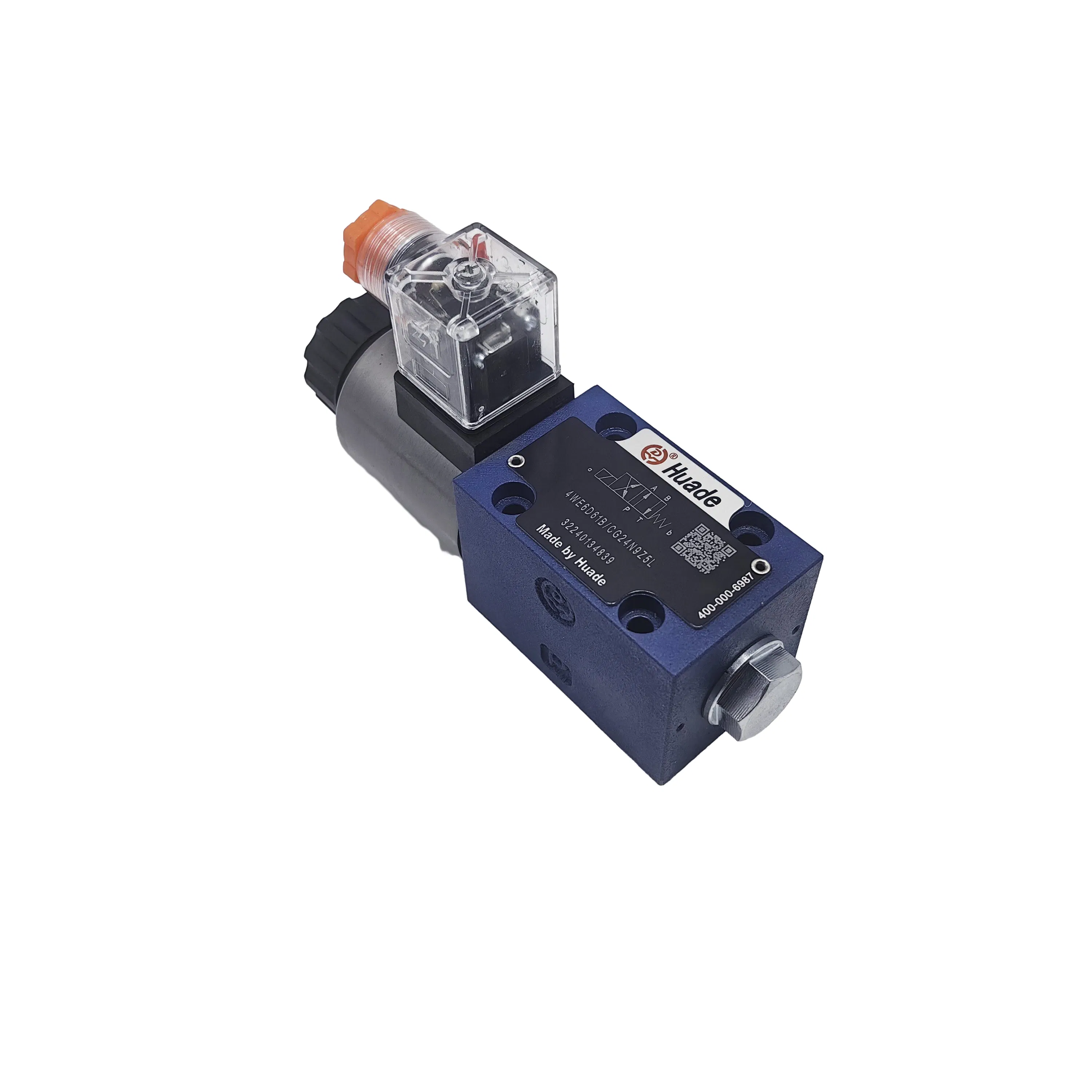

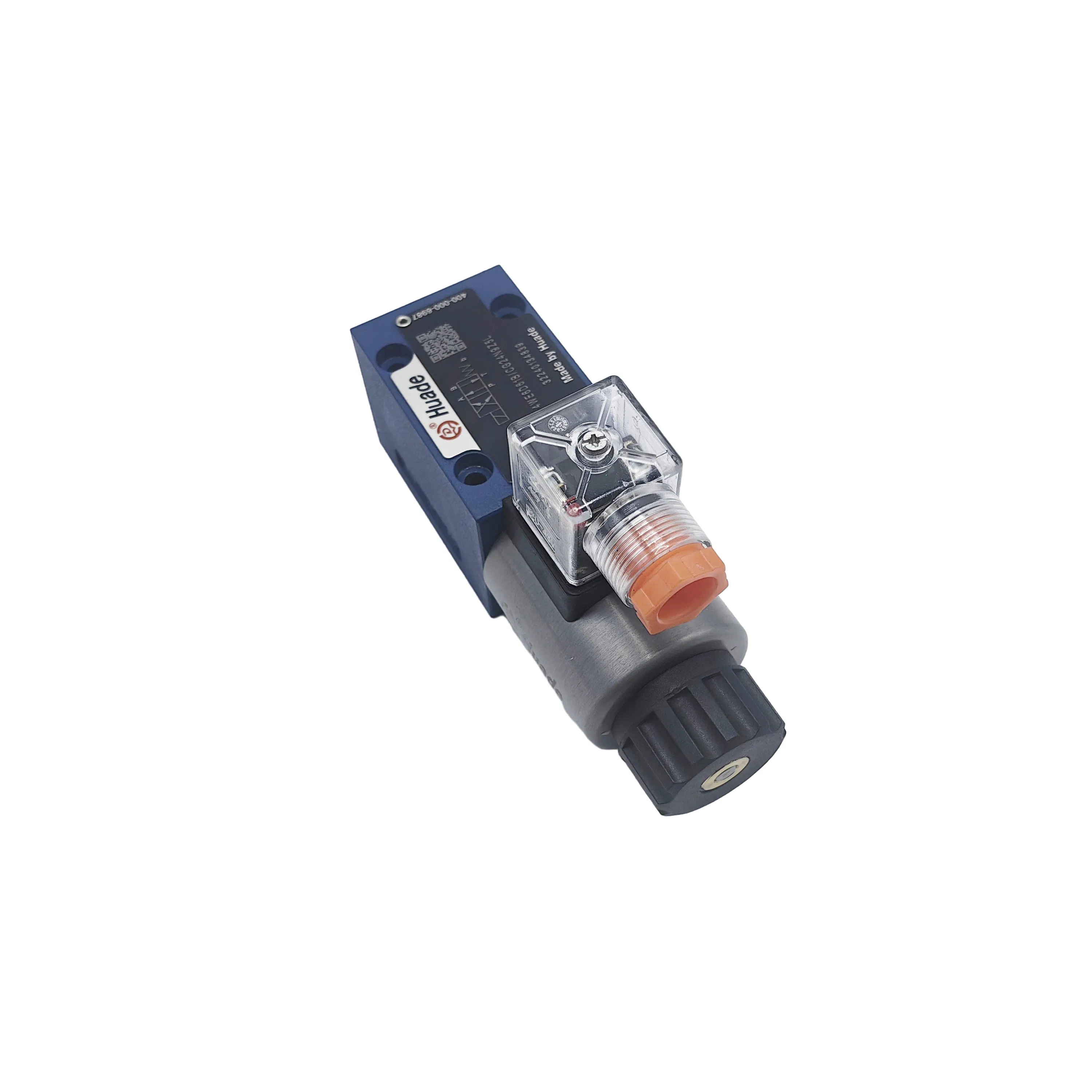

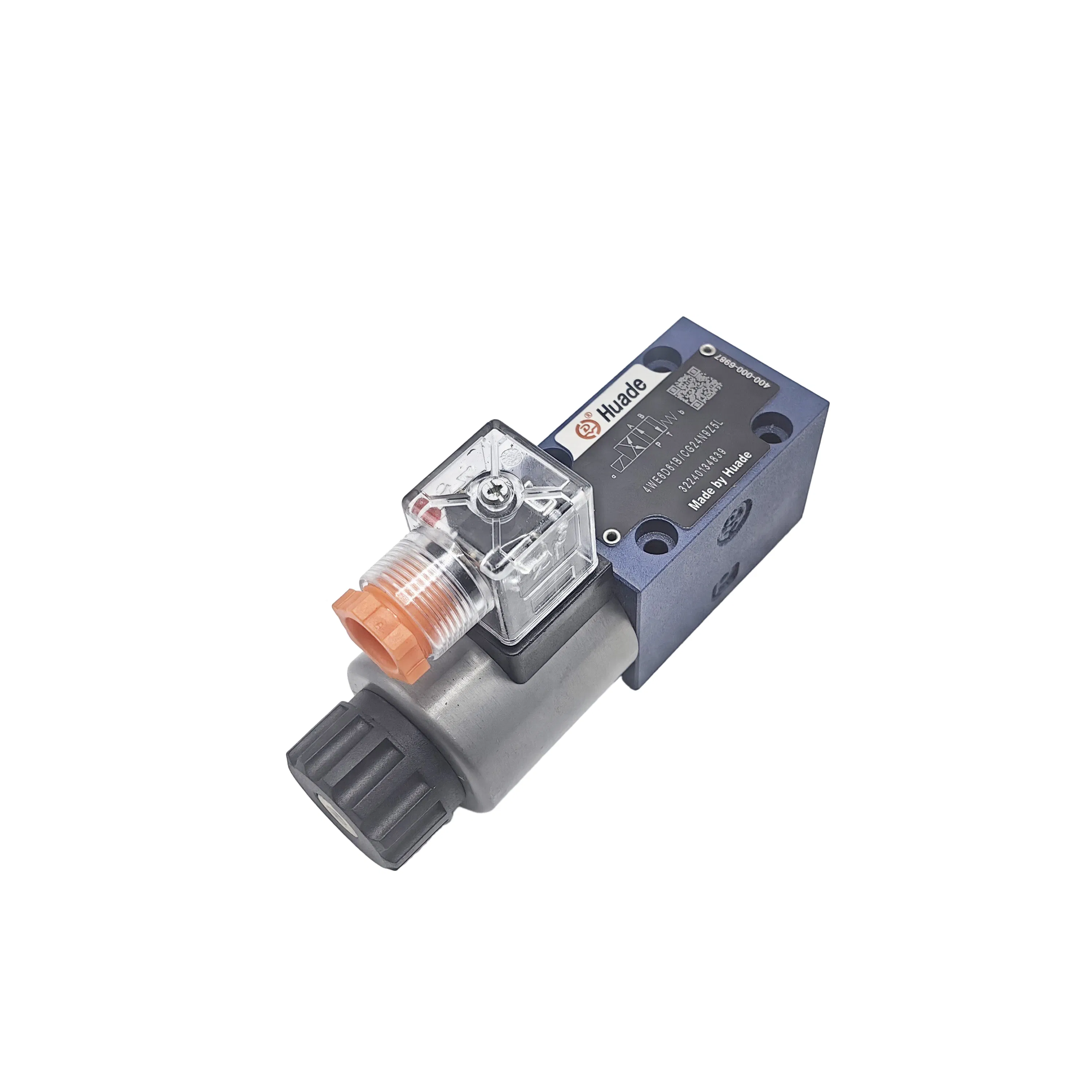

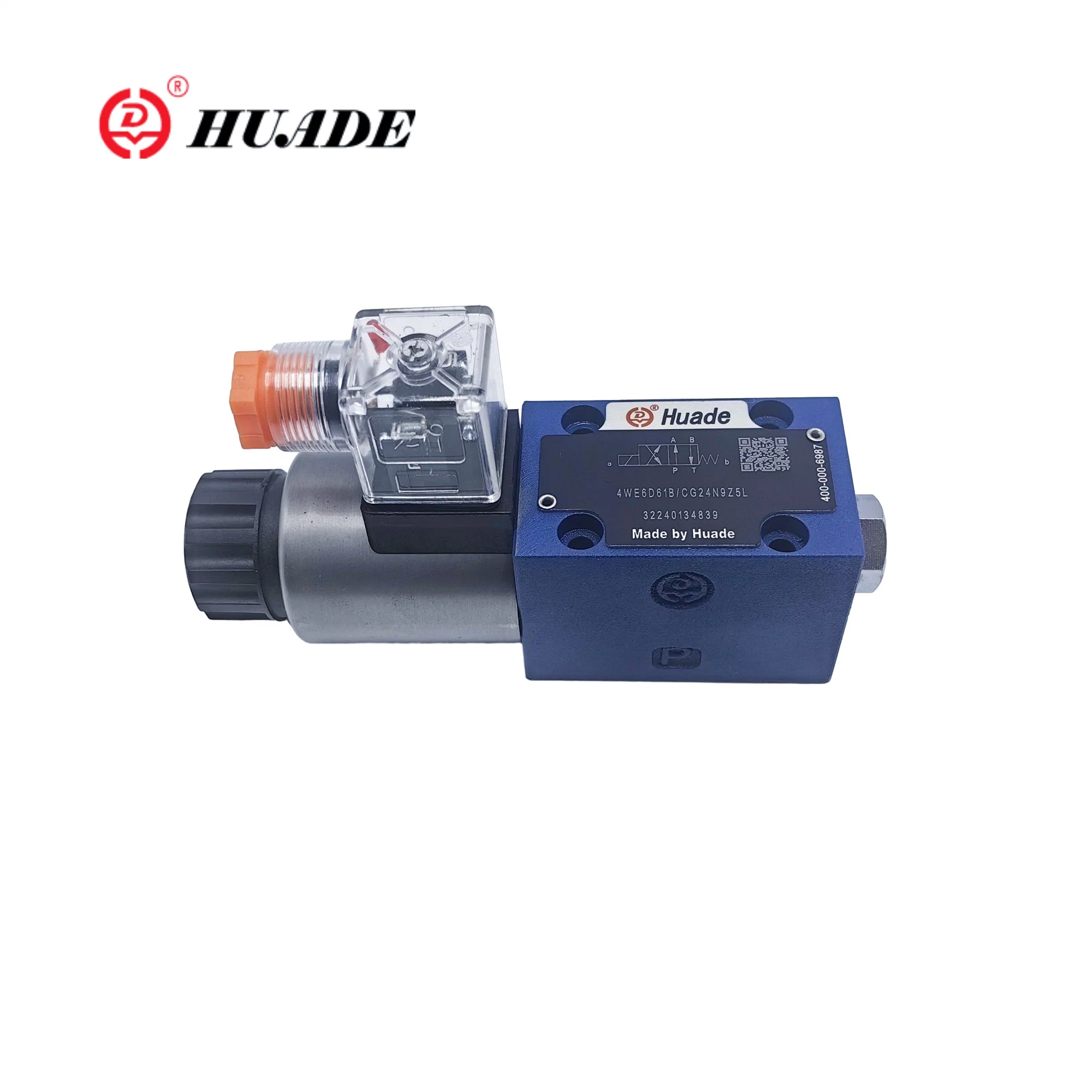

Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
1 / 5
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory
Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory

Industrial Hydraulic Solenoid Directional Valve 4WE6D61B/CG24N9Z5L Huade order from china factory

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️

Basic Product Specifications

Model NO.
4WE6D61B/CG24N9Z5L
Drive
Electric Hydraulic
Type
Directly Operated Type
Temperature
-30~80 Degree
Pressure
to 35MPa
Media
Mineral Oils or Phosphate Ester
Certification
CE, ISO9001
Warranty
1 Year
Material
Carbon Steel
Production Capacity
50000PCS/Year
📦

Packaging & Delivery

Package Size
10.00cm * 5.00cm * 9.00cm
Gross Weight
1.500kg
Transport Package
Carton
📝

Product Description

Industrial Hydraulic Solenoid Directional Valve

This series is specialized in hydraulic transmission and control technology. Established through historical strategic partnerships, these products incorporate cutting-edge technical standards.

Key Features:

  • High-efficiency hydraulic components designed for complete compatibility with industrial standards.
  • Leading manufacturing quality in hydraulic transmission.
  • Full range of control technology applications.
  • Preferential pricing available for bulk orders.
Valve Detail 1
Valve Detail 2
Valve Detail 3
Valve Detail 4
Separator
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
📊

Hydraulic & Electrical Data

Hydraulic Parameters
Max. operating pressure Ports A,B,P (Mpa)up to 35.0
Max. flow (L/min)80(-); 60(~)
Pressure fluidMineral Oils or Phosphate Ester
Viscosity range (mm²/s)2.8 ~ 500
Fluid temperature range (ºC)-30 ~ +80
Electrical Parameters
Voltage typeDCAC 50/60Hz
Available voltages (V)12, 24, 42, 60, 96, 110, 22042, 110, 120, 230
Power consumption (W) / Holding power (VA)30 W50 VA
Protection ClassIP 65
Switching frequency (cycles/h)up to 15000up to 7200
📋

Available Model Variants

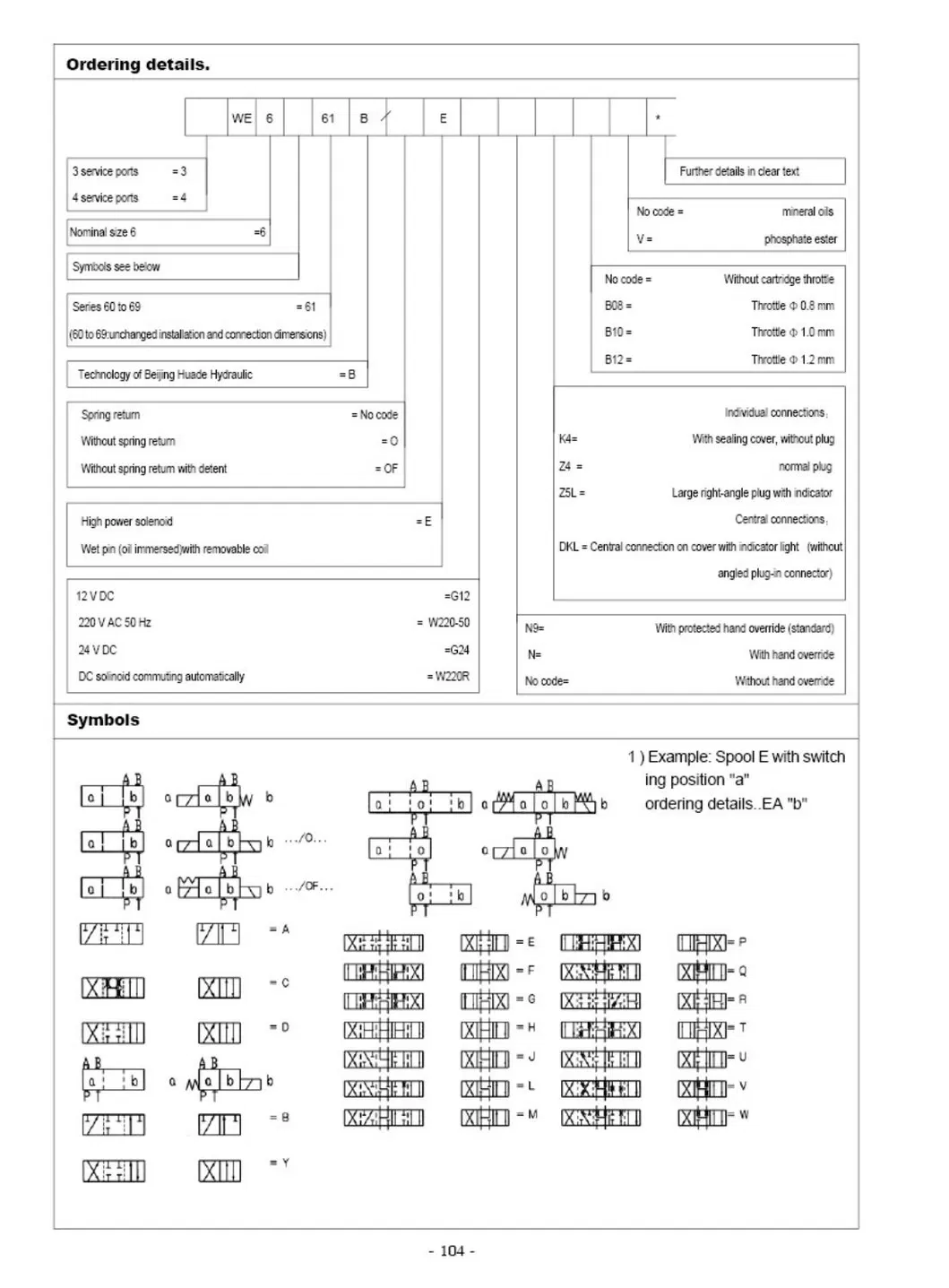

Dimension Table
4WE6D61B/OFCG24N12Z44WE6D61B/SG24N9Z5L/B104WE6D61B/CG24N10Z44WE6D61B/CG24N9Z5L
4WE6D61B/OFCG24N12Z5L4WE6D61B/SG24N9Z5L/V4WE6D61B/CG24N9Z4/FB/V4WE6D61B/CG24N9Z5L/B08
4WE6D61B/OFCG24N9DL4WE6D61B/OCG24N9DL4WE6D61B/CG24N9Z4/FB14WE6D61B/CG24N9Z5L/B10
4WE6D61B/OFCG24N9K44WE6D61B/OCG24N9Z44WE6D61B/CG24N9Z4/FS14WE6D61B/CG24N9Z5L/B12
Valve View 1
Valve View 2
Valve View 3
❓

Frequently Asked Questions

What is the maximum operating pressure for this solenoid valve?
The valve can handle a maximum operating pressure of up to 35 MPa for ports A, B, and P.
What types of media are compatible with the 4WE6D61B series?
It is designed for use with Mineral Oils or Phosphate Ester fluids.
What is the protection rating for the electrical components?
The valve meets the IP 65 protection class according to DIN standards, ensuring resistance against dust and low-pressure water jets.
What is the allowable temperature range for the hydraulic fluid?
The permissible pressure fluid temperature range is between -30ºC and +80ºC.
Are different voltage options available for the solenoid?
Yes, it supports various DC voltages (12V, 24V, 42V, etc.) and AC voltages (110V, 120V, 230V at 50/60Hz).
What is the switching frequency capability of the valve?
For DC models, the switching frequency is up to 15,000 cycles per hour, while AC models support up to 7,200 cycles per hour.
