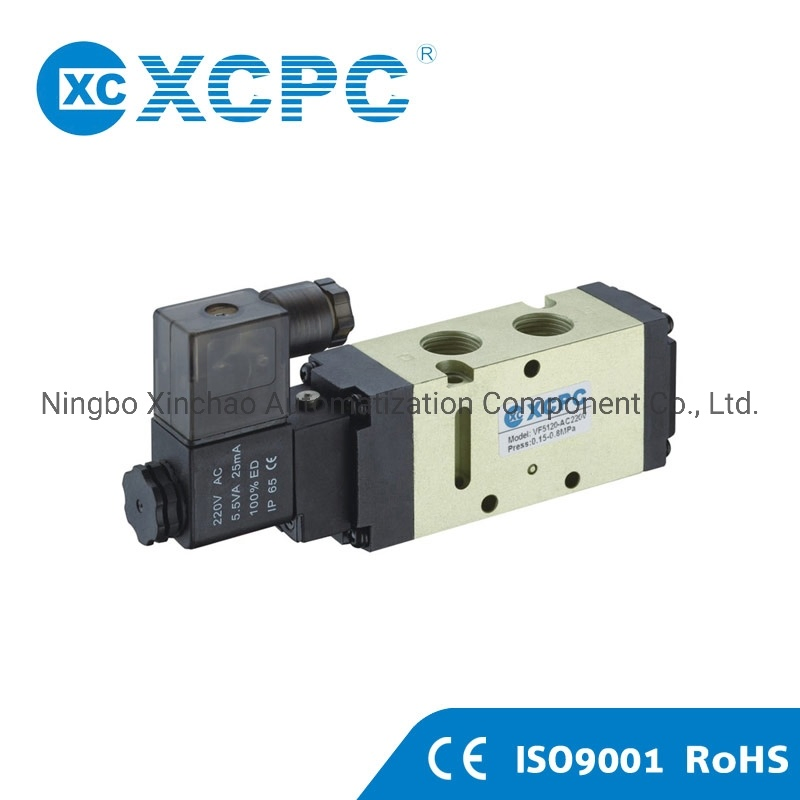

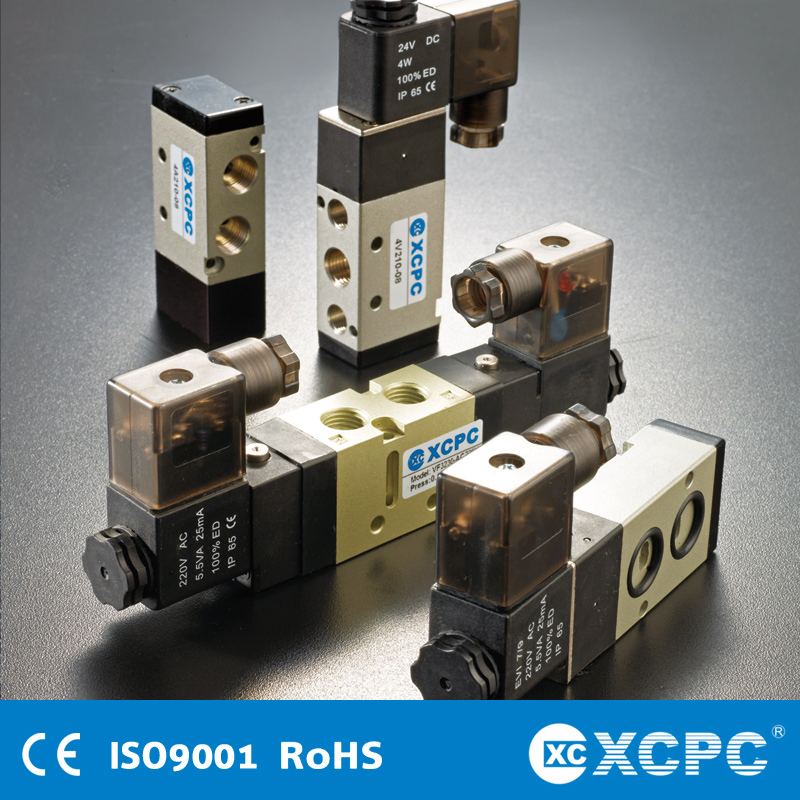

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

1 / 5

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

China Manufacturer Pneumatic Solenoid Valve

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

4V 210-08

Actuator

Electric

Connection Form

Thread

Type

Direct Acting

Material

Aluminum Alloy

Working Pressure

0.15~0.8MPa

Power Supply

AC and DC

Port Size

1/8", 1/4", 3/8", 1/2"

Application

Industrial Usage, Water Industrial

Protection Class

F Class, IP65

Product Description & Technical Data

⚙️ Core Working Parameters

Working Medium: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Max. Pressure Resistance: 1.2MPa
Operating Temperature: 5~50°C
Voltage Range: ±10%

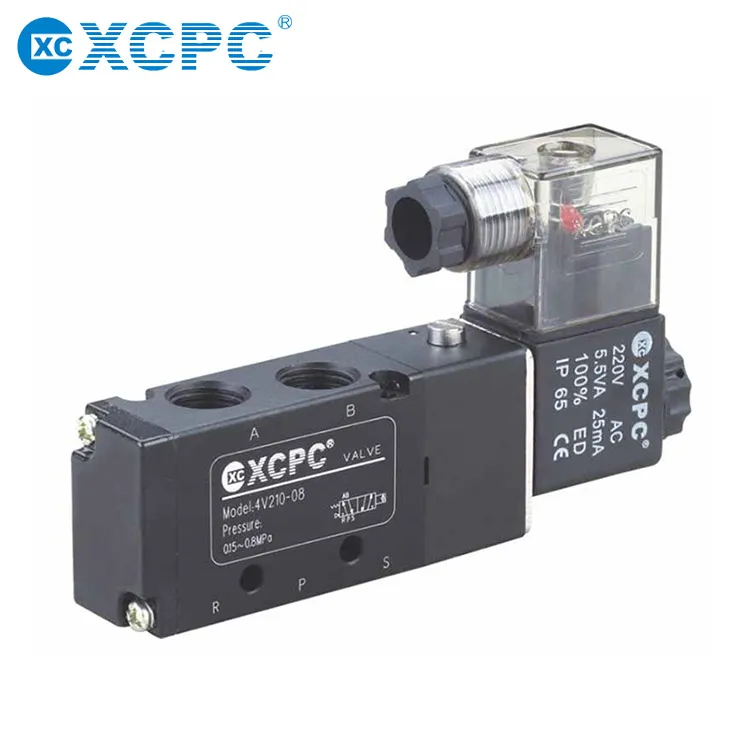

Pneumatic Solenoid Valve

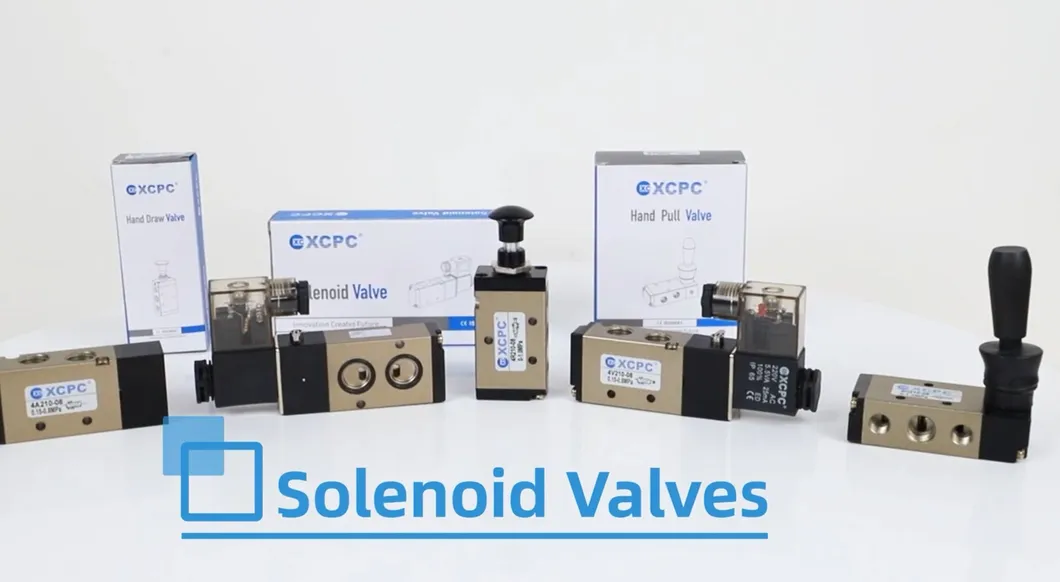

Technical Layout

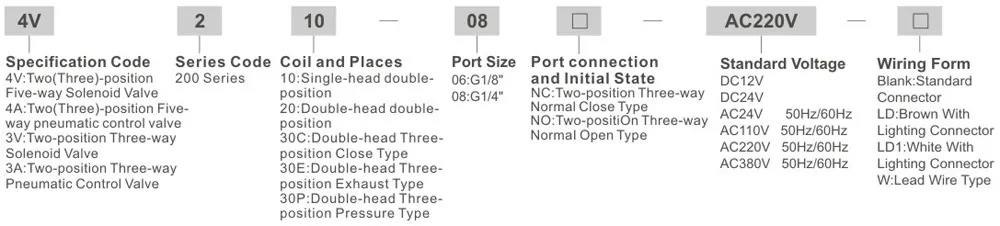

Ordering Code

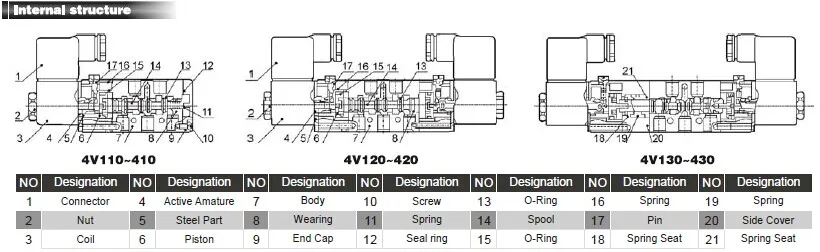

Selection Chart

Detailed Specifications Table

Feature	4V210-06 / 4V220-06	4V210-08 / 4V220-08
Position & Way	Two-position Five-way	Two-position Five-way
Effective Sectional Area	14mm² (CV=0.78)	16mm² (CV=0.89)
Joint Pipe Bore	G1/8"	G1/4"
Power Consumption	AC: 2.5VA \| DC: 2.5W
Max Frequency	5 Cycle / Second

Dimensions & Applications

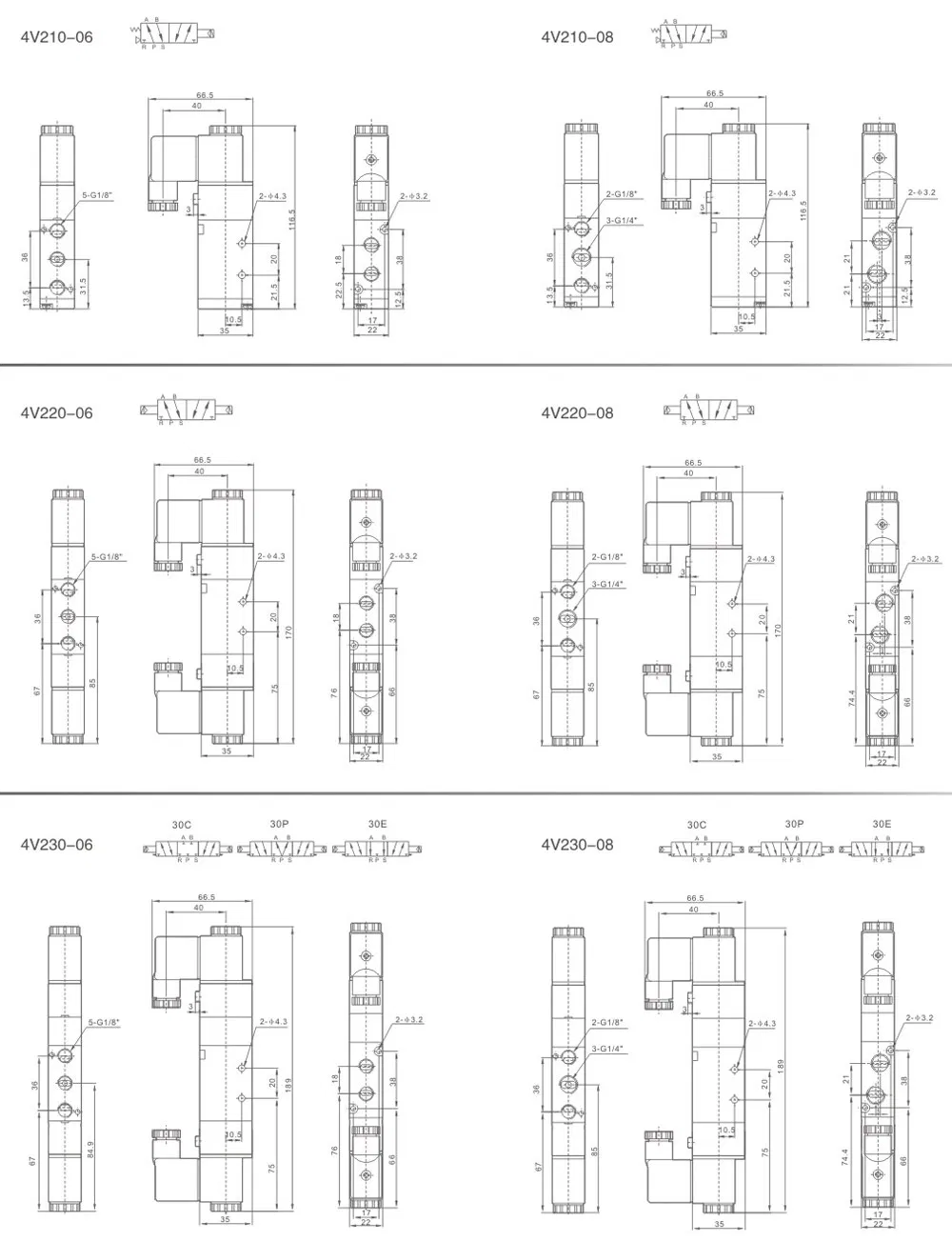

Dimension A

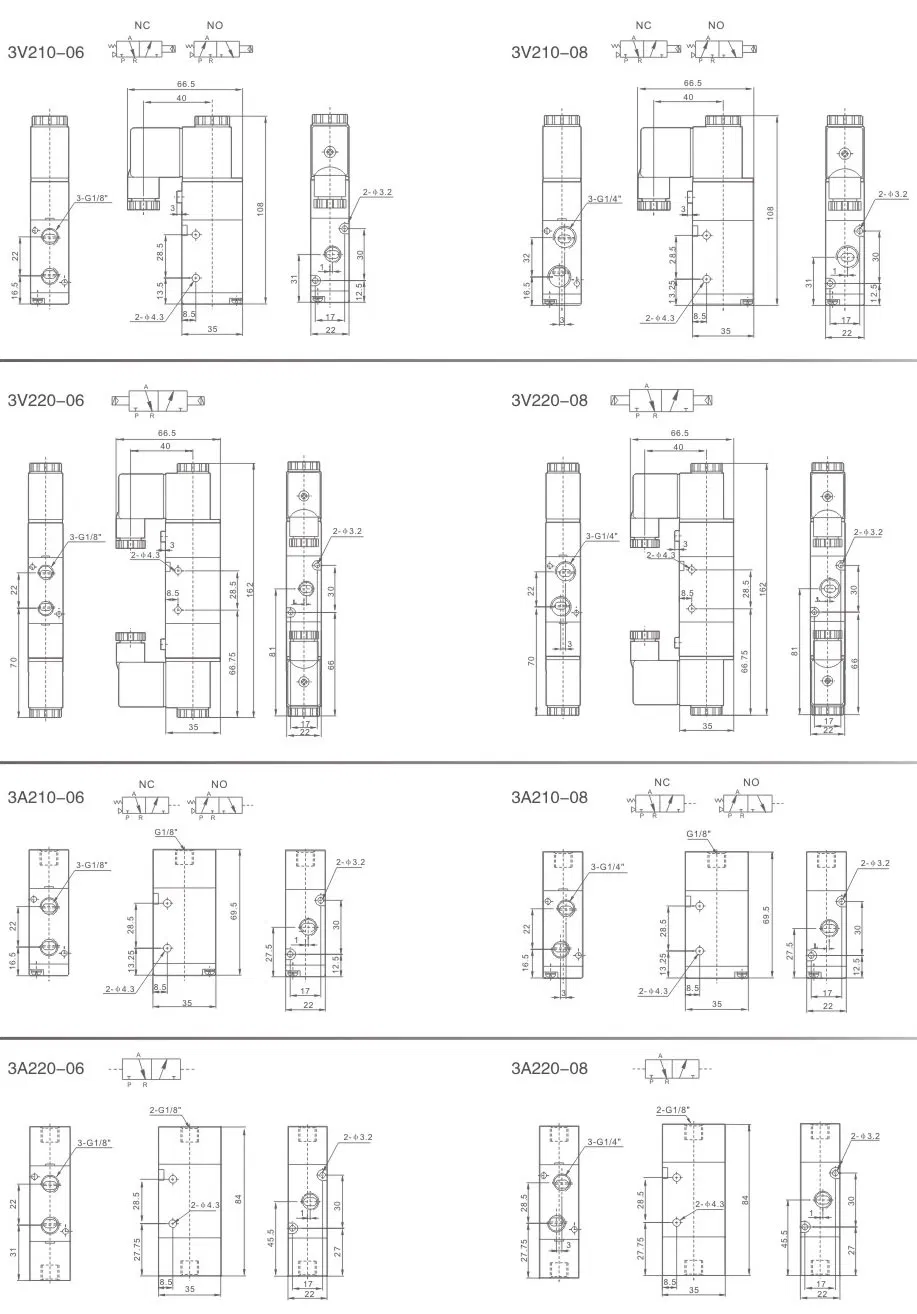

Dimension B

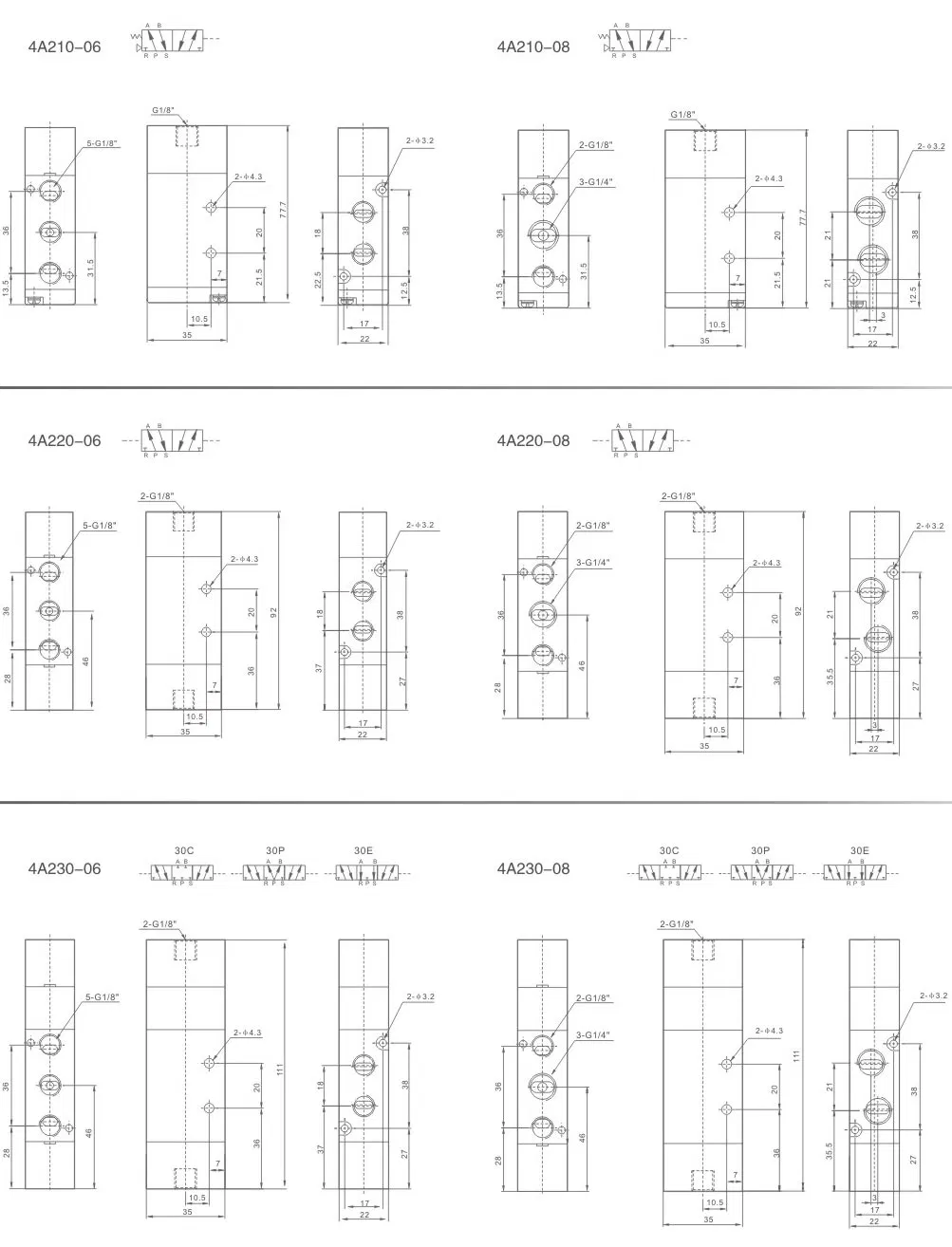

Dimension C

Application Case

Packaging & Delivery

Package Size

36.00cm * 27.00cm * 26.00cm

Gross Weight

22.000kg

Transport Package

Pallet, Seal Paper, Carton

Packaging Logistics

Frequently Asked Questions (FAQ)

What is the recommended working medium for this solenoid valve?

The valve is designed for use with 40 Micron filtered air to ensure optimal performance and longevity.

What are the pressure limitations?

The standard working pressure range is 0.15~0.8MPa, with a maximum pressure resistance of up to 1.2MPa.

Can this valve operate in extreme temperatures?

The recommended operating temperature range is between 5°C and 50°C.

What is the protection rating for the electrical components?

The valve features an Insulation and Protection Class of F Class and IP65, making it suitable for industrial environments.

What is the maximum action frequency?

This model supports a highest action frequency of 5 cycles per second with a shortest excitation time of 0.05 seconds.

What power supplies are compatible?

The valve supports both AC (2.5VA) and DC (2.5W) power supplies within a ±10% voltage range.
