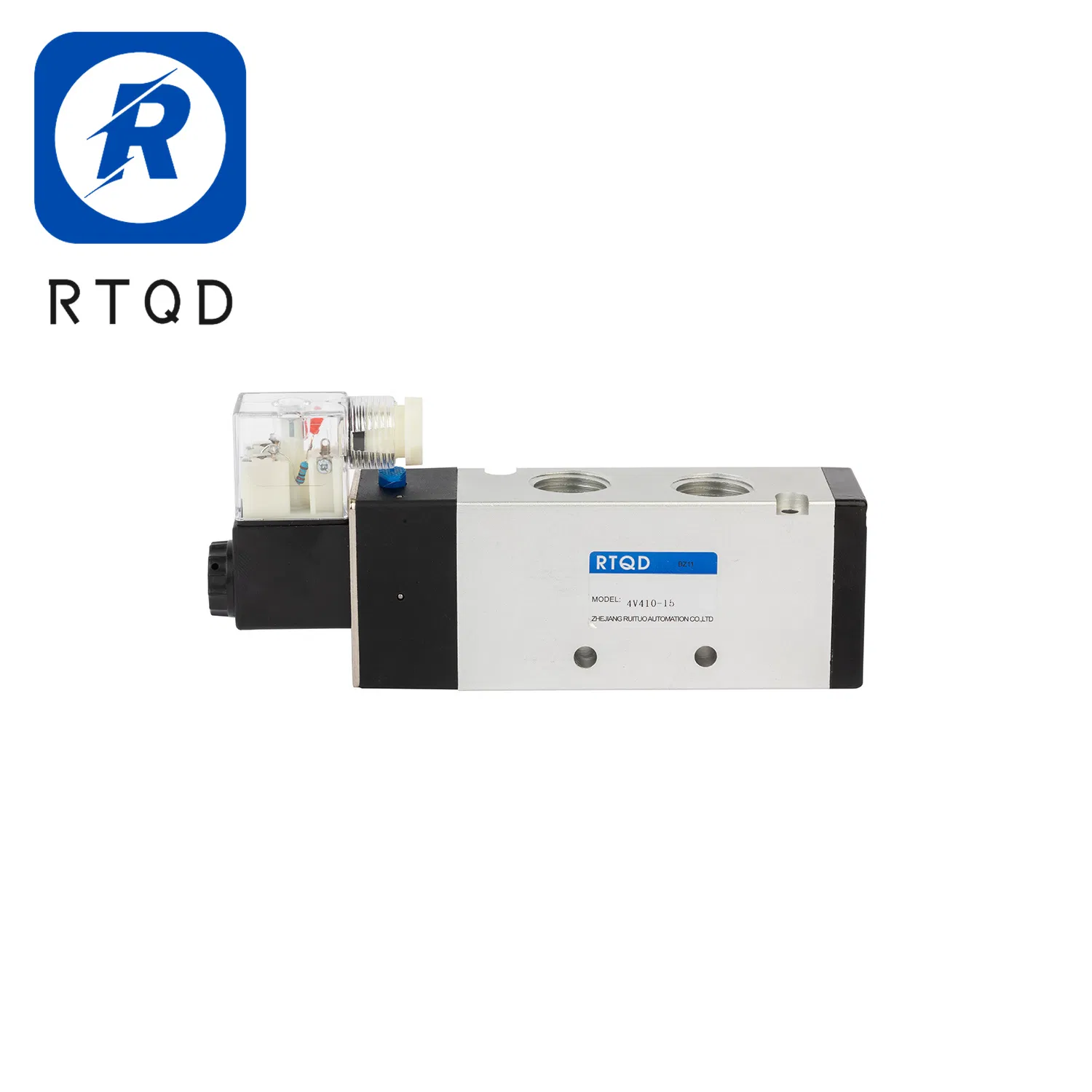

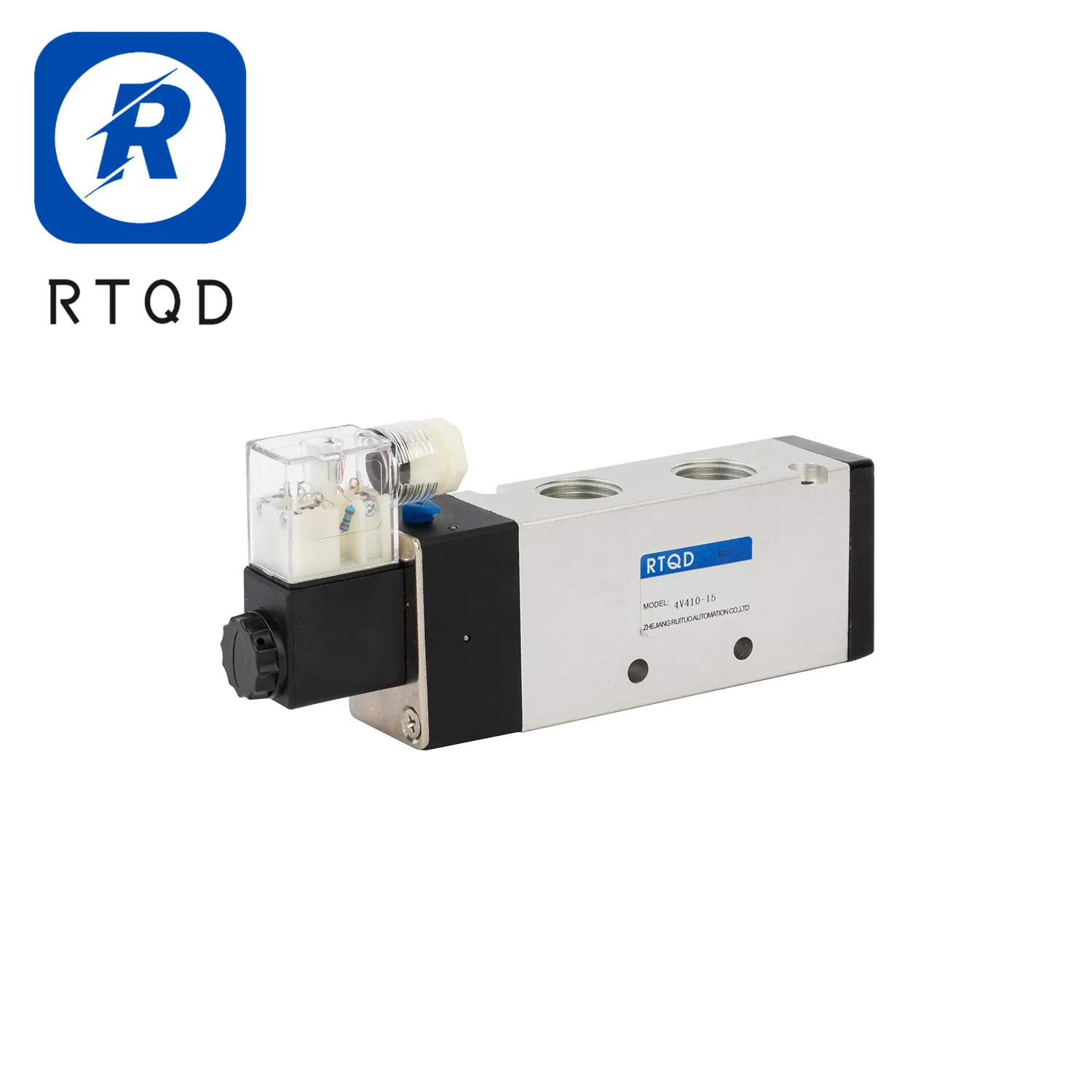

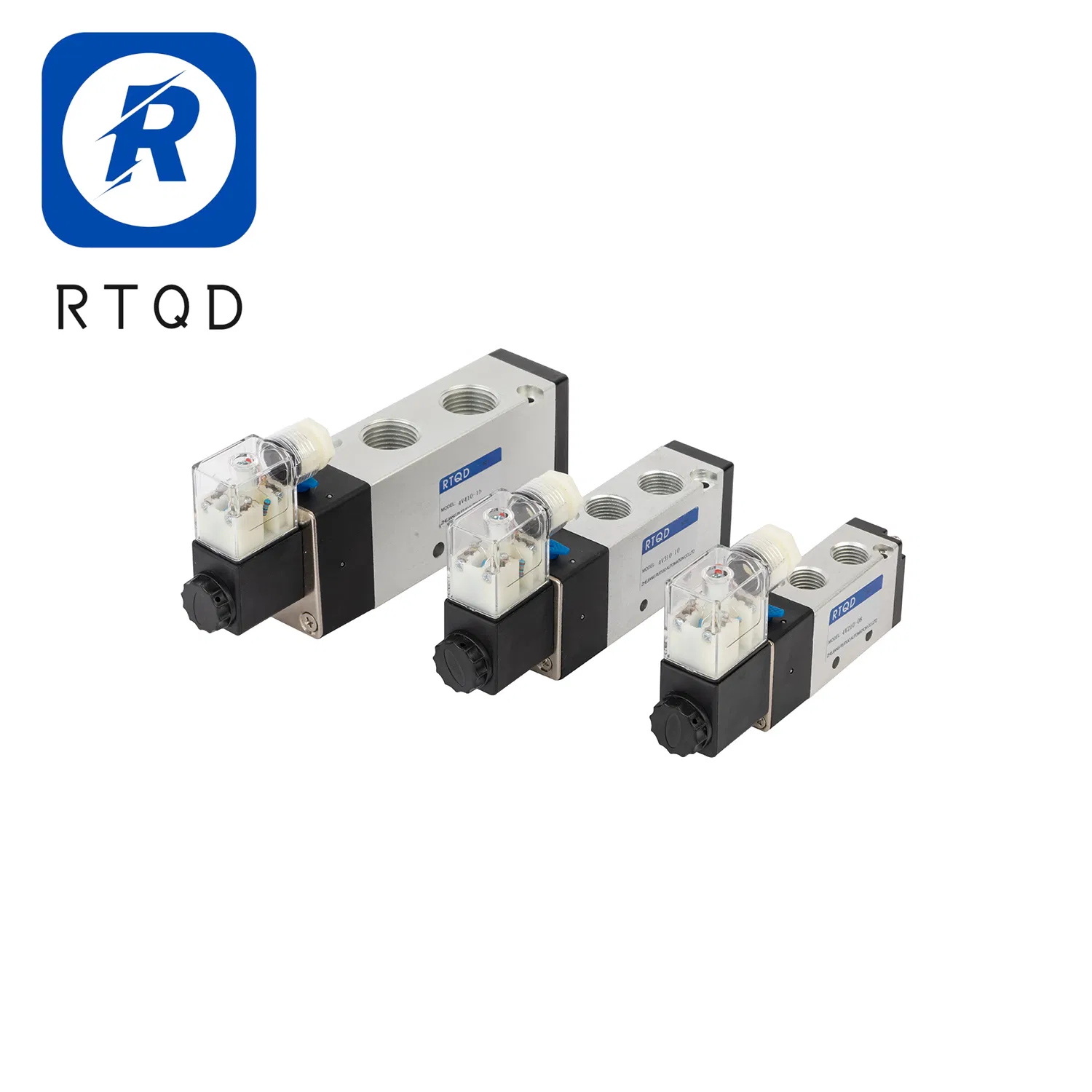

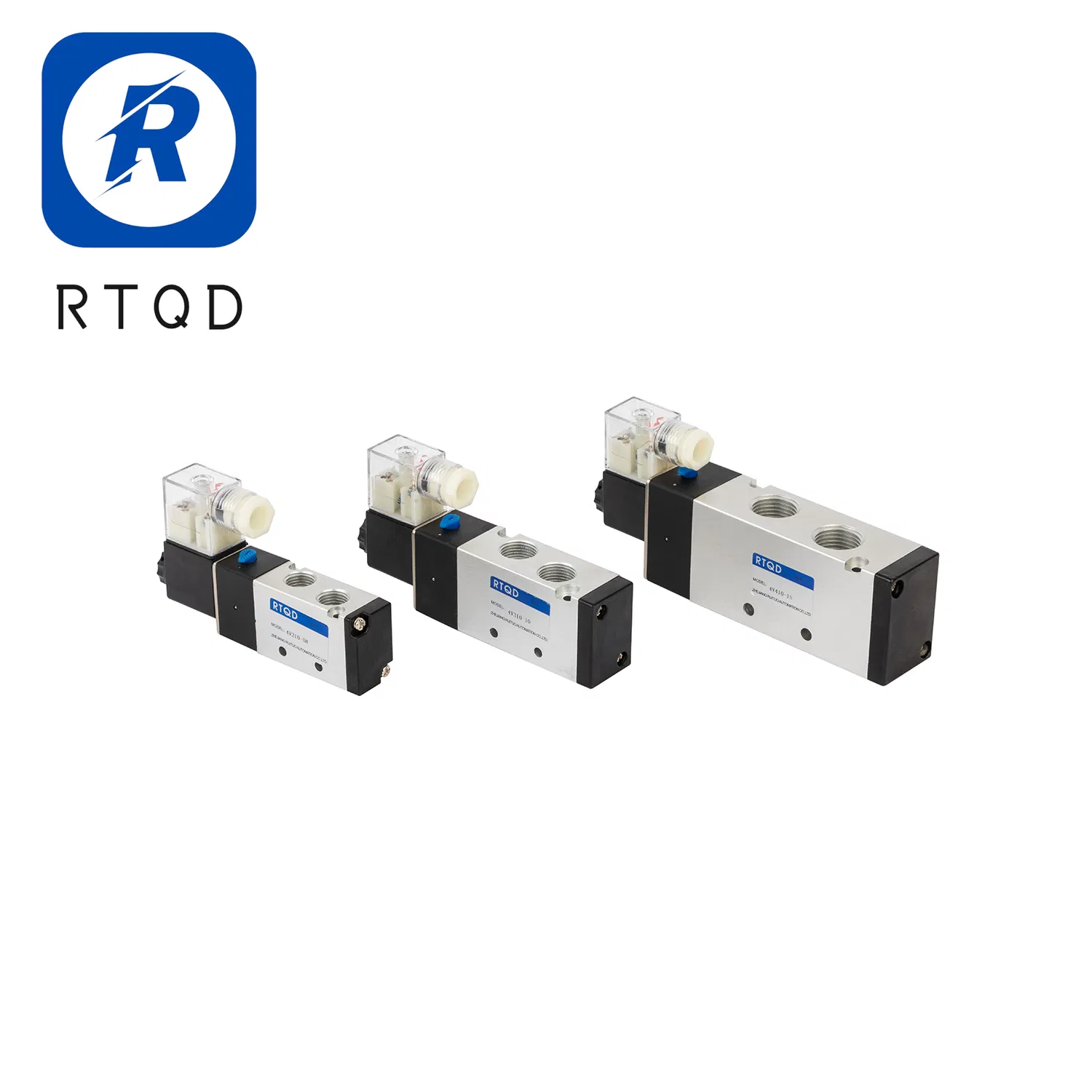

4V110/4V210 G1/4 Automatic 5/2 Way Acting Type Pneumatic Actuator Air Compressor Miniature Solenoid Valve

Basic Specifications

Model NO.

4V Solenoid Valve

Actuator

Pneumatic

Connection Form

Thread

Type

Pilot Operated

Material

Aluminum

Valve Structure

Pilot Piston Structure

Power Supply

AC Solenoid Valve

Working Temp.

-5~55℃

Pressure Range

0.15~0.8 MPa

Standard

DIN

Product Description

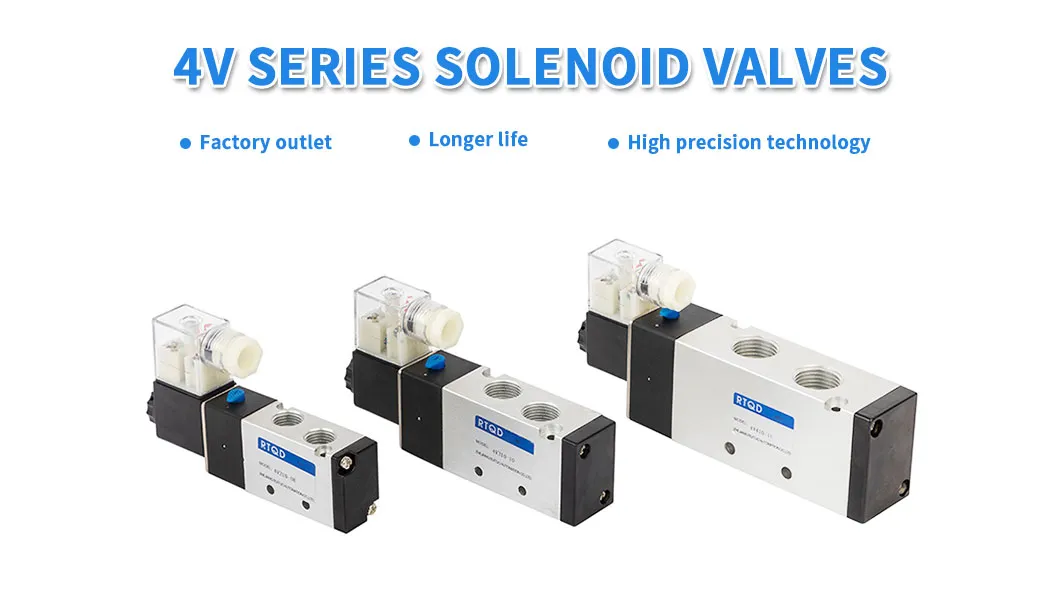

Model	Thread	Port Area	CV Value	Coil Power	Type	Voltage
4V110-06	G1/8	12mm	0.56	3VA	5/2 Port Single Coil	DC12V, DC24V, DC36V, AC110V, AC220V, AC380V
4V210-08	G1/4	16mm²	0.78	3VA	5/2 Port Single Coil

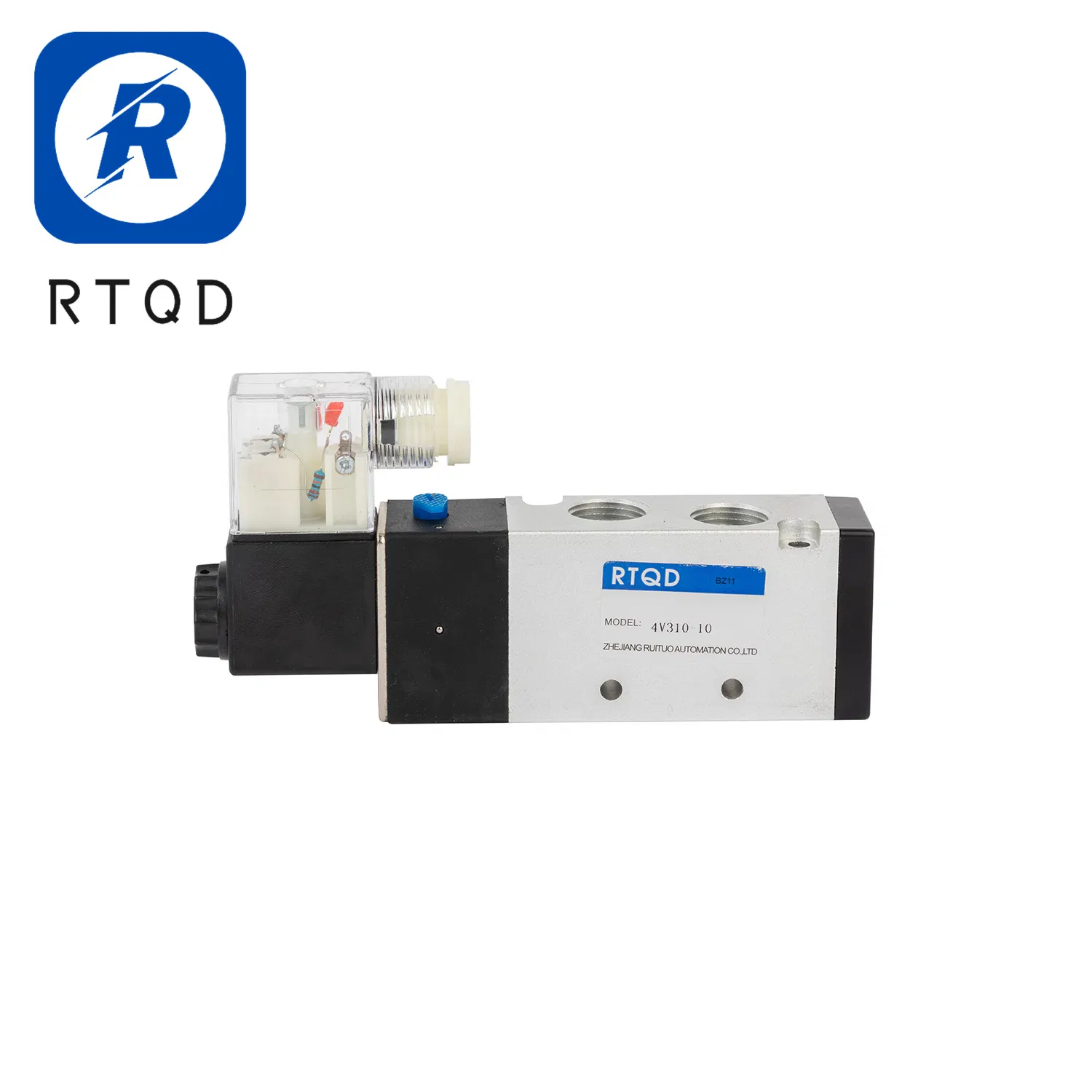

4V310-10	G3/8	30mm	1.40	3VA	5/2 Port Single Coil
4V410-15	G1/2	50mm	2.80	3VA	5/2 Port Single Coil

✓

Low Pressure Start: Only 25 Psi required to start the pneumatic valve, making it easy to operate and install.

✓

Manual Override: Integrated manual button for testing product status during power-up phases.

✓

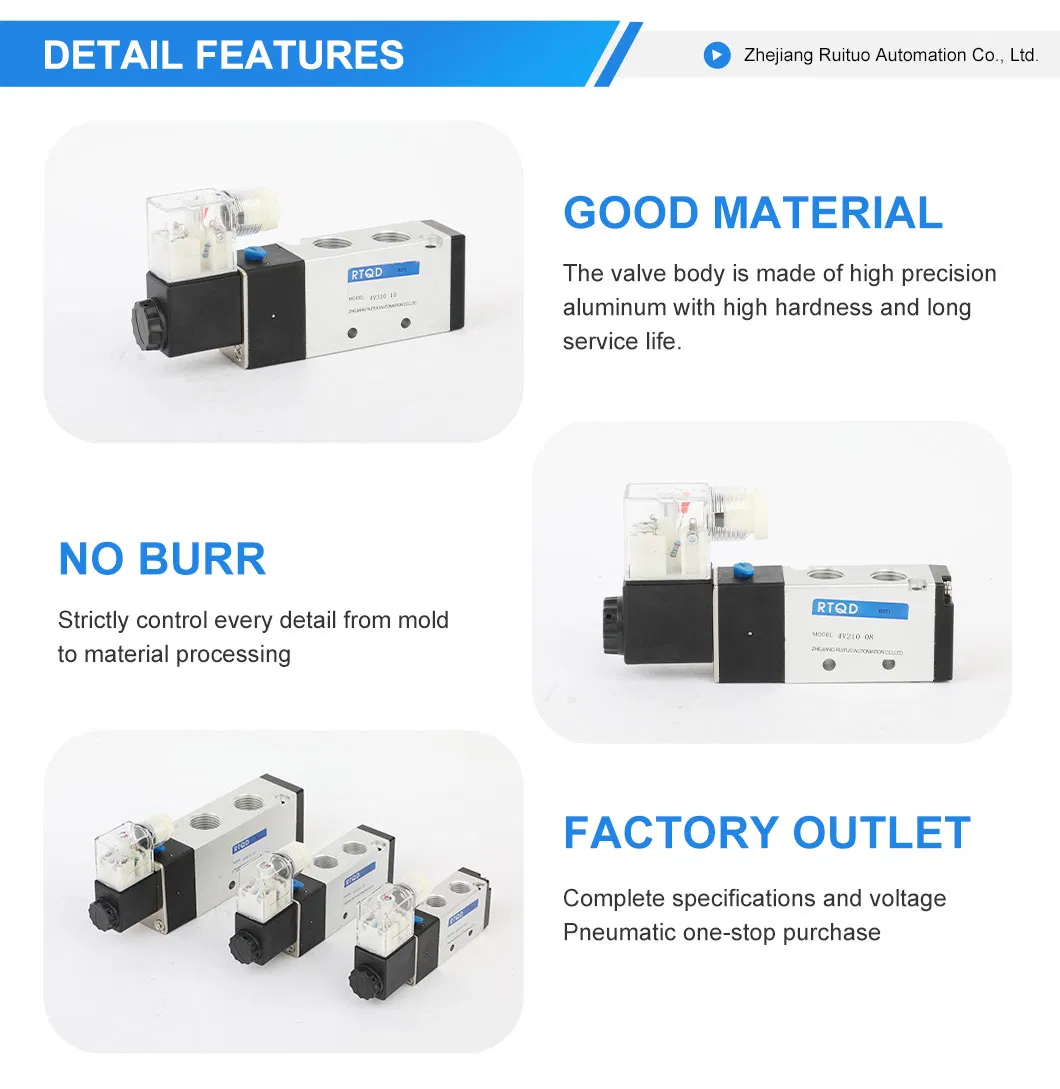

Durable Body: High-precision aluminum construction ensures high hardness and an extended service life.

✓

Internal Pilot: Features a sliding column structure for superior sealing performance and responsiveness.

✓

Precision Threads: Every thread is finely processed without burrs for smooth installation.

✓

Leak Prevention: High concentricity seal ring with lubricated rubber pads reduces friction and prevents leaks.

Product Technical Display

Corporate Overview & Global Reach

We continuously maintain excellent quality and a strong professional reputation. We welcome partners globally to establish lasting cooperative relationships for mutual business development.

Our products are exported to various international markets including the United States, Germany, the Middle East, Southeast Asia, and Europe, meeting rigorous industrial standards across different regions.

Packaging & Logistics

Frequently Asked Questions

Q1: Are samples available for quality verification? A: Yes, sample orders are available for quality checks and market testing. Express shipping costs are covered by the buyer.

Q2: What is the typical delivery timeframe? A: Small orders usually take 3-5 working days, while bulk orders typically require 10-15 days.

Q3: What are your warranty terms? A: We offer a 12-month comprehensive warranty on our products.

Q4: Do you keep products in stock? A: Standard models are kept in stock. Special items or large-scale orders are produced according to your specific requirements.

Q5: Can different models be mixed in one container? A: Yes, different models can be combined in a single container or even within a single order.

Q6: How is quality control managed? A: Quality is our priority. Every product is fully assembled and undergoes 100% inspection and testing before packaging and shipment.
