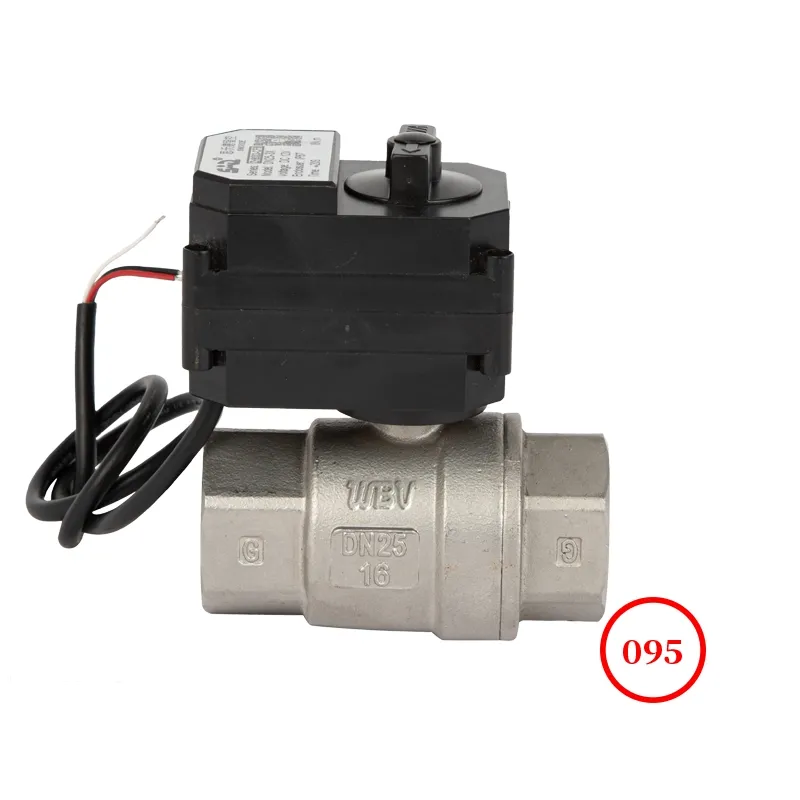

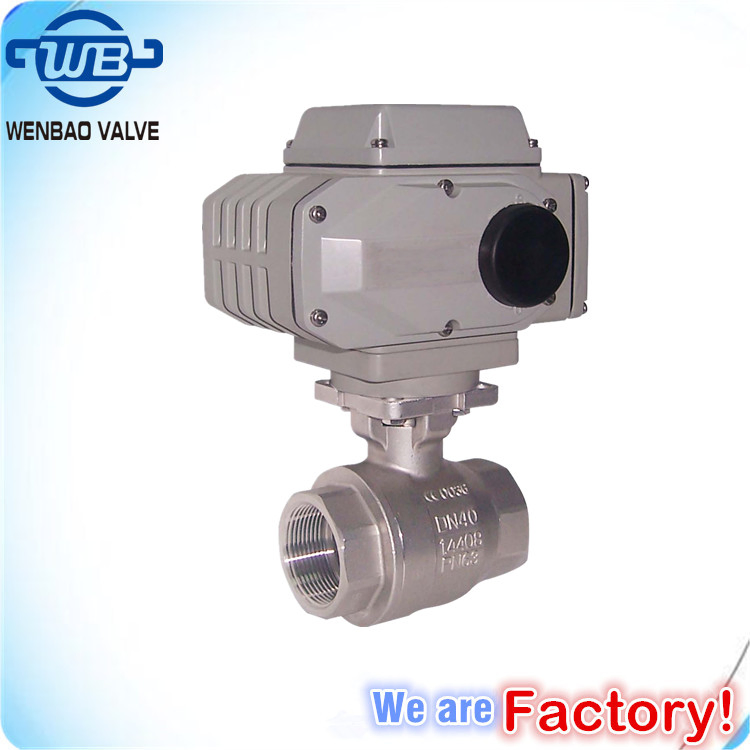

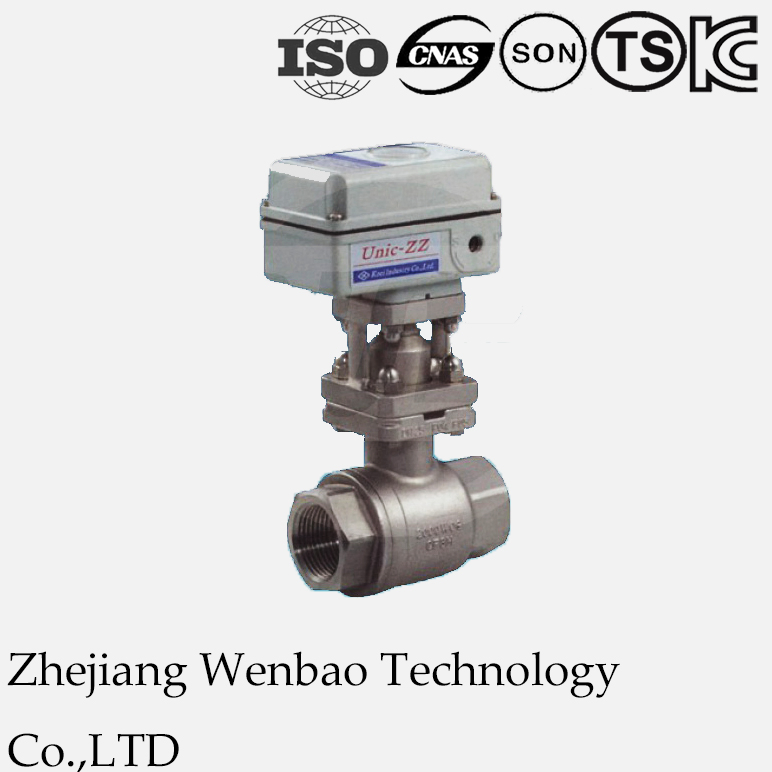

A 2PC Threaded Miniature Electric Ball Valve integrates a high-performance two-piece ball valve body with a compact electric actuator. The valve body consists of two main parts: the main body and the end cap. It is precision-cast from stainless steel to ensure material density and strength.
The working principle is based on the electric actuator receiving standard electrical signals to drive the motor into rotation. This integrated design features a compact structure, saves space, and eliminates the need for complex linkages.
Detailed CAD drawings and dimensional diagrams are available upon inquiry. We provide tailored designs to meet specific project requirements.

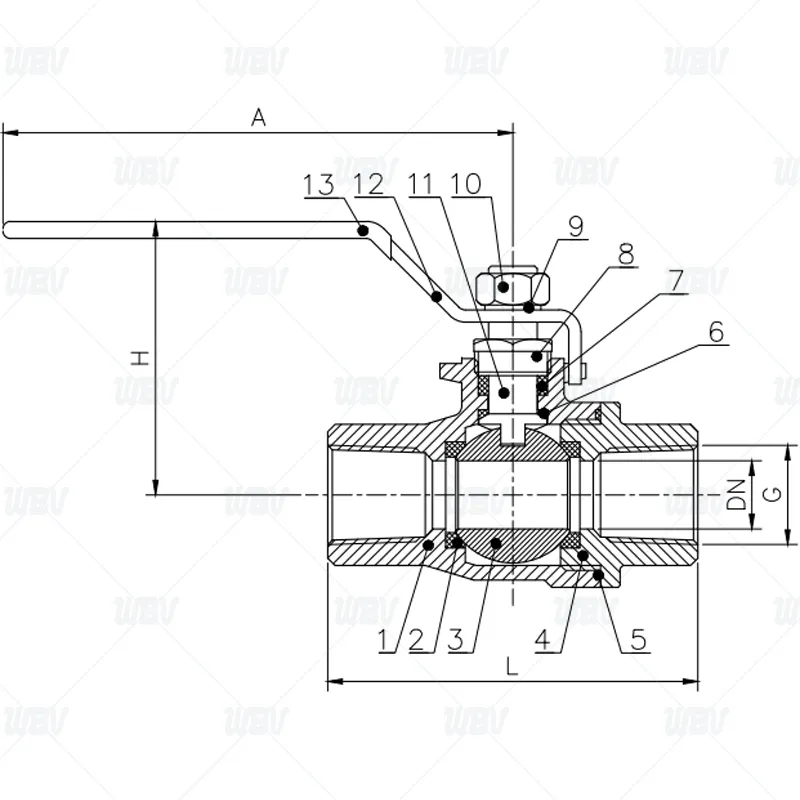

| 2-PC DIN Threaded Ball Valve with Handlever | |||||
| NPS | DN | G | L | H | A |
| 1/2" | 14 | 1/2" | 76 | 56 | 110 |
| 3/4" | 19 | 3/4" | 80 | 56 | 110 |
| 1" | 24 | 1" | 90 | 70 | 130 |
| 1 1/4" | 32 | 1 1/4" | 110 | 75 | 150 |
| 1 1/2" | 38 | 1 1/2" | 120 | 90 | 160 |
| 2" | 48 | 2" | 140 | 100 | 160 |

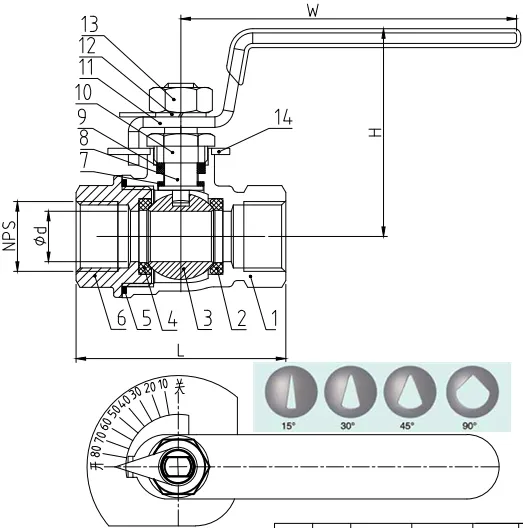

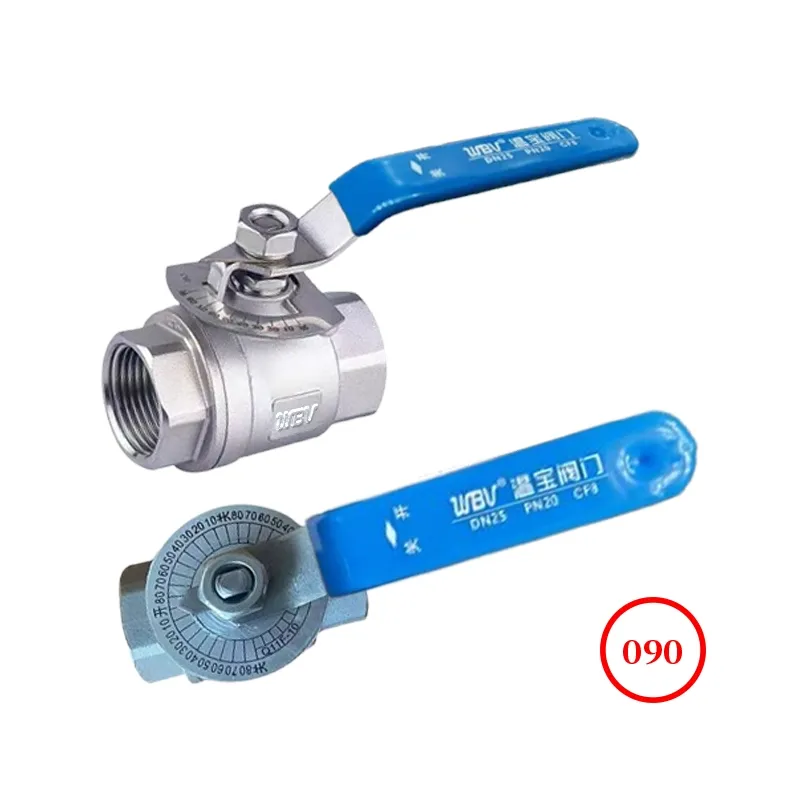

| 2PC V-Port Ball Valve with Calibrated Scale | ||||
| NPS | φd | L | H | W |
| 15A | 15 | 58 | 52 | 92 |
| 20A | 20 | 64 | 58 | 103 |
| 25A | 25 | 78 | 65 | 112 |
| 32A | 32 | 89 | 75 | 135 |
| 40A | 40 | 97 | 83 | 140 |
| 50A | 50 | 110 | 92 | 160 |

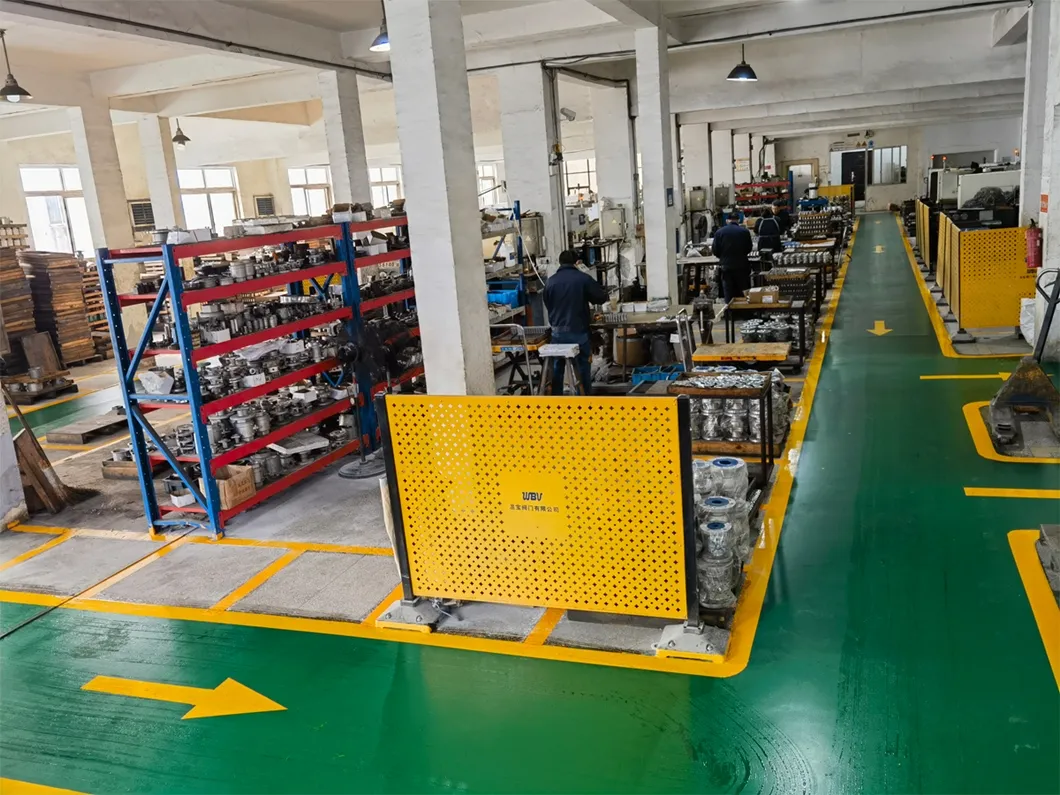

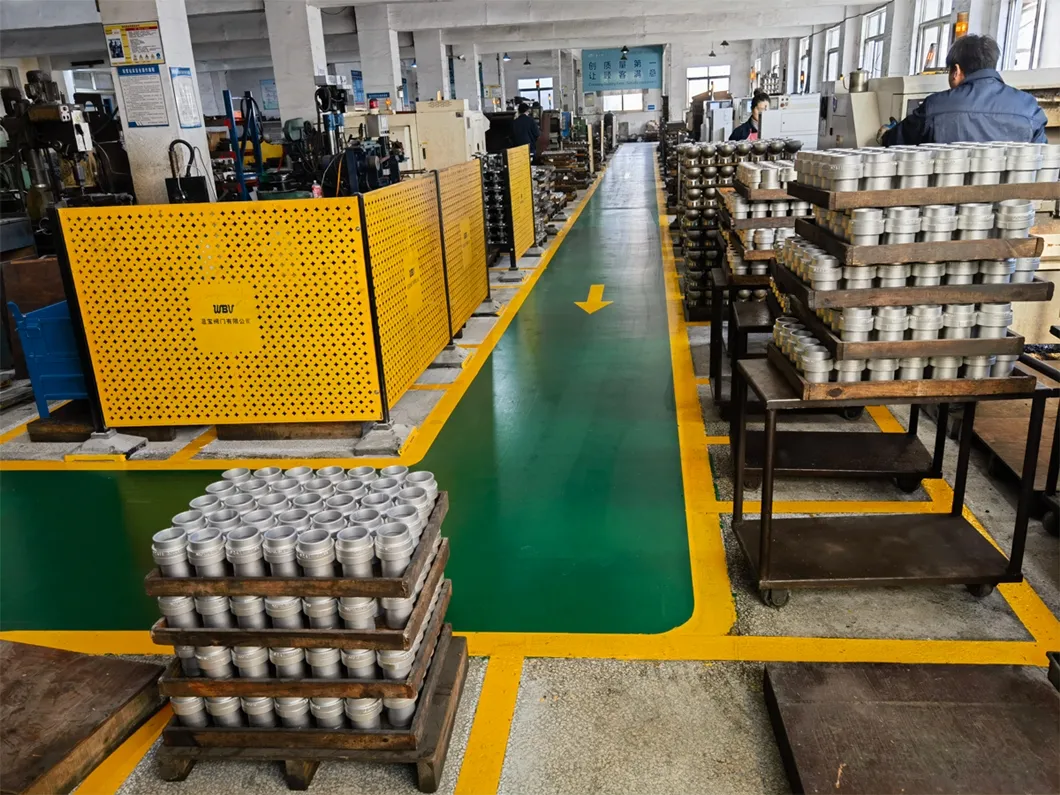

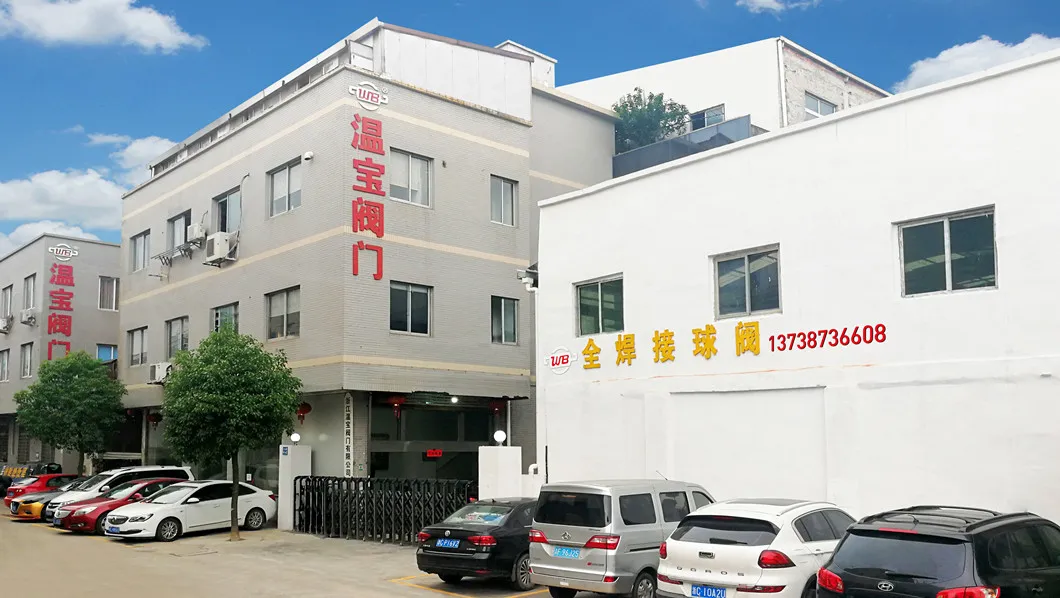

Our facility features a construction area of 9,000 square meters. Since 1985, we have been committed to continuous technological innovation and product development. Products are manufactured in accordance with international standards such as GOST, ANSI, JIS, ISO, BS, JB, and GB.
Equipped with CAD valve design, quality inspection, and testing centers, our powerful production capacity effectively improves product quality. Our main product range includes gate valves, globe valves, check valves, butterfly valves, and specialized welded ball valves designed for leak-free performance under rigorous conditions.
