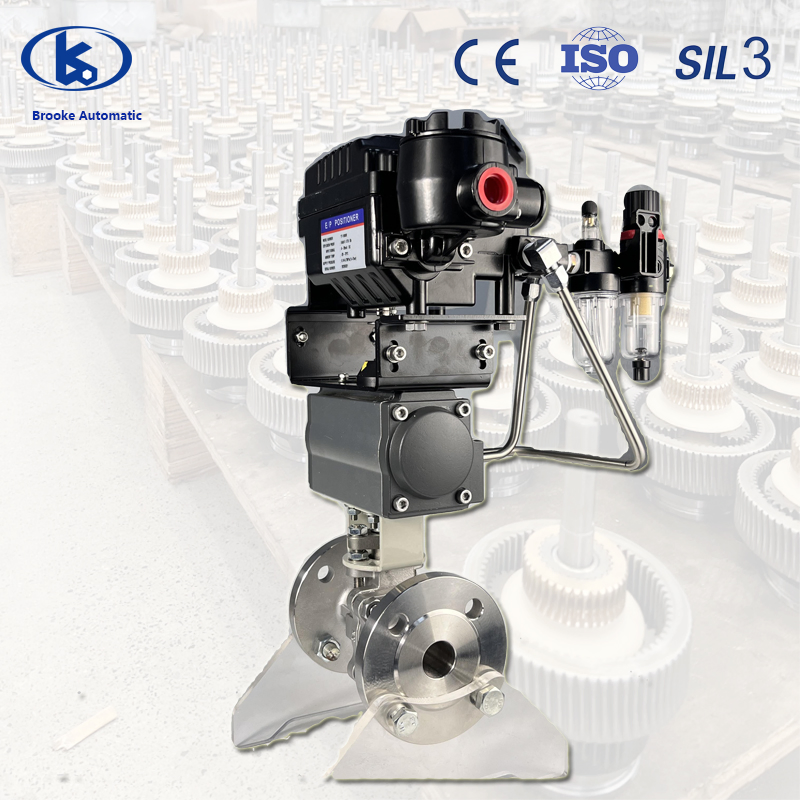

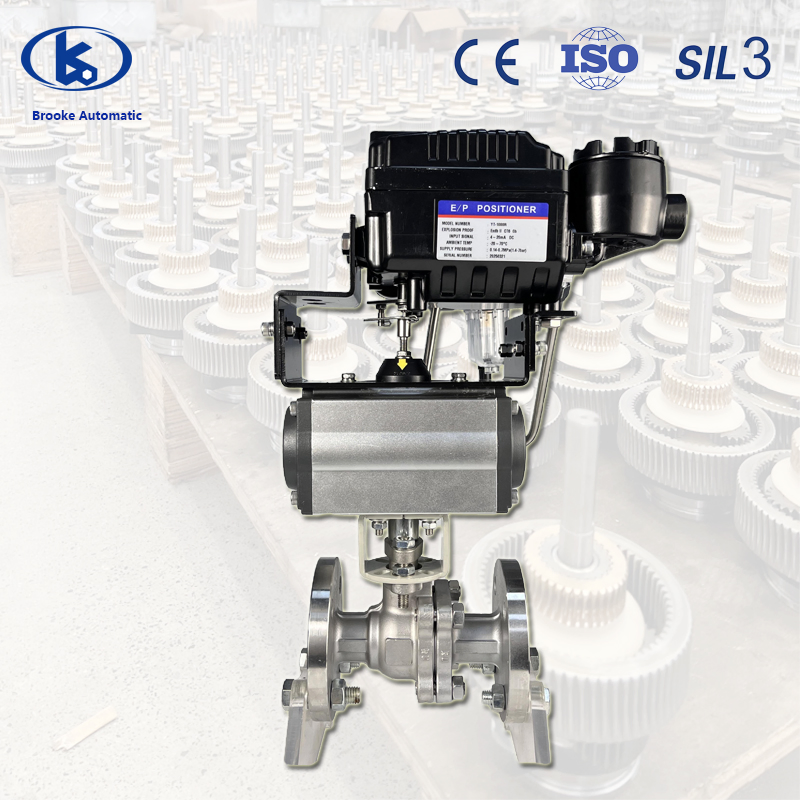

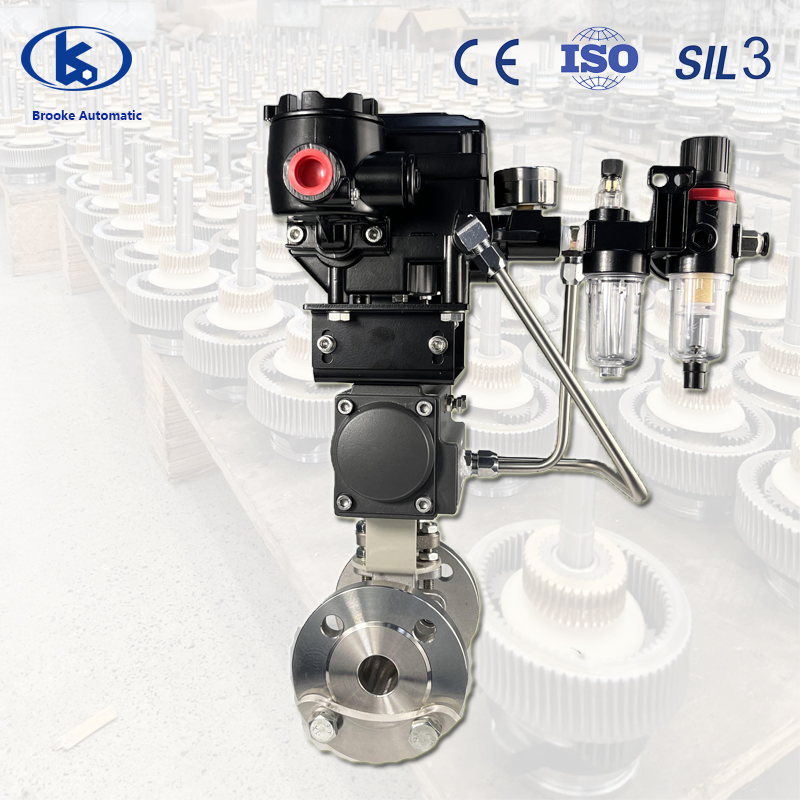

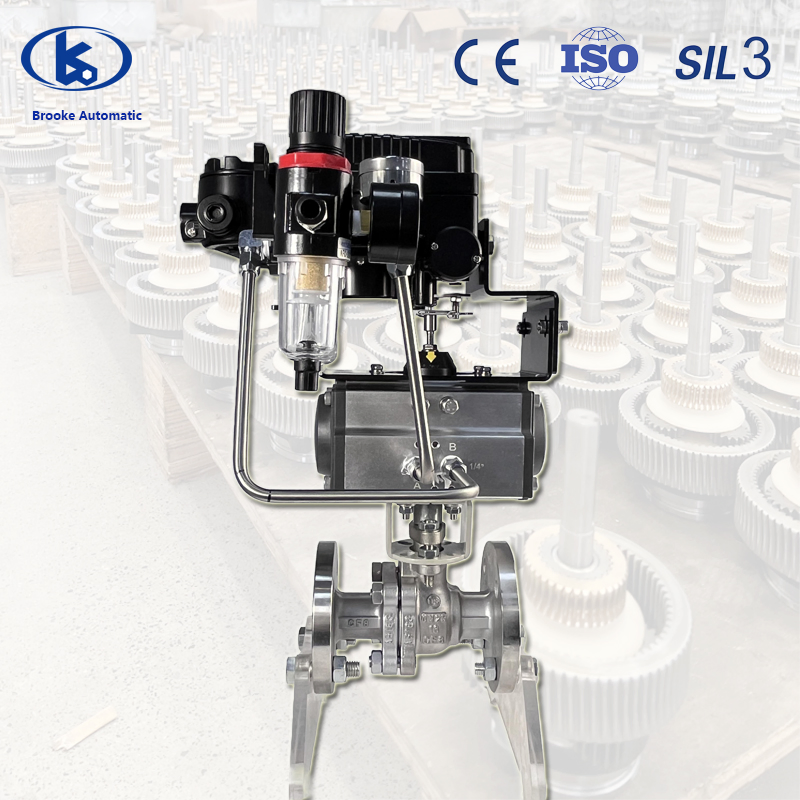

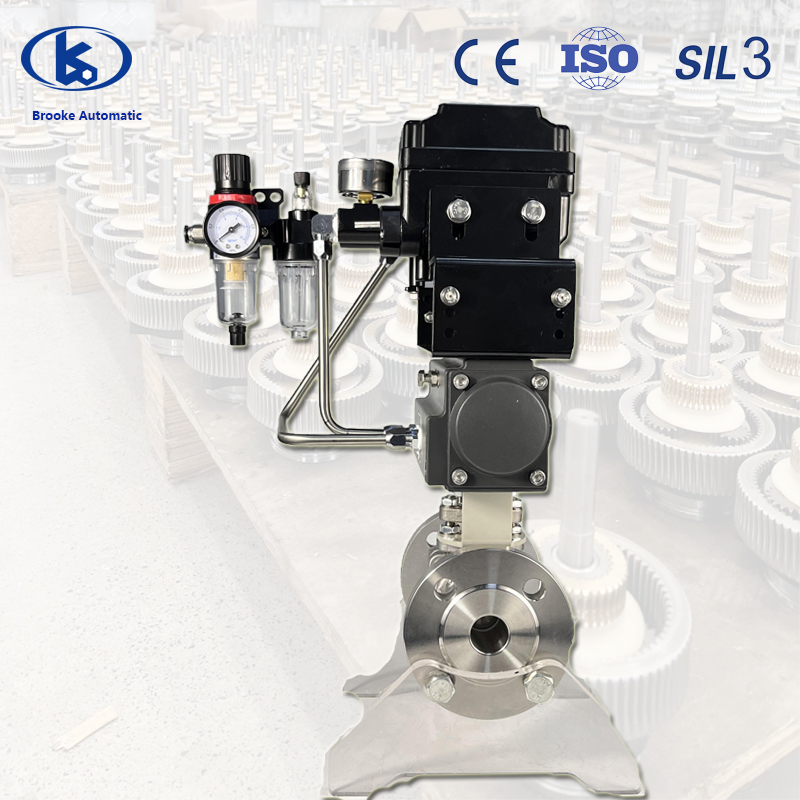

Pneumatic Actuator Control CF8 Flange Segment Type Ball Valve with RS485 Communication

Basic Information

Model NO.

Q641F-16P

Connection Form

Flange

Driving Mode

Pneumatic

Nominal Pressure

JIS10-20K

Structure

Floating Ball Valve

Channel

Straight Through Type

Temperature

Ultralow Temperature

Application

Industrial, Water Industrial

Acting Type

Double or Single

Certification

CE, RoHS, ISO

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 6.00cm

Gross Weight

15.000kg

Lead Time

1 day (1-1 Pcs), Negotiable (>1 Pcs)

Product Description

Structure and Design

Compact Structure: Designed to occupy minimal space while maintaining high efficiency.
90-Degree Operation: Quick and easy operation via 90-degree rotation of the valve stem.
Reliable Sealing: Constant contact between sealing surface and ball ensures zero leakage.

Performance Advantages

Low Fluid Resistance: Full-bore design offers almost zero resistance to flow.
Wear Resistance: Valve core and seats made of special alloy steel for extended life.
High-Speed Media Protection: Sealing surfaces are isolated from media when fully open or closed.
Rapid Actuation: Achieves opening/closing in 0.05 to 0.1 seconds, ideal for automation.

Dimensions & Parameters (1.6Mpa)

Diameter	Actuator	L	L2	H1	H2	K	S	M	Orifice
DN15	AT-52	146	67	24	140	48	72	100	15
DN20	AT-52	146	80	26	141	51	72	100	20
DN25	AT-52	146	82	29	149	60	72	100	25
DN32	AT-63	170	98.5	36	172	72	83	120	32
DN40	AT-75	186	108	40	192	78	96	128	40
DN50	AT-83	211	127	45	205	90	104	135	50

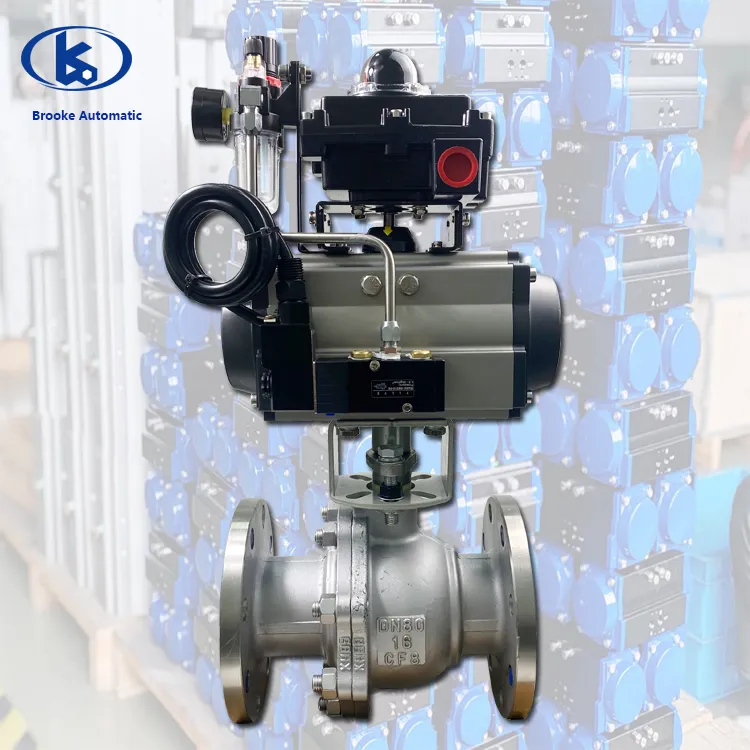

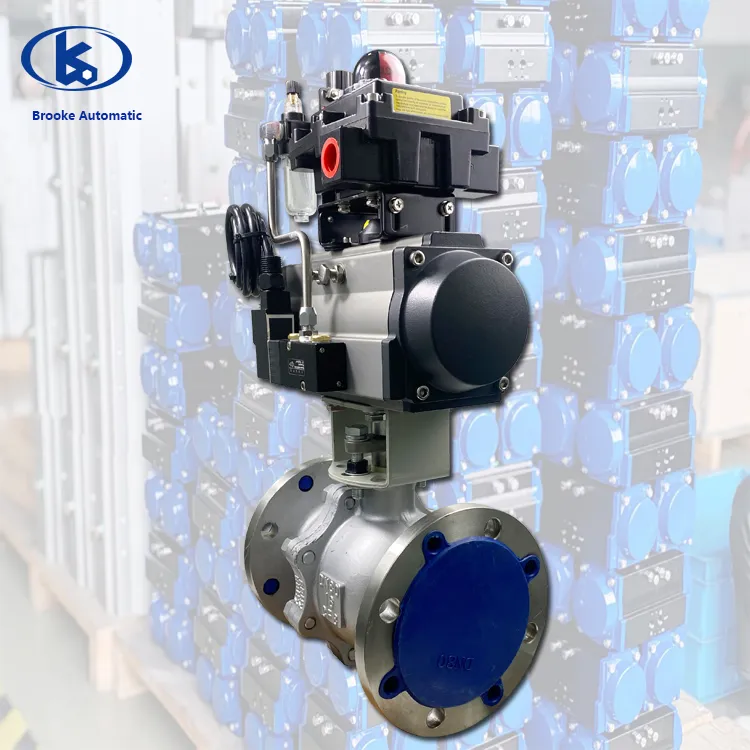

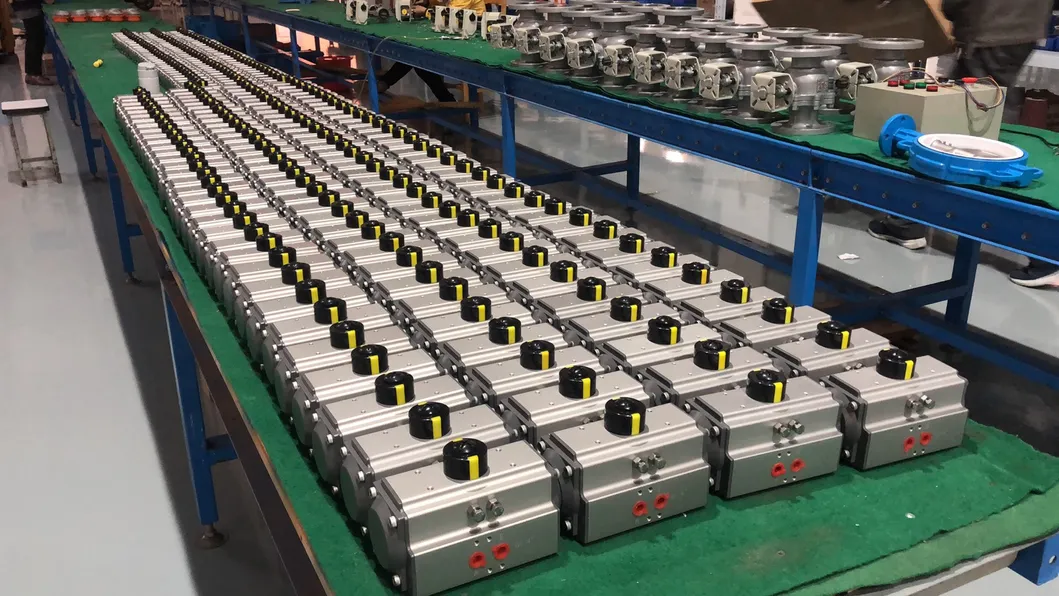

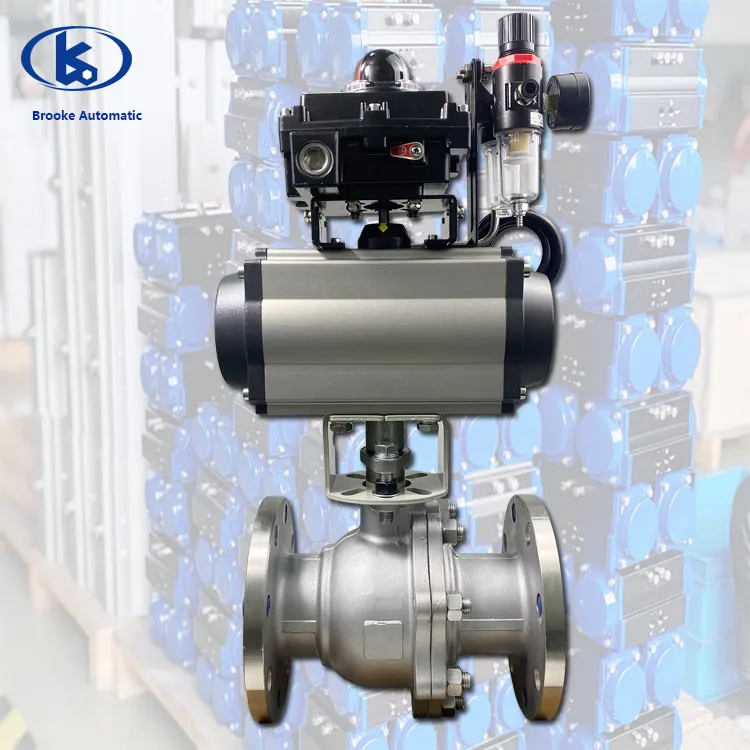

Detailed Photos

Frequently Asked Questions

What types of industrial valves do you manufacture?

We produce a wide range of valves, including ball valves, butterfly valves, gate valves, globe valves, check valves, and control valves.

What materials are your valves made of?

Our valves are manufactured using high-quality materials such as stainless steel, carbon steel, cast iron, bronze, and other alloys to ensure durability.

Do your valves meet international standards?

Yes, our valves are designed and manufactured to meet international standards such as API, ANSI, ISO, and other relevant industry specifications.

Can you provide valves with specific customizations?

Yes, we offer customization services. Our engineering team can work closely with you to design valves tailored to your unique specifications.

What is the typical lead time for valve orders?

The lead time varies based on valve type and quantity. We provide accurate estimates during the quotation process to ensure timely delivery.

What is the product warranty period?

We offer a warranty period of approximately 12 months on our valves to ensure customer satisfaction.
