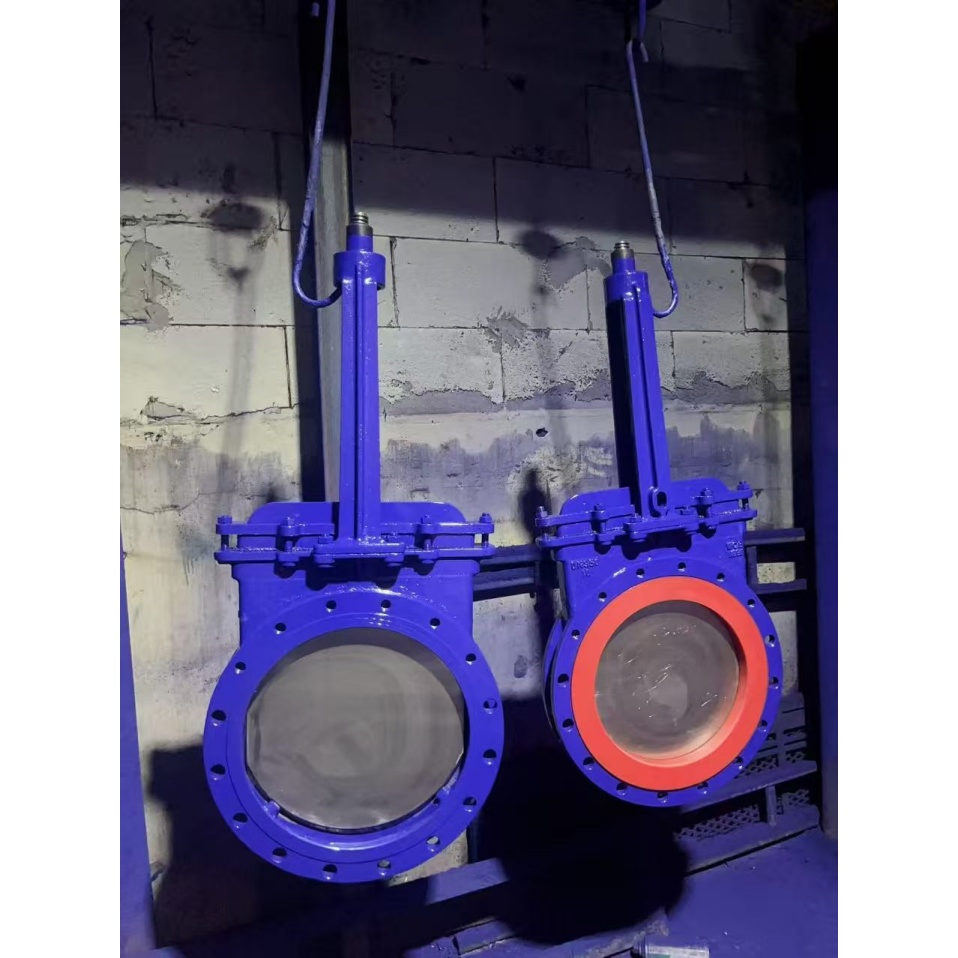

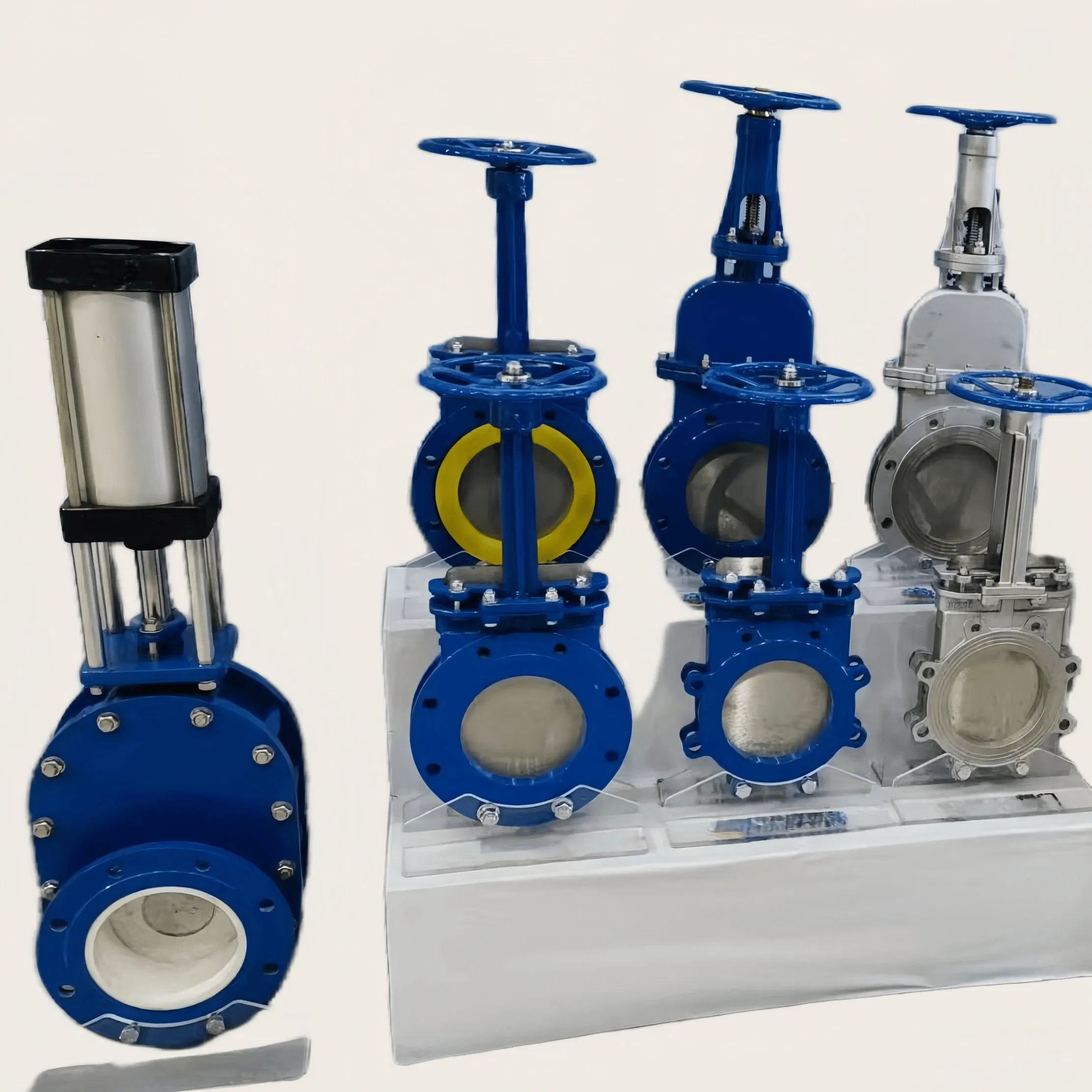

Slurry, Pulp and Liquid Knife Gate Valve

Customization:	Available
Media:	Oil
Temperature:	Low Temperature

◆ Basic Information

Model NO.

Z73

Type

Straight-through

Material

Wcb

Connection Form

Flange

Pressure

Low Pressure

Actuator

Manual

Body Material

Cast Steel / Stainless Steel

Coating Color

Blue / Black / Custom

Package Size

25.00cm * 25.00cm * 45.00cm

Production Capacity

100,000 Pieces/Year

■ Product Description

Knife Gate Valve is a high-performance industrial valve, specially designed for medium containing solid particles, such as slurry, sewage, pulp, and ash. Its unique knife-shaped gate can easily cut through viscous and abrasive media, ensuring tight sealing and stable operation even in harsh working conditions.

Also known as slurry gate valve or knife valve, it features a sharp-edged gate that descends into the flow path, effectively cutting through media like slurry, pulp, sewage, ash, and mud to prevent clogging and ensure reliable flow control.

★ Product Features

High Efficiency for Abrasive Media: Precision-machined knife gate ensures smooth penetration into viscous media, minimizing resistance.
Diverse Sealing Options: Soft seal (NBR, EPDM, PTFE) for chemical resistance; Hard seal (Stainless steel, Ceramic) for high-abrasion conditions.

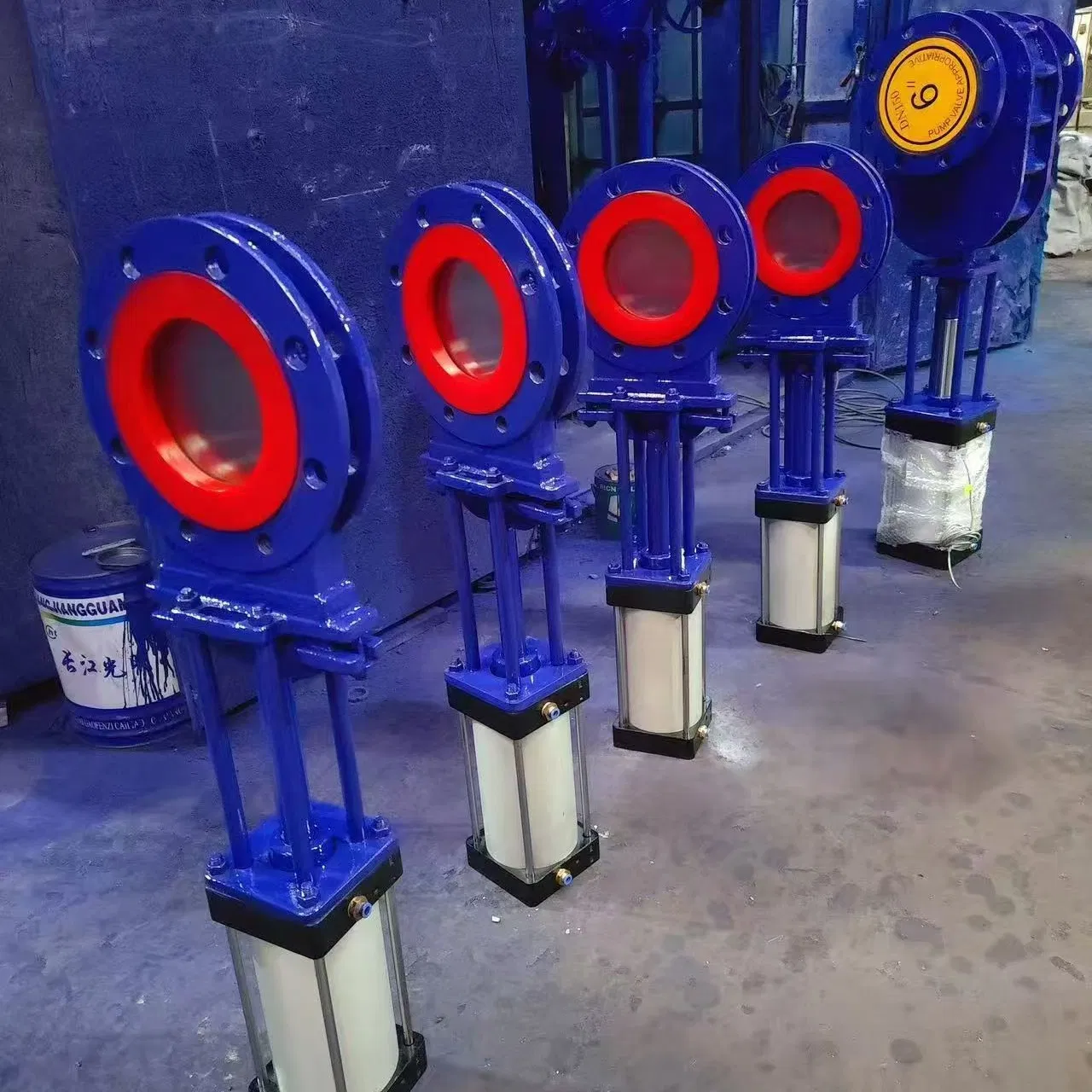

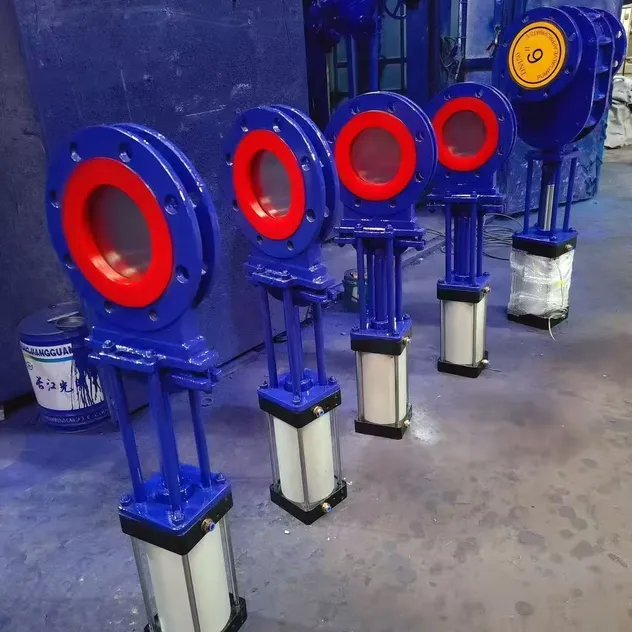

Reliable Operation Modes: Options for Manual (handwheel), Pneumatic, or Electric actuators for automated control.

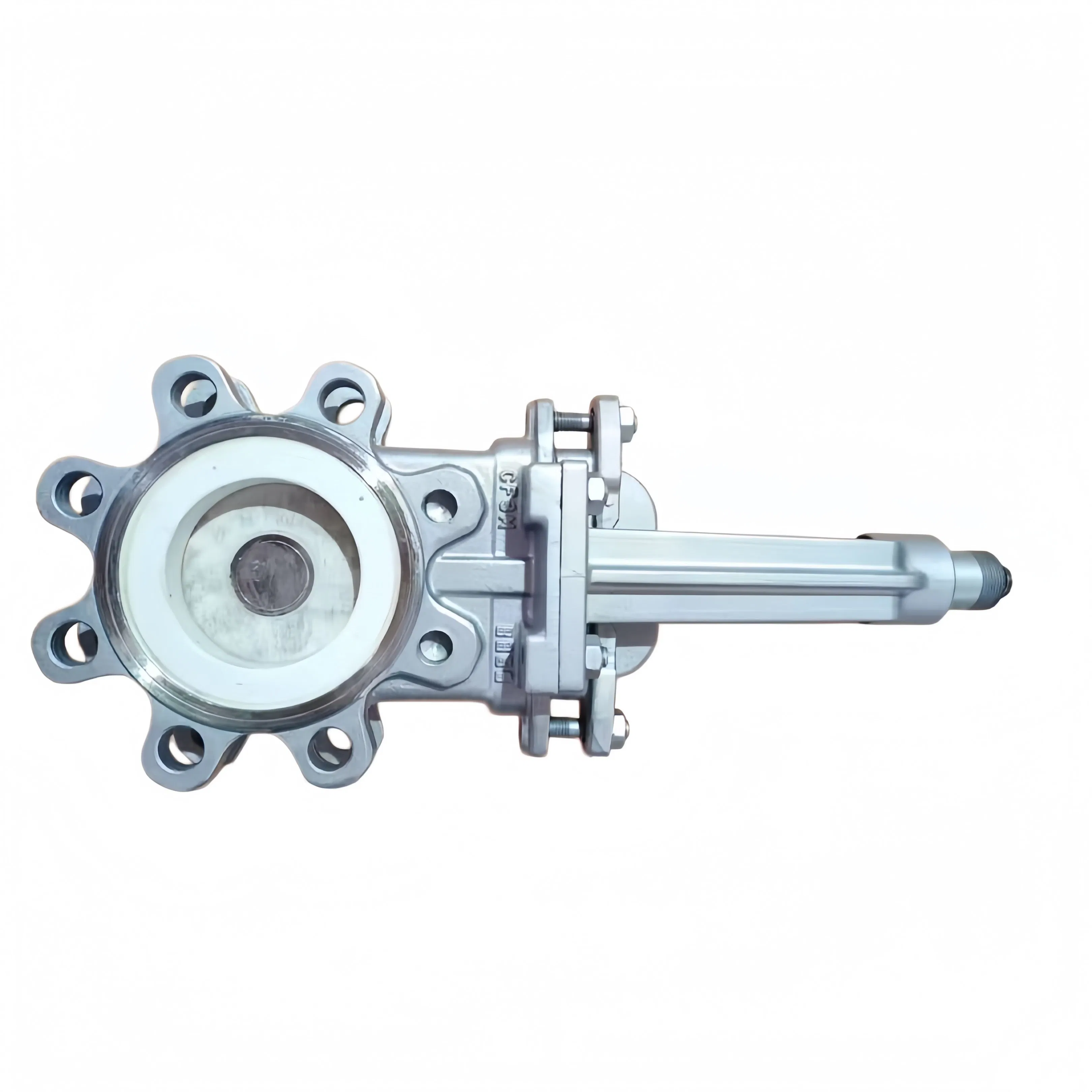

Space-Saving Design: Wafer and Lug type connections allow for short structure and light weight installation.
Corrosion & Wear Resistance: High-quality materials (Cast Iron, WCB, 304/316 Stainless Steel) adapt to various industrial environments.

⚙ Specifications

Parameter	Details
Nominal Diameter	DN50-DN300 (customizable up to DN600)
Pressure Class	PN10, PN16, PN25; 150, 300
Body Material	Cast Iron (HT200), Cast Steel (WCB), Stainless Steel (304/316L)
Gate Material	Stainless Steel, Hard Alloy
Sealing Material	NBR, EPDM, PTFE; Hard Seal: Stainless Steel, Ceramic
Operation Mode	Manual, Pneumatic, Electric, Gear-Driven
Connection Type	Wafer Type, Lug Type, Flanged Type
Temperature Range	-20℃ ~ 400℃ (varies by material)

🛡 After Sales Service

Exclusive File Management: Independent product service files for each valve to track installation, maintenance, and fault records.
Warranty Commitment: 12-month standard warranty period from the date of acceptance.
Long-term Spare Parts: Guarantee of original factory spare parts supply for 20 years.
Technical Support: Free technical consultation, operation training, and preventive maintenance advice.

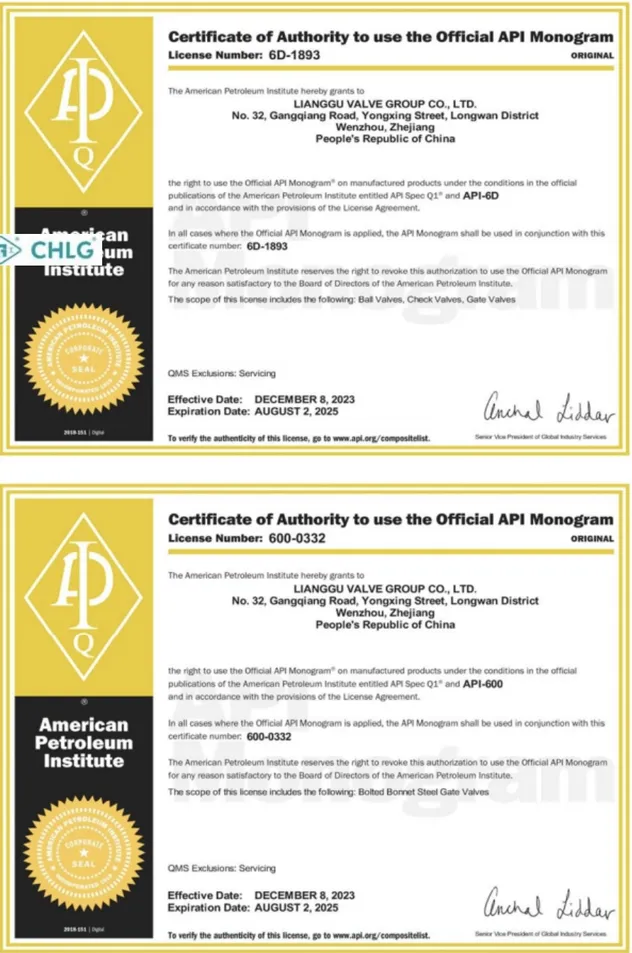

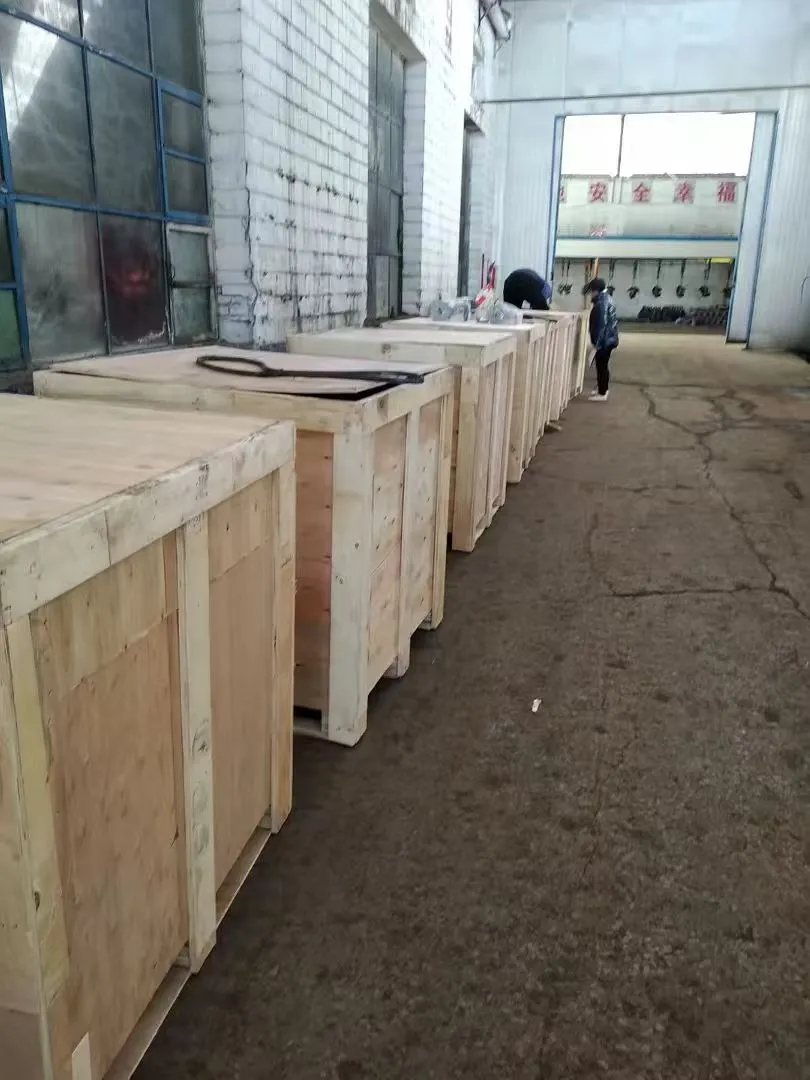

📜 Certifications & Packaging

❓ Frequently Asked Questions

Q1: What are the primary applications for knife gate valves? A: These valves are ideal for industrial fluids containing solids, such as slurry, pulp, sewage, ash, and mud, commonly used in mining, paper, and wastewater treatment industries.

Q2: What is the typical delivery cycle for an order? A: Standard models are usually shipped within 15-30 days, while customized solutions may require 30-45 days depending on complexity.

Q3: Do you support customized valve sizes and materials? A: Yes, we offer non-standard customization for materials (Stainless Steel, Ceramic), diameters (up to DN600), and specific pressure requirements.

Q4: Are there different sealing options available? A: We provide both soft seals (NBR, EPDM, PTFE) for tight sealing and hard seals (Stainless Steel, Hard Alloy) for high-abrasion or high-temperature environments.

Q5: What operation modes can be configured? A: Valves can be equipped with Manual handwheels, Pneumatic actuators, Electric actuators, or Gear-driven mechanisms for various control needs.

Q6: Do you provide documentation for international customs clearance? A: Yes, we provide complete sets of documents including commercial invoices, packing lists, and quality inspection certificates to ensure smooth delivery.
