Maria Valve
1 / 5
Size Range: 2-16inch/DN50-400
Body/Bonnet: Carbon steel, Stainless steel
Gate: Carbon steel, Stainless steel
Stem: Stainless steel
Sealing face: Rubber / PTFE / Stainless steel / Carbide alloy

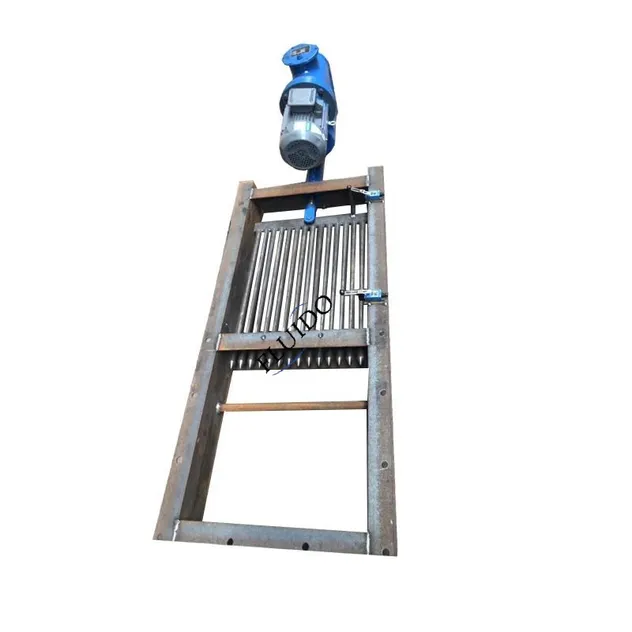

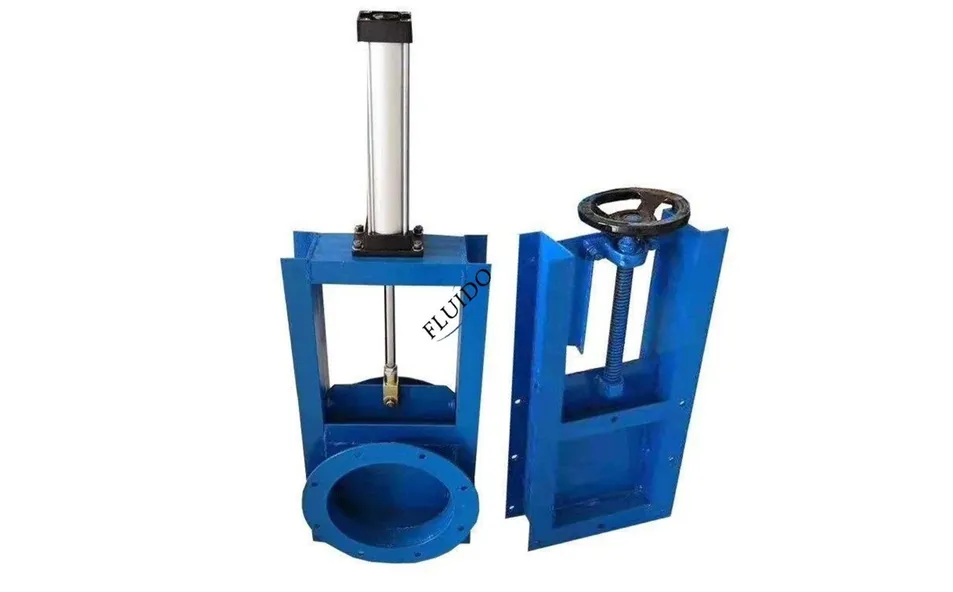

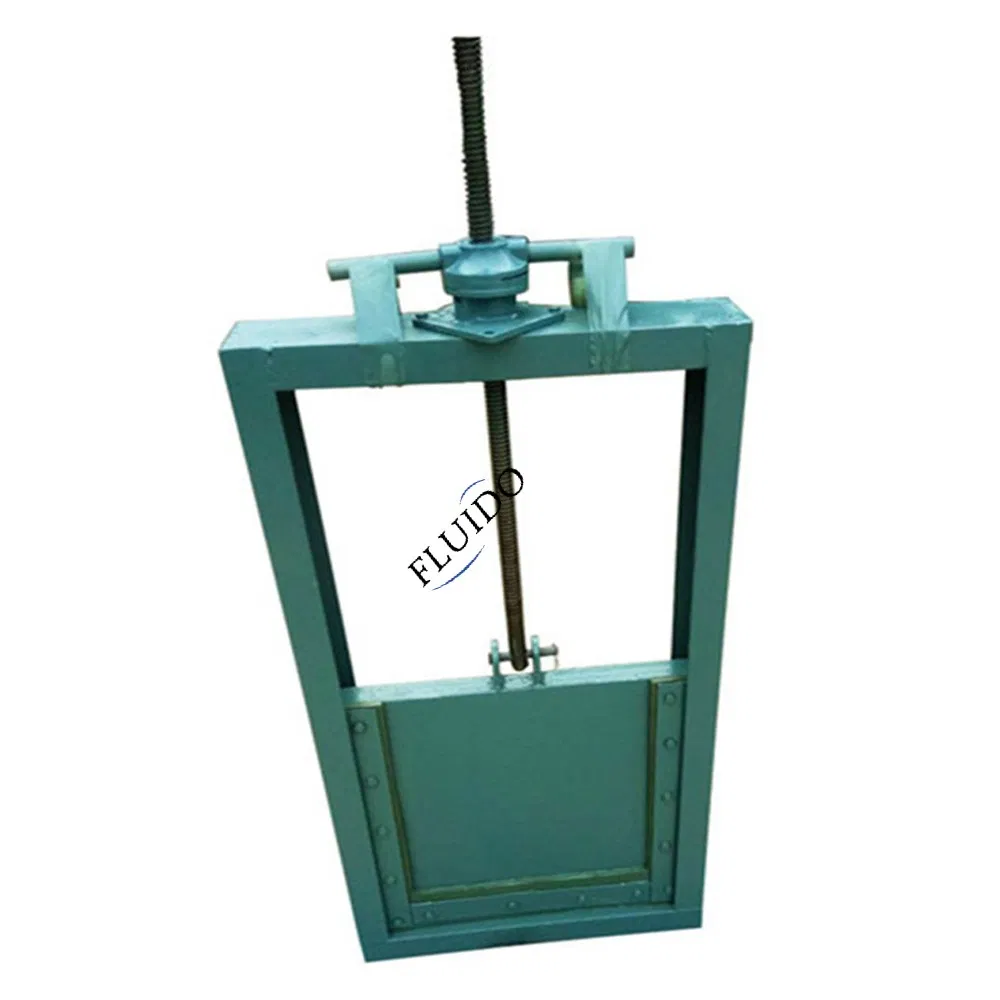

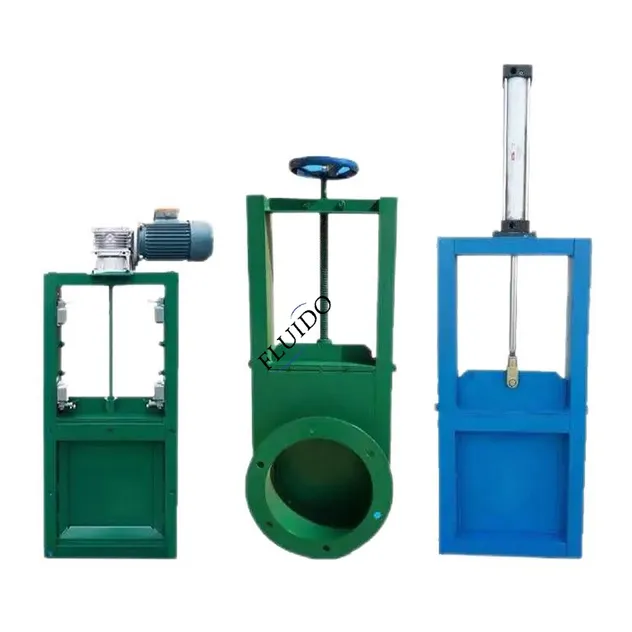

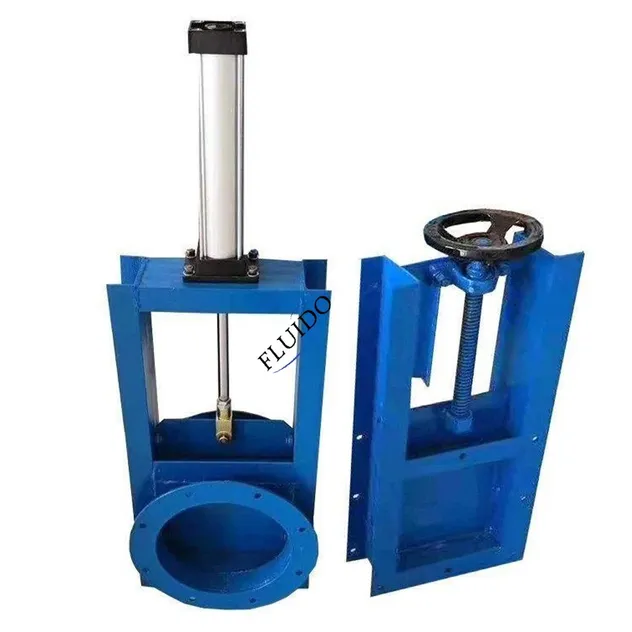

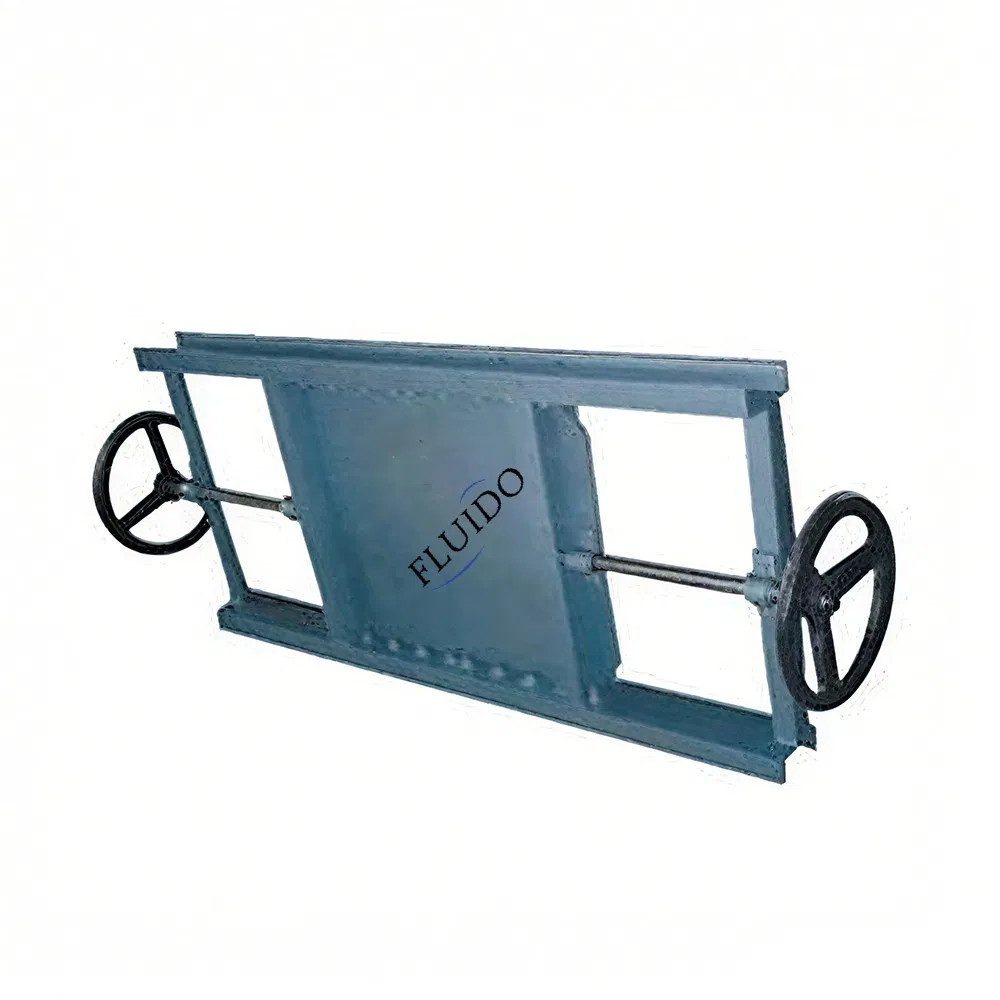

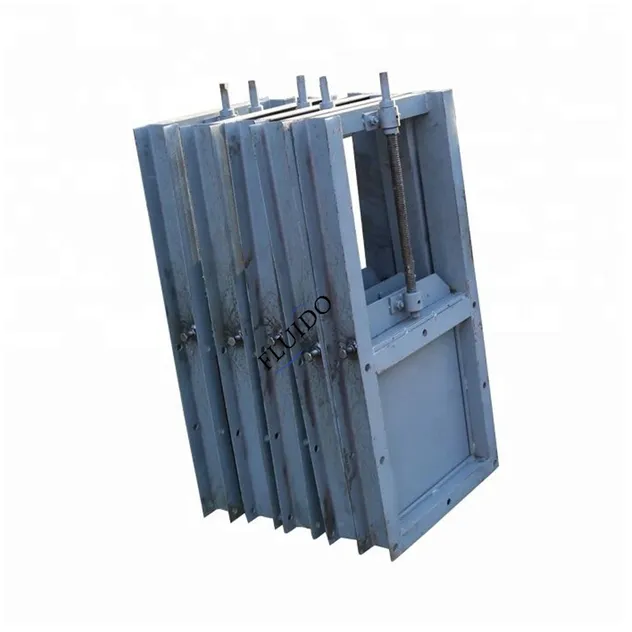

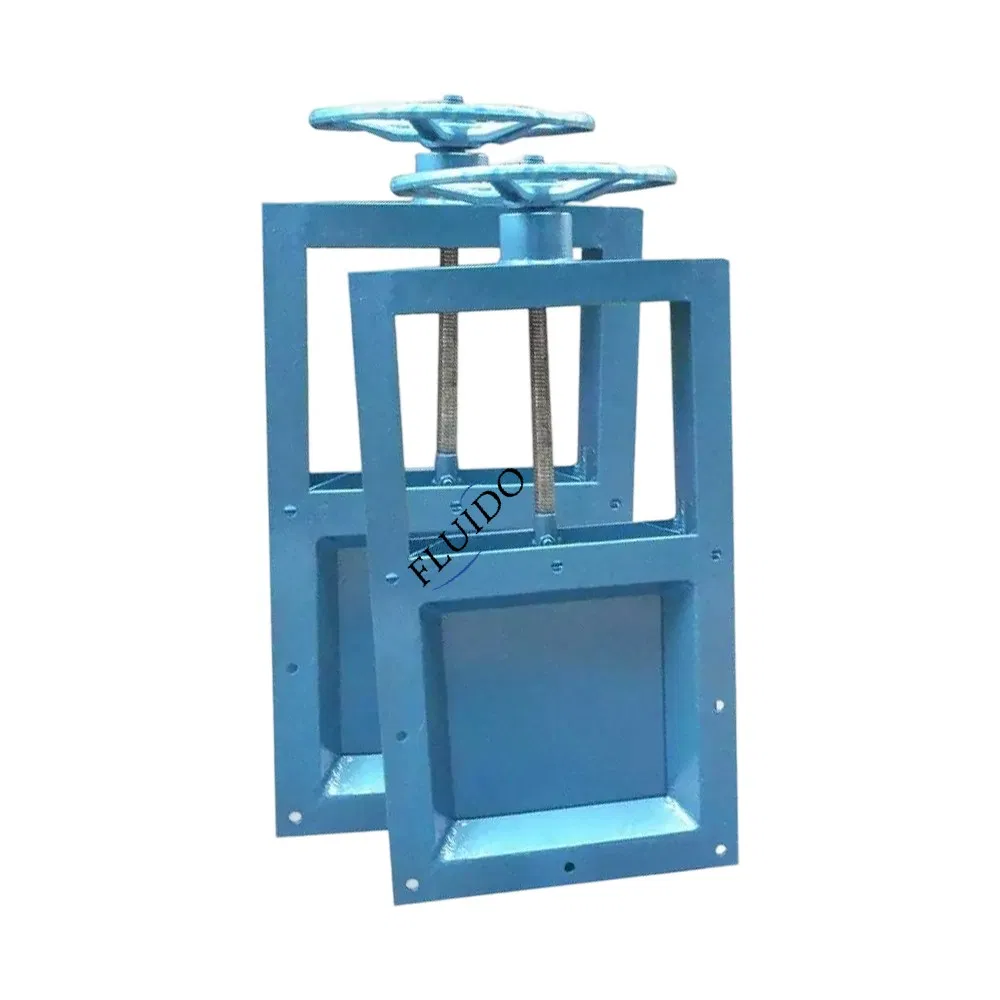

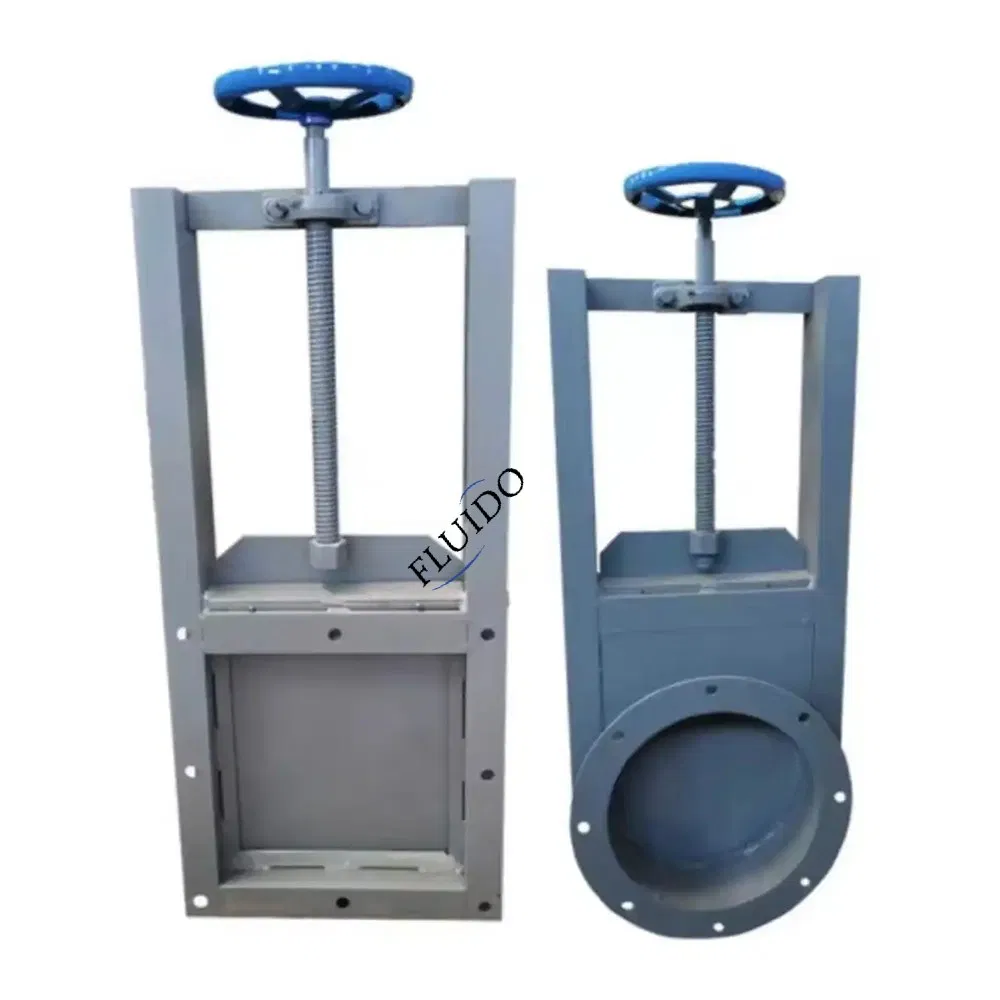

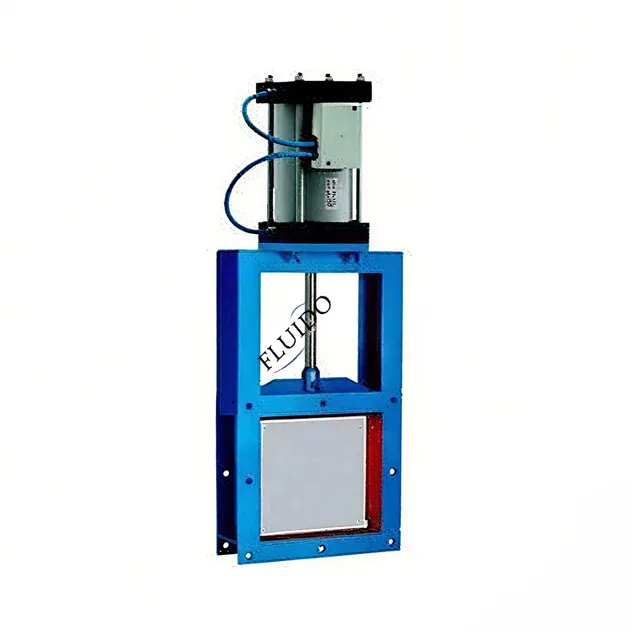

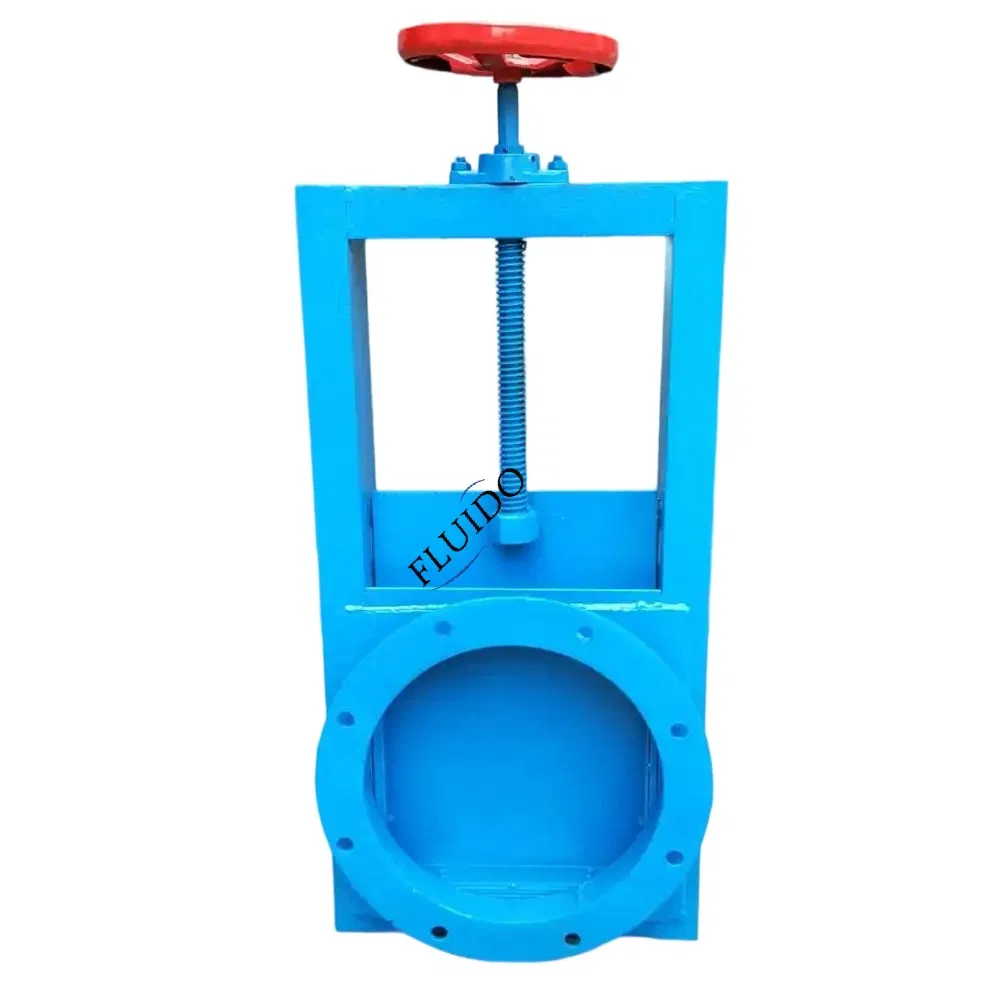

A knife gate valve is a type of valve that uses a sharp-edged gate to cut through and control the flow of fluids. Slide gate valves are generally used below silos, tanks, conveyors, and hoppers. The sliding gate allows controlling the gravitational flow of granular materials. Carbon steel, stainless steel, and hardox steel construction are available for slide gate valves for a wide range of applications.

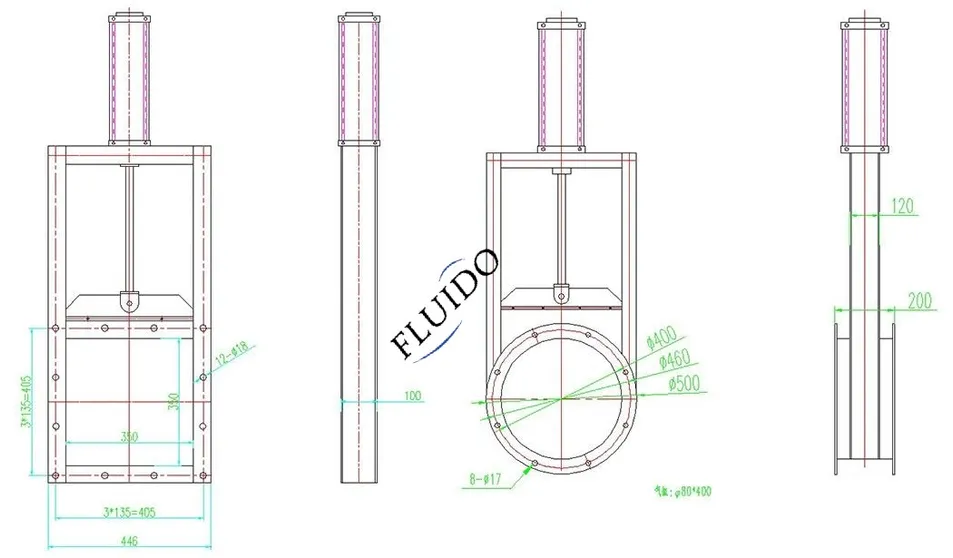

| C | B | A | C1*C1 | B1 | A1*A1 | H1 | H | N-∅ |
| ∅200 | 260 | ∅300 | 200*200 | 250 | 300*300 | 200 | 200 | 8-∅11 |
| ∅220 | 280 | ∅320 | 220*220 | 270 | 320*320 | 200 | 200 | 8-∅11 |
| ∅240 | 300 | ∅340 | 240*240 | 290 | 340*340 | 200 | 200 | 8-∅13 |
| ∅260 | 320 | ∅360 | 260*260 | 310 | 360*360 | 200 | 200 | 8-∅13 |
| ∅300 | 360 | ∅400 | 300*300 | 350 | 400*400 | 200 | 200 | 8-∅17 |
| ∅400 | 460 | ∅500 | 400*400 | 450 | 500*500 | 220 | 220 | 8-∅17 |

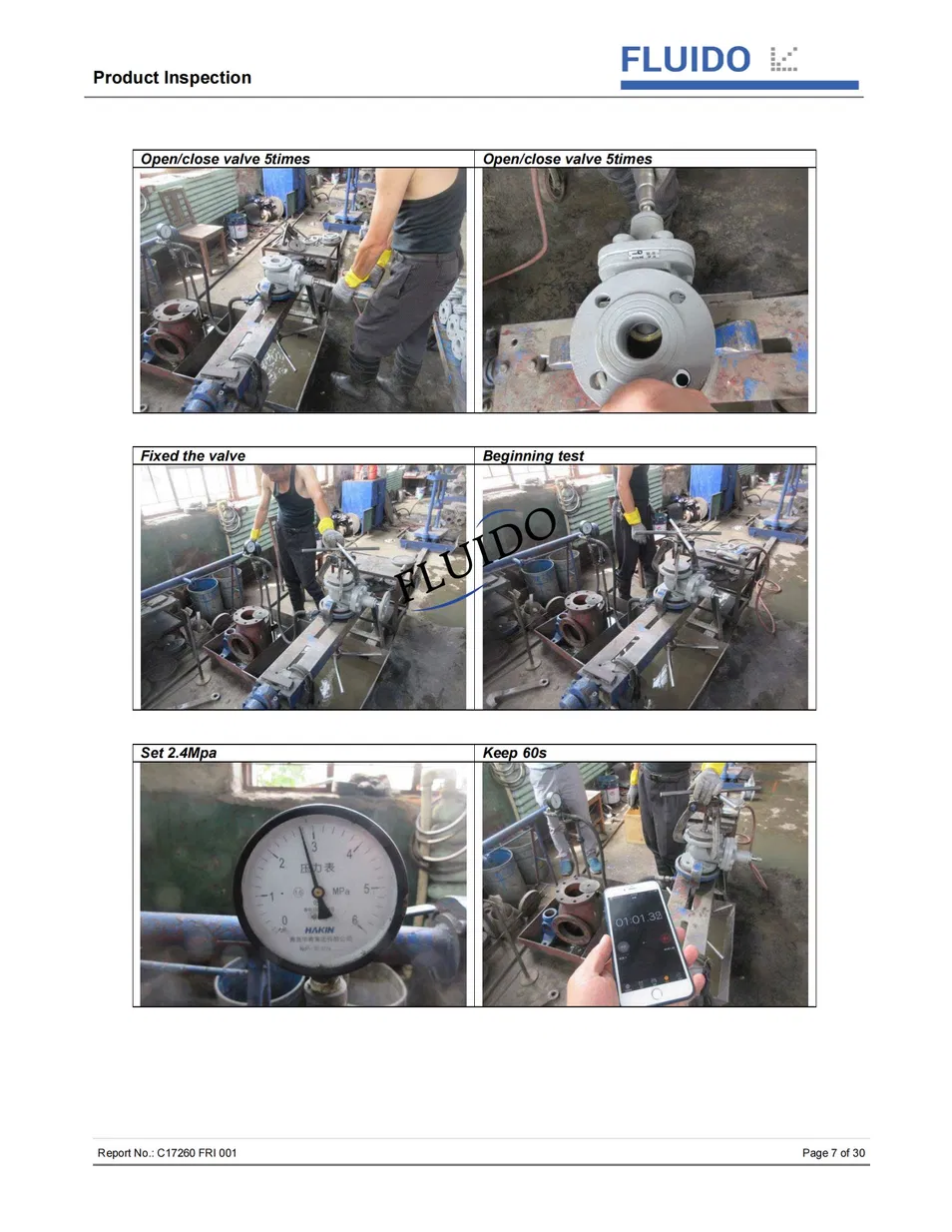

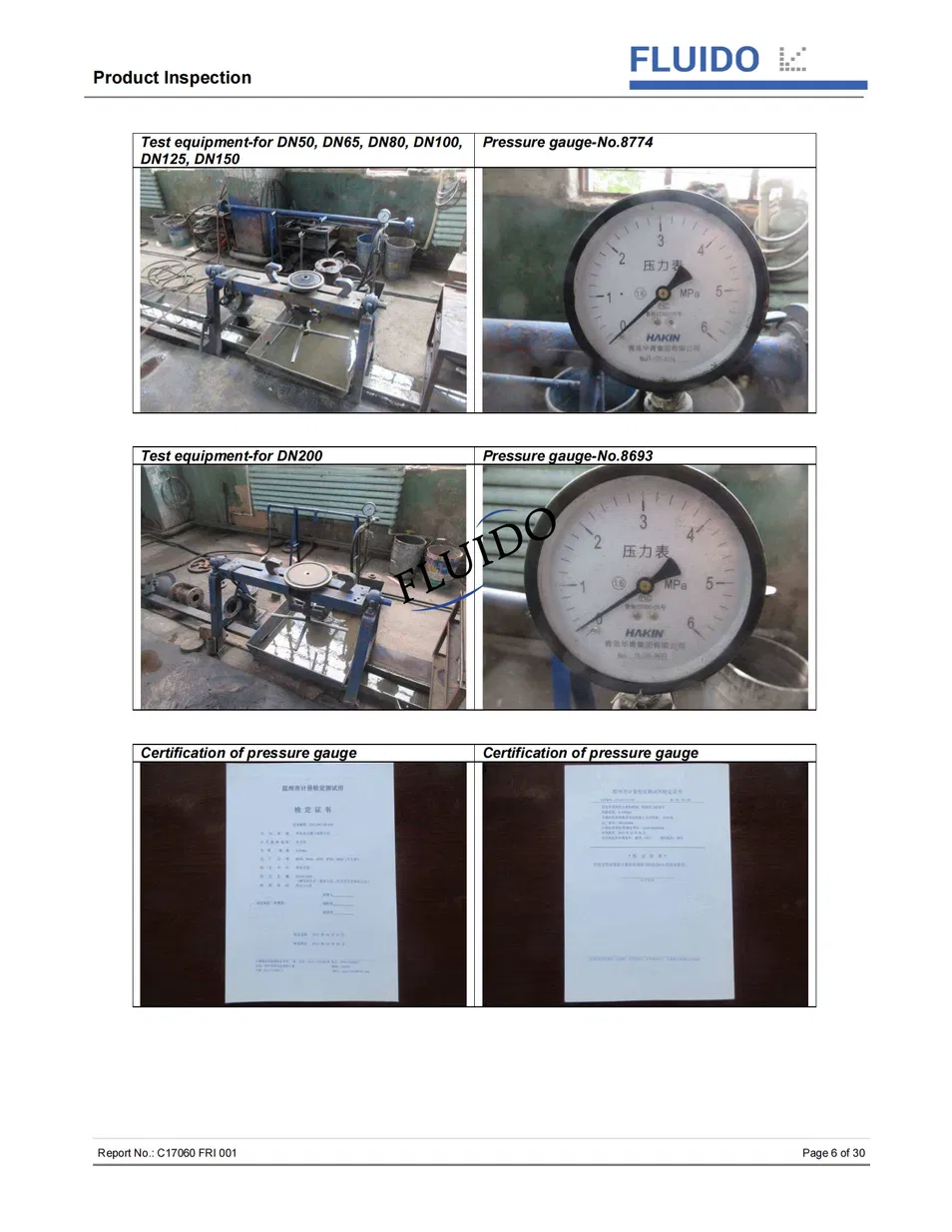

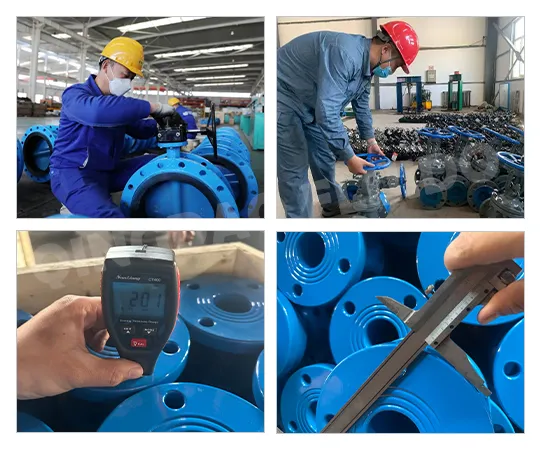

Critical parameters are inspected before shipment, including dimensional testing, surface finish, and pressure testing. All processes comply with ISO9001 quality certification, CE, and WRAS certificates, guaranteeing superior quality.
