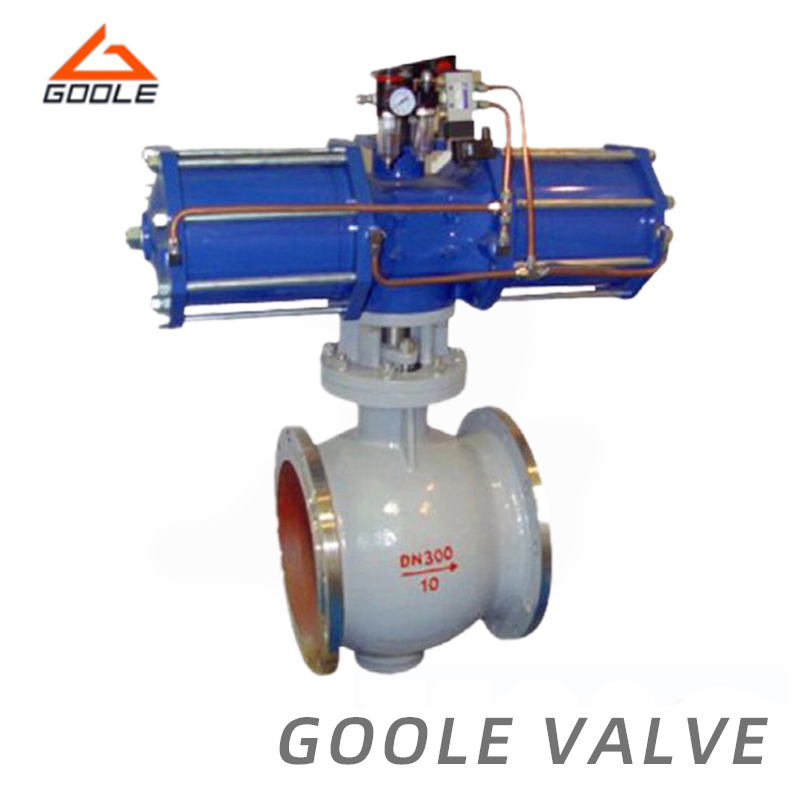

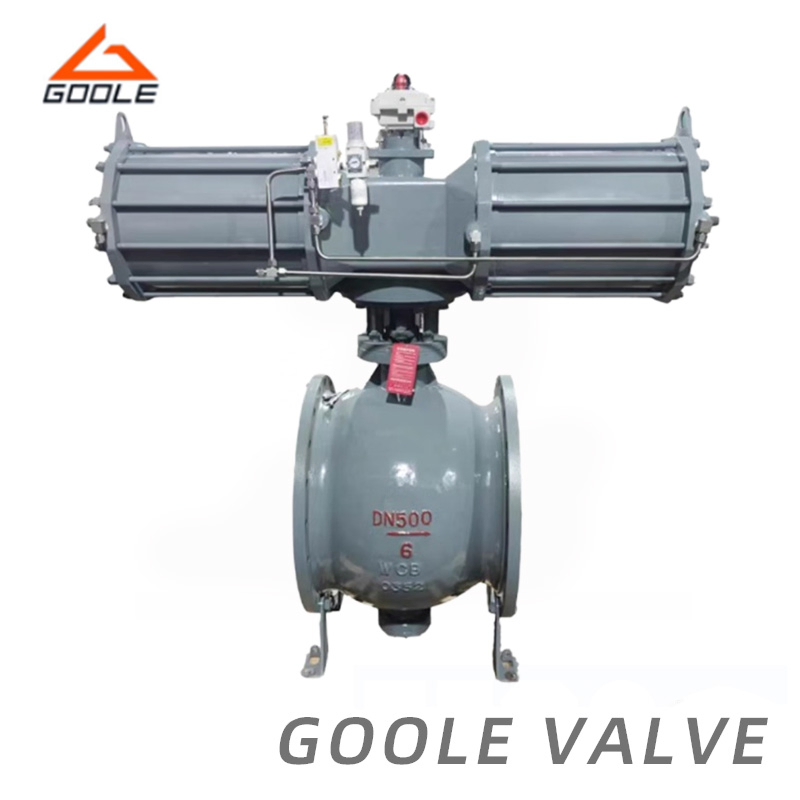

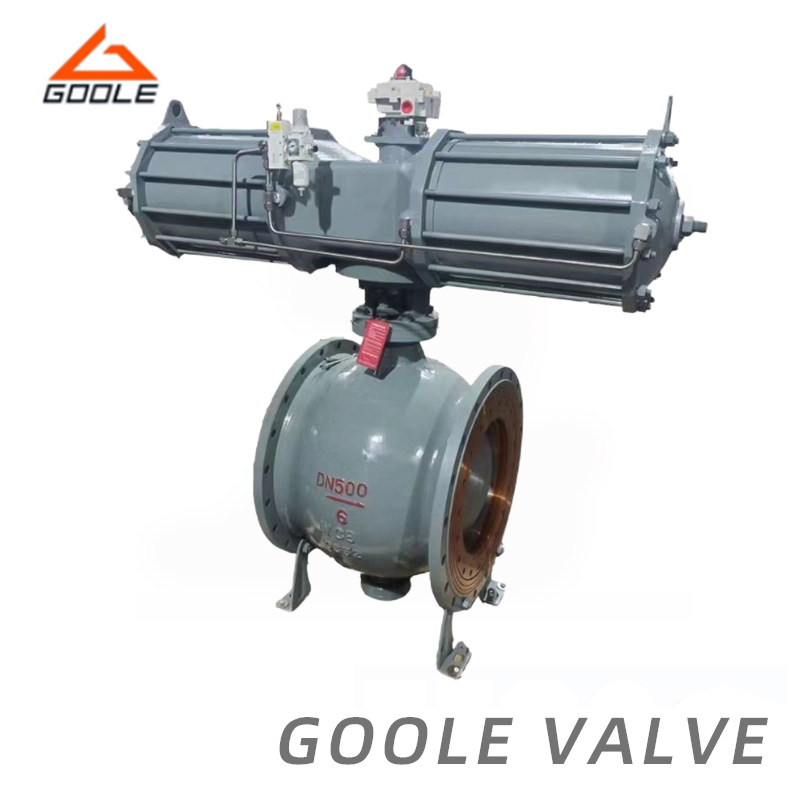

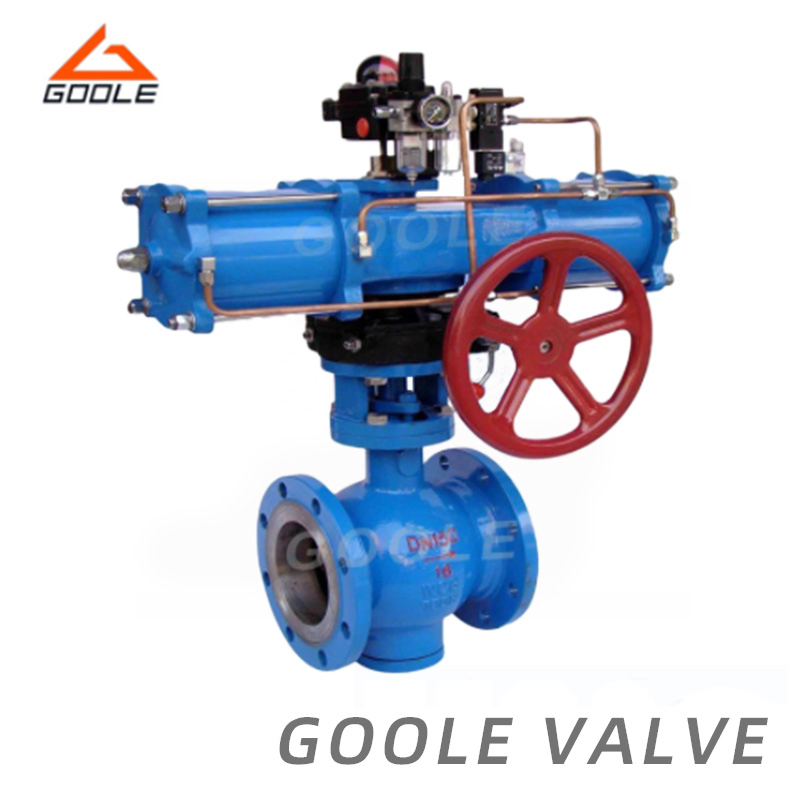

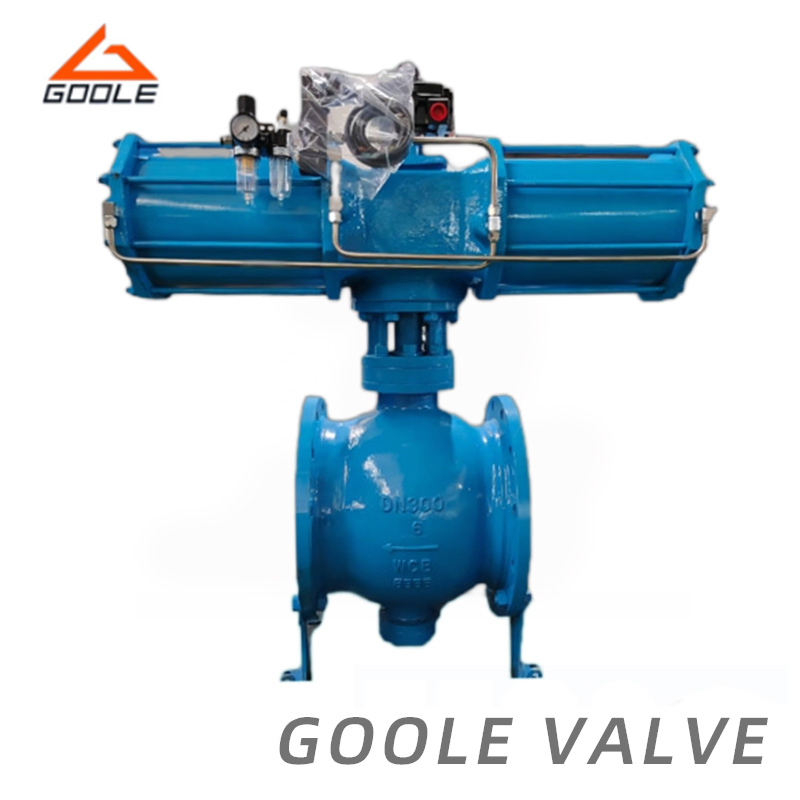

Pneumatic Actuated Forged Steel Flanged Segment Type V Port Ball Valve

This valve is specially designed for controlling strong corrosive media. The body inner surface can be unlined or lined with different fluorine plastics, selected to suit various working temperatures and fluid pipelines. It features high strength and prominent corrosion resistance performance.

• The shear force between the ball and the metal seat type V incision is especially suitable for media containing fibers, small solid particles, and pulp.
• Fully open flow capacity with small pressure loss; media will not deposit in the body cavity.

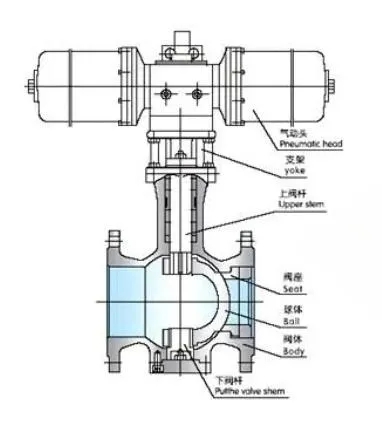

• Uses a spring-loaded movable seat structure to prevent jamming between the ball core and valve seat, ensuring reliable sealing and long service life.
• Accurate regulation and reliable positioning with approximately equal percentage flow characteristics.
• Large adjustable range with a maximum adjustable ratio of 100:1.
