Pressure
0.15~0.8MPa(21~114psi)
Valve Structure
Direct-Acting Piston Structure
Usage
Safety, Emptying, Drain, Temperature Control, Flow Control
Application
Industrial Usage, Water Industrial Usage, Household Usage
Protection Grade
Class F.IP65
Coil Type
Flying Leads/DIN Type
Capacity
50000 Piece/Pieces Per Month
05 No need to add oil for lubrication.

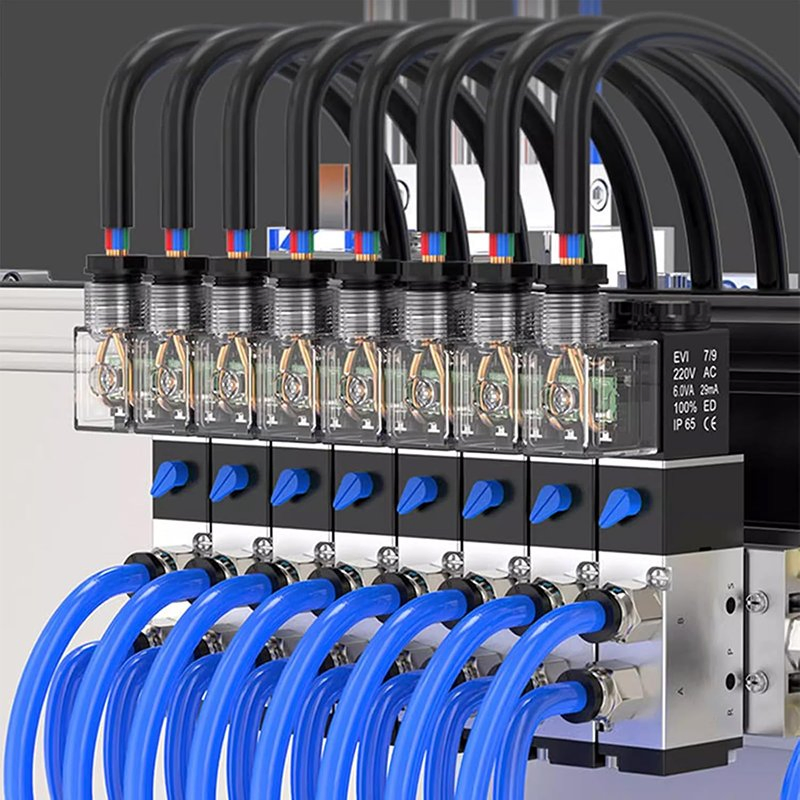

06 Available to form integrated valve group with the base to save space.
07 Manual devices equipped to facilitate installation and debugging.
08 Several standard voltage grades are optional.
Frequently Asked Questions

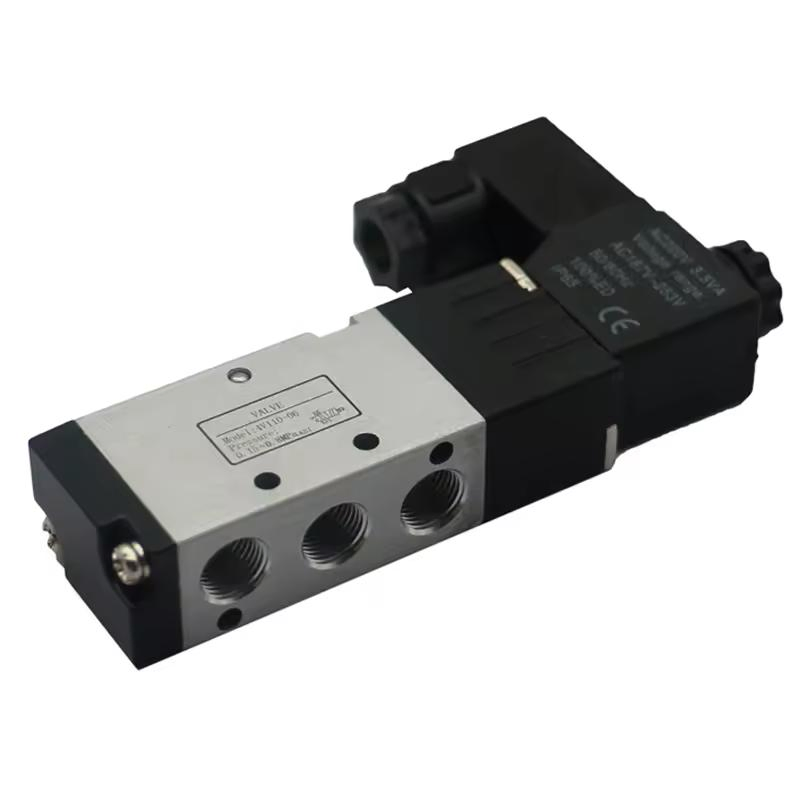

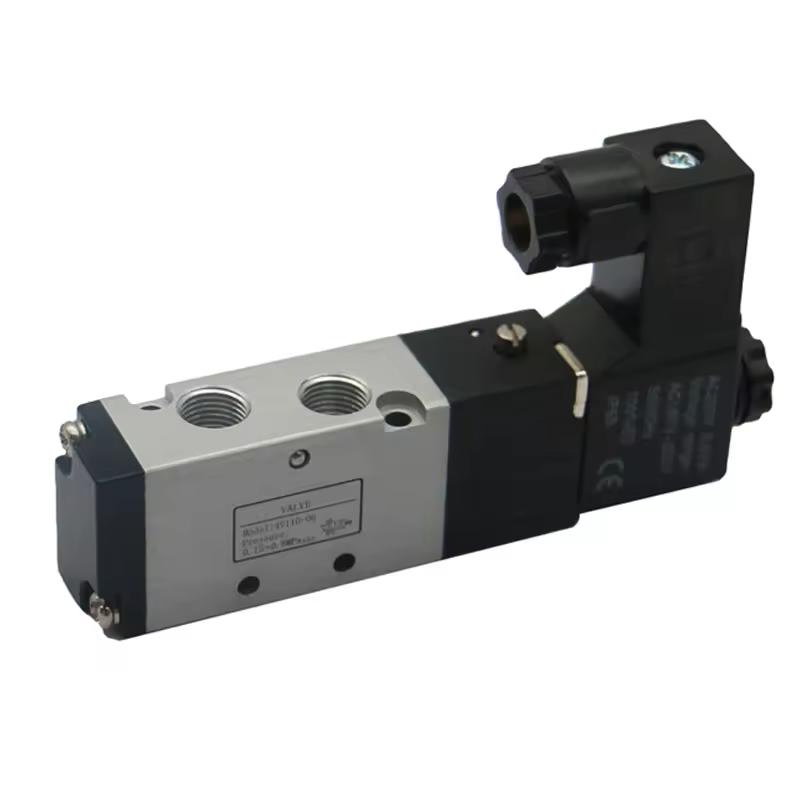

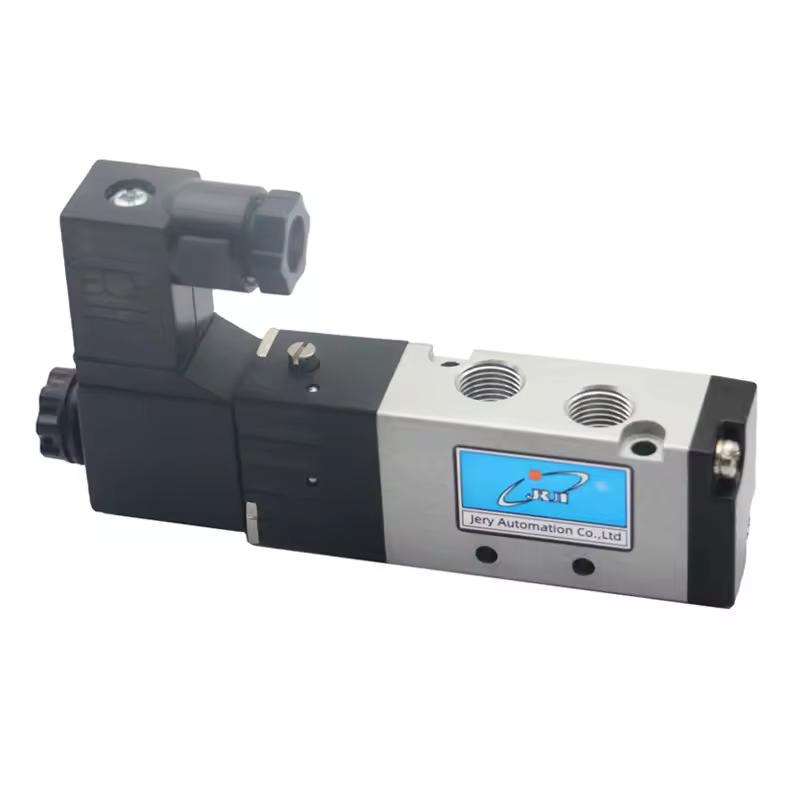

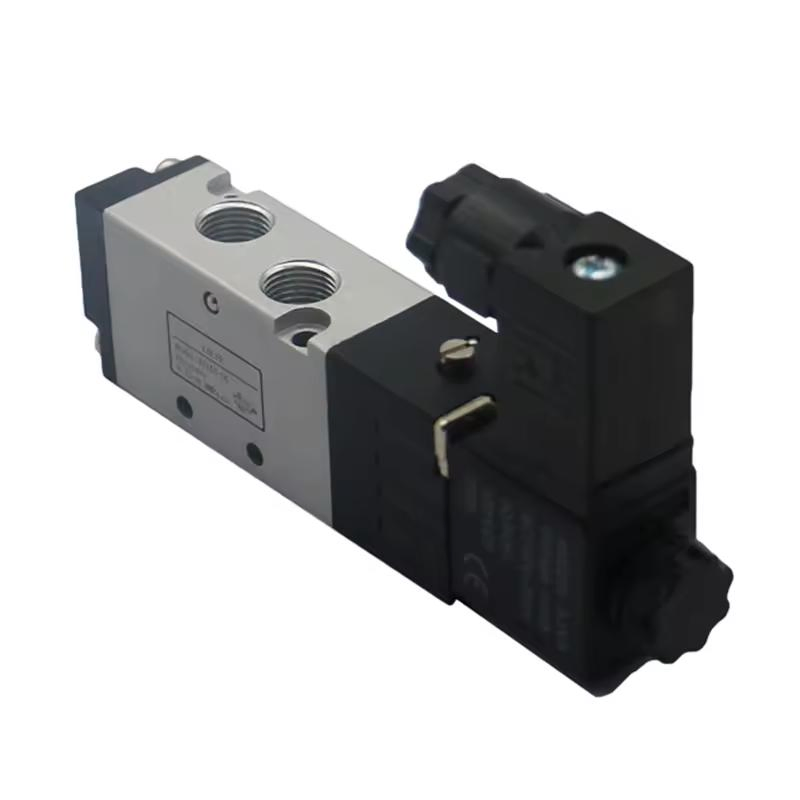

What is the operating pressure range for the 4V110-06 valve?
The standard operating pressure range is between 0.15MPa and 0.8MPa (21 to 114 psi), with a maximum pressure resistance of 1.2MPa (175 psi).
Does this solenoid valve require additional lubrication?
No, the internal hole adopts special processing technology with low attrition friction, so additional oil for lubrication is not required.
What materials are used in the construction of the valve body?
The valve body is constructed from high-quality Aluminum Alloy, providing durability and corrosion resistance for industrial applications.
What is the protection rating of the solenoid coil?
The coil features a protection grade of IP65 (DIN40050) and Class B/F temperature classification, ensuring safety and reliability in various environments.
How fast is the response time of the valve?
The valve is designed for high sensitivity with an activating time of 0.05 seconds or below.
Can this valve be installed in an integrated system?
Yes, it is available to form an integrated valve group with a base, which helps to save installation space and simplifies debugging.
