Product Overview

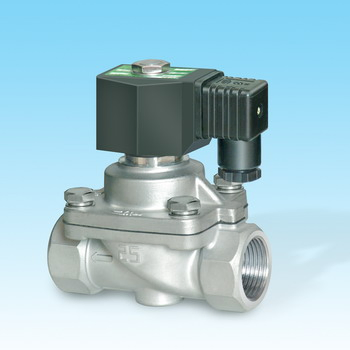

The CE(F) series is a 2/2-way normally closed, direct-acting solenoid valve with a diaphragm operating type. These valves are essential automatic control devices used across various industrial processes to manage liquid media, air, and gas based on electric-controlled signals.
★ Key Features
- Versatile Applications: Suitable for a wide range of gases and liquids.
- Advanced Design: Features state-of-the-art construction with a compact footprint.
- High Sensitivity: Reliable performance even when the working differential pressure is close to zero.

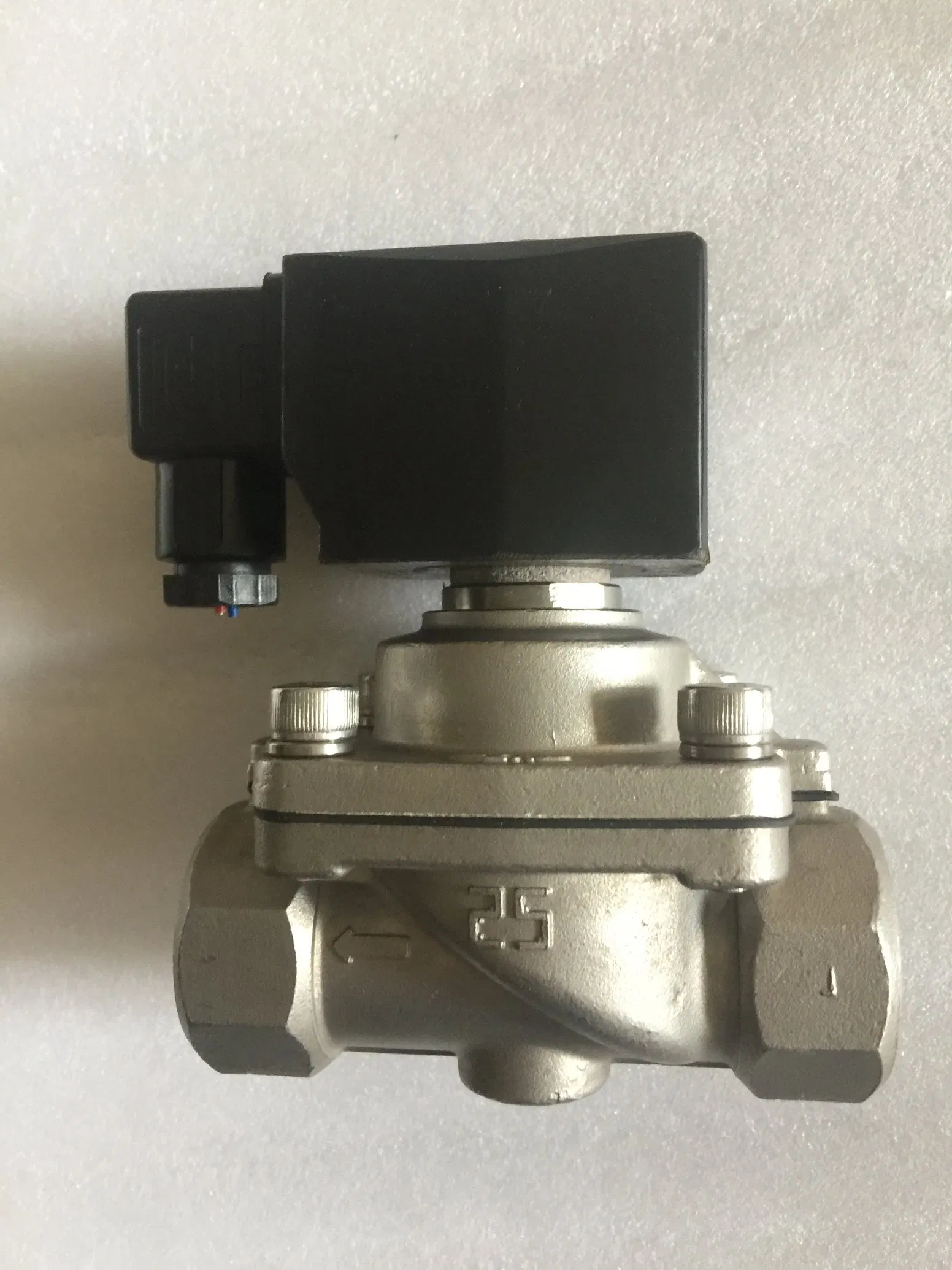

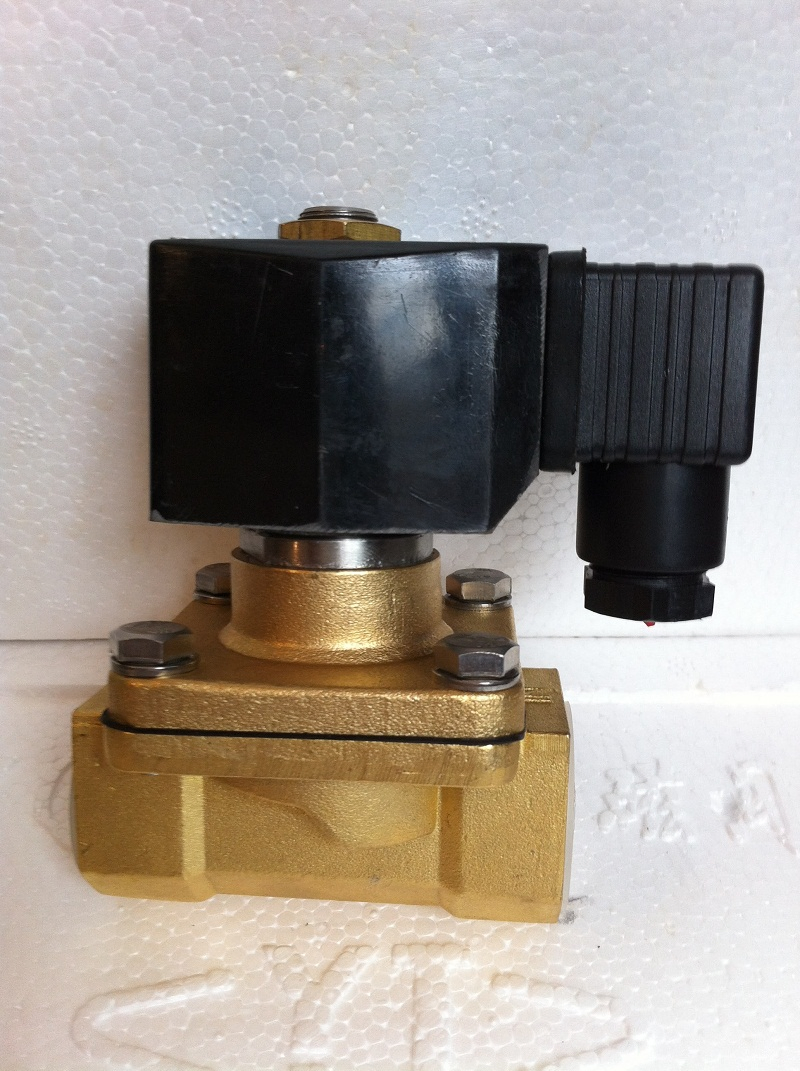

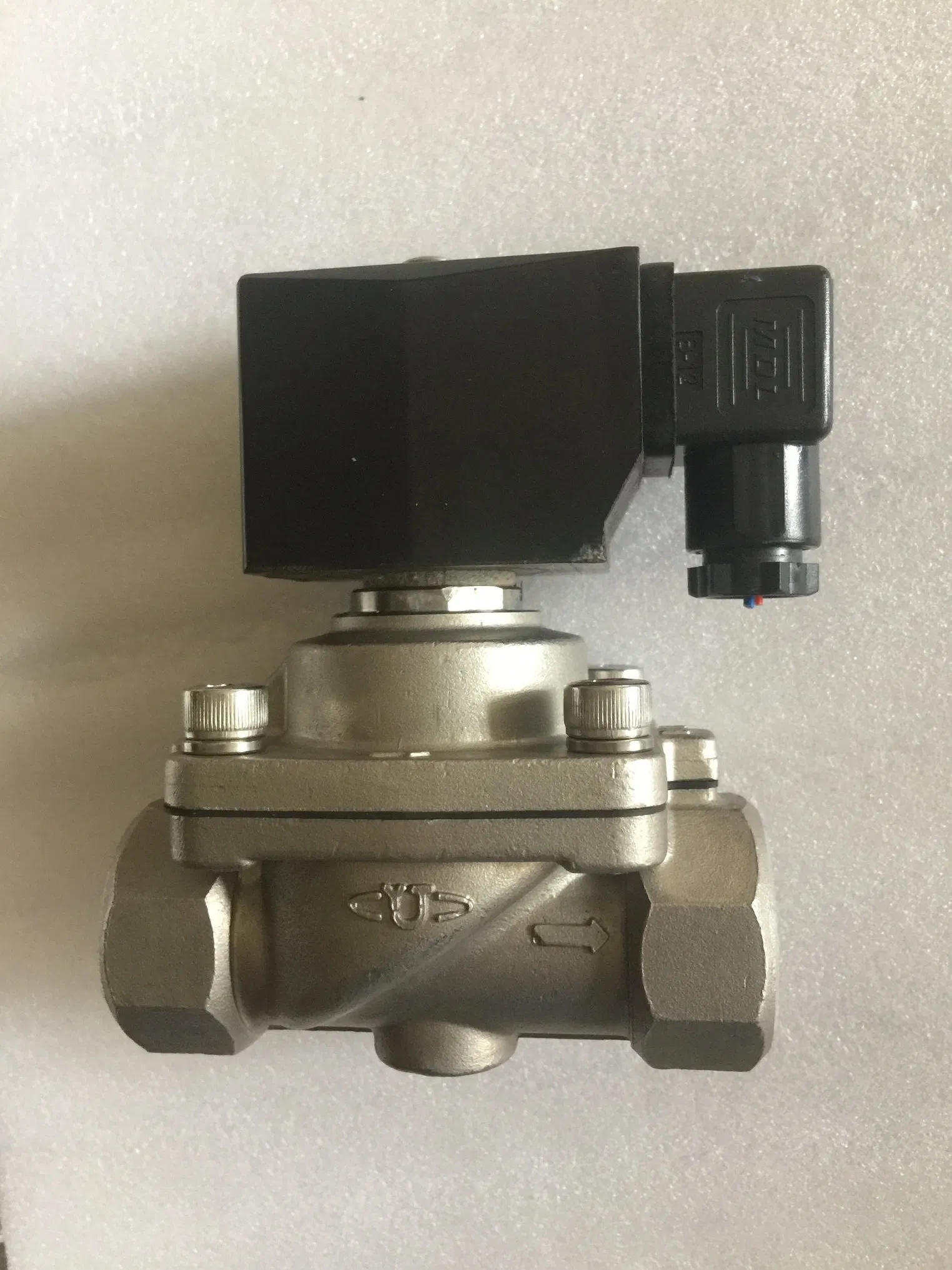

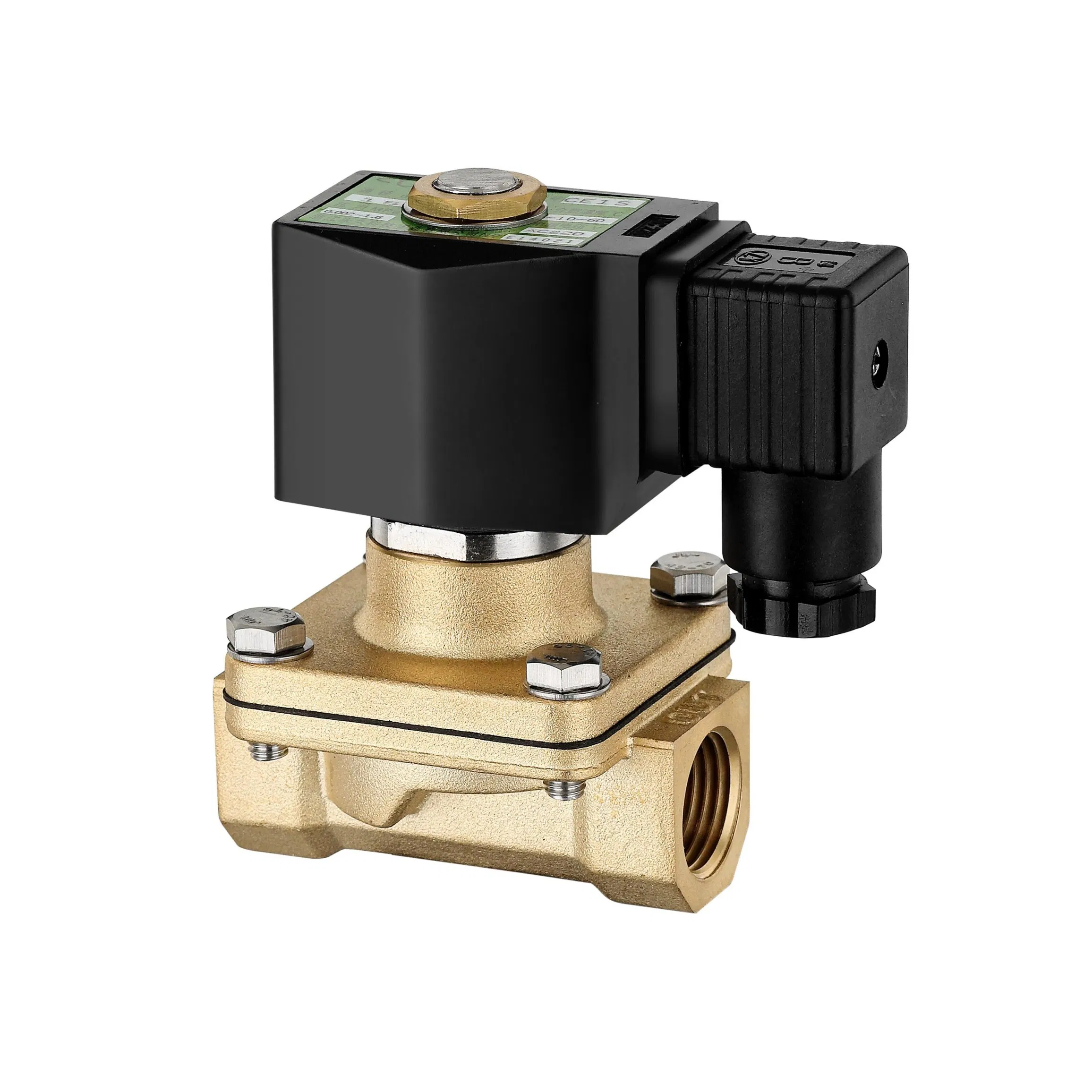

- Durable Build: Constructed with high-quality Brass or Stainless Steel bodies.
Technical Specifications
- Compatible Medium: Air, Gas, Water, Oil
- Size Range: 15mm to 250mm
- Working Pressure: 0 to 0.8 Mpa or 0.002 to 1.6 Mpa
- Temperature Range: -10 to 60º C
- Sealing Materials: NBR, PTFE, FKM

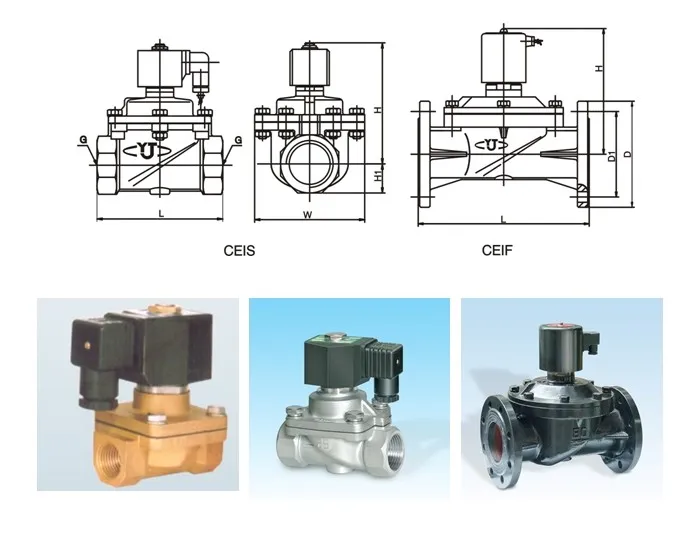

| Pipe Size (G, BSP, NPT) |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1¼ |
1½ |
2 |
| Flow Coefficient (KV) |
0.54 |
1.4 |
2.8 |
5 |
10 |
16 |
20 |
32 |
| Medium Pressure (PSi) |
CE (F) |
0.3~200 |
3~200 |
3~200 |
3~200 |
3~100 |
3~100 |
3~100 |
3~100 |
| CE |
0~57 |
0~100 |
0~100 |
0~100 |
0~57 |
0~57 |
0~57 |
0~57 |
| Medium Temp. (C) |
-10~60 / 0~150 |
| Power Voltage (V) |
AC220, AC110 (+10% -15%) | DC24V, DC12V (±10%) |
| Power Consumption |
AC 6.7VA | DC 11W |
| Insulation / Protection |
Grade C / IP65 |
Frequently Asked Questions
What types of media can this solenoid valve handle?
The CE(F) series is designed to handle a variety of media including Air, Gas, Water, and Oil. It is also suitable for ammonia, propane, and butane.
Does the valve work at zero differential pressure?
Yes, these direct-acting solenoid valves are designed to operate reliably even when the working differential pressure is close to zero.
What power supply options are available?
We offer multiple voltage options including AC 220V, AC 110V, DC 24V, and DC 12V to meet various industrial and household requirements.
What materials are the valve bodies made from?
The valve bodies are available in high-grade Brass and Stainless Steel, ensuring durability and corrosion resistance in different environments.
What is the warranty period for this product?
All CE1S and CE1F models come with an 18-month quality guarantee for peace of mind and reliable long-term operation.
Is the valve protected against water and dust?
Yes, the valve is rated with an IP65 protection grade and Class C insulation, making it suitable for industrial environments.
