🎯 Product Features
✓
Hose easily cleaned, ideally for testing impurity sample and waste discharge.
✓
Suitable for inspecting samples that contain impurities or particles.
✓
Ideal for applications requiring the avoidance of cross-contamination between samples.
📊 Technical Specification
| Model |

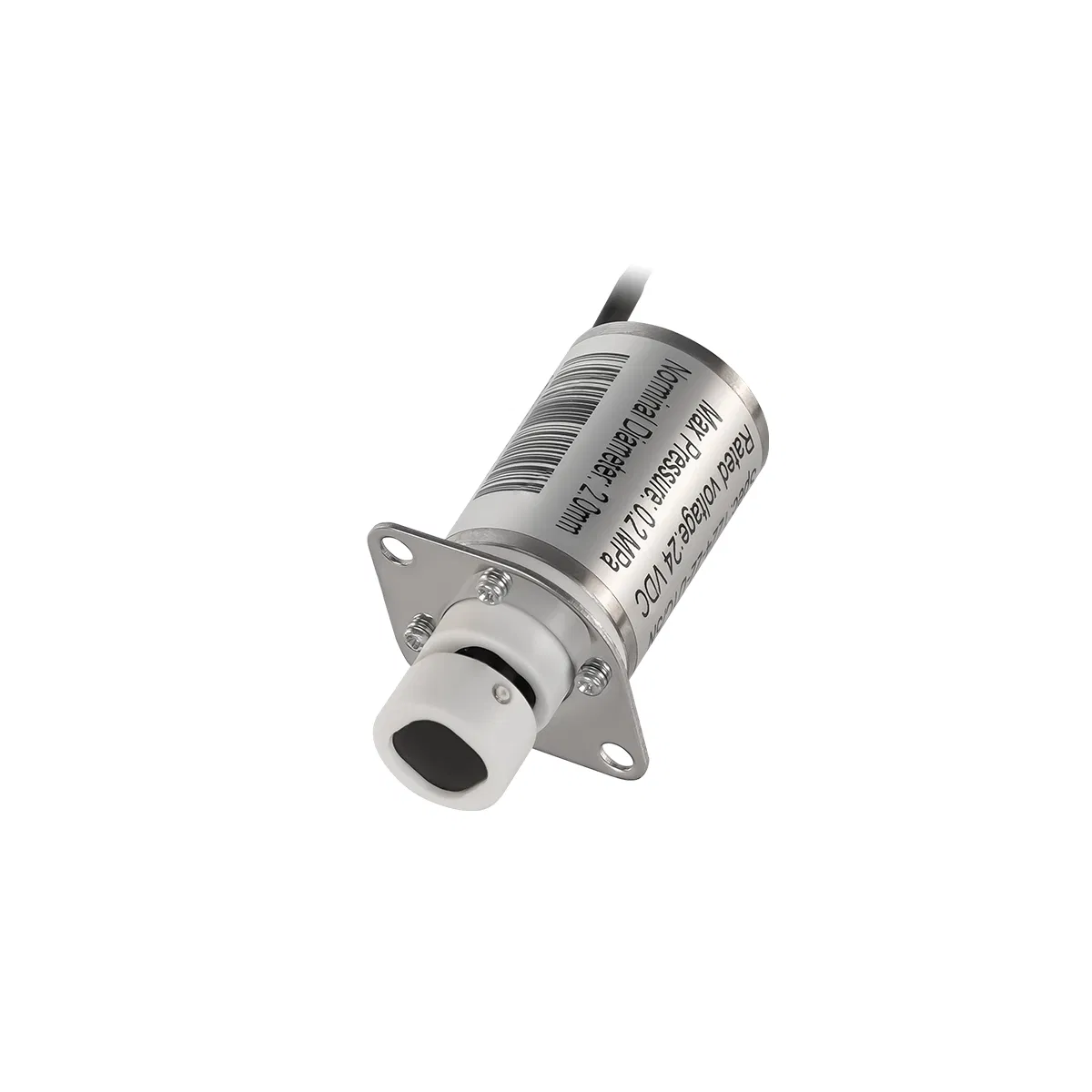

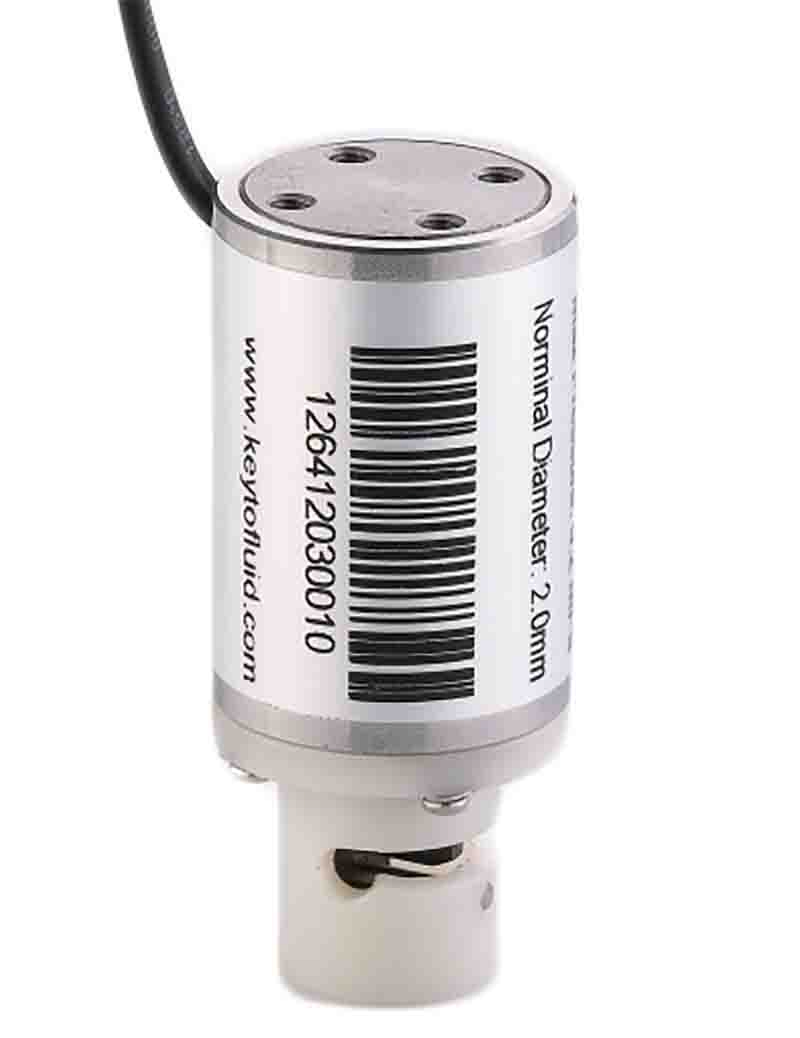

1224-1 Normally Open Single Channel Pinch Valve |
| Interface Method |
Bottom mounting |
| Outline Dimension |
58 * Φ25 mm |
| Orifice Diameter |
2 mm |
| Tube Specification |
2*4 mm |
| Recommend Tube Hardness |
Shore hardness: 60 |
| Power Consumption |
12V: 5.1 W / 24V: 5.4W |
| Withstand Pressure |
-70kPa ~ 250 kPa |
🖼️ Visual Display
❓ Frequently Asked Questions
What are the primary benefits of using a pinch valve for impurity samples?
The pinch valve design allows the hose to be easily cleaned and prevents the sample from coming into contact with the valve mechanism, making it ideal for waste discharge and testing samples with particles.
Does this valve support normally open operation?
Yes, the 1224-1 series is specifically designed as a Normally Open (NO) single channel pinch valve.
What type of tubing is recommended for this valve?
We recommend using 2*4 mm tubing with a Shore hardness of approximately 60 for optimal performance and sealing.
What is the pressure resistance range for this model?
The valve can withstand a pressure range from -70kPa up to 250 kPa, suitable for various vacuum and low-pressure applications.
How is the 1224-1 pinch valve installed?
This model features a bottom mounting interface method, allowing for secure integration into your fluid control system.
Is this valve effective in preventing cross-contamination?
Absolutely. Because the fluid only contacts the replaceable tubing, it is an excellent choice for applications where cross-contamination must be strictly avoided.
