Manual Natural Rubber Sleeved Pinch Valve Pn10 for Russian Market

1 / 5

Manual Natural Rubber Sleeved Pinch Valve Pn10 for Russian Market

Send Inquiry

Product Description

Product Overview

Product Name: Aluminium pinch valve with rubber hose

What is a Pinch Valve?

A Pinch Valve, also known as an air bag valve or hoop break valve, is a specialized industrial valve. The casing (hose) is the heart of the valve, providing exceptional resistance to corrosion, wear, and pressure. It utilizes pneumatic, electric, manual, or hydraulic actuation to compress the internal sleeve for reliable switching and flow adjustment.

Technical Parameters

Pressure Parameters	Value (MPa)
Nominal Pressure	1.0
Shell Strength	1.5
Sealing Test	1.1
Max. Temperature	120°С
Fitting Medium	Water, Steam, Oil

Part Name	Material
Body	Aluminium alloy
Bonnet	Aluminium alloy
Stem	Steel
Hose	Natural rubber / EPDM
Handwheel	Steel
Operated	Manual / Gear box / Pneumatic

Standard Dimensions (PN 1.6)

DN	L (mm)	D (mm)	D1 (mm)	D2 (mm)
50	210	160	125	100
80	300	195	160	135
100	360	215	180	155
150	510	280	240	210
200	650	335	295	265
250	800	405	355	320
300	950	460	410	370

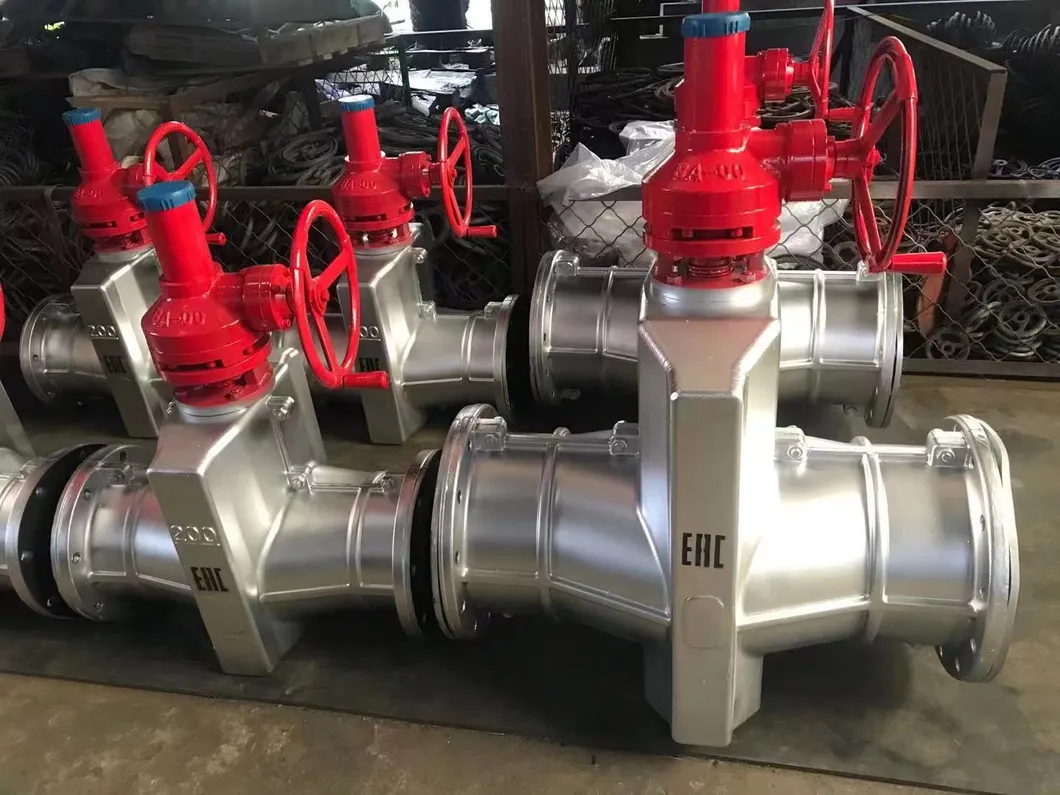

Detailed Photos

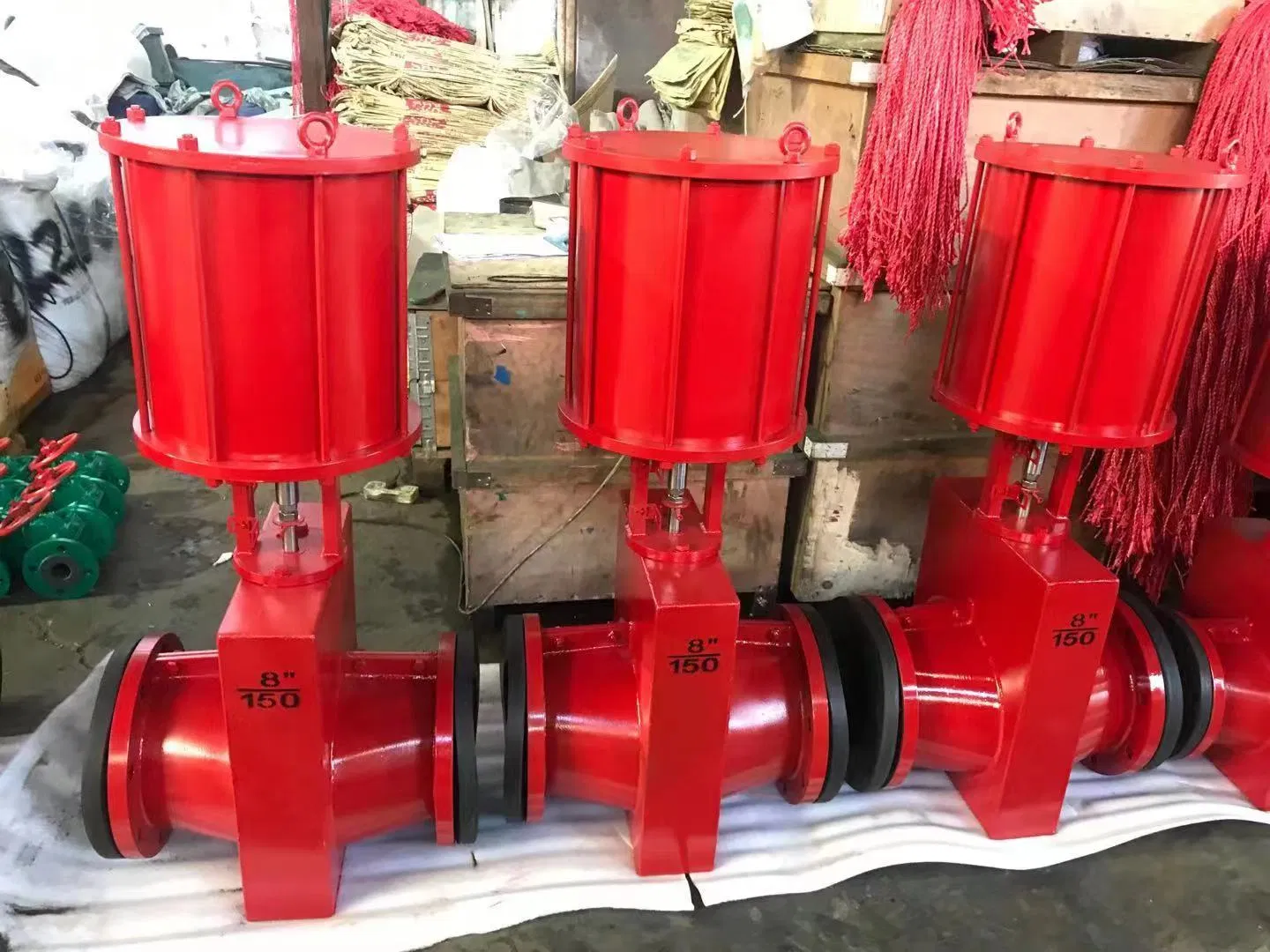

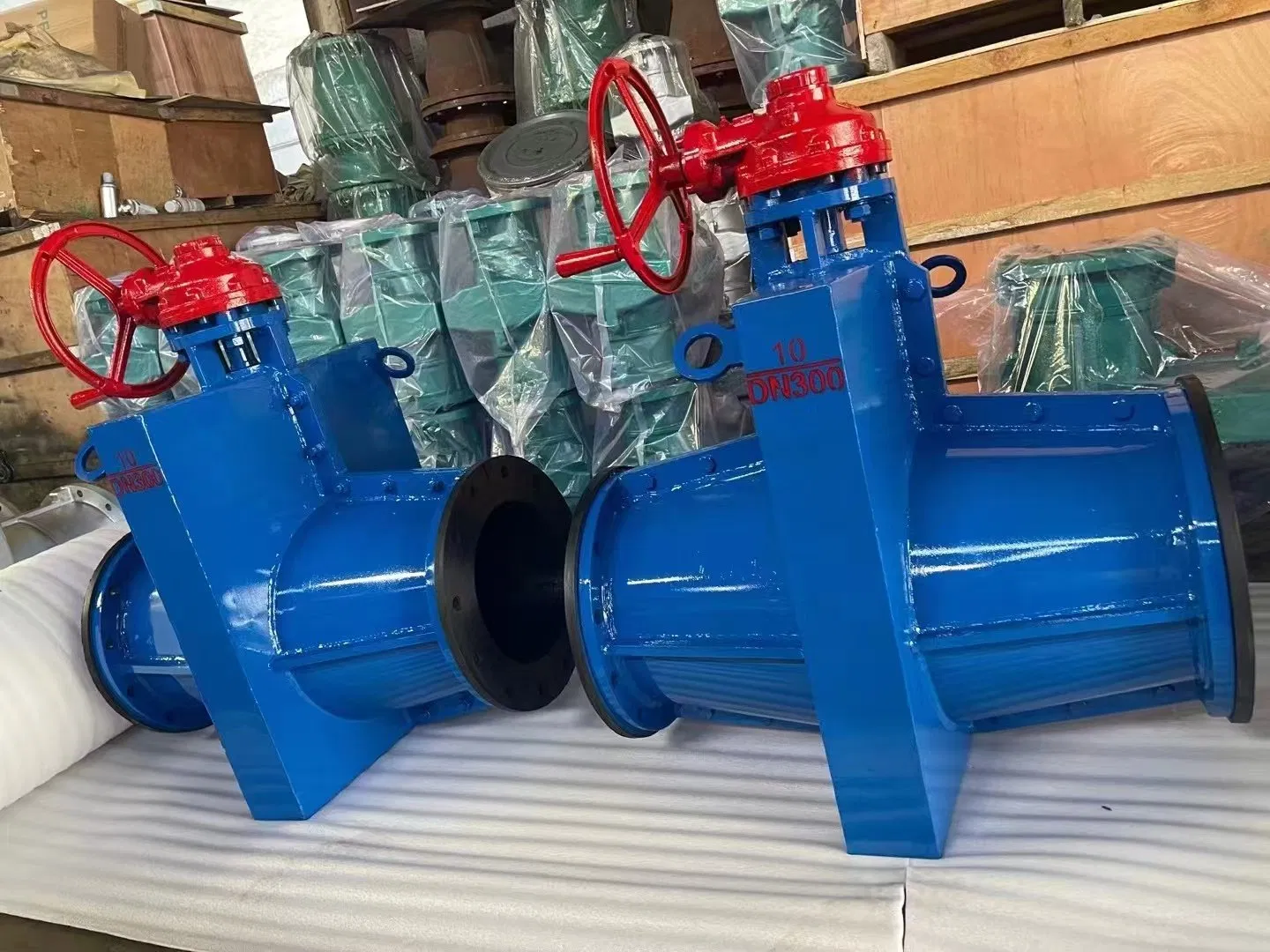

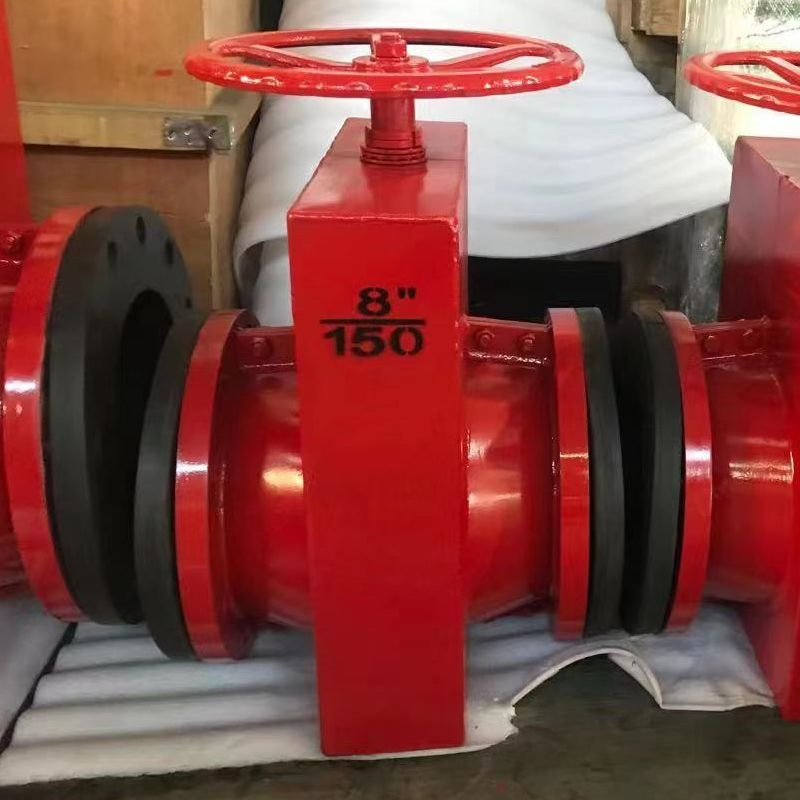

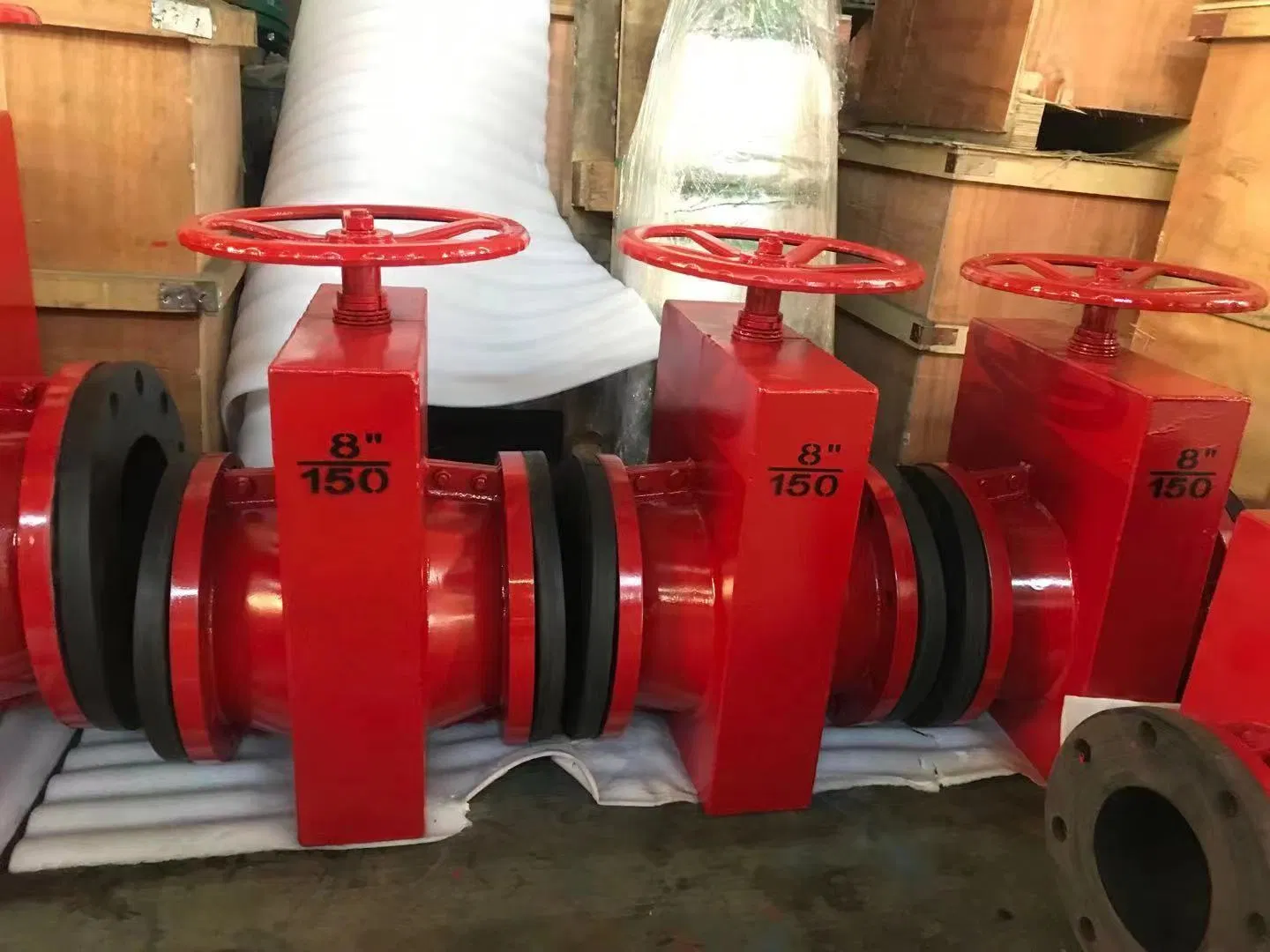

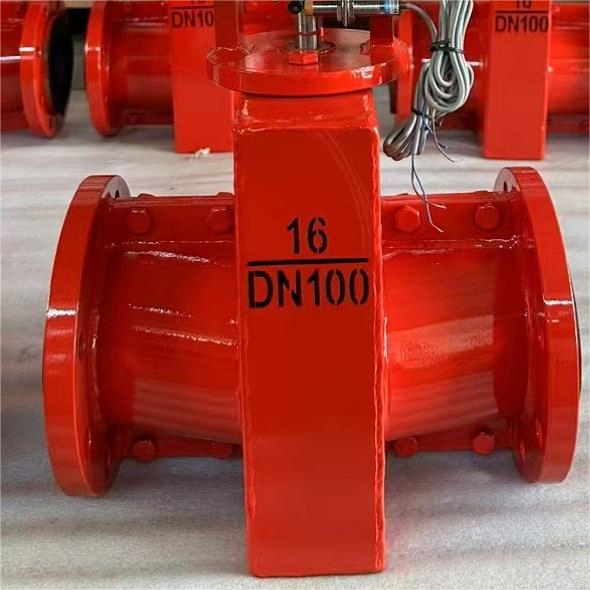

Manual Natural Rubber Sleeved Pinch Valve

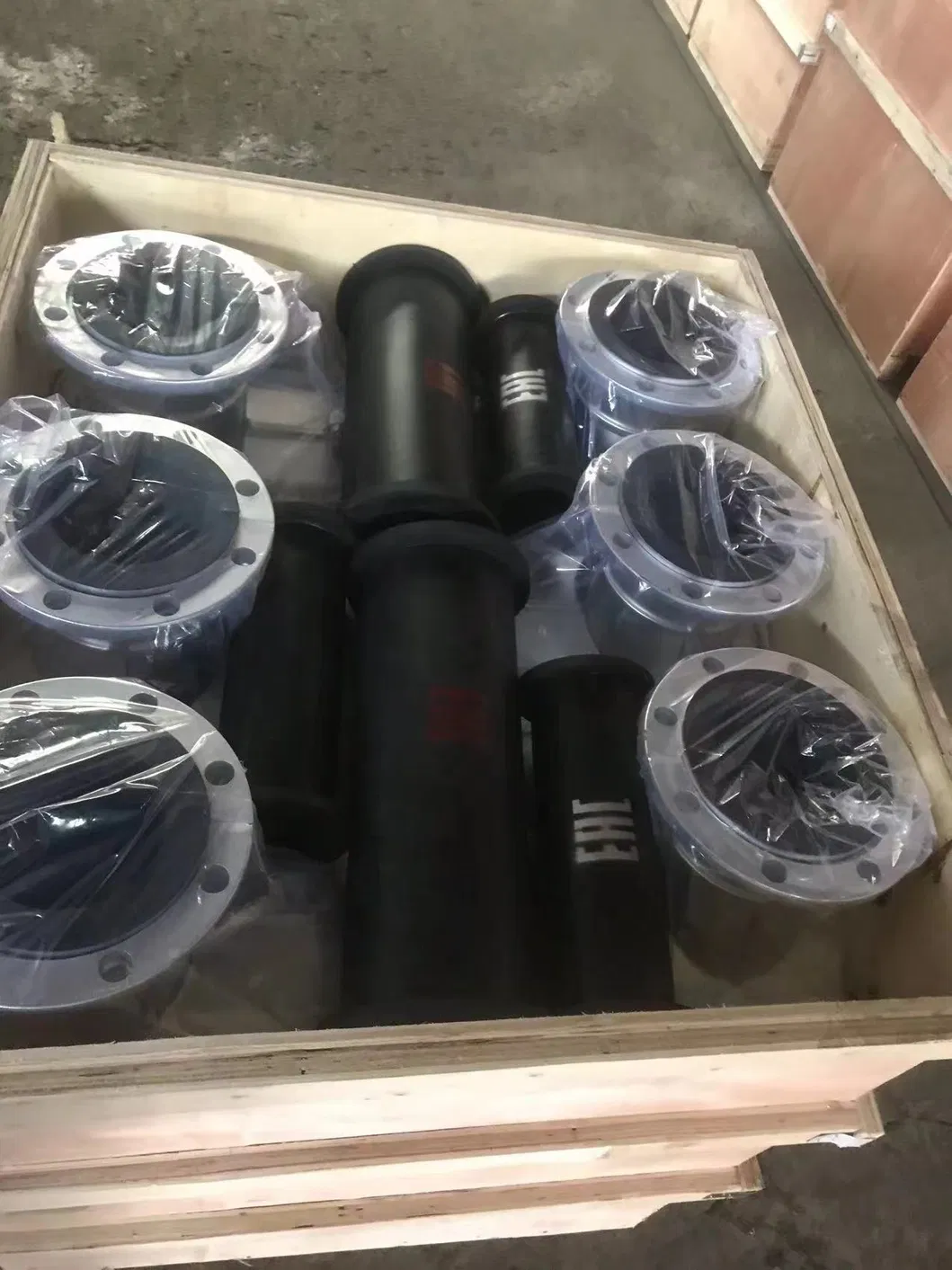

Packaging & Shipping

After Sales Service

Our enthusiastic and friendly customer service representatives are ready to assist with any questions or technical problems you may encounter.

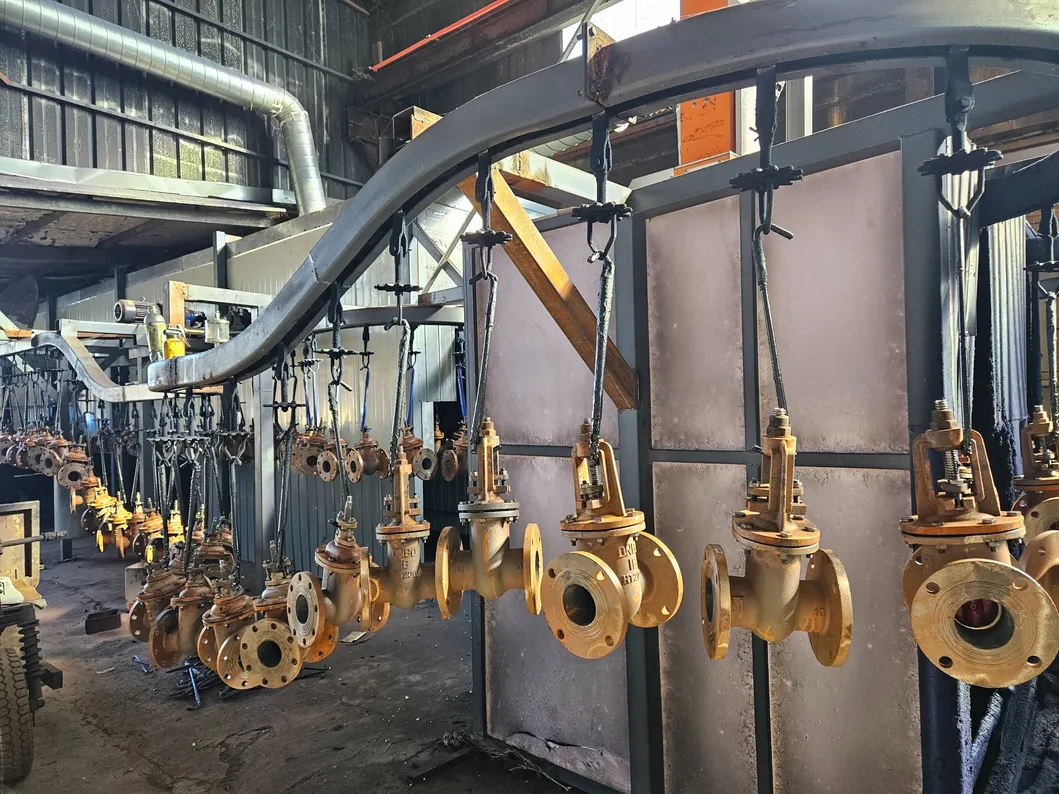

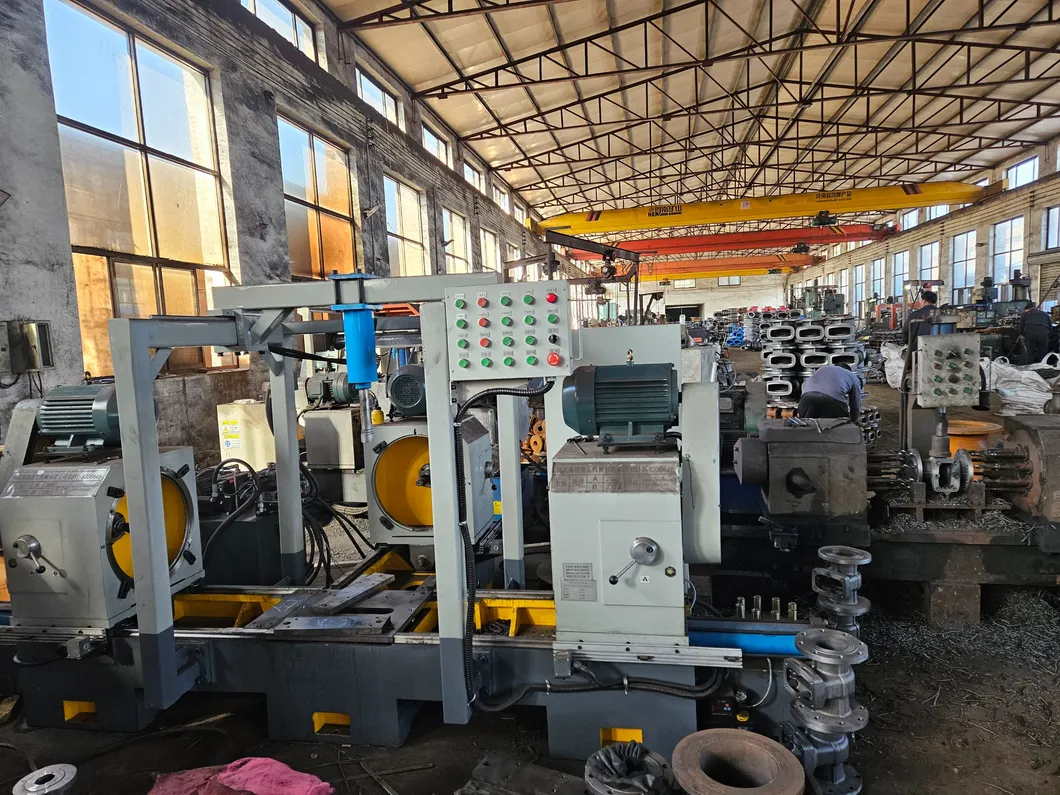

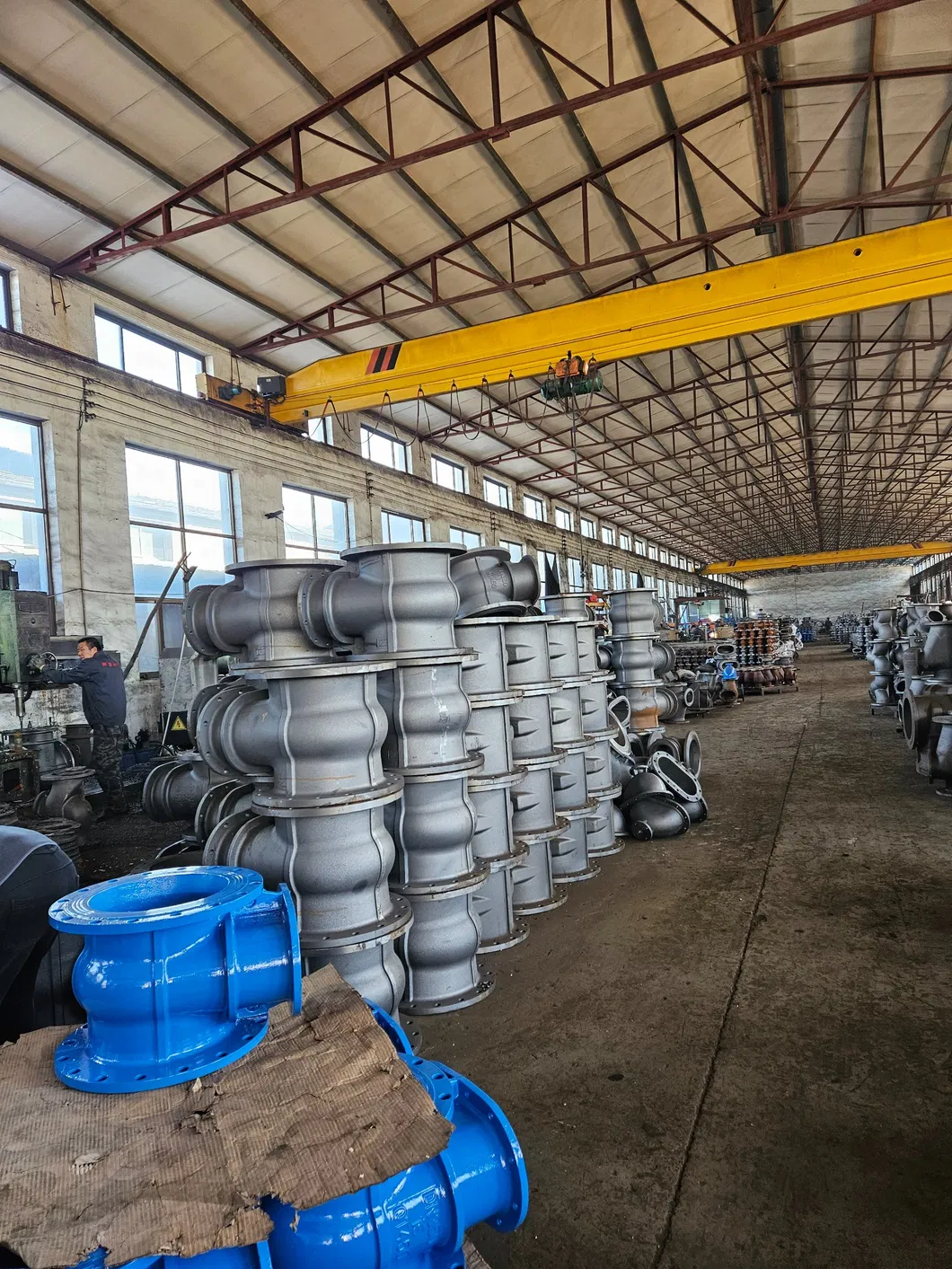

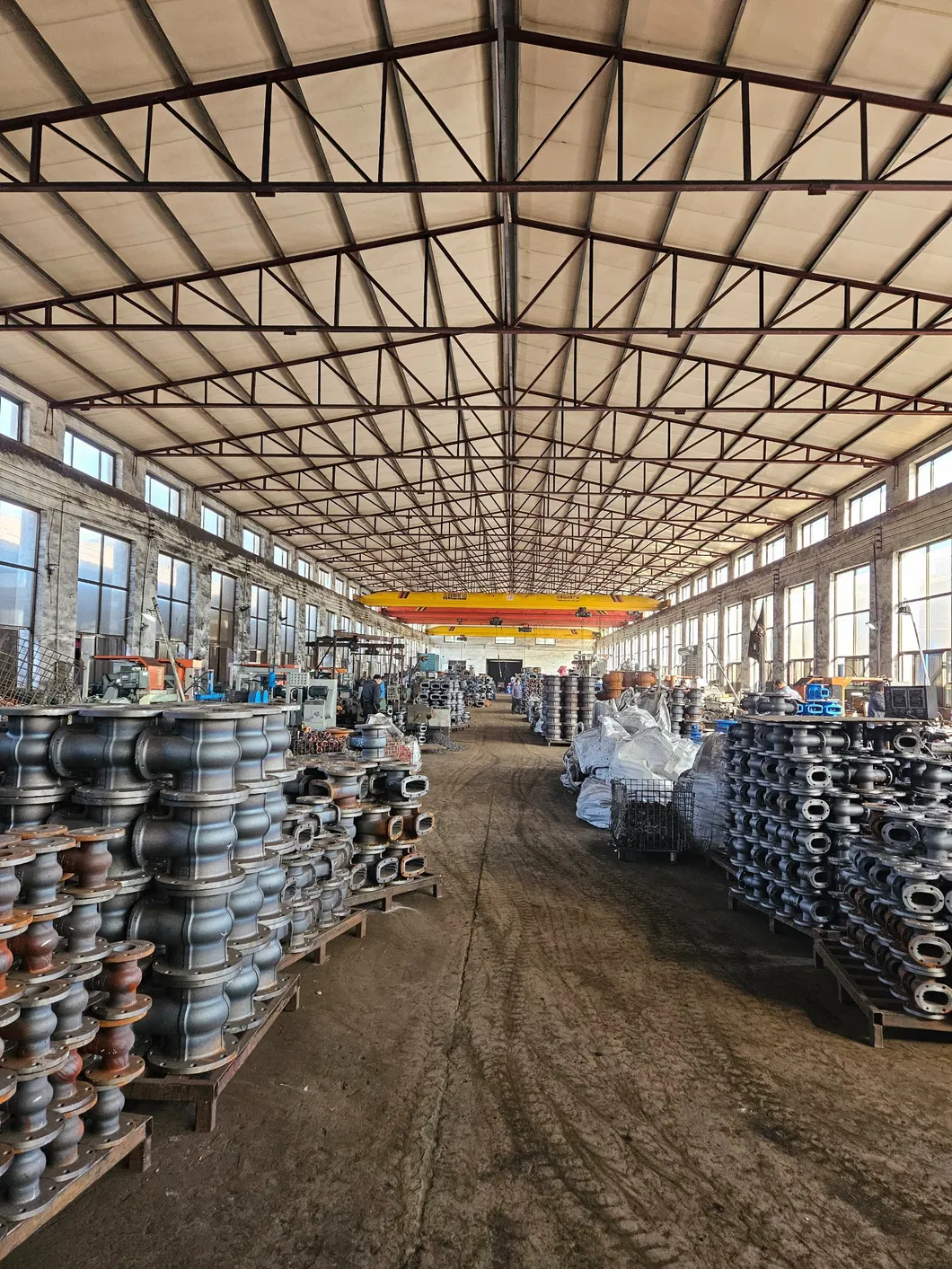

Manufacturing Excellence

Frequently Asked Questions

1. What are the key features of an aluminium pinch valve?

The valve features an unobstructed flow path, low flow resistance, and no blocking. It ensures zero leakage even when particles are present, with low maintenance costs and a simple design resistant to harsh environments.

2. What hose materials are available?

We offer high-quality hoses made from Natural Rubber and EPDM, providing excellent resistance to corrosion and wear.

3. How is the pinch valve operated?

The valve can be operated manually via a handwheel, through a gear box, or by pneumatic actuation for automated systems.

4. Can this valve handle solids or particles?

Yes, the flexible internal rubber sleeve can close around residual particles to maintain a zero-leakage seal, making it ideal for slurries.

5. What is the maximum operating temperature?

The aluminium pinch valve is designed to operate safely at temperatures up to 120°С.

6. Why is the aluminium alloy body beneficial?

The aluminium alloy body and bonnet offer a lightweight yet durable structure, providing good strength-to-weight ratio and corrosion resistance for various industrial media.
