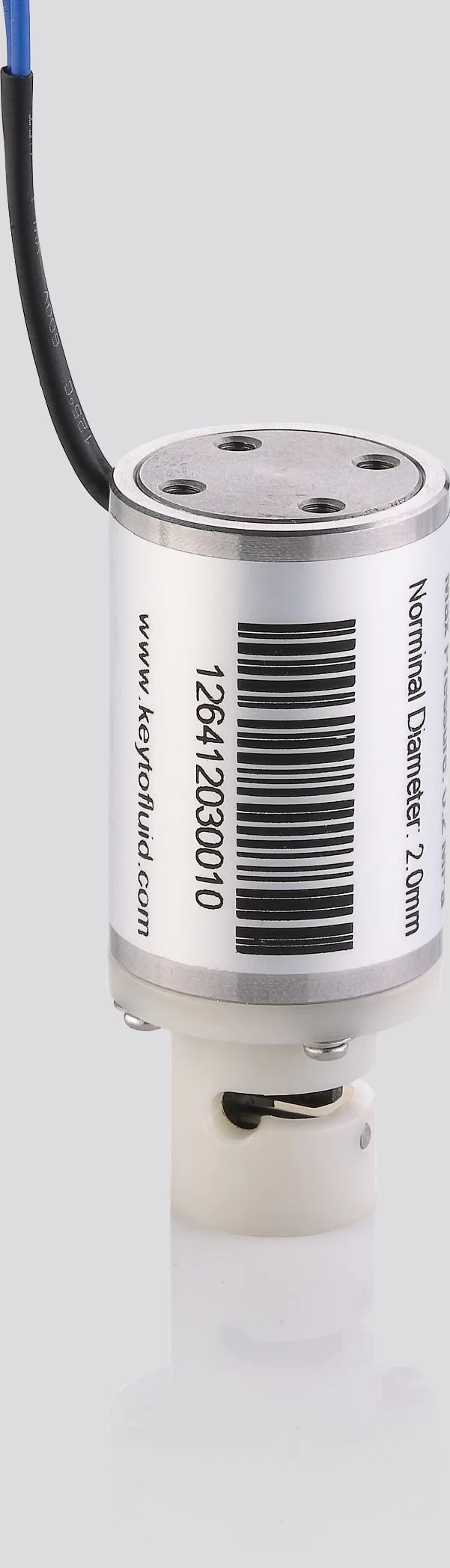

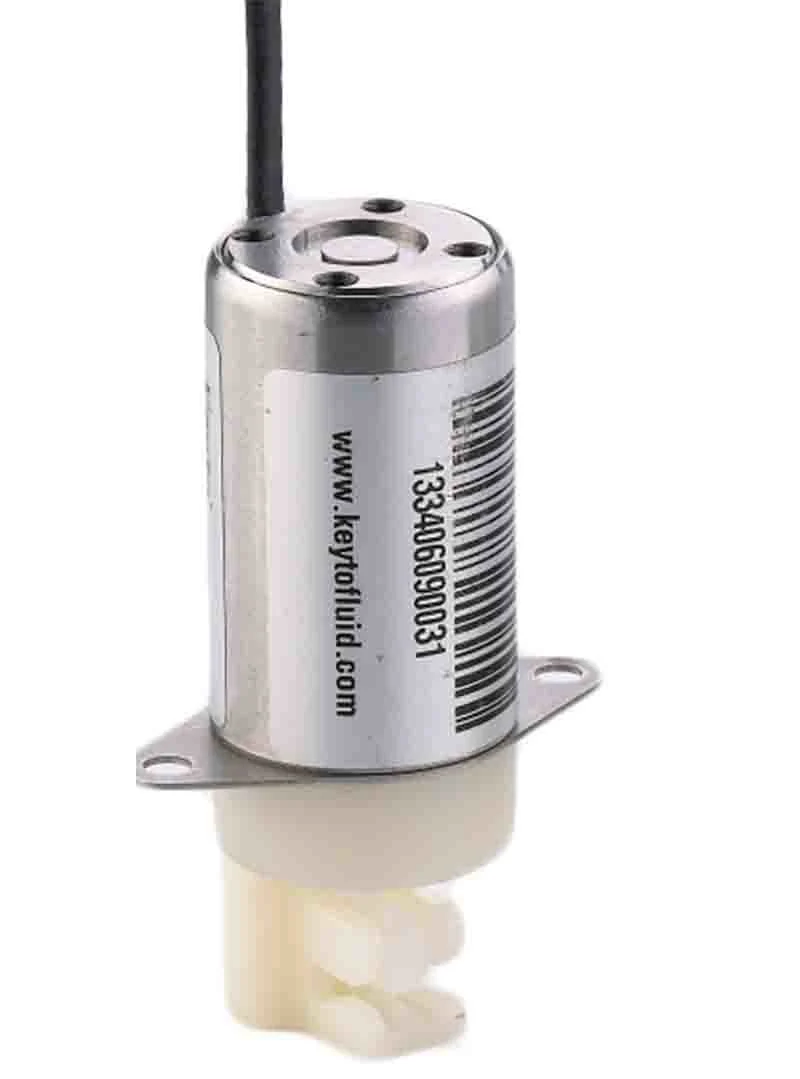

1213 Series Pinch Solenoid Double Channel Valve

1 / 5

1213 Series Pinch Solenoid Double Channel Valve

Customization:	Available
Size:	58*Φ25mm
Transport Package:	Bulk Package

Send Inquiry

Product Description

■ Basic Information

Model NO.

1213-32-D1C

Specification

CE, RoHS

Origin

China

HS Code

8481804090

Production Capacity

200, 000 PCS/Year

■ Product Features

Hose easily cleaned, ideally for testing impurity sample, waste discharge.
Suitable for inspecting samples contain impurities / particles or not.
Applications in occasion which need to avoid cross contamination between samples.

■ Technical Specifications

Model	1213-3 Double Channel Pinch Valve
Interface method	bottom / bracket mounting
Outline dimension	60.7 * Φ22 mm
Orifice diameter	1.5 mm
Tube specification	1.5 * 3 mm / 1.6 * 3.2 mm
Recommend tube hardness	Shore hardness: 60
Power consumption	12V / 24V: 3.5W
Withstand pressure	-70 kPa ~ 200 kPa

■ Installation Methods

1. Bottom mounting

2. Bracket mounting

1213 Series Pinch Solenoid Double Channel Valve View 1

1213 Series Pinch Solenoid Double Channel Valve View 2

1213 Series Pinch Solenoid Double Channel Valve View 3

1213 Series Pinch Solenoid Double Channel Valve View 4

1213 Series Pinch Solenoid Double Channel Valve View 5

■ Frequently Asked Questions

What are the primary advantages of the 1213-3 Double Channel Pinch Valve?

The valve features easily cleaned hoses, making it ideal for impurity sample testing and waste discharge while effectively avoiding cross-contamination.

What type of tubing is recommended for this pinch valve?

We recommend using tubes with a Shore hardness of 60, specifically in sizes 1.5 * 3 mm or 1.6 * 3.2 mm.

What are the power requirements for the 1213 series?

The valve operates on either 12V or 24V with a low power consumption of only 3.5W.

What pressure range can this valve handle?

The 1213 series pinch valve is designed to withstand a pressure range from -70 kPa to 200 kPa.

What installation options are available for this model?

This valve supports both bottom mounting and bracket mounting to suit various equipment designs.

Is this product compliant with international standards?

Yes, the 1213-32-D1C model meets CE and RoHS specifications.
