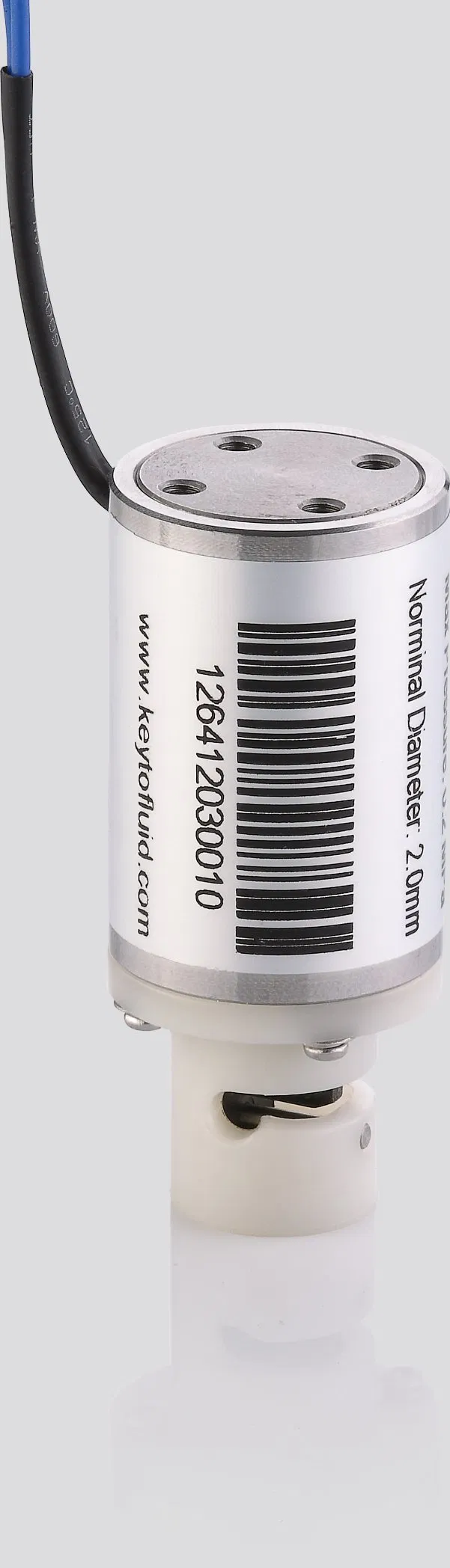

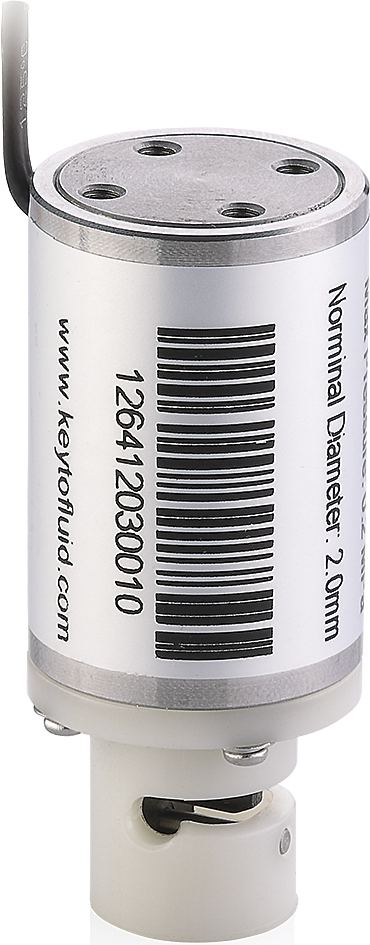

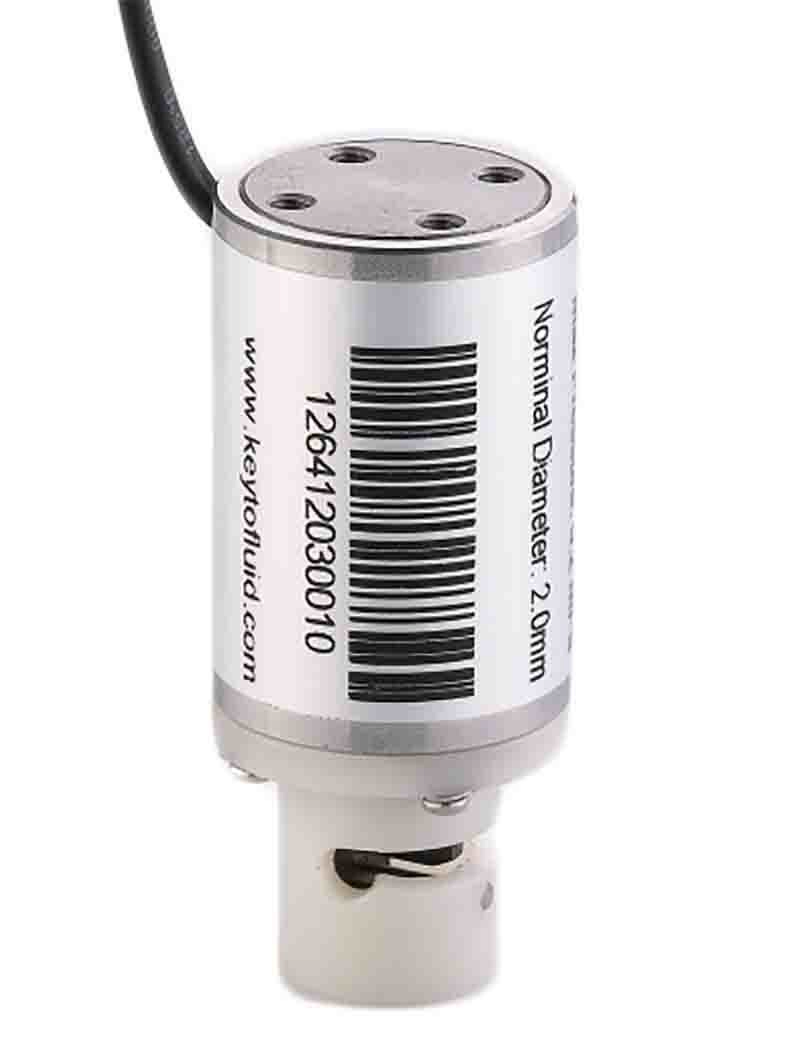

Normaly Open Series Pinch Solenoid Single Channel Valve

1 / 5

Normaly Open Series Pinch Solenoid Single Channel Valve

Customization:	Available
Size:	58*Φ25mm
Transport Package:	Bulk Package

Send Inquiry

Product Description

📋 Basic Information

Model NO.

1224-12-B1C

Specification

CE, RoHS

Origin

China

HS Code

8481804090

Capacity

200,000 PCS/Year

🚀 Product Features

✔ Hose easily cleaned, ideally for testing impurity sample and waste discharge.

✔ Suitable for inspecting samples whether they contain impurities or particles.

✔ Applications designed to avoid cross-contamination between different samples.

⚙️ Technical Specifications

Model	1224-1 Normally Open Single Channel Pinch Valve
Interface method	Bottom mounting
Outline dimension	58 * Φ25 mm
Orifice diameter	2 mm
Tube specification	2*4 mm
Tube hardness	Recommend Shore hardness: 60
Power consumption	12V: 5.1 W / 24V: 5.4W
Withstand pressure	-70kPa ~ 250 kPa

📷 Product Gallery

❓ Frequently Asked Questions

Q1: What is the advantage of using a pinch valve for impurity samples?

The hose can be easily cleaned or replaced, making it ideal for waste discharge and samples with particles without clogging the internal valve mechanism.

Q2: Does this valve support both 12V and 24V power supplies?

Yes, there are models available for both 12V (5.1W) and 24V (5.4W) power consumption requirements.

Q3: What is the recommended tubing for this model?

We recommend using a tube with a specification of 2*4 mm and a Shore hardness of approximately 60 for optimal performance.

Q4: Can this valve prevent cross-contamination?

Absolutely. Since the fluid only contacts the tubing and not the valve itself, it is perfect for applications where avoiding cross-contamination is critical.

Q5: What pressure range can the 1224-1 series withstand?

This valve is designed to withstand pressures ranging from -70kPa up to 250 kPa.

Q6: How is the valve installed?

This model utilizes a bottom mounting interface method for secure and stable installation within your equipment.
