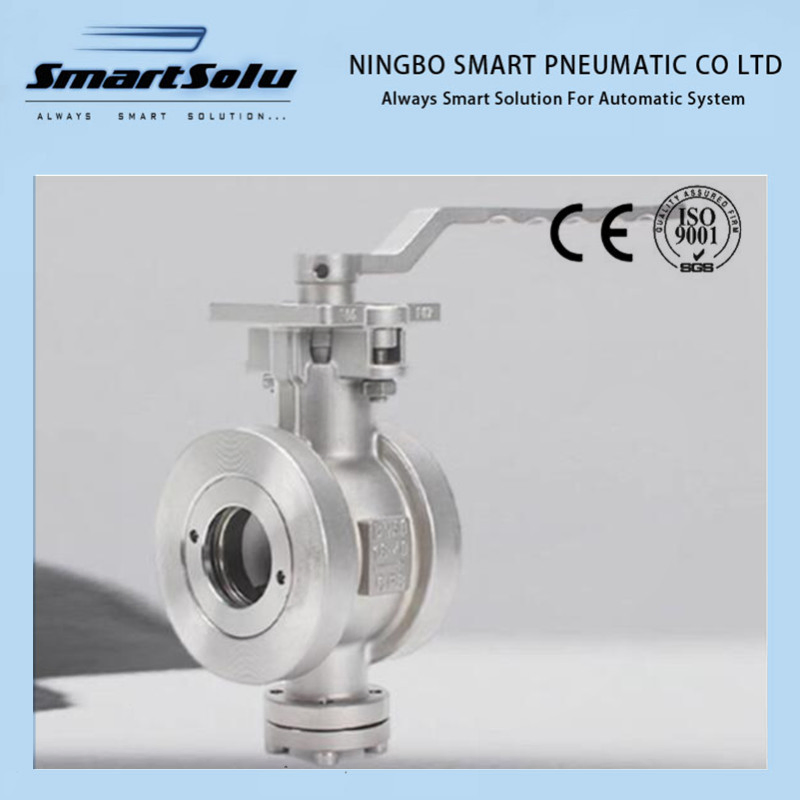

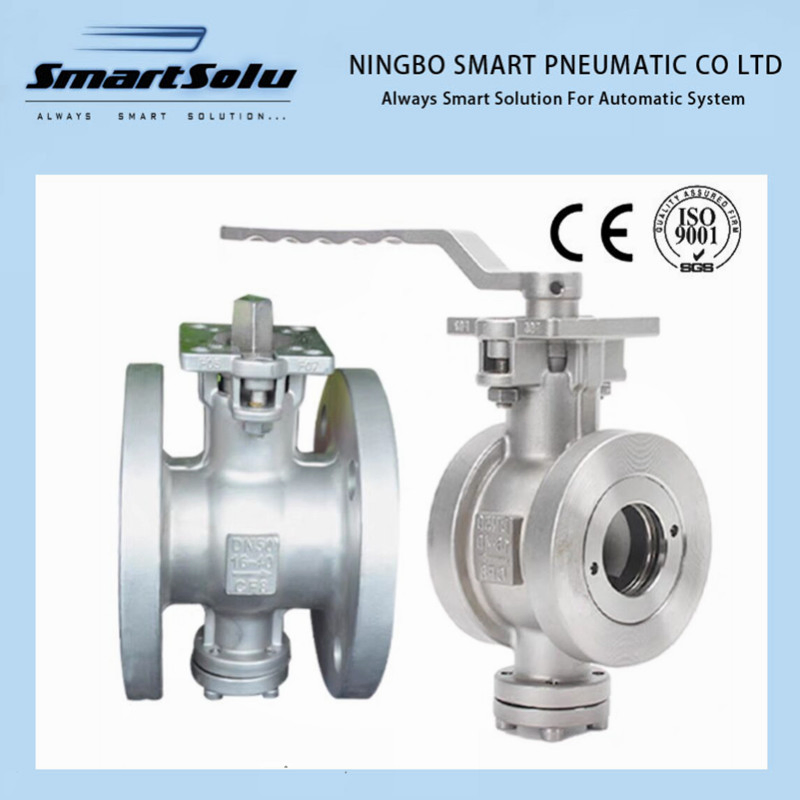

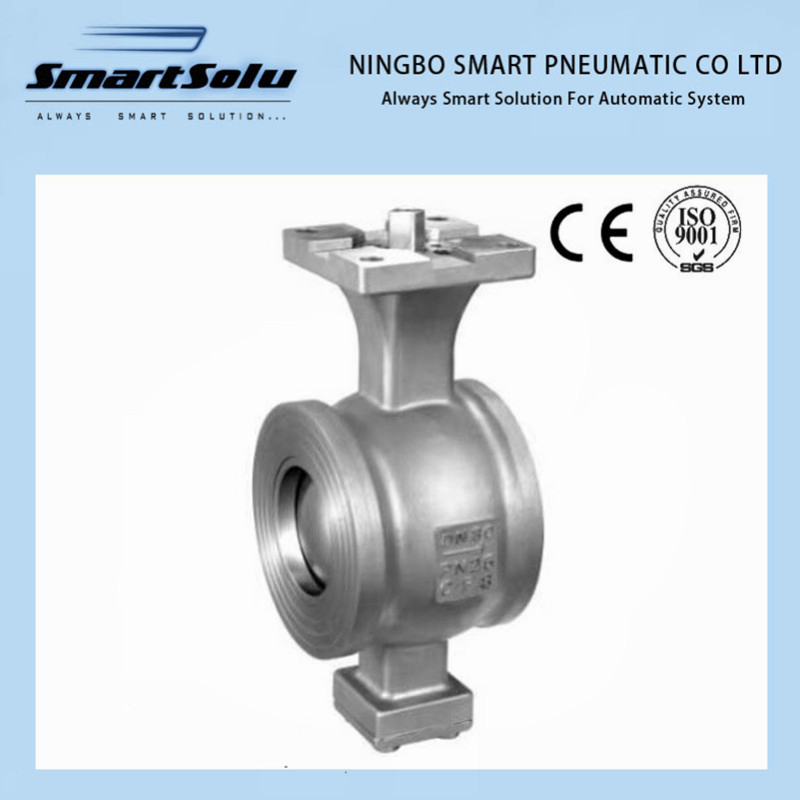

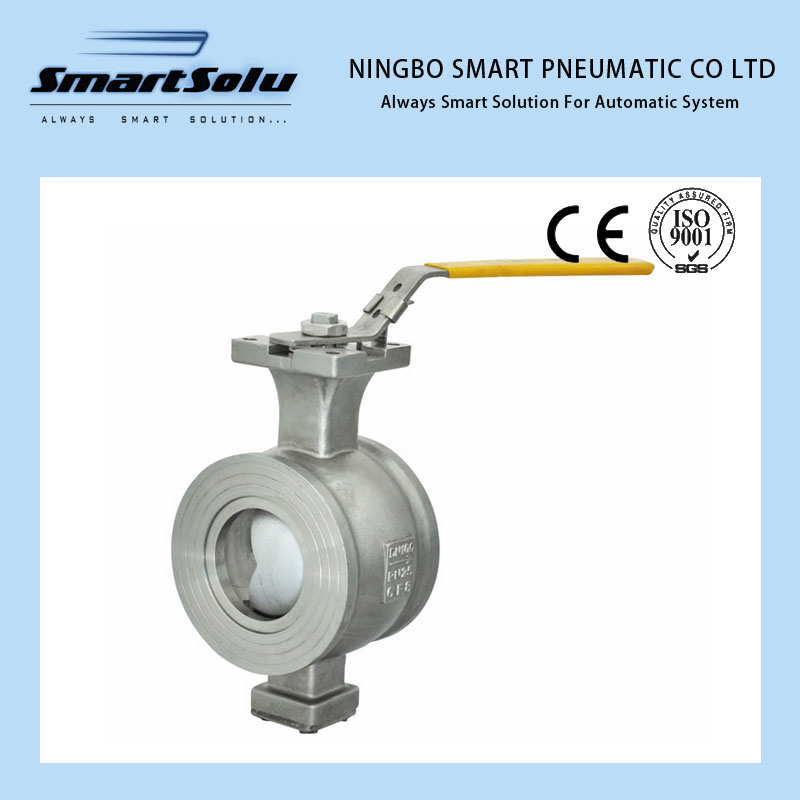

GB Standard V Segment Wafer End Ball Valve

1 / 4

GB Standard V Segment Wafer End Ball Valve

Customization:	Available
Media:	Water
Temperature:	Ordinary Temperature

Send Inquiry

Product Description

Technical Specifications

Model NO.

Wafer end V-port Ball Valve

Actuator

Electric

Connection Form

Thread

Type

V Type Ball Valve

Material

Stainless Steel

Pressure

Ordinary Temperature

Valve Structure

Floating Ball Valve

Power Supply

AC & DC

Usage

Safety

Standard

Application

Industrial Usage, Water Industrial Usage

Nominal Pressure

ANSI Class 150-900

HS Code

8481804090

Production Capacity

500,000 PCS/Year

Packaging & Delivery

Package Size

15.00cm * 15.00cm * 10.00cm

Gross Weight

1.000kg

Package Type

Product Description

V-port Ball Valve are ideal for achieving more precise control with the simplicity and sealing features of a ball valve. They offer better and more consistent control than traditional round ported ball valves. The standard "V" notch options are 30, 45, 60 & 90 degrees, and we can also process according to customer requirements.

DN(inch)	ΦD	L	H	H1	A	W	T	ΦE1	ΦE2	P	ΦU1	ΦU2
1/4"	10.6	64	42	72	9	135	32	36	42	9	6	6
3/8"	12.7	64	42	72	9	135	32	36	42	9	6	6
1/2"	15	68	42	72	9	135	32	36	42	9	6	6
3/4"	20	73	49	80	9	135	35	36	42	9	6	6
1"	25	85	58	90	11	170	42.5	42	50	11	6	7
1-1/4"	32	94	63	95	11	170	47.5	42	50	11	6	7
1-1/2"	38	105	71	106	14	200	52.5	50	70	14	7	9
2"	50	125	78	113	14	200	62.5	50	70	14	7	9
2-1/2"	65	155	101.5	150	17	300	77.5	70	102	17	9	11
3"	76	173	109	159	17	300	86.5	70	102	17	9	11

GB Standard V Segment Wafer End Ball Valve Dimensions

Our Strengths & Services

Over 10 years of professional experience in pneumatic and valve products.
Strict quality control processes to ensure premium product performance.
One-stop procurement for a wide range of pneumatic components.
Acceptance of sample orders and low-volume production runs.
Full OEM and ODM capabilities, including product personalization and custom packaging.
Global shipping reach covering more than 60 countries worldwide.

Frequently Asked Questions

Q1: What are the main advantages of V-port ball valves? V-port ball valves provide superior and more precise flow control compared to standard round-port valves, while maintaining excellent sealing capabilities.

Q2: Which V-notch angles are available? We offer standard 30, 45, 60, and 90-degree V-notches. Custom angles can also be manufactured based on specific customer requirements.

Q3: What materials are these valves made from? The valves are primarily constructed from high-grade Stainless Steel to ensure durability and resistance in industrial applications.

Q4: Can these valves handle different power supplies? Yes, the electric actuators are compatible with both AC and DC power supplies, making them versatile for various industrial setups.

Q5: What size range do you offer for these ball valves? We provide V-port ball valves in sizes ranging from 1/4" up to 8" to accommodate different piping needs.

Q6: Are the products certified for international use? Yes, our valves carry the CE certification and follow ANSI Class standards, ensuring they meet rigorous international safety and quality requirements.
