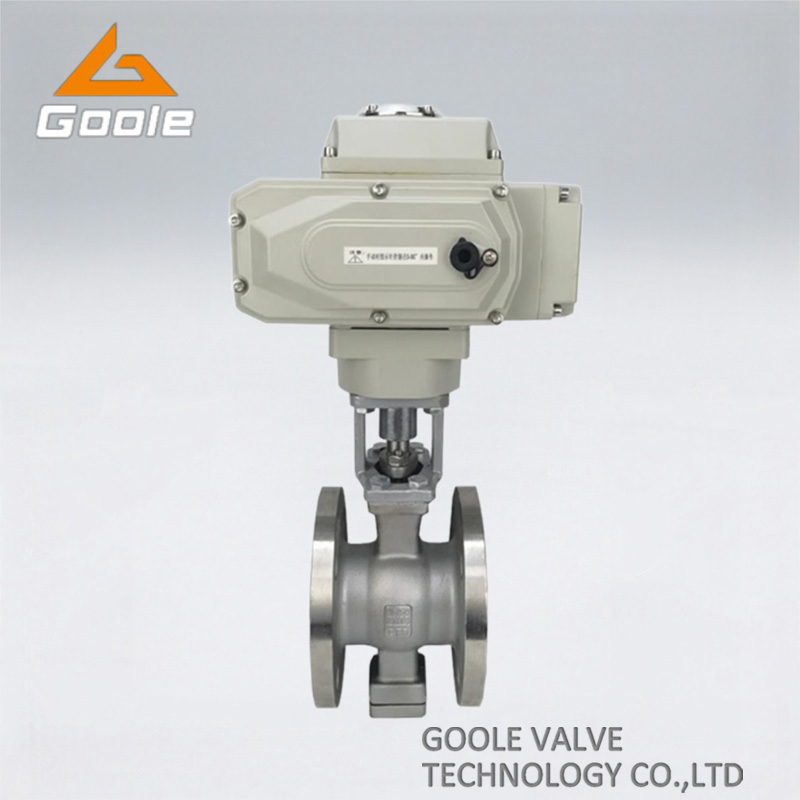

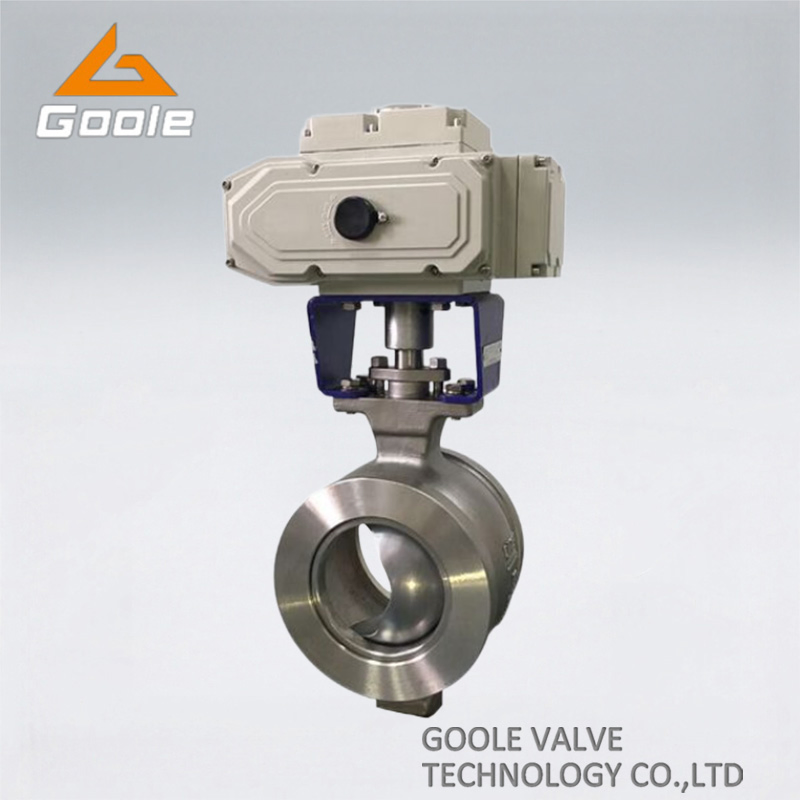

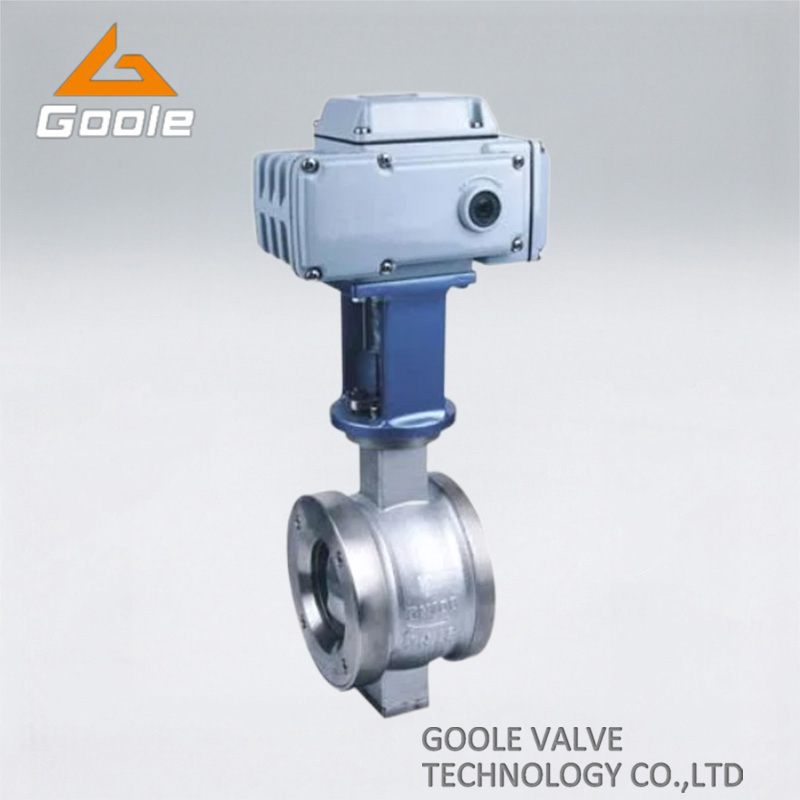

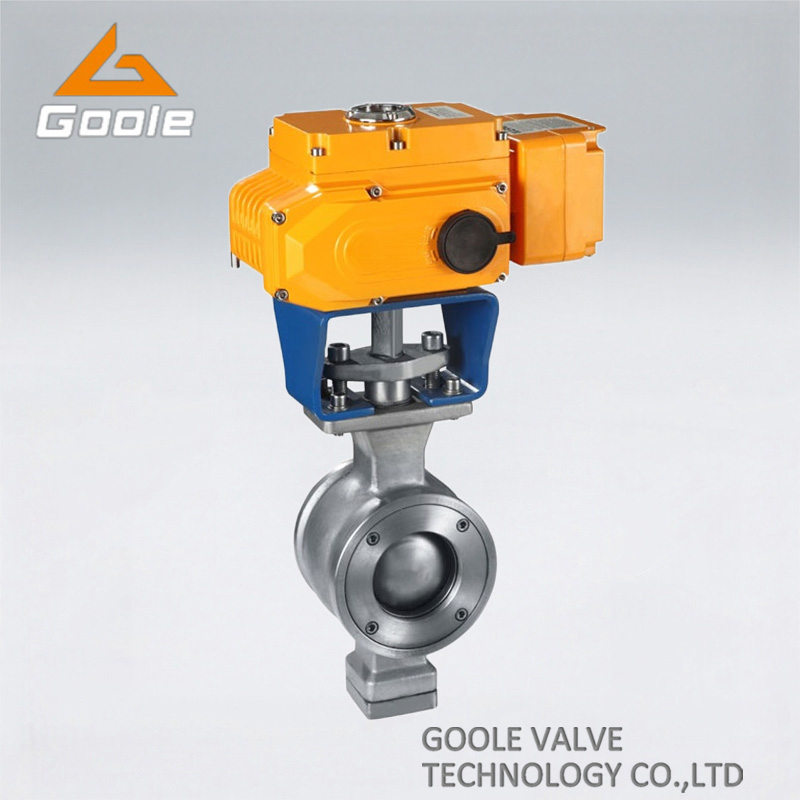

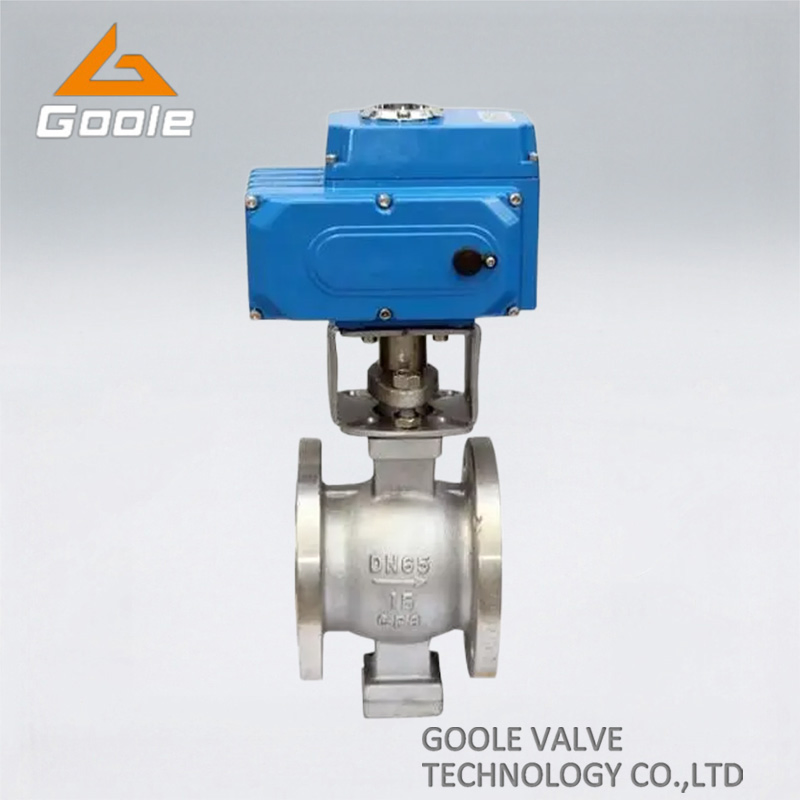

Electric Operated Stainless Steel Wafer V-Type Segment Regulating Ball Valve

1 / 5

Electric Operated Stainless Steel Wafer V-Type Segment Regulating Ball Valve

Customization:	Available
Media:	W.O.G.
Material:	Stainless Steel

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

GAVQ970F

Connection Form

Flange

Driving Mode

Electric

Nominal Pressure

ANSI CLASS 150-900

Channel

Straight Through Type

Structure

Floating Ball Valve

Type

V Type Ball Valve

Function

Blow-Down Valve

Temperature

Normal Temperature

Standard

ANSI

Application

Industrial Usage

Production Capacity

500 Pieces / Month

📝 Product Overview

Electric Operated Stainless Steel Wafer V-Type Segment Regulating Ball Valve

The Electric V-shaped regulating ball valve is a rotary ball valve featuring a core seat made of metal or metal to PTFE sealing. It effectively combines the optimal control characteristics of ball valves and butterfly valves into a single unit, making it suitable for both control regulating and shut-off applications.

⭐ Key Product Features

1. V Incision Design The shear force between the ball and the metal seat V incision is specifically designed for media containing fibers, small solid particles, and pulp.

2. Small Pressure Loss Features full open flow capacity with minimal pressure loss; prevents media deposition within the valve body cavity.

3. Long Service Life Utilizes a spring-loaded movable seat structure to prevent jamming between the ball core and valve seat, ensuring reliable sealing.

4. Accurate Regulation Provides reliable positioning and approximately equal percentage flow characteristics. Offers a large adjustable range with a maximum ratio of 100:1.

📊 Technical Specifications & Dimensions

DN (mm)	25	32	40	50	65	80	100	150	200	250	300
Kv	22	36	58	82	145	200	355	798	418	2209	3185
P (MpA)	14	8	10	9	20	14	8	6	3.5	1.6	2.5

Nominal Pressure	PN1.6~6.4MPa
Nominal Diameter	20~400mm
Temperature Range	Hard Seal: -40~300ºC \| Soft Seal: -40~180ºC
Applicable Medium	Water, gas, oil, pulp, and fibrous media
Driving Means	Manual, Electric, Worm wheels, Pneumatic
Body Materials	WCB, CF8, CF8M, CF3M
Stem / Seat	Stem: 304, 316 \| Seat: PTFE, Stainless Steel

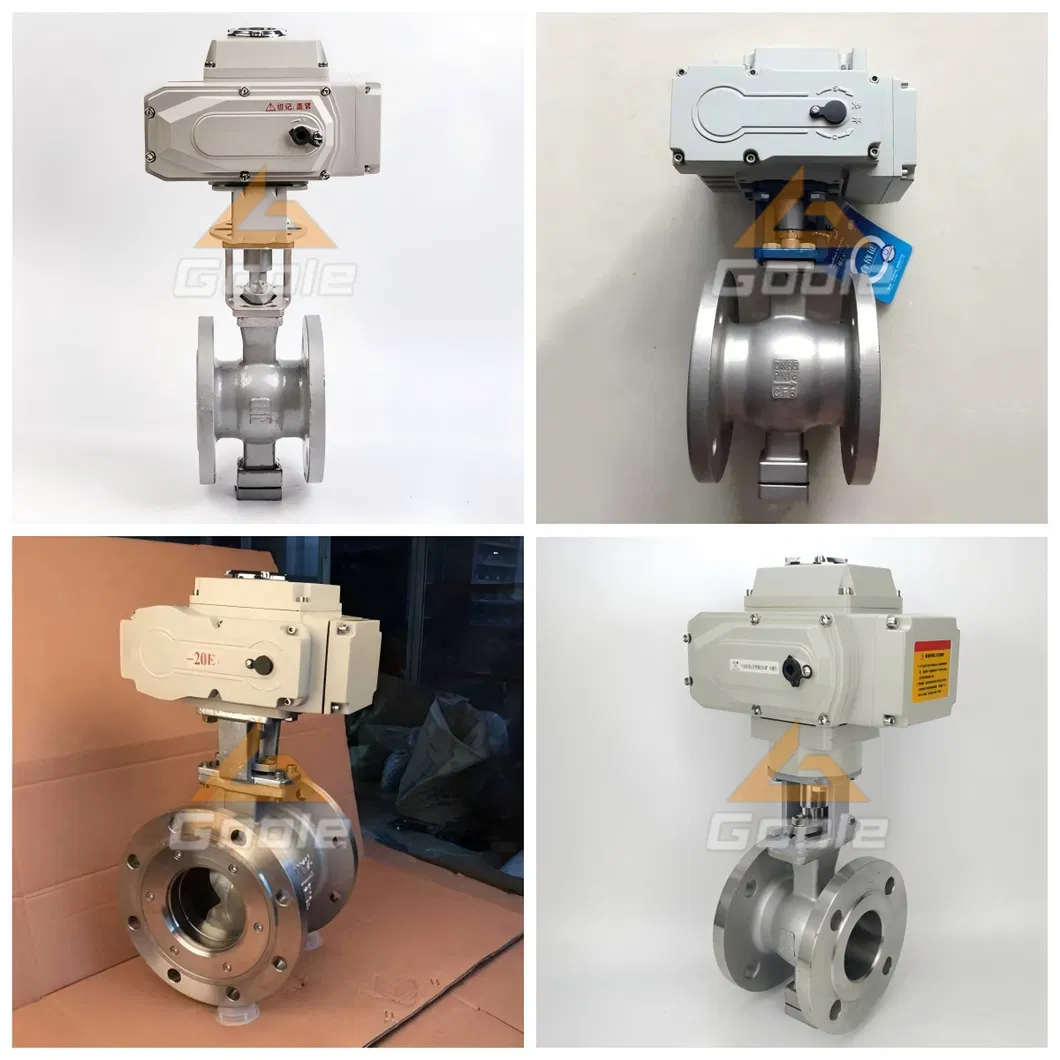

📷 Product Display

Frequently Asked Questions

What are the primary applications for this V-type ball valve?

It is specifically designed for industrial use, particularly for media containing fibers, small solid particles, and pulp, where a shearing action is required.

Does this valve support both regulation and shut-off?

Yes, the V-shaped design combines the control characteristics of a butterfly valve and a ball valve, allowing it to function as both a regulating and a shut-off valve.

What is the maximum adjustable range of this valve?

This valve offers a large adjustable range with a maximum adjustable ratio of 100:1 for highly accurate flow regulation.

What materials are available for the valve body?

Standard materials include WCB (Carbon Steel) and Stainless Steel options like CF8, CF8M, and CF3M.

Can it handle high-temperature media?

Yes, with a Hard Seal configuration, the valve can handle temperatures ranging from -40ºC up to 300ºC.

What driving modes are compatible with this series?

The valve can be operated manually, or via electric, pneumatic, and worm wheel actuators depending on your requirements.
