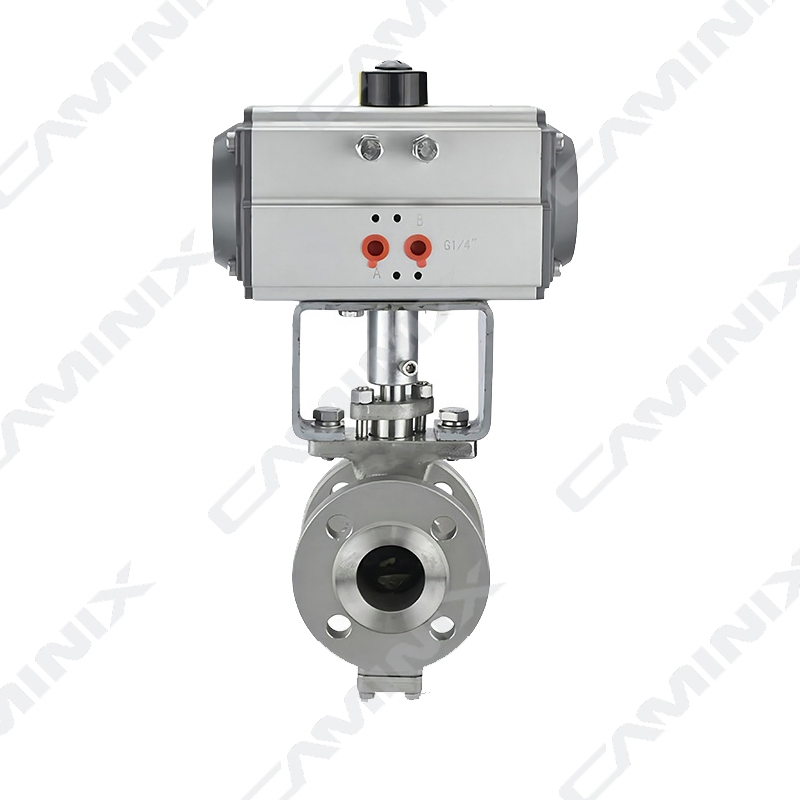

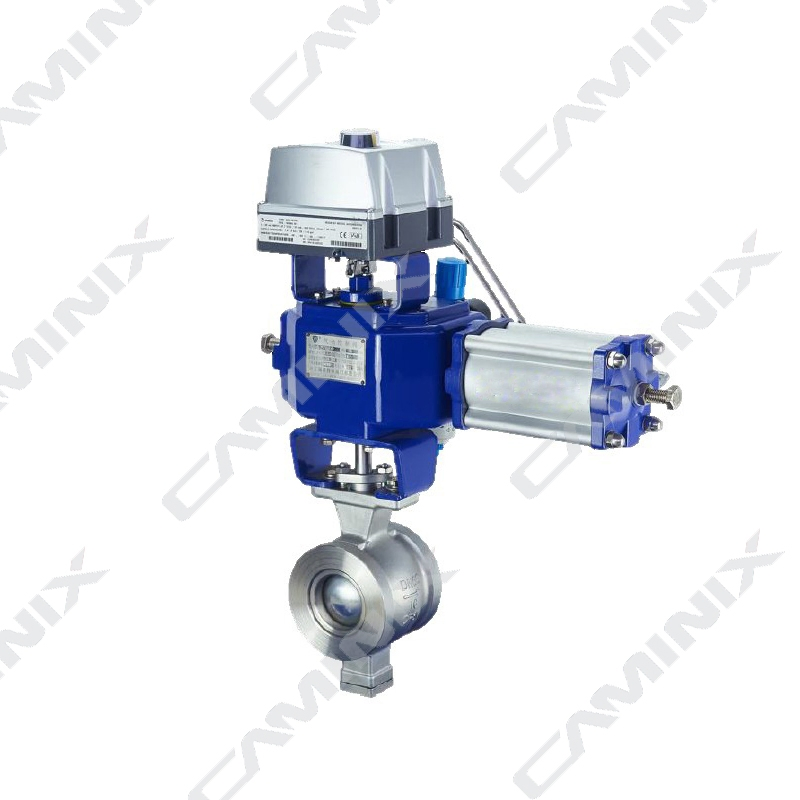

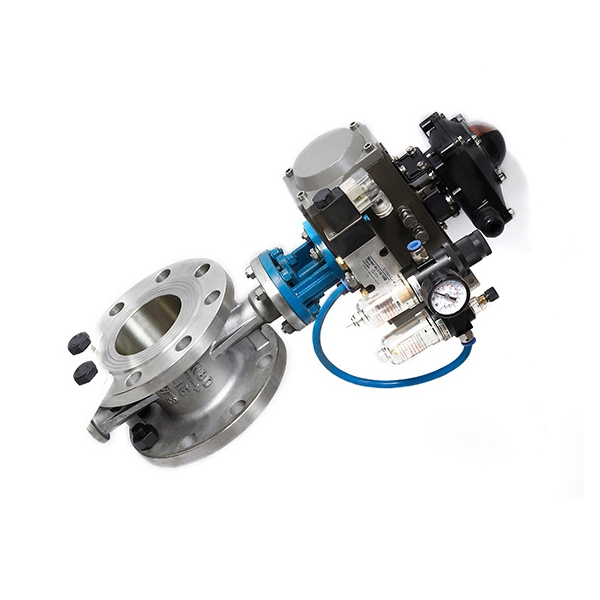

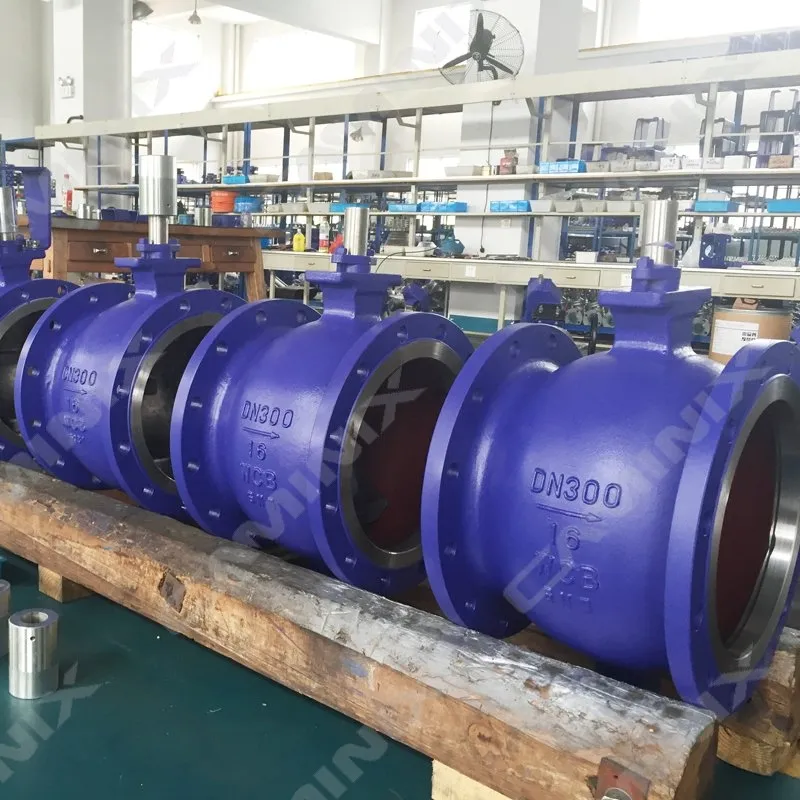

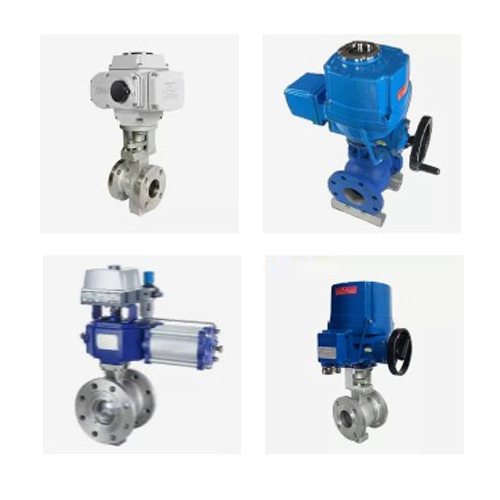

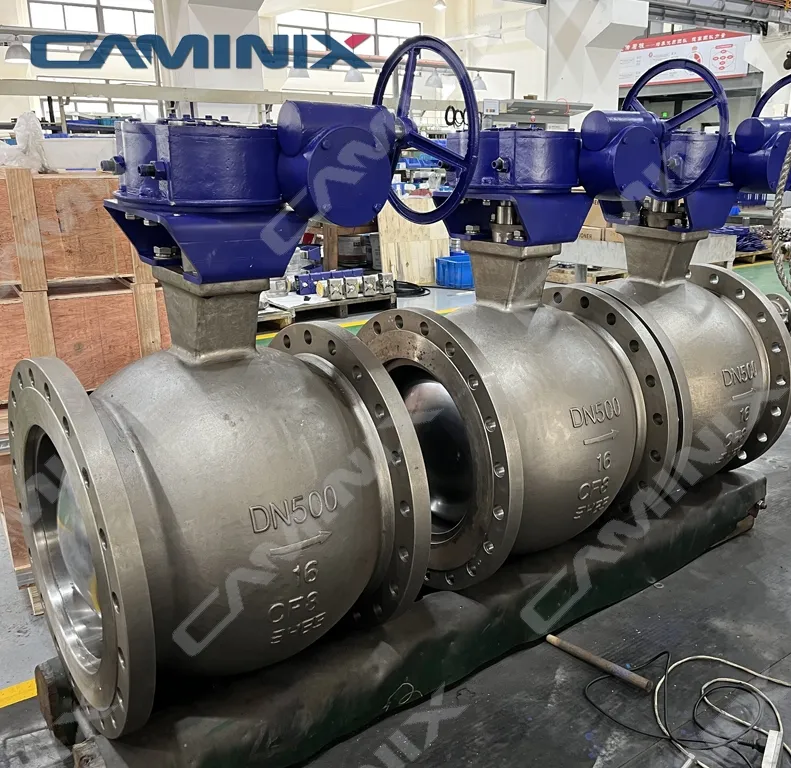

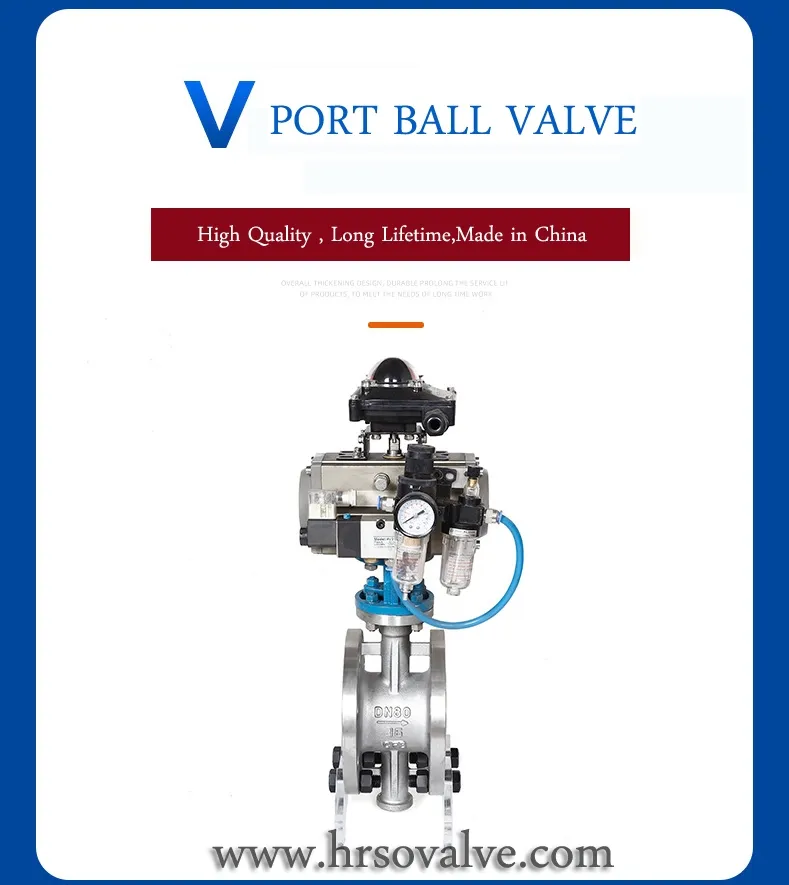

The V Port ball valve, also known as a Segmented ball valve, features a ball with a V-notch design. This allows for precise flow control and efficient shut-off of various media. It is an excellent choice for demanding applications involving fiber slurry or solid particles.

Seating Options

• Soft Seat: RPTFE, PEEK, PPL, Nylon, Molon, Devlon, PCTFE, etc.
• Metal Seat: Hard metals such as STL6 or TC.

Available Materials

Carbon steel, alloy steel, stainless steel, duplex steel, bronze, Inconel, Hastelloy, Monel, Incoloy, and more.

• Carbon Steel: A105N, WCB, WCC, WC6, WC9, etc.
• Stainless Steel: F304, F316, F316L, CF8, CF8M, CF3M, etc.
• Duplex Steel: F51, F53, F55, 4A, 5A, 6A, CD3MN.

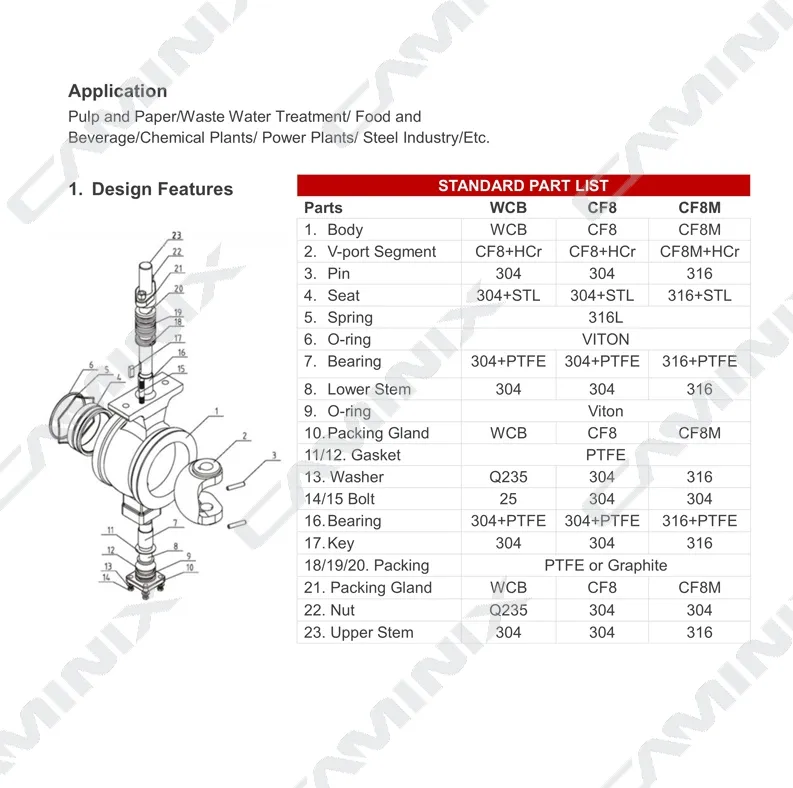

1. Body Design

Integral body design offers greater rigidity against fluctuating pipe loads and eliminates potential leak paths associated with two-piece designs. Both wafer and flange connections are supported.

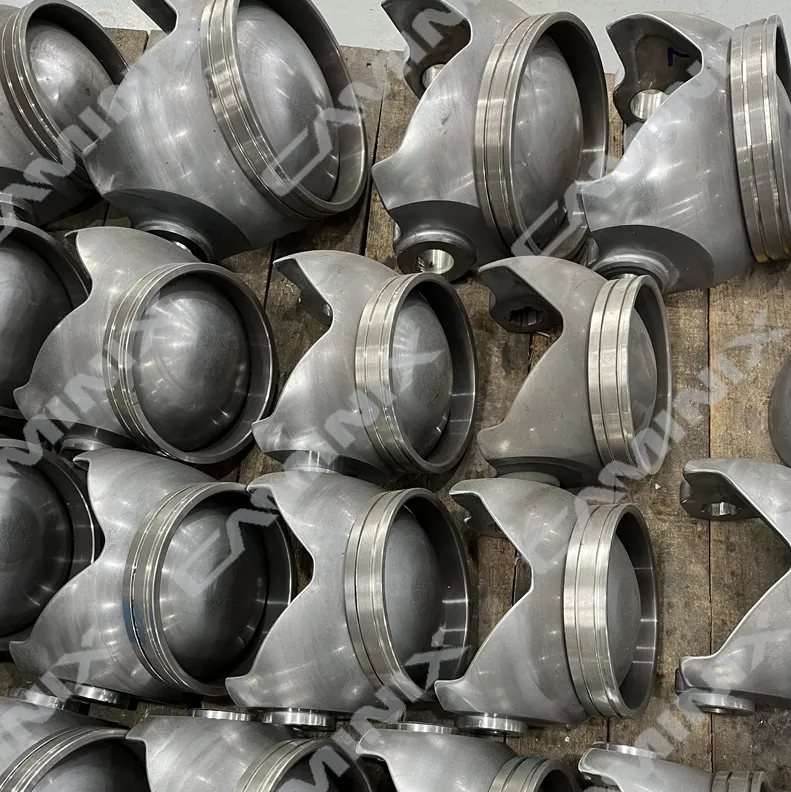

2. Core/Ball

The specially designed V-notch ball provides strong cutting stress and tight sealing. Surface treatments including Hard Chromium, Nitriding, and HCOF are available to improve hardness, abrasion resistance, and high-temperature performance.

3. Seat & Stem

Pressure-energized seat designs offer excellent sealing even at very low differential pressures. The finely ground stem matches the actuator perfectly, preventing rocking motion and potential failure.

• Design: API6D, ASME B16.34, BS5351, ISO14313
• Fire Safe: API607, API 6FA
• Flanged Ends: ASME B16.5, DIN, EN1092-1, JIS
• Inspection & Test: API 598, ISO5208, EN12266-1
• Face-to-Face: API 6D / ASME B16.10
