Professional Gate Valve Design

The gate valve is a shutoff valve that controls the flow of pipeline media through the vertical movement of the gate. Its core component is a wedge-shaped or parallel gate, which is driven by the valve stem to move up and down to achieve the full open or full closed state. This design focuses on completely cutting off flow and providing a straight flow channel in the fully open state to minimize fluid resistance.

Gate valves are widely used in long-distance oil and gas pipelines, chemical plants, power station systems, urban water supply, and drainage networks.

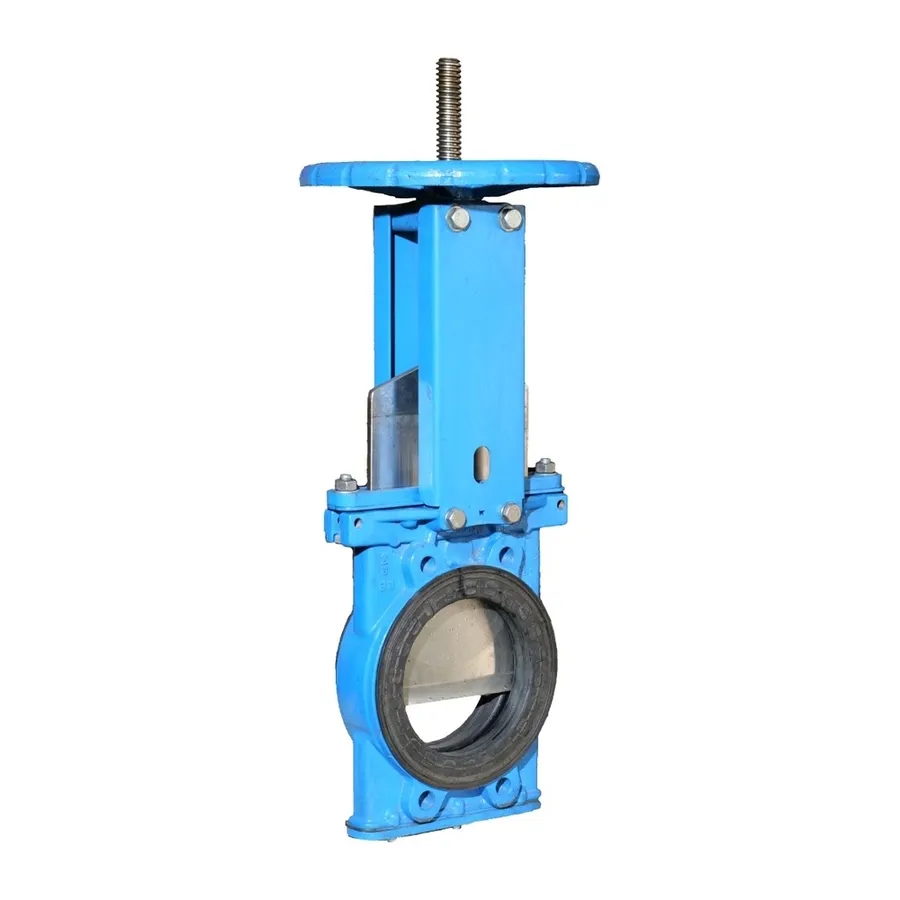

Full-Bore Low-Resistance Design

Features a flow channel structure with the same diameter as the pipeline. When opened, the valve plate is completely separated from the medium flow path, maximizing medium flow rate and system energy efficiency.

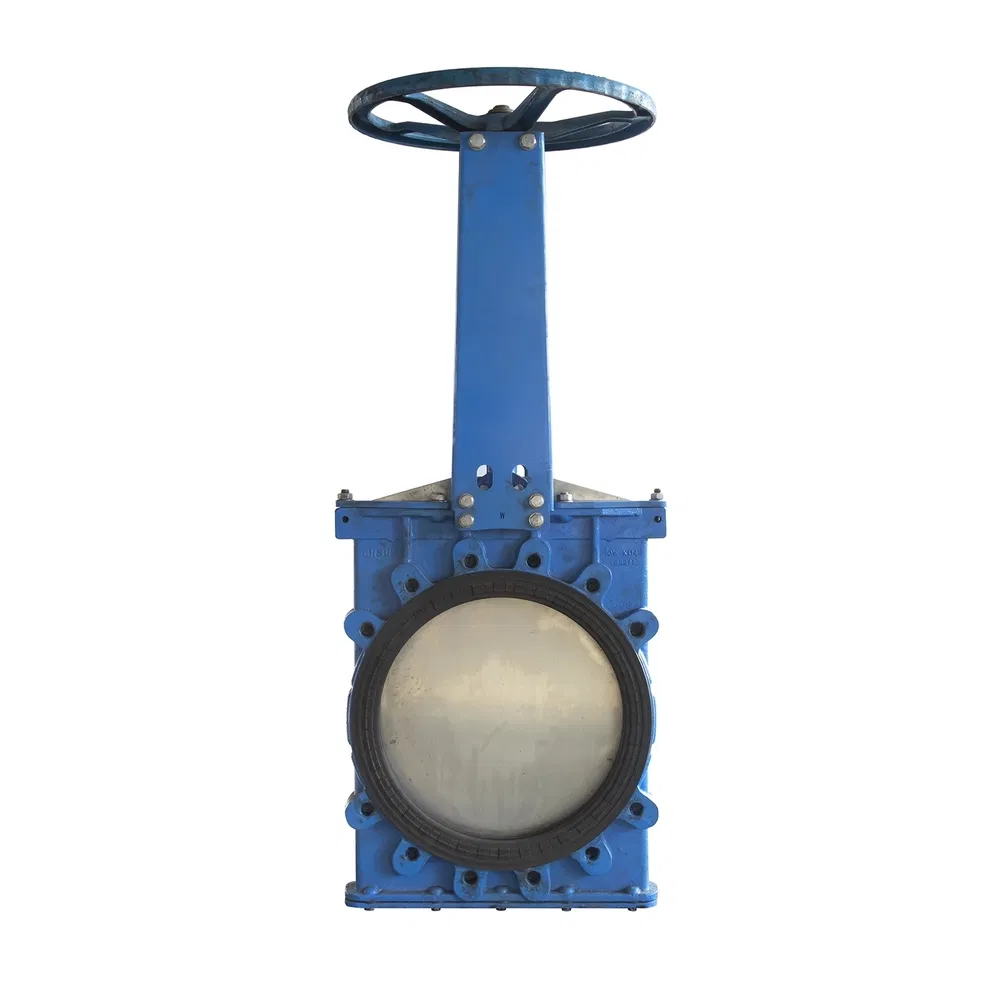

Bidirectional Sealing Capability

Effective sealing can be achieved on both sides of the gate valve plate. The symmetrical sealing structure ensures the same performance regardless of the flow direction.

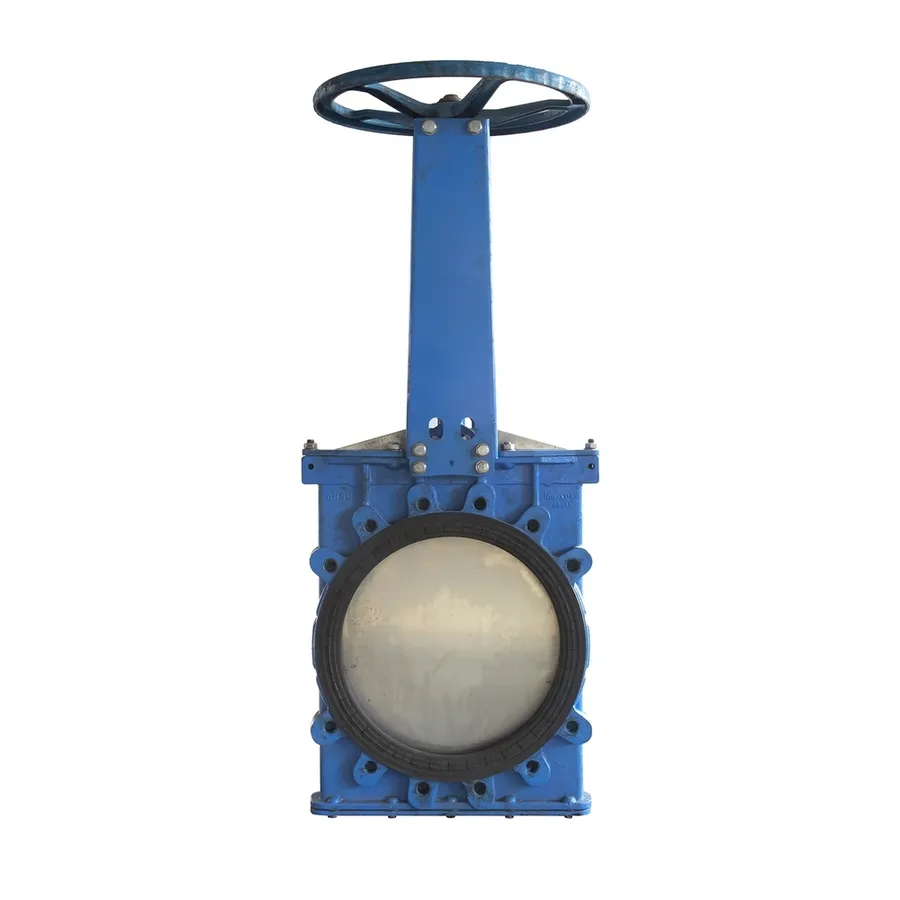

Simple and Durable Structure

Consists of fewer moving parts with a reliable mechanical structure. The lifting stem design avoids rotational wear, maintaining stable performance over long periods.

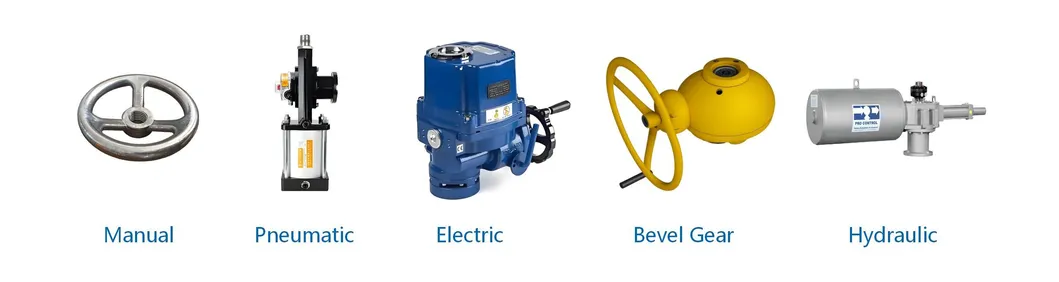

Multiple Drive Adaptation

Modular design allows the same valve body to adapt to handwheels, gearboxes, and electric or pneumatic actuators to meet various industrial conditions.
