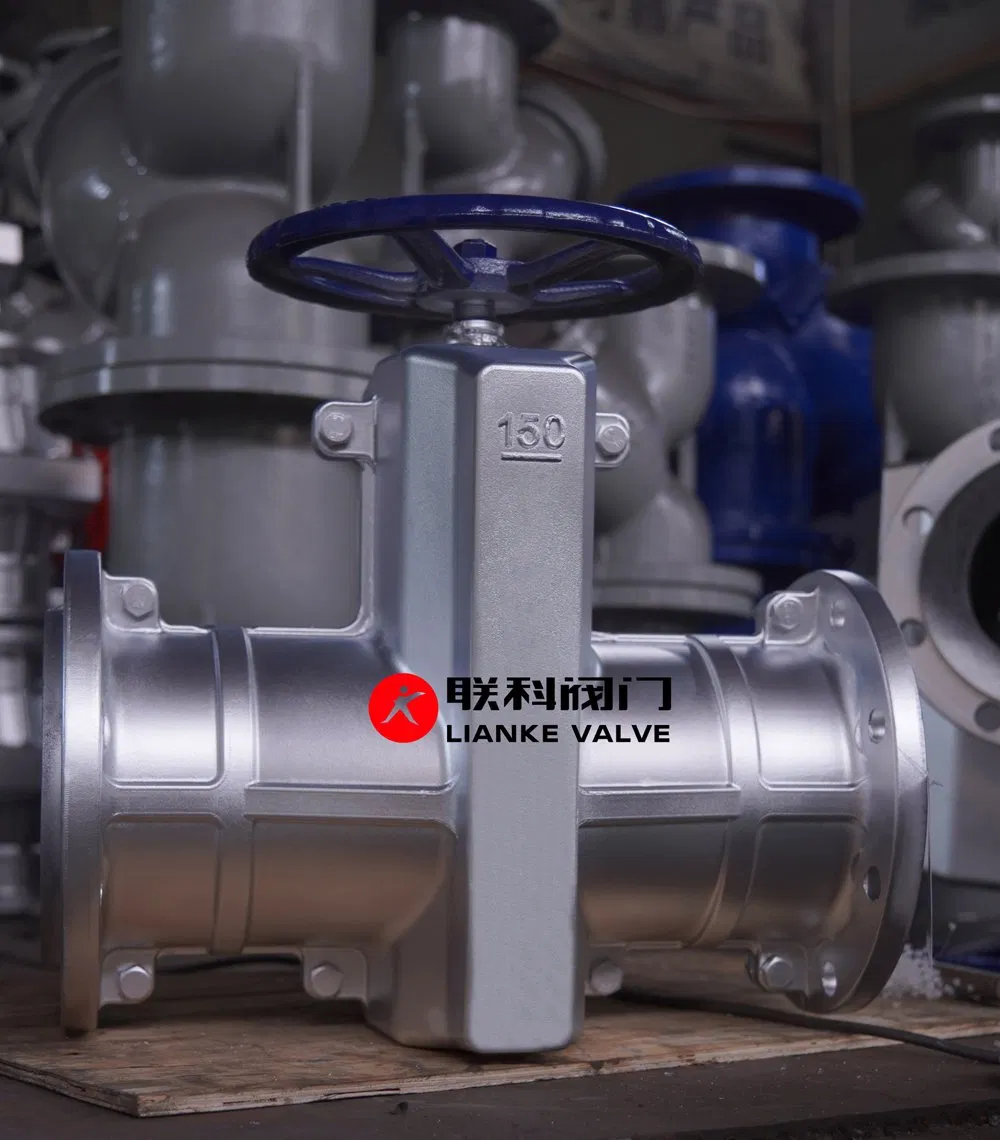

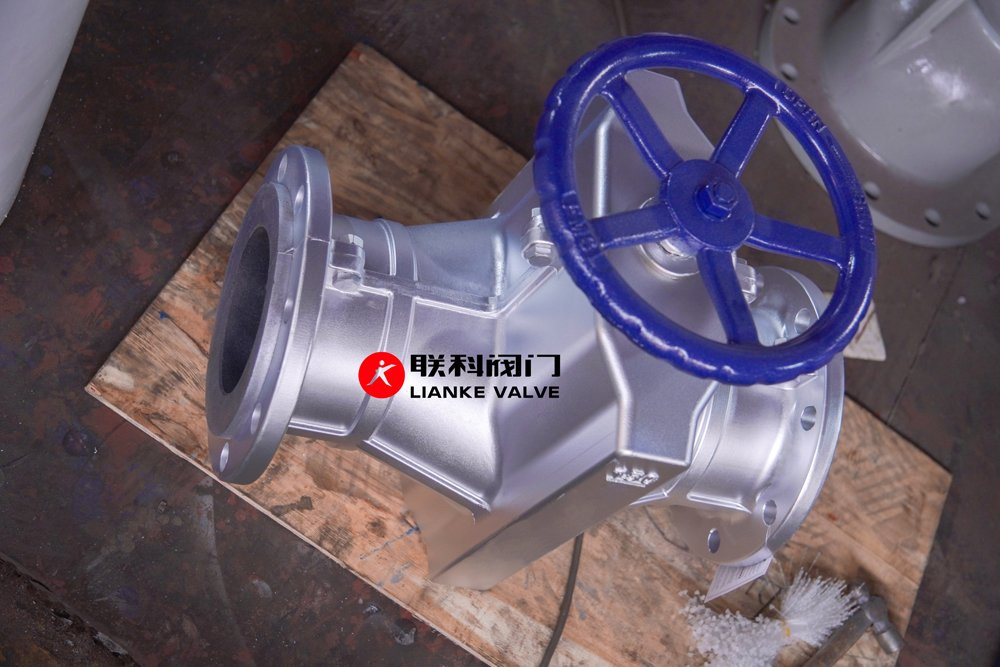

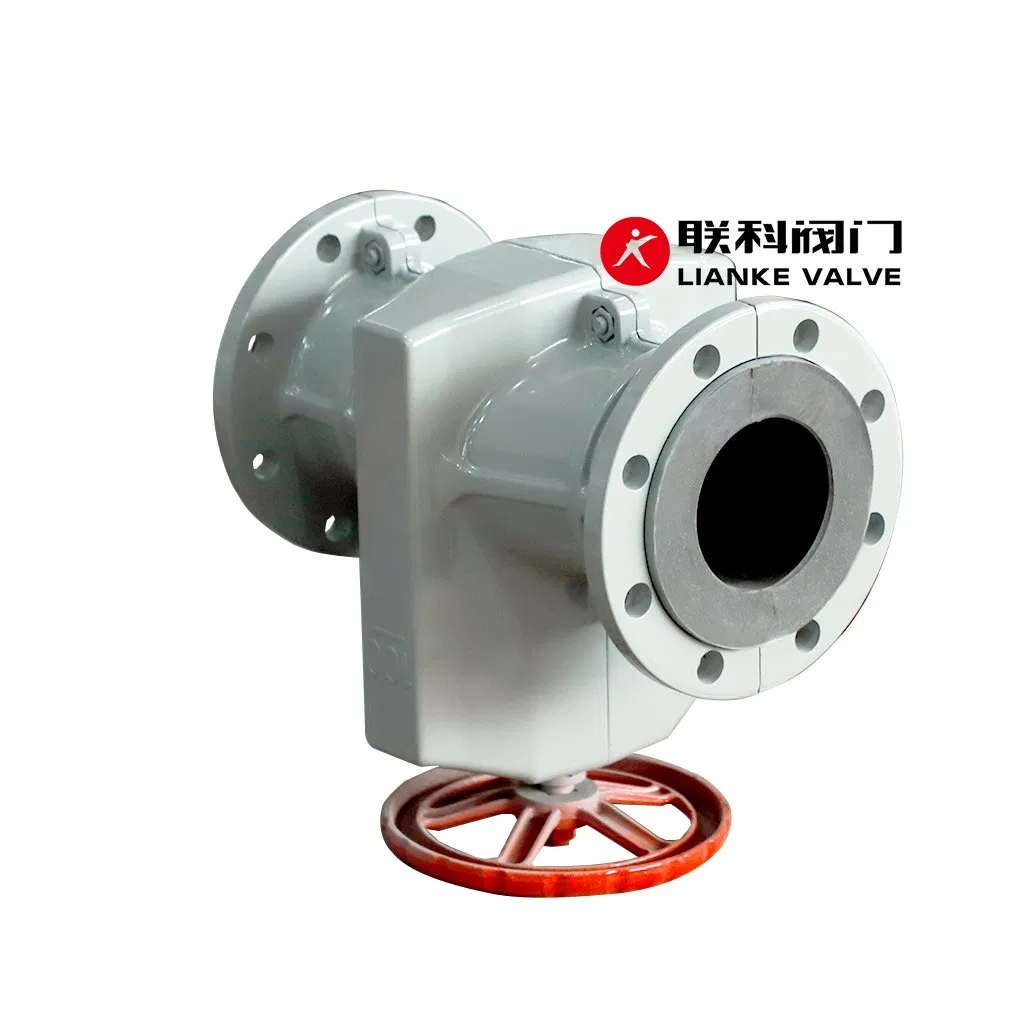

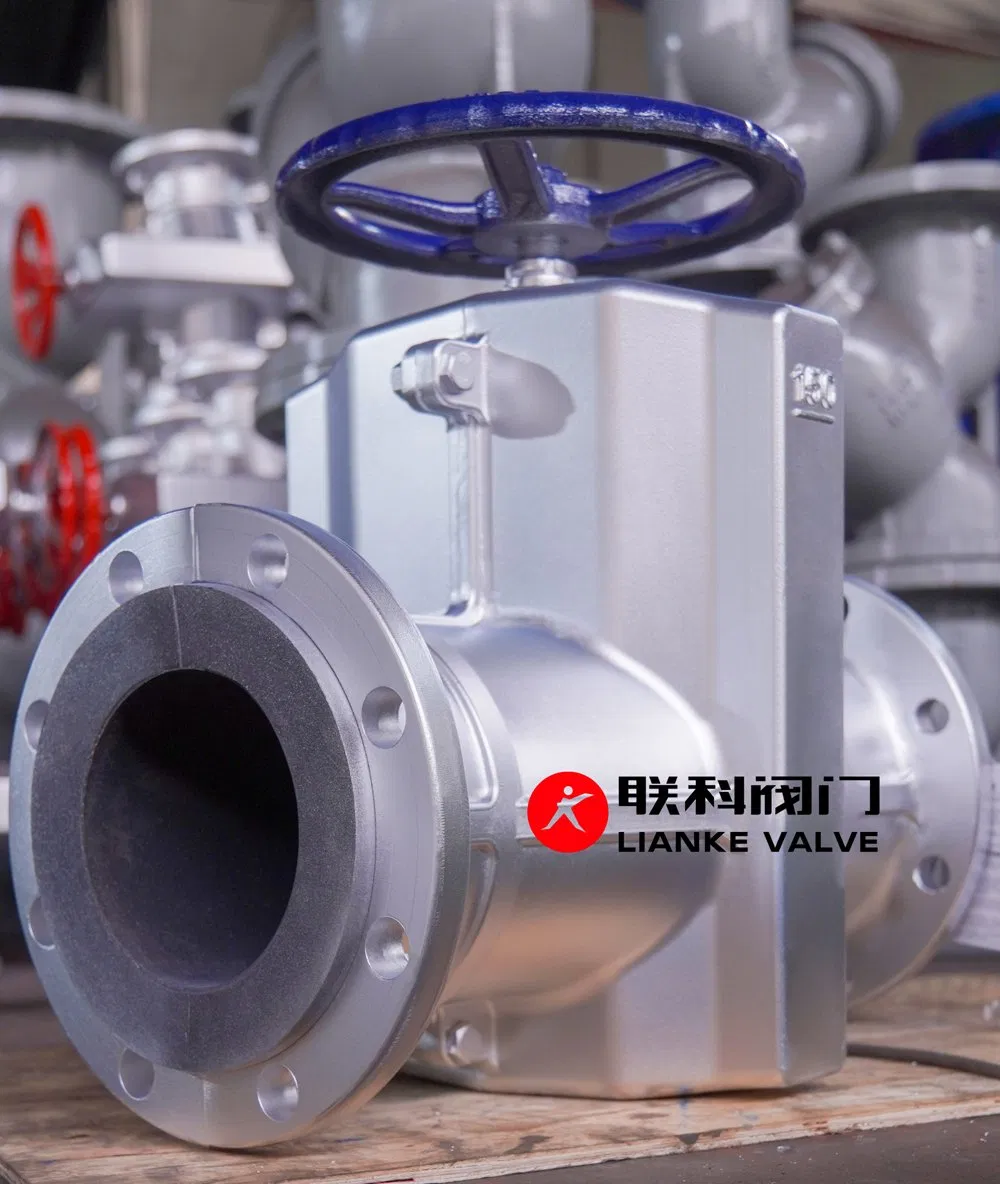

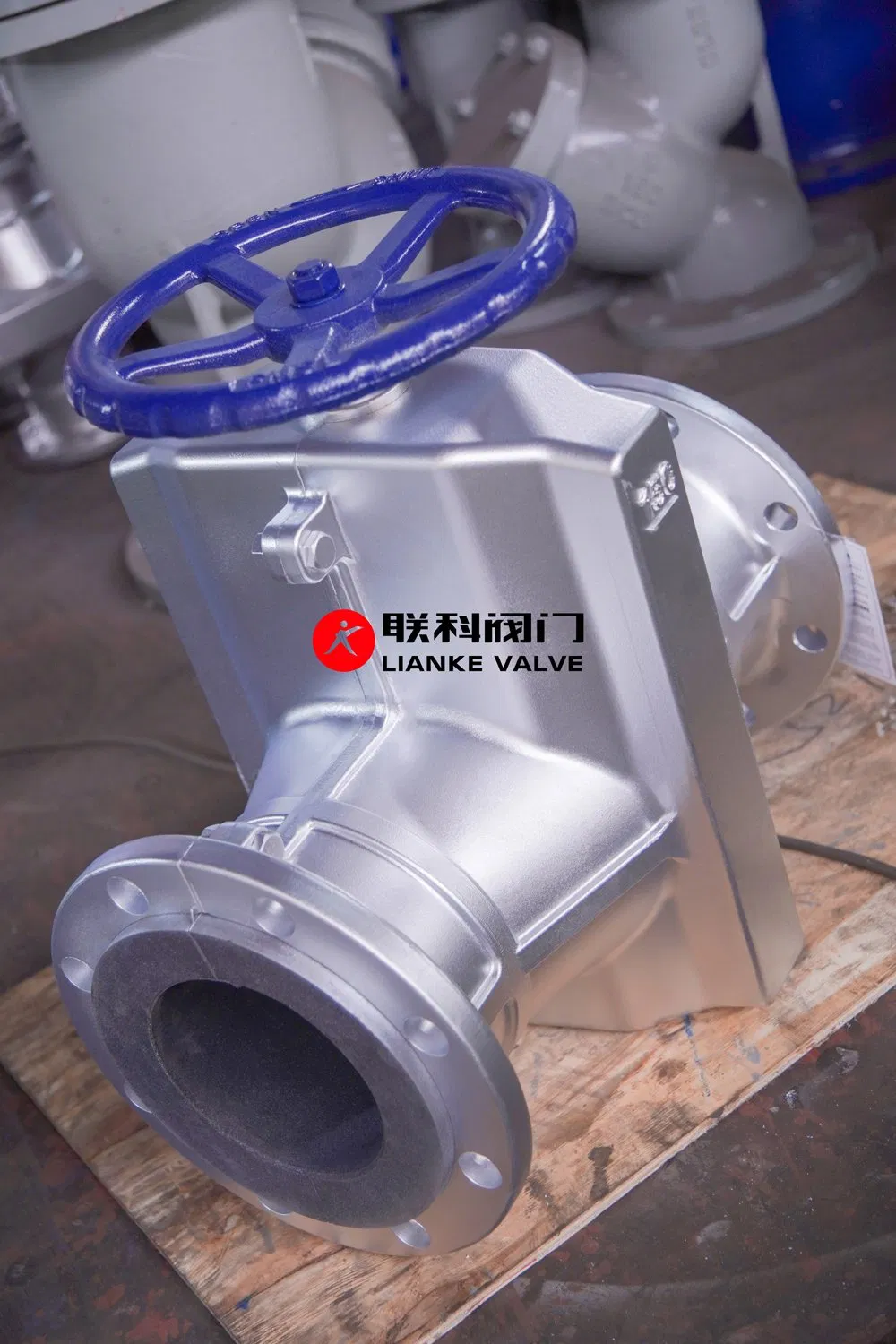

Aluminum Alloy Flange Pinch Valve DN150

Customization:	Available
Material:	Alloy, Cast Steel, Stainless Steel
Lined:	Natural Rubber, EPDM, NBR, FPM, Iir

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

GJ41X-10L

Temperature

80°C

Pressure

0.6MPa

Transport Package

Wooden Case

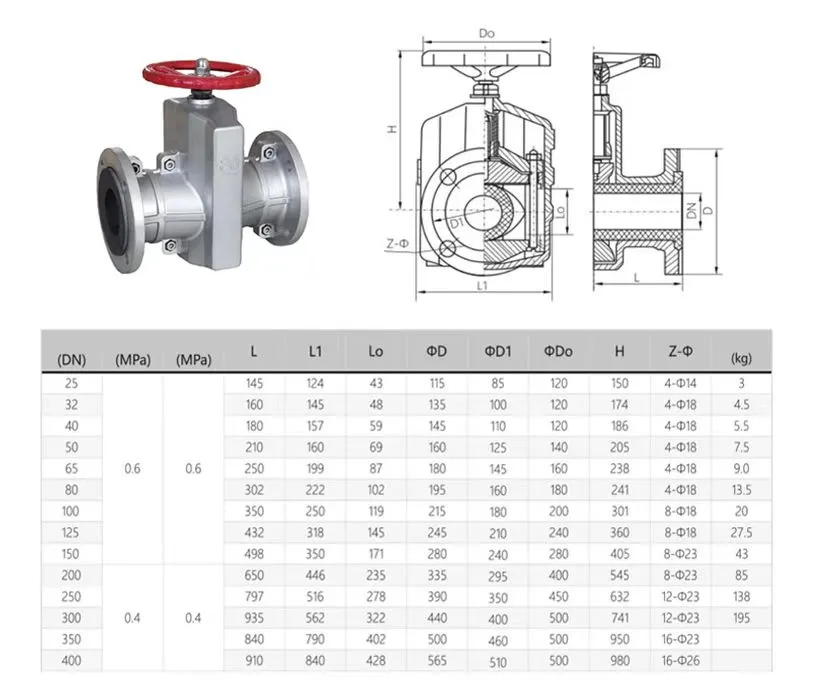

Specification

DN25-DN400

HS Code

8481804090

Production Capacity

1000 pieces/Month

📦 Packaging & Delivery

Package Size

70.00cm * 60.00cm * 80.00cm

Gross Weight

40.000kg

⚙️ Product Details

Body material	Aluminium alloy, Ductile Iron, cast iron, cast steel, wcb, stainless steel
Sleeve Material	Natural rubber, EPDM, NBR, FPM, IIR
Pressure Rating	≤ 0.6MPa
Suitable Media	Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid and corrosive medium
Operation Type	Manual, pneumatic, electric
Standards	API, DIN, BS, JIS, GB
Production Lead Time	7-10 days
MOQ / Payment	1 Pc / T/T or L/C

🏭 Application & Range

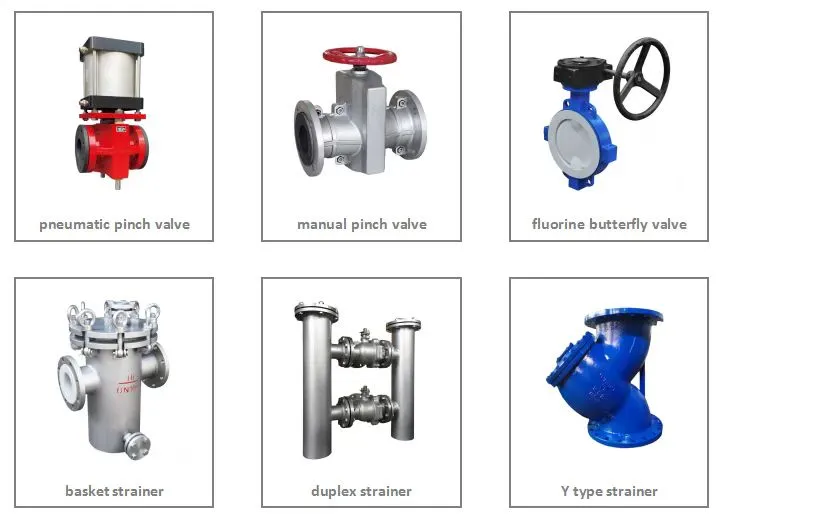

Pinch Valves are cost effective solutions for abrasive and corrosive installations in industrial process plants.

Strainers are effective solutions for the mechanical removal of unwanted solids to protect valves and equipment.

Fluorine lined valves are suitable for chemical and corrosion resistant conditions.

Application Scope:

✔ Abrasive or corrosive slurries, muddy sediment, silty liquid powders.

✔ Refining, petroleum, chemical industry, metallurgy, and electricity.

✔ Wastewater treatment, medicine, and chemical fertilizer.

Frequently Asked Questions

❓ What materials are available for the pinch valve sleeve?

We offer a variety of sleeve materials including Natural rubber, EPDM, NBR, FPM, and IIR to suit different chemical and temperature requirements.

❓ What is the typical production time for an order?

The standard production lead time is approximately 7 to 10 days, depending on the order quantity and specific requirements.

❓ Which industrial standards do your valves comply with?

Our products are manufactured according to major international standards, including API, DIN, BS, JIS, and GB.

❓ Can these valves handle corrosive slurries?

Yes, these pinch valves are specifically designed for abrasive or corrosive slurries, muddy sediment, and coarse substances.

❓ What are the available operation methods?

The valves can be operated manually, pneumatically, or electrically, providing flexibility for different automation needs.

❓ What is the maximum pressure rating for the GJ41X-10L model?

The maximum pressure for this specific model is 0.6MPa, making it ideal for low-pressure industrial applications.
