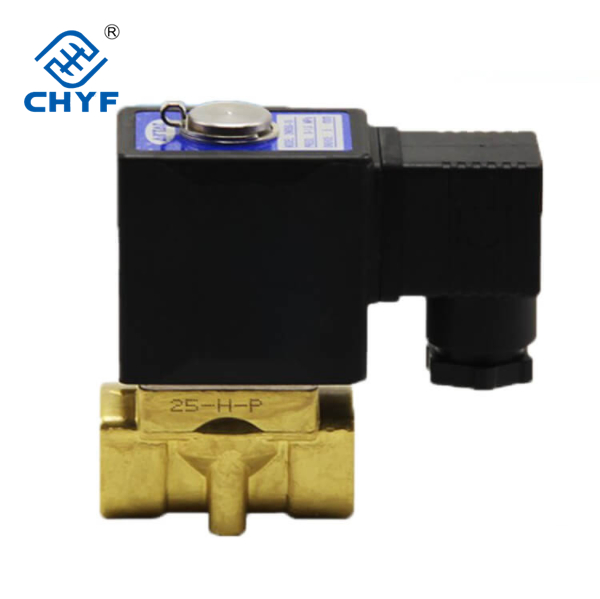

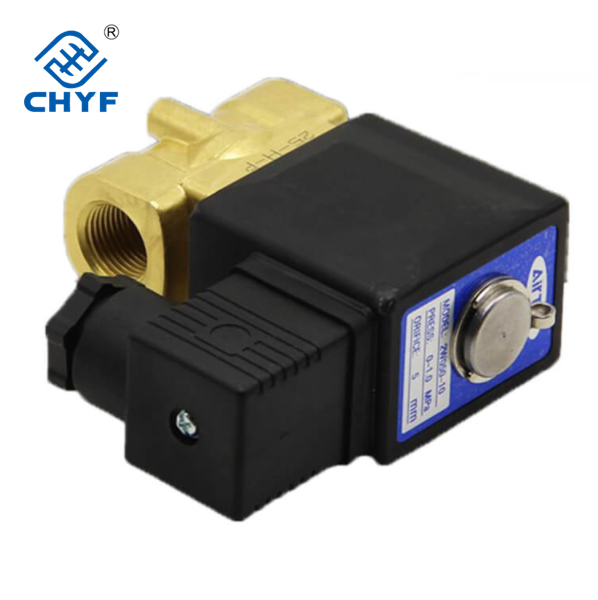

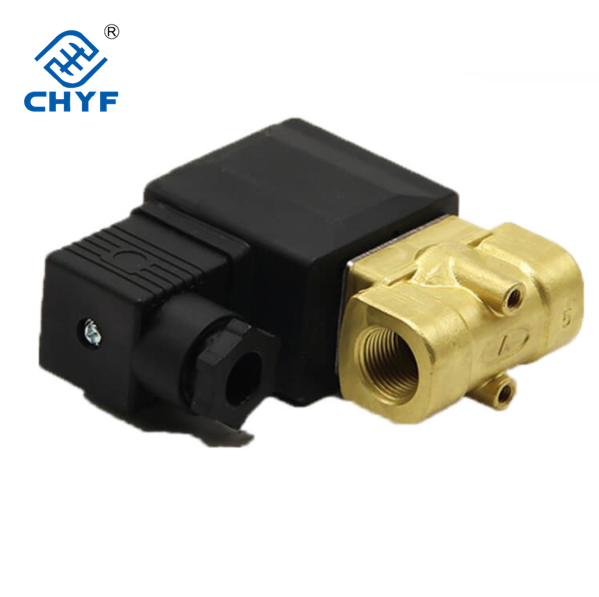

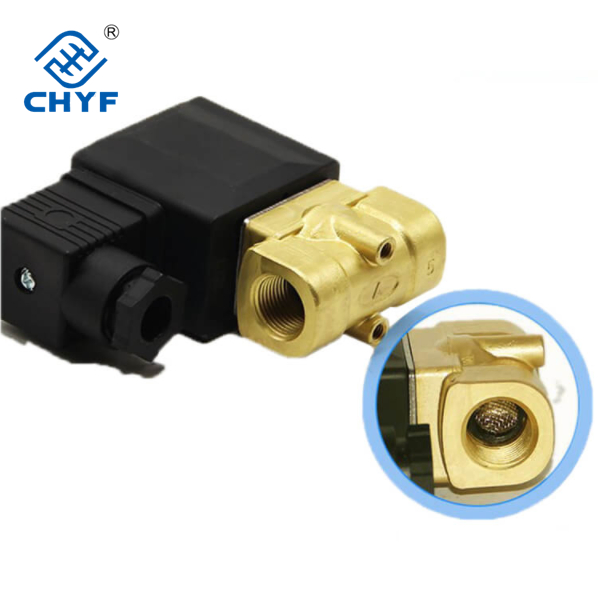

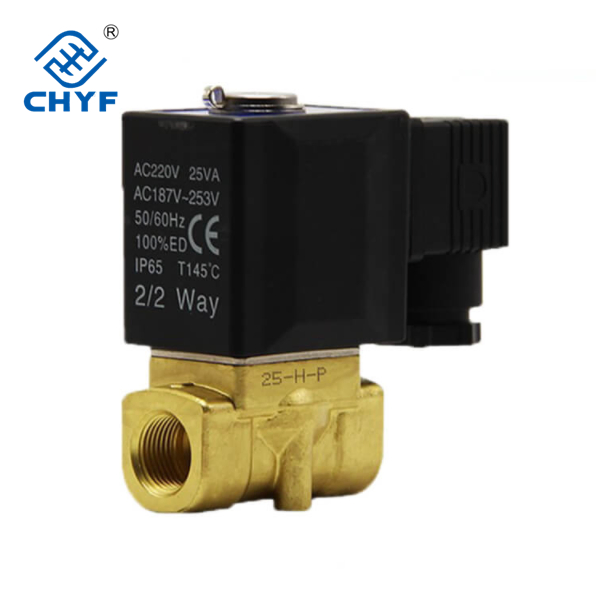

Airtac Type 2W Series Direct Acting and Norrmally Closed 2wx030 2wt050 Solenoid Control Valve Solenoid Pinch Valve

1 / 5

Airtac Type 2W Series Direct Acting and Norrmally Closed 2wx030 2wt050 Solenoid Control Valve Solenoid Pinch Valve

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

2WX030

Actuator

Pneumatic

Connection Form

Thread

Type

Direct Acting

Material

Aluminium Alloy

Pressure

Ordinary Pressure

Valve Structure

Pilot Piston Structure

Usage

Safety, Emptying, Drain, Temperature Control, Flow Control

Standard

DIN

Application

Industrial Usage, Water Industrial Usage, Household Usage

Thread

PT/G/NPT

Port Size

M5 1/8"

Protection Class

H Class.IP65

Voltage

DC 12V/24V AC 24V/110V/220V

Action Mode

Internally Pilot Actuated

Max Proof Pressure

1.2 MPa

Temperature

-20 to 70 Degree

Series

2W Series

Operating Pressure

0.15 to 0.8 MPa

Production Capacity

100000PCS/Year

⚙️

Product Description

Airtac Type 2W Series Direct Acting And Normally Closed 2WX030 2WT050 Solenoid Control Valve

High-quality solenoid control valves suitable for various industrial applications. Available with PT thread, NPT thread, and G thread options.

Type/Item	Port Size	Orifice Size (Φmm)	Cv	Valid Area (mm²)	Weight (g)	Max Operating Pressure Diff (MPa)	Proof Pressure (MPa)
2W150-15	PT1/2	15.0	5.50	100.0	720	Max:1.0 / Min:0.05	1.5
2W200-20	PT3/4	20.0	9.50	170.0	950	Max:1.0 / Min:0.05	1.5
2W250-25	PT1	25.0	12.50	220.0	1200	Max:1.0 / Min:0.05	1.5

Note: The weight in the table is for the terminal valve; grommet valve weight is approximately 10g less.

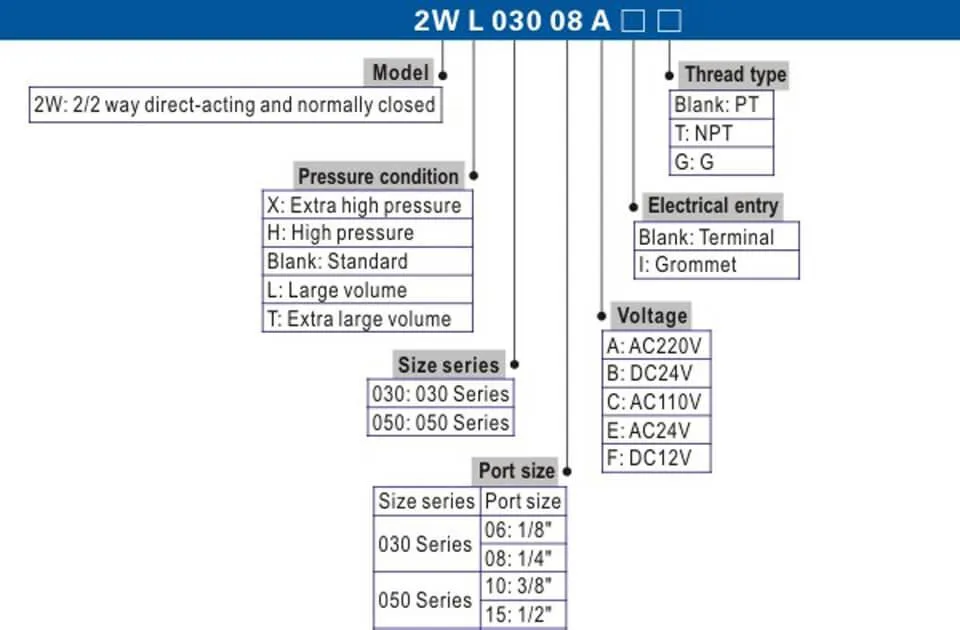

Solenoid Control Valve Technical Drawing

🌟

Product Recommendations

🏭

Manufacturing & Scenarios

📜

Certifications

Frequently Asked Questions

What is your manufacturing experience?

We are a professional manufacturer with more than 9 years of expertise in producing high-quality mechanical parts and valves.

How do you ensure product quality?

Quality is guaranteed through a rigorous process: always providing a pre-production sample before mass production and conducting a final inspection before every shipment.

What types of products can I purchase?

Our primary focus is on a wide range of mechanical parts, specifically solenoid control valves and related pneumatic components.

Why choose your valves over other suppliers?

We offer an integrated R&D, production, and sales model which reduces costs. We also provide short production lead times, quick cycles for large orders, and professional after-sales support.

What delivery and payment terms do you accept?

We accept various delivery terms including FOB, CFR, CIF, EXW, and Express Delivery. Payments can be made via T/T, L/C, Credit Card, or Western Union in USD, HKD, or CNY.

What languages does your service team speak?

Our professional team can communicate effectively in both English and Chinese to assist with your global requirements.
