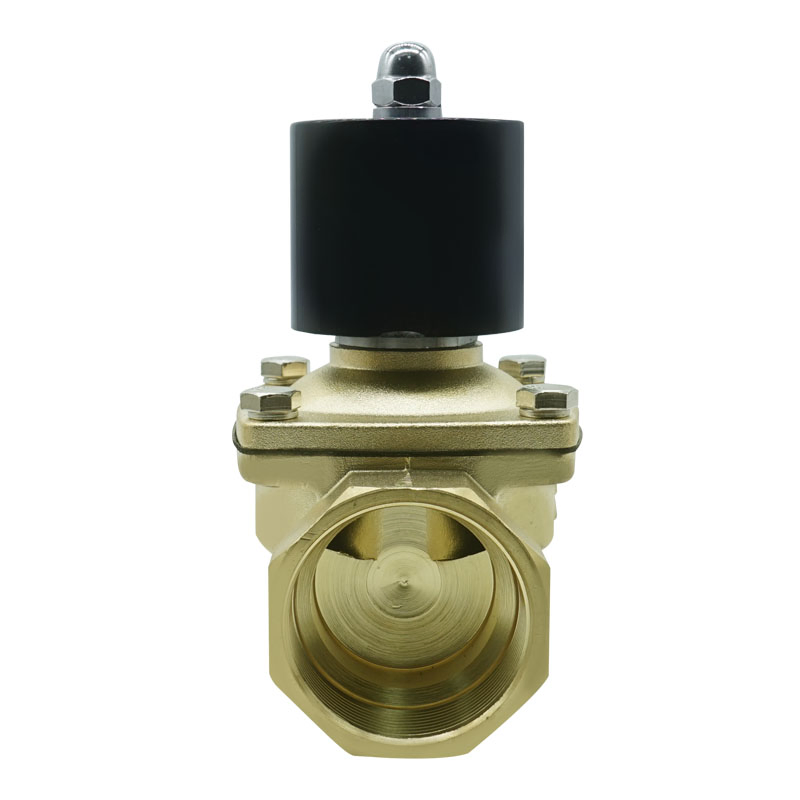

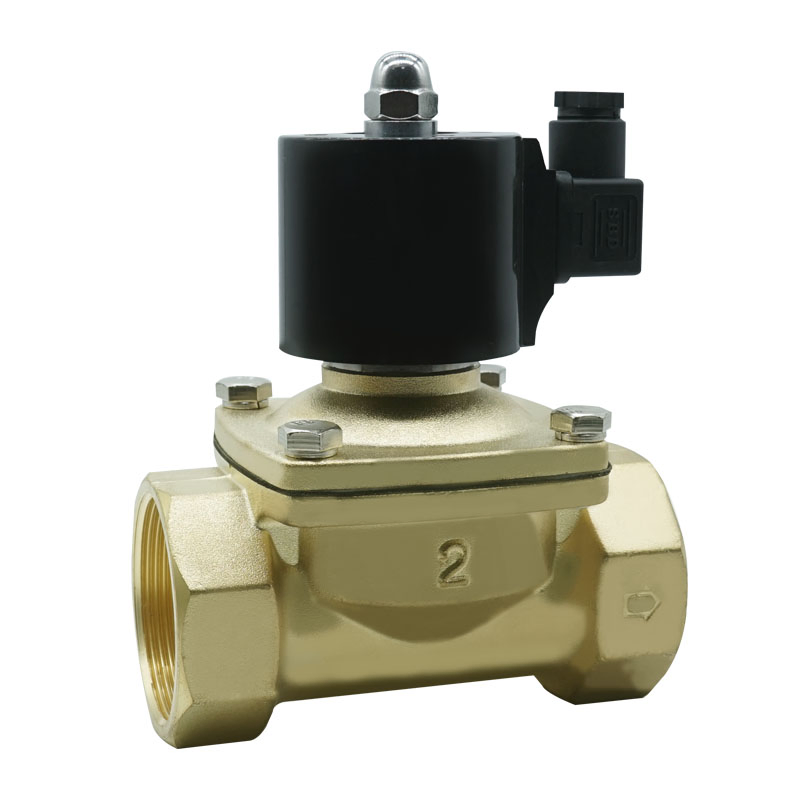

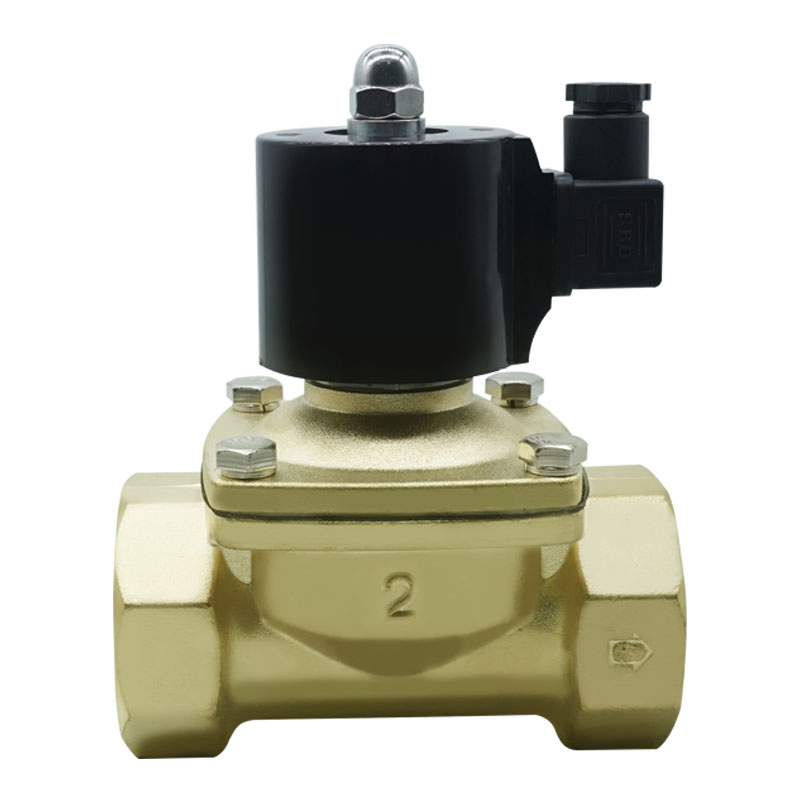

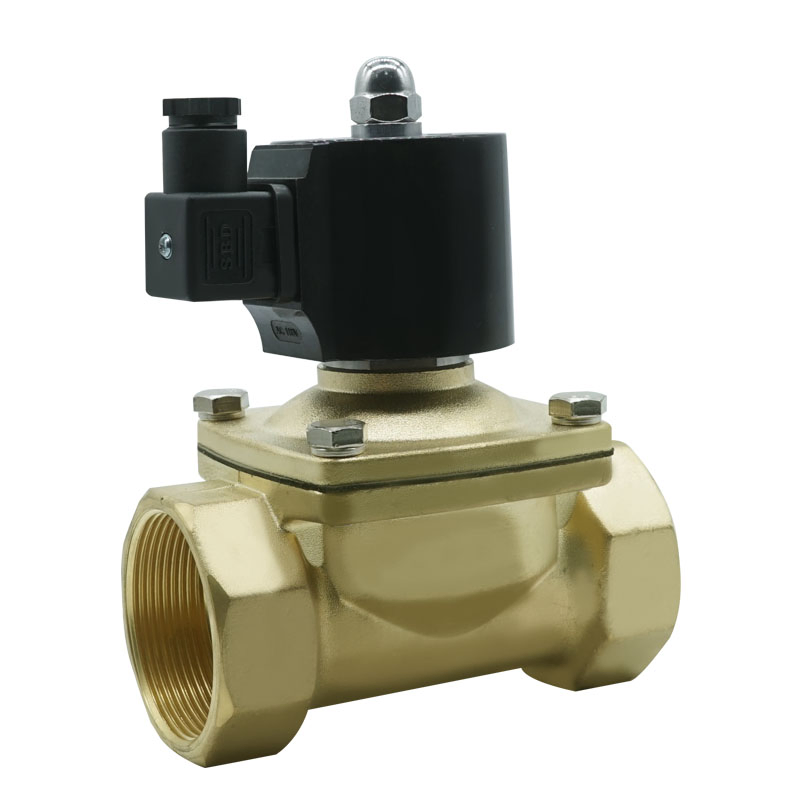

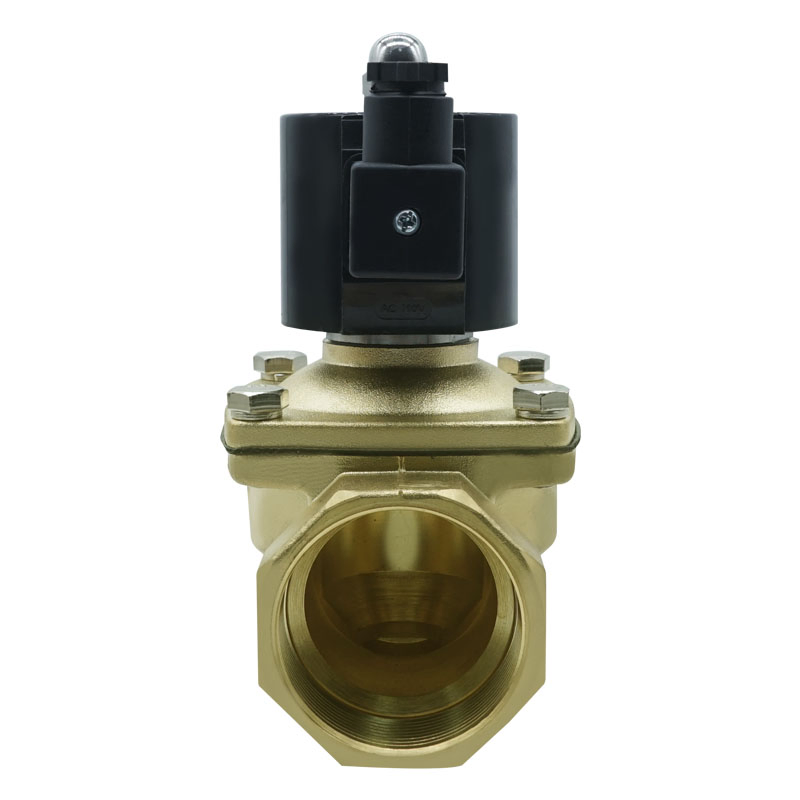

2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
1 / 5
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V
2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V

2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
2W160-08
Actuator
Electric
Connection Form
Thread
Type
Direct Acting
Material
Brass, Stainless Steel
Pressure
0~0.7MPa, 0~2.0MPa
Valve Structure
Direct-Acting Piston Structure
Power Supply
AC/DC Solenoid Valve
Standard
DIN
Orifice
16mm
Working Temp
-5~80 degree
Seal Material
NBR/EPDM/FKM
Packaging & Delivery
Package Size
25.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description

Waterproof Solenoid Valve (2W-160)

Solenoid Valve 1

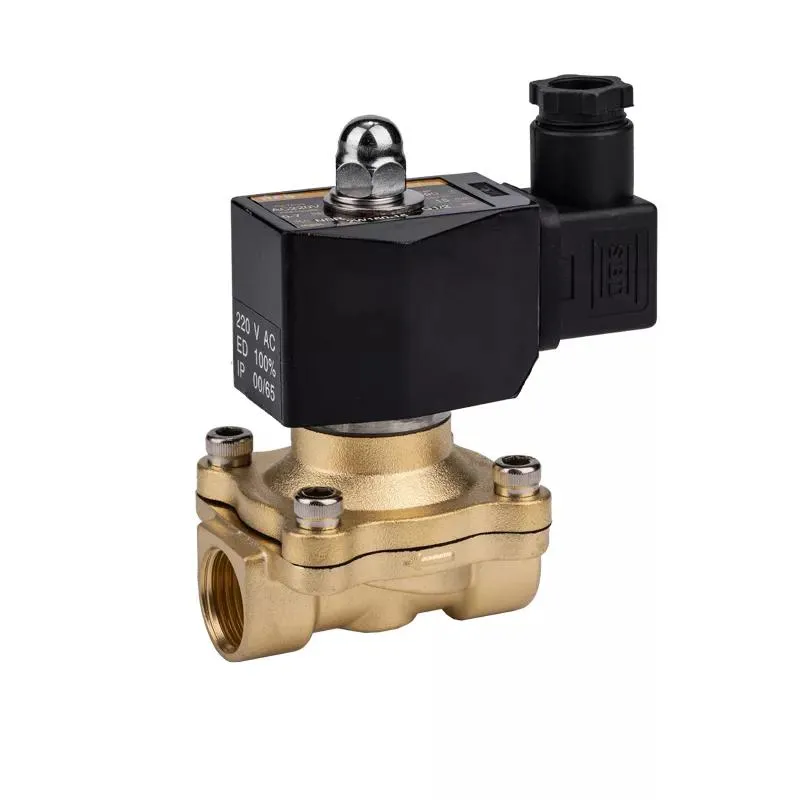

Solenoid Valve 2

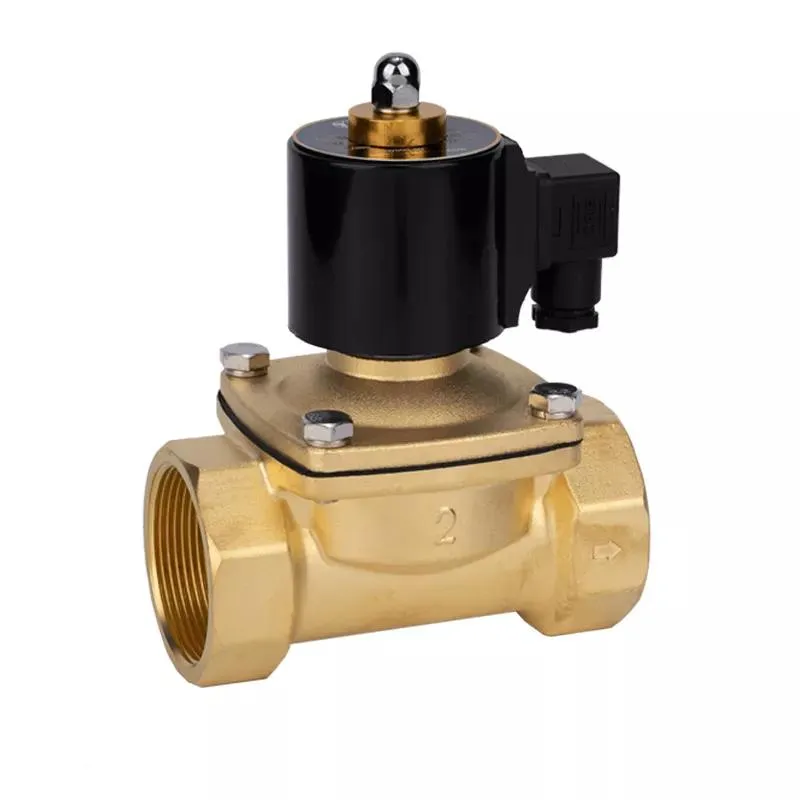

Solenoid Valve 3

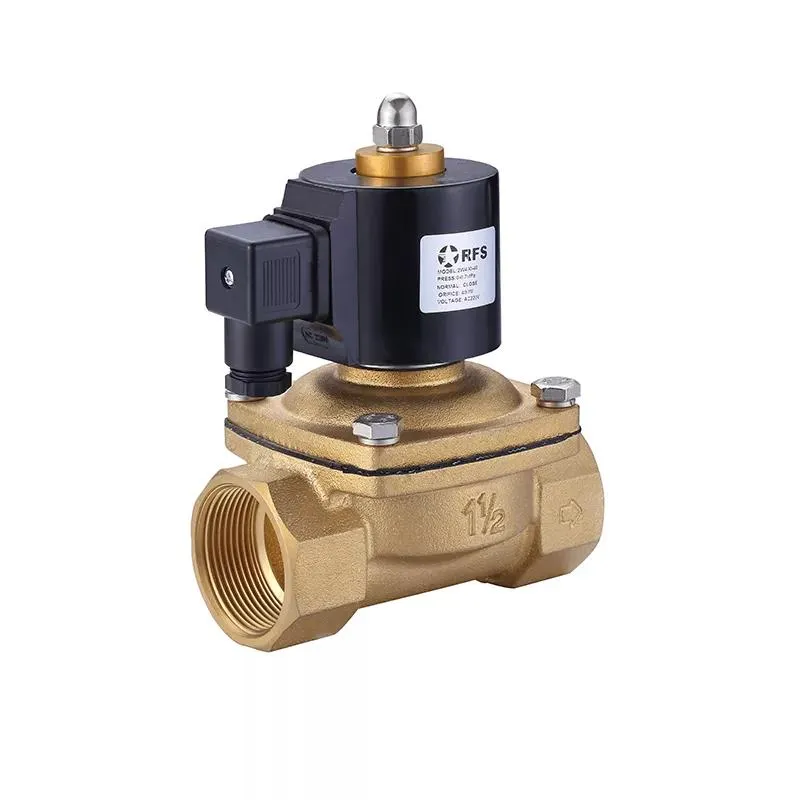

Solenoid Valve 4
Solenoid Valve 5

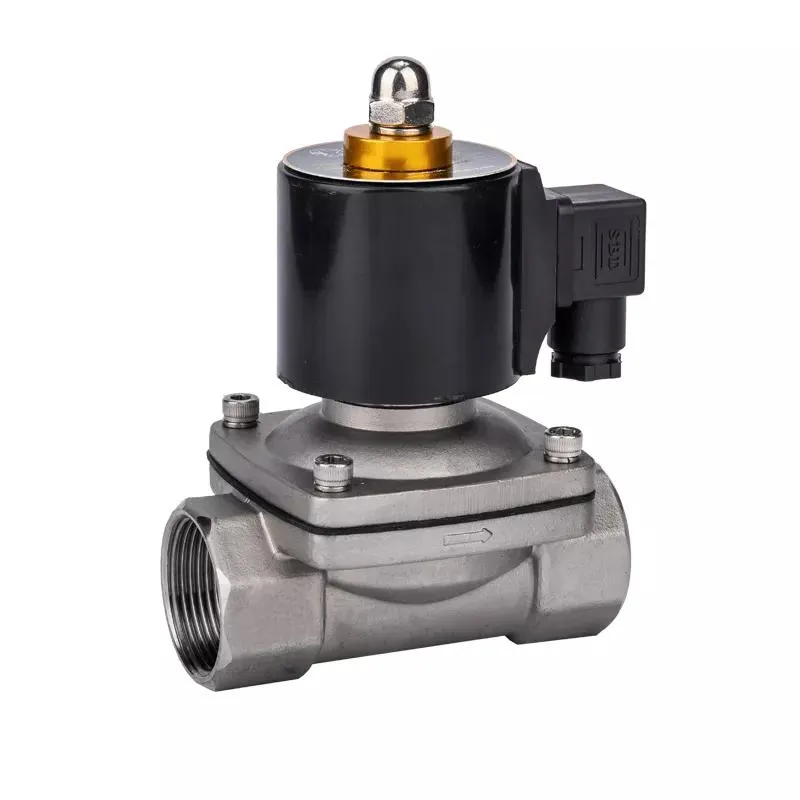

Solenoid Valve 6
Product Speciality
  • Direct acting, diaphragm structure, can work at zero pressure.
  • Plate diaphragm structure, high reliability, and long life.
  • Valve body options: Brass and Stainless Steel.
  • Plastic encapsulating coil, suitable for numerous environments.

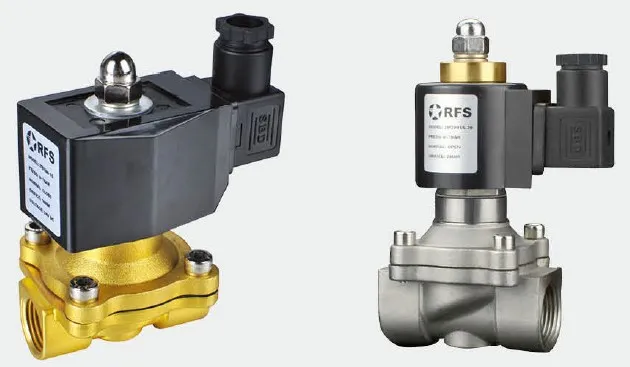

Product Speciality
Ordering Code
Ordering Code Chart
Technical Parameters
Model Media Working Type Orifice (mm) CV Value Connection Ports Pressure (Mpa) Voltage Material
R2W160-10Air, Water, OilDirect Action164.83/8''0-0.7DC12-24V / AC24V-380VBrass / Stainless Steel
R2W160-15164.81/2''0-0.7
R2W200-20207.63/4''0-0.7
R2W250-2525121''0-0.7
R2W350-3535241 1/4''0-0.7
R2W400-4040291 1/2''0-0.7
R2W500-5050482''0-0.7
Overall Dimensions
Dimensions Diagram
Model A B C D K
R2W160-15975711066G1/2
R2W200-201065711570G3/4
R2W250-251067312299G1
R2W500-50151124186164G2
Frequently Asked Questions
Q: Are you a trading company or a factory? A: We are a professional factory and manufacturer specializing in solenoid coils and valves since 1990.
Q: What is the typical delivery time after placing an order? A: Generally, delivery takes about 10-25 days. If items are in stock, we can arrange shipment within 3 days.
Q: What media can be used with the 2W series solenoid valves? A: These valves are compatible with Air, Water, and Oil media.
Q: What is the warranty period for your products? A: Our products are typically guaranteed for 12 months from the date of dispatch from the factory.
Q: Can you provide customized products? A: Yes, we have a professional R&D team that can supply customized products according to specific customer requirements.
Q: What is the working temperature range for this valve? A: The standard working temperature range for these solenoid valves is between -5 and 80 degrees Celsius.
