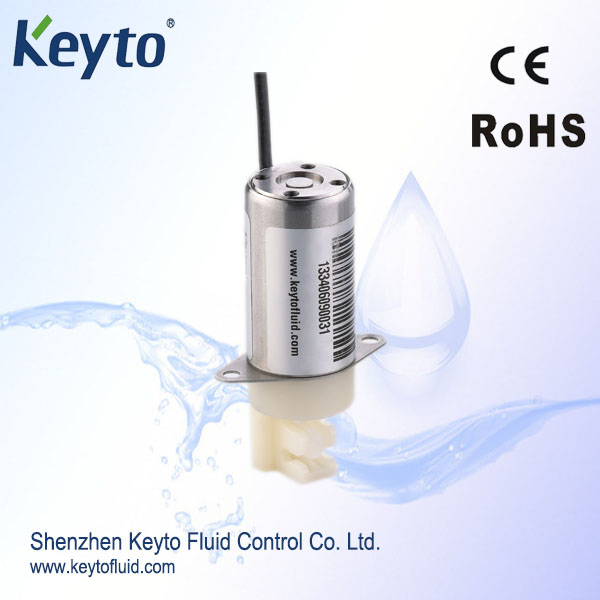

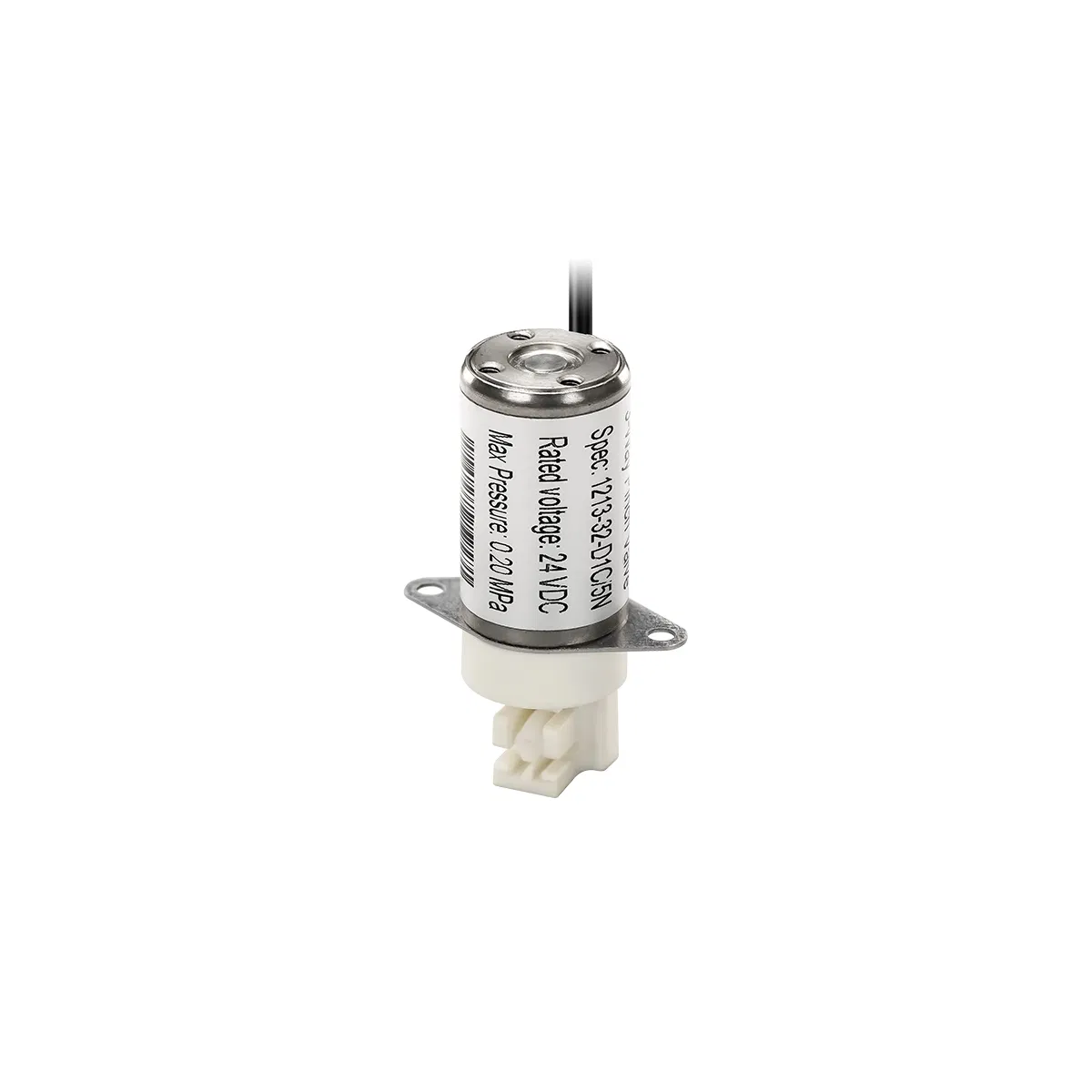

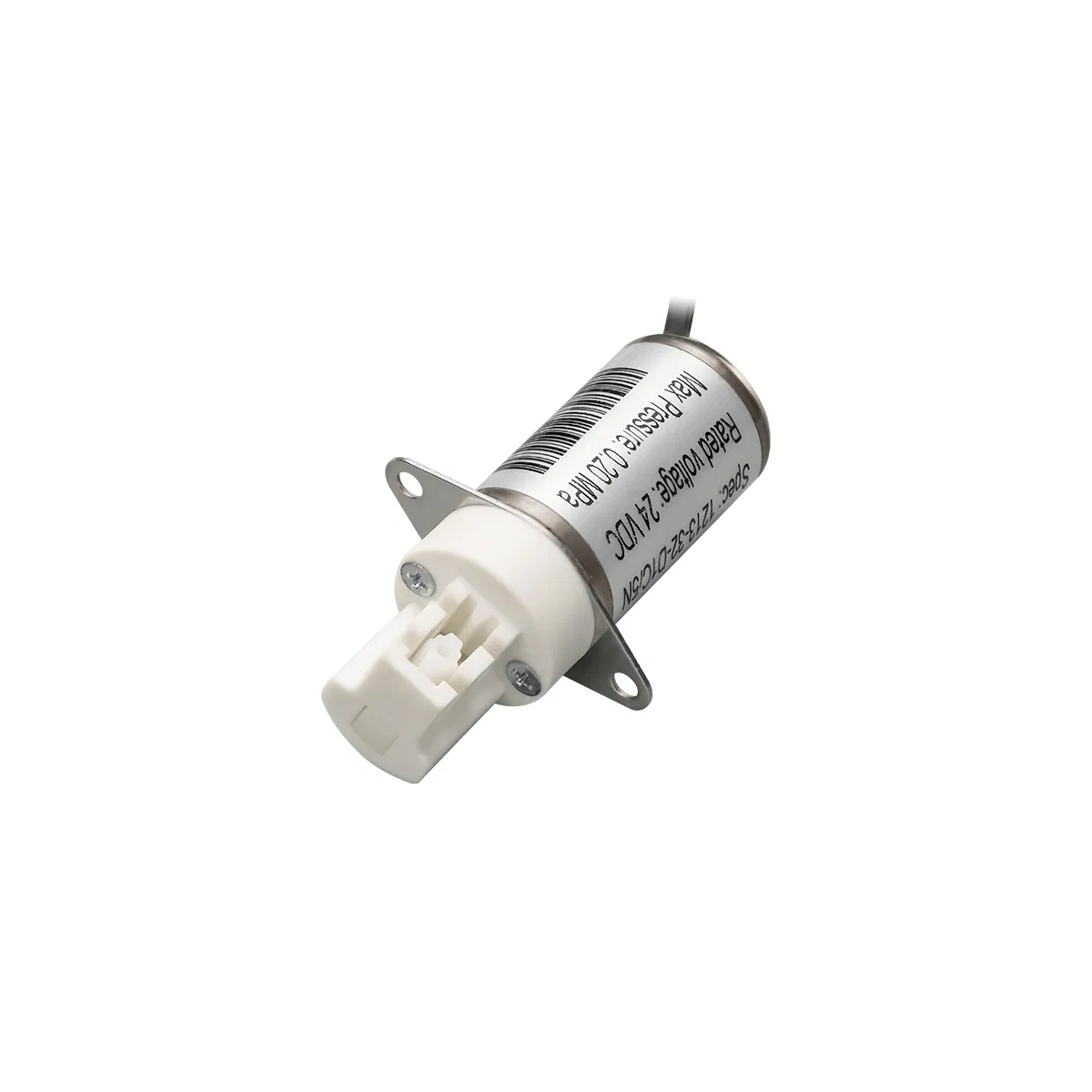

2 Way Micro Solenoid Pinch Valve (1213-31)

1 / 5

2 Way Micro Solenoid Pinch Valve (1213-31)

Customization:	Available
Size:	60.7 * Φ22 mm
Transport Package:	Bulk Package

Send Inquiry

Product Description

Basic Information

Model NO.

1213-31-D1C

Specification

CE, RoHS

Origin

China

HS Code

8481804090

Production Capacity

200, 000 PCS/Year

Product Features

Pipeline is easy to clean;

Suitable for inspecting samples contain impurities/particles or not.

Applications in occasion which need to avoid cross contamination between samples.

Specifications

Model	1213-31 Pinch Valve
Interface method	bottom & bracket mounting
Outline dimension	60.7*Φ22 mm
Orifice diameter	1.5 mm
Tube specification	1.53 mm / 1.63.2 mm
Recommend tube hardness	Shore hardness: 60
Power consumption	3.5 W
Withstand pressure	150 kPa

Installation Dimensions

Frequently Asked Questions

What are the main advantages of using a pinch valve?

The primary advantage is that the fluid only contacts the tubing, making the pipeline very easy to clean and effectively preventing cross-contamination between samples.

Can this valve handle fluids with impurities?

Yes, the 1213-31 series is specifically designed to be suitable for inspecting samples that may contain impurities or particles without clogging the valve mechanism.

What type of tubing is recommended for this valve?

We recommend using tubes with specifications of 1.5*3 mm or 1.6*3.2 mm and a Shore hardness of approximately 60 for optimal performance.

What is the power consumption of the 1213-31 model?

This micro solenoid pinch valve is designed for efficiency with a power consumption of only 3.5 W.

What is the maximum pressure this valve can withstand?

The 1213-31 series is rated for a withstand pressure of up to 150 kPa.

How is the valve installed in a system?

It supports both bottom mounting and bracket mounting interface methods, providing flexibility for compact medical or laboratory equipment designs.
