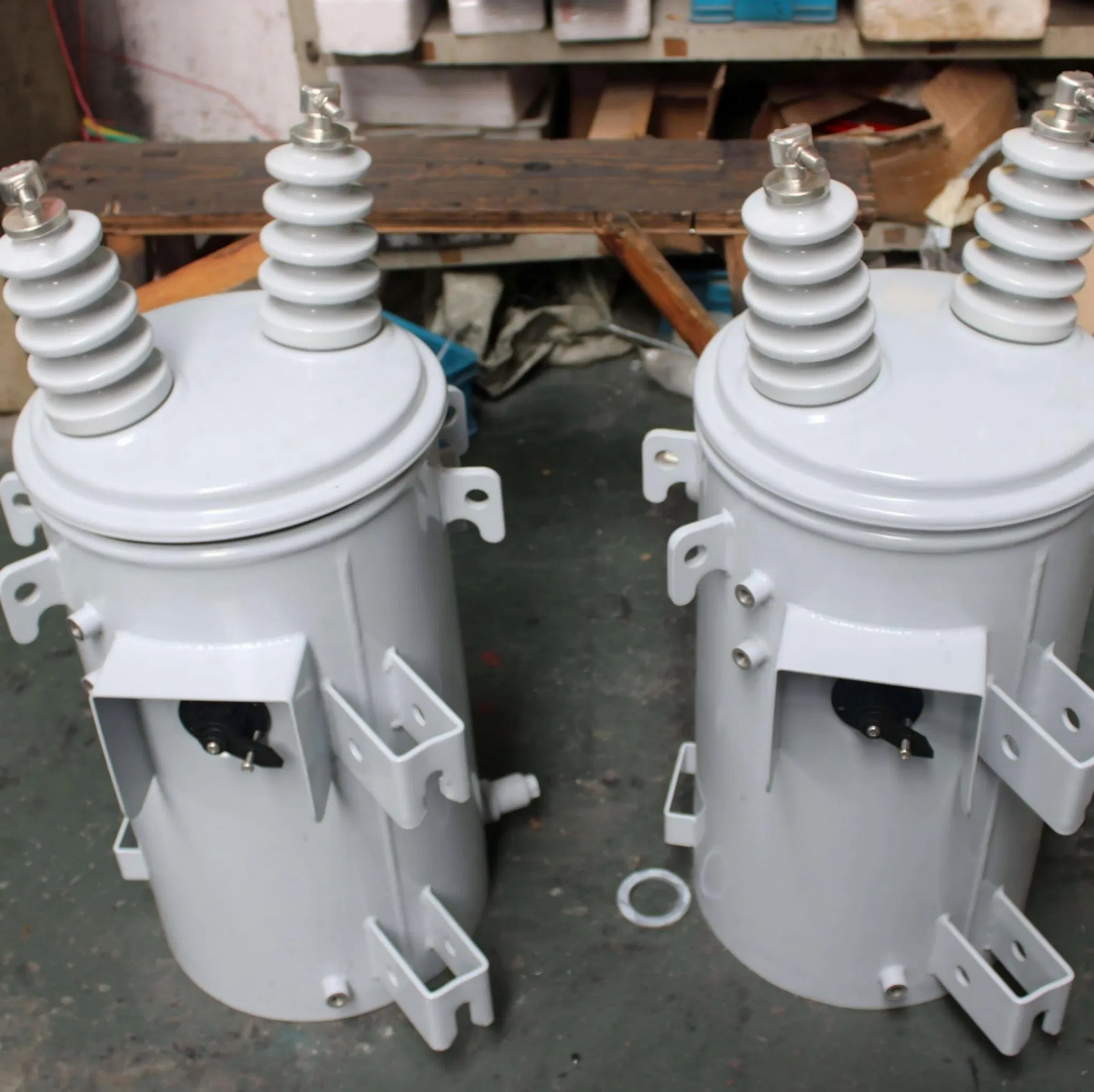

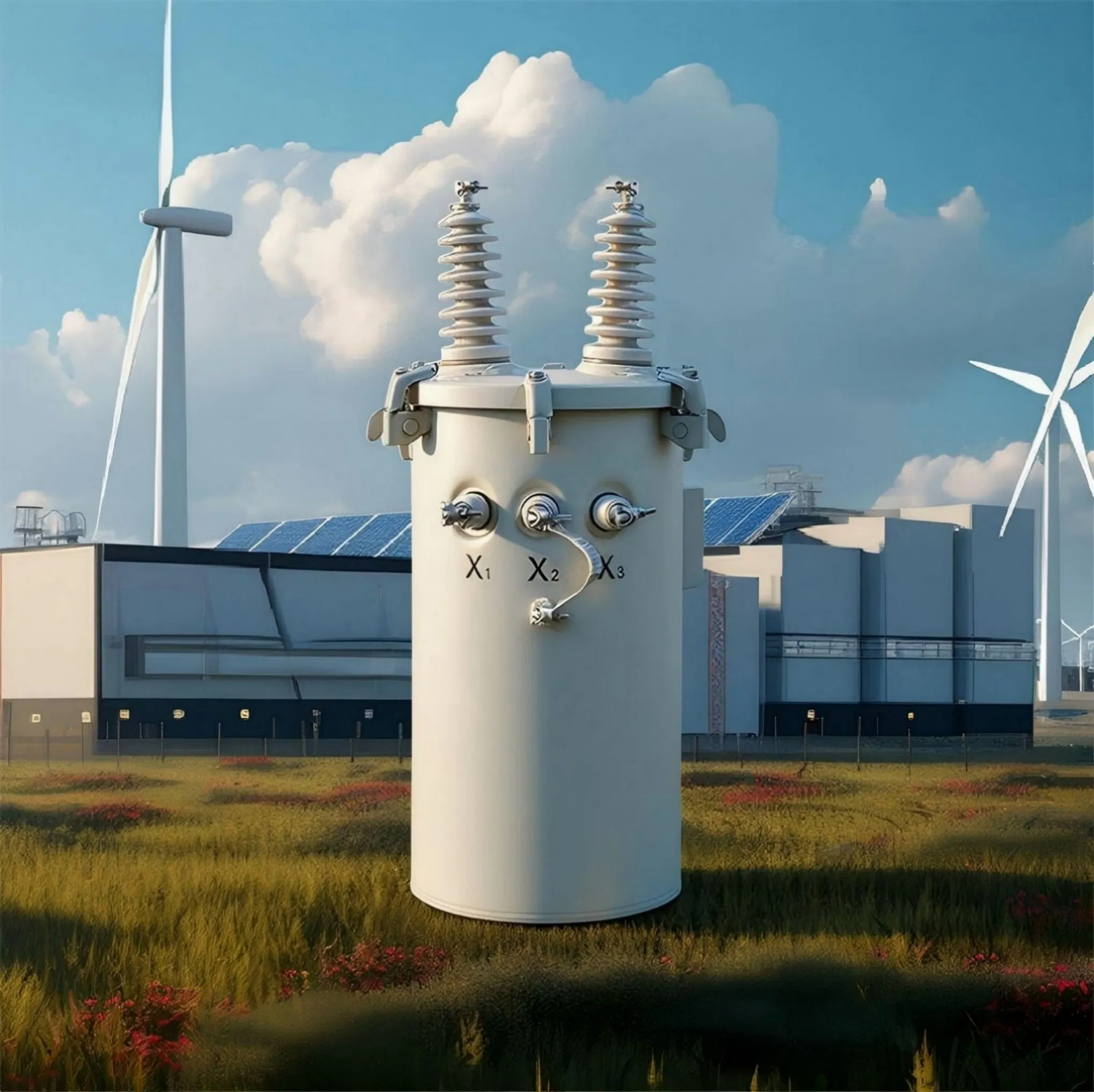

15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
1 / 5
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer
15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer

15kVA 25kVA 10/0.24kv Single Phase Pressure Relief Type Low Carbon Single Phase Transformer

Customization: Available
Application: Power, Voltage Transformation
Phase: Single
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
Single Phase Transformer
Core
Core-type Transformer
Cooling Method
Onan
Winding Type
Two-winding Transformer
Certification
ISO9001, CCC
Usage
Power/Distribution Transformer
Frequency
50 Hz/60 Hz
Type
Pole Mounted
Capacity
10~500kVA
Core Materials
Amorphous Alloy Strip
Connect Group
Dyn11
★

Product Description

Transformer Header
The overhead single-phase electrical transformer is ubiquitous in diverse locations, including rural areas, remote regions, and scattered villages, where it serves as a reliable source of high-quality power for daily lighting, agricultural operations, and industrial facilities.
Meet ANSI/IEEE or DOE standard
Fully sealed and insulated; safe and reliable
Low loss, low noise, strong overload capacity
Equippable with load switch and bayonet fuse
Cold rolled plate or stainless steel enclosure
Mineral oil or FR3 oil compatible
Designed for single-pole mounting
Superior power supply quality

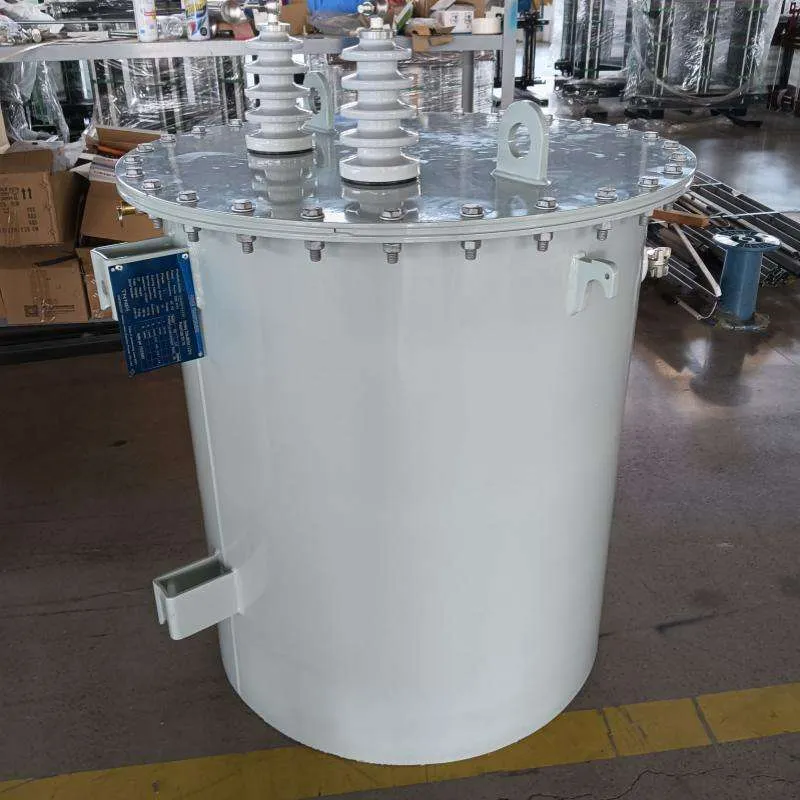

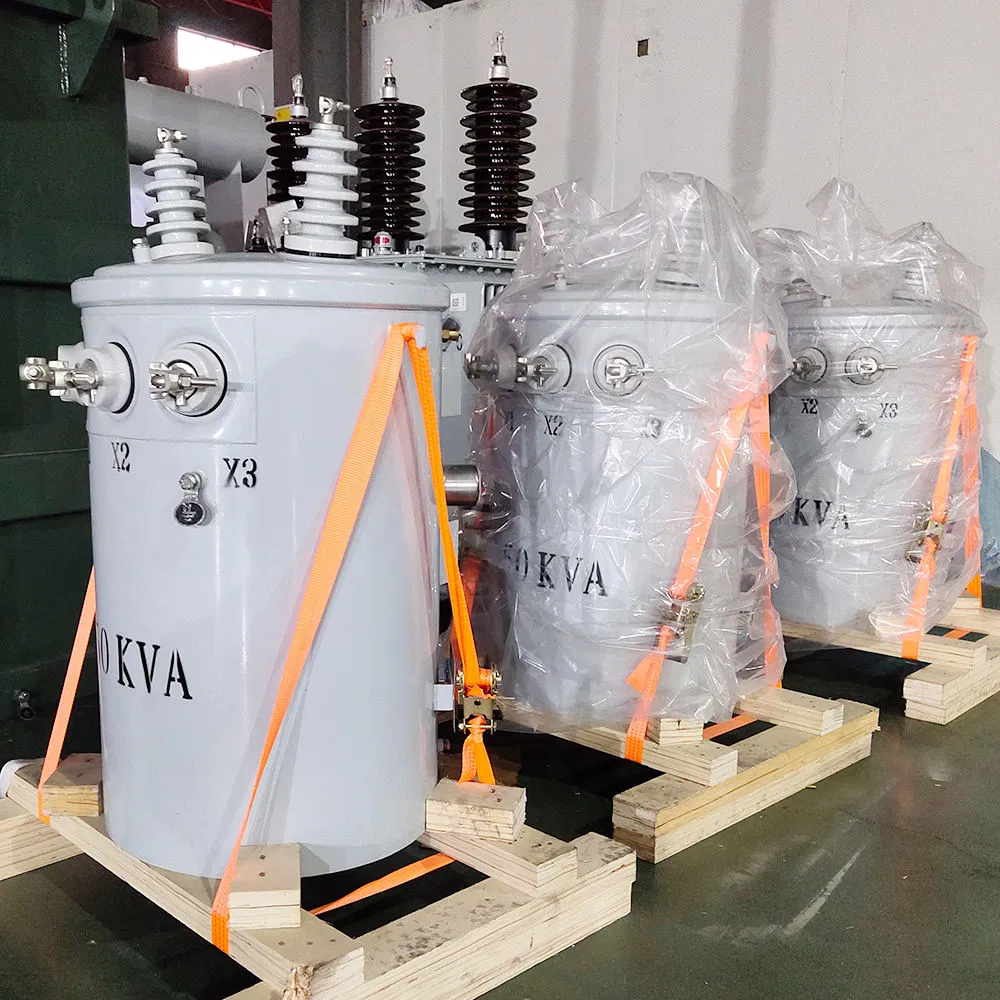

Transformer Detail 1 Transformer Detail 2
📊

Technical Parameters

Rated Power (KVA) High Voltage (KV) Low Voltage (V) Dimension (mm) Weight (KG)
W D H Oil Total
5KVA24.94/14.4kV120/240V4654858551592
10KVA12.47/7.2kV480Y50052588522150
15KVA34.5KV277V52056590530210
25KVA19.92KV600Y56059093545258
37.5KVA13.8KV347V61062593550340
50KVA13.2KV-635675103562395
75KVAOthers-745840103588480
100KVA--770965103594530

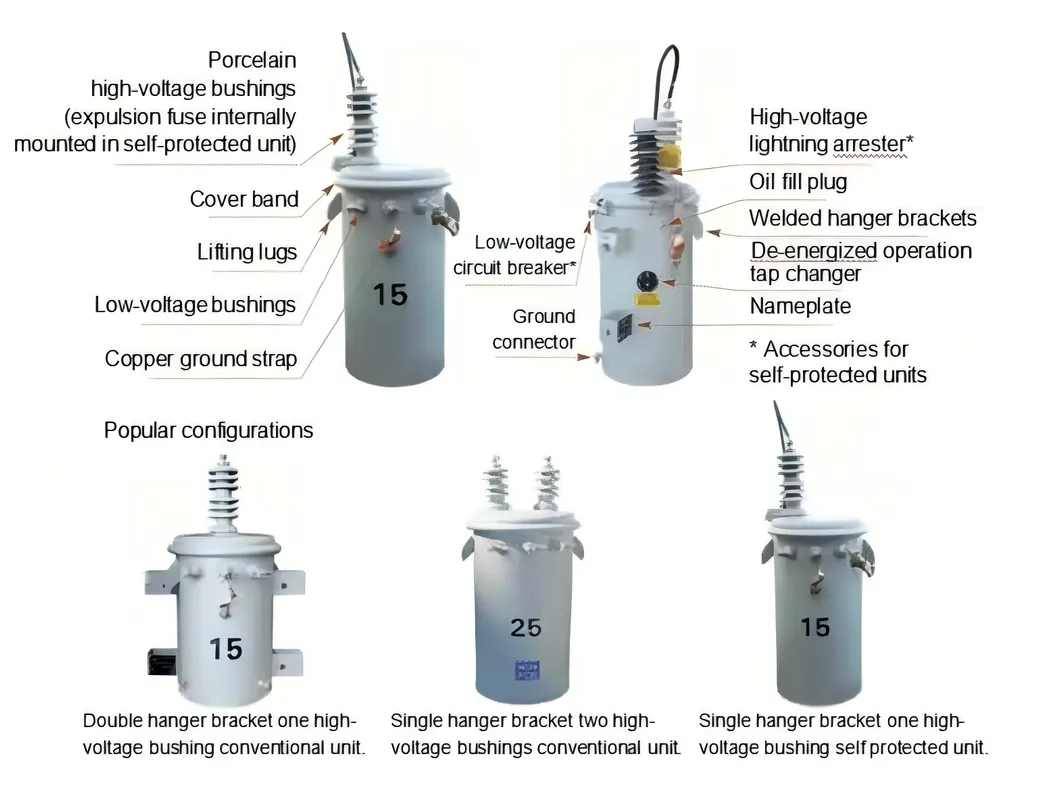

Application 1

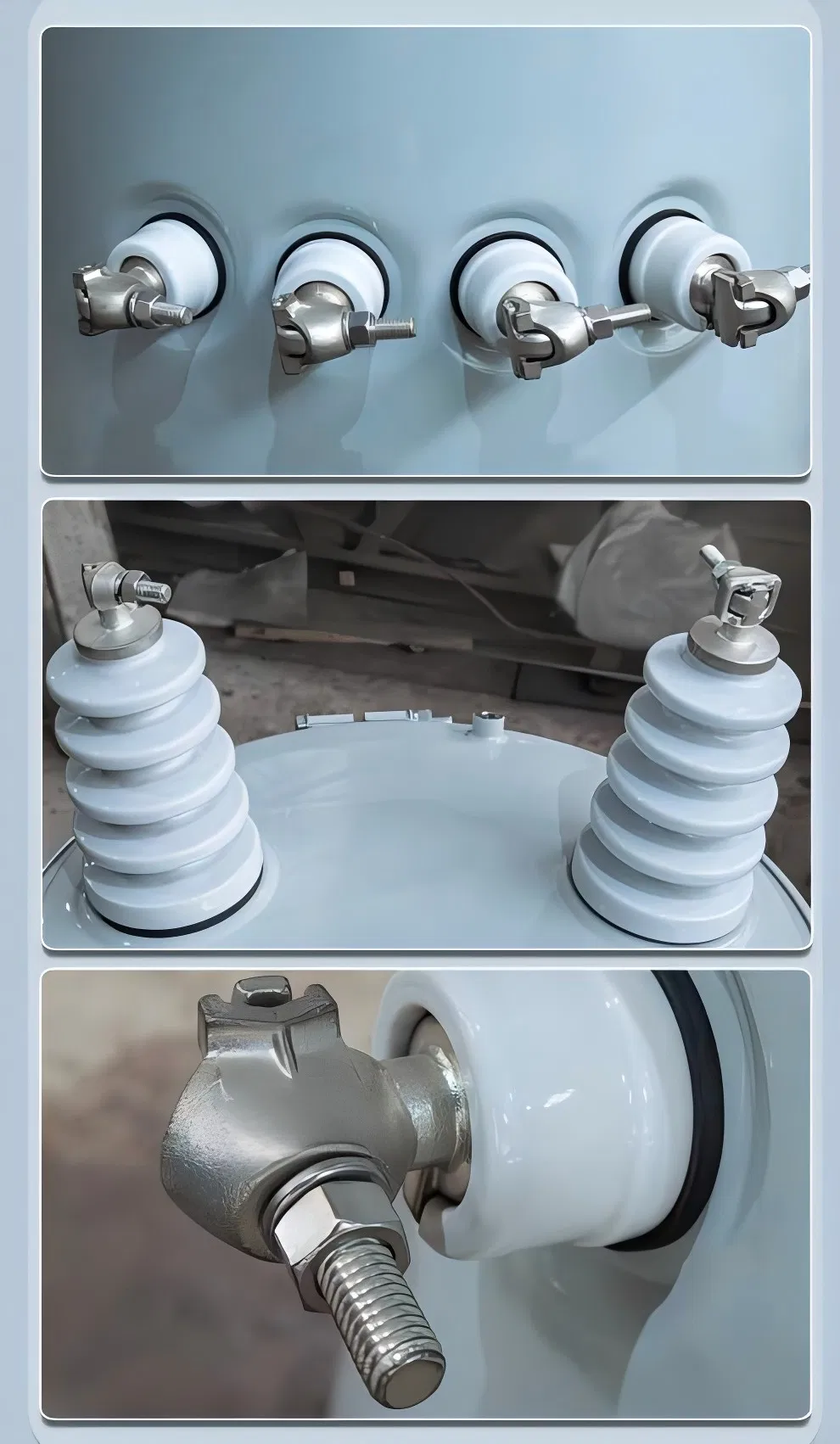

Application 2 Application 3
📦

Packaging & Shipping

Shipping
?

Frequently Asked Questions

Do you accept customized services?
Yes, we offer ODM/OEM services. Our technical team can provide a tailored project based on your drawings and parameters.
What is your Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece.
How long is your delivery lead time?
It depends on your requirements and quantity. Generally, 15-30 working days is available.
How do you solve quality problems?
Please provide detailed photos of quality issues. Our technical department will analyze and provide a solution within 2 days.
What are your payment terms?
30% deposit in advance, 70% before shipment, or via letter of credit.
What is your warranty period?
We provide a 24-month warranty term for our products.
