Maria Valve
1 / 5

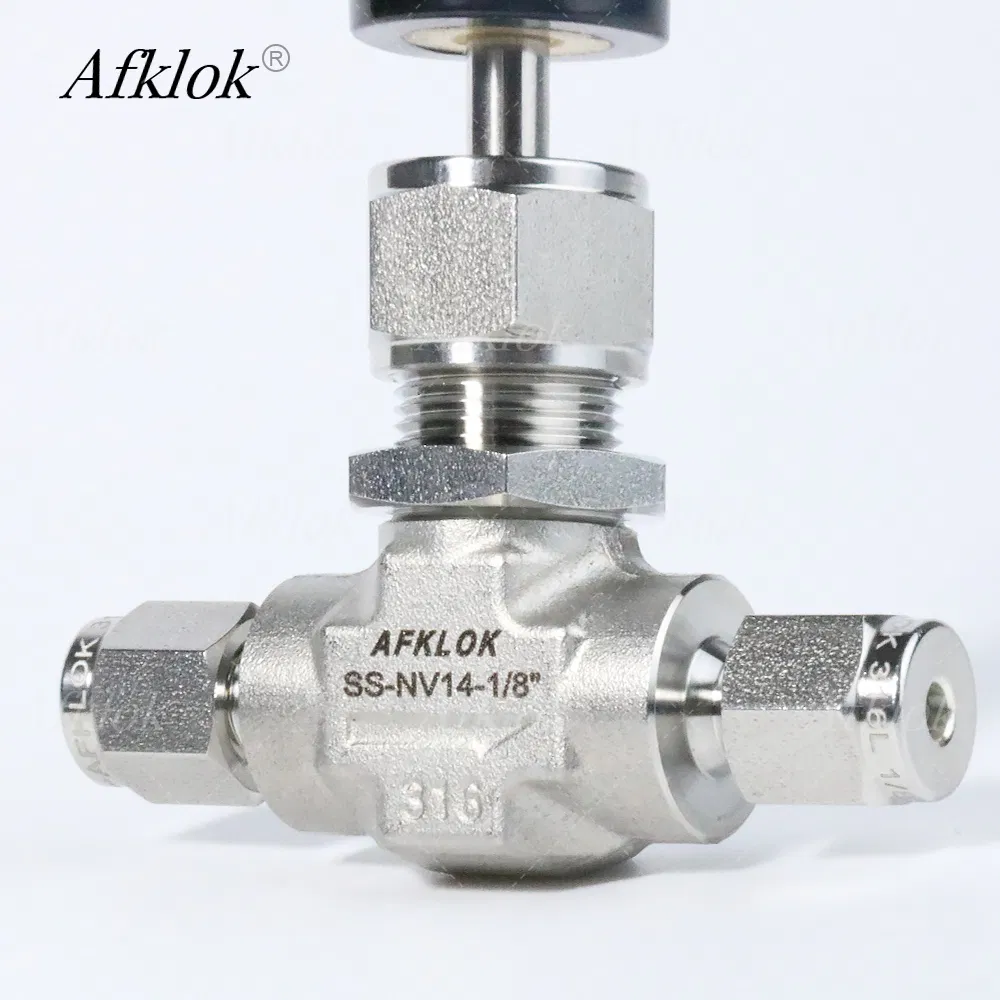

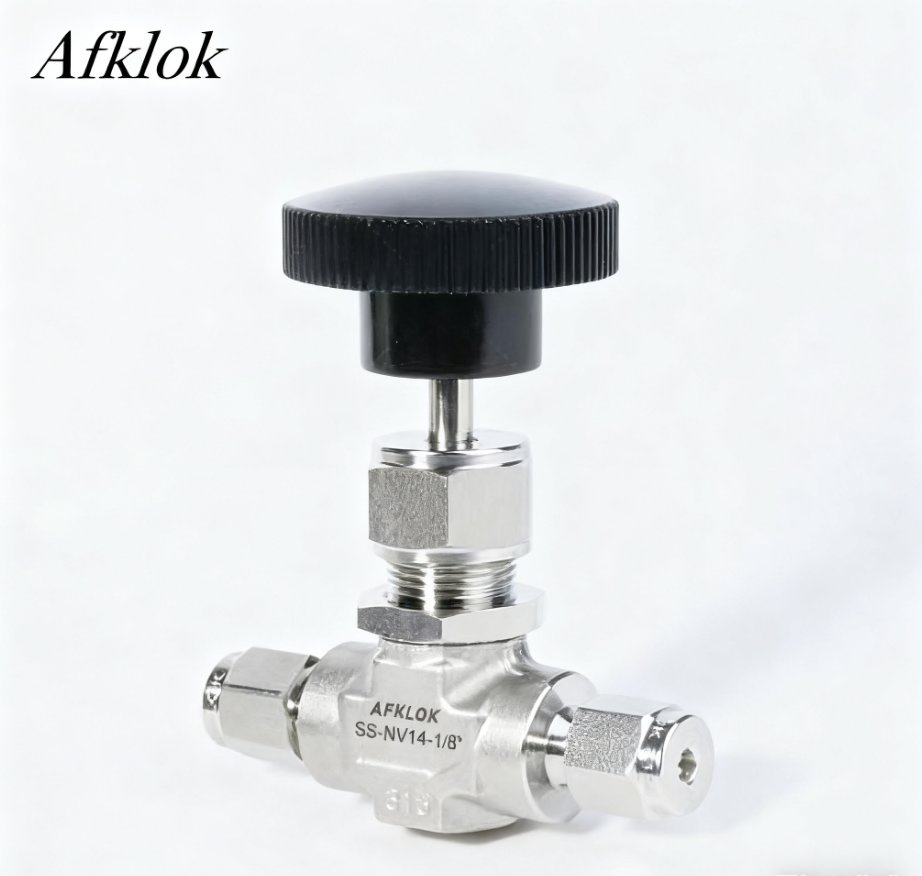

| Model NO. | NV14-1/8" |
| Material | Stainless Steel 316 |
| Working Pressure | 413bar (6000psi) |
| Media | Gas, Water, Noncorrosive Liquid |
| Temperature | -20ºC ~ +315ºC |
| Port Type | 1/8 inch Tubing Ferrules on Both Sides |
| Standard | ANSI, ASME |
| Application | Gas Pipe and Fluid Industry |
| No. | Item | Technical Data |
|---|---|---|
| 1 | Nominal Diameter | 1/8 inch (3.175mm) |
| 2 | Connection Type | Tube Ferrules |
| 3 | Thread Options | G, NPT, BSPP, BSPT |
| 4 | Body Material | Stainless Steel 316 / 316L |
| 5 | Sealing Material | Soft Seal (PTFE, PFA) or Hard Seal |
| 6 | Height / Length | 7cm / 5.9cm |
| 7 | Port Size Range | 1/8", 1/4", 3/8", 1/2", 3/4" |
Selling Units: Single item
Package Size: 12.5 X 9.5 X 7 cm
Gross Weight: 0.35 kg
Export Standard: Double-layer plastic bag (vacuum inside) + Outer plastic packaging + White carton + Cardboard box.
1. LOGO Customization: Lathe engraving on the valve body. MOQ = 1 piece.
2. Specialized Packaging: Custom packaging designs available as requested. MOQ = 1 piece.
3. Pressure Adjustment: Working pressure configurations ranging from 0 to 6000psi.

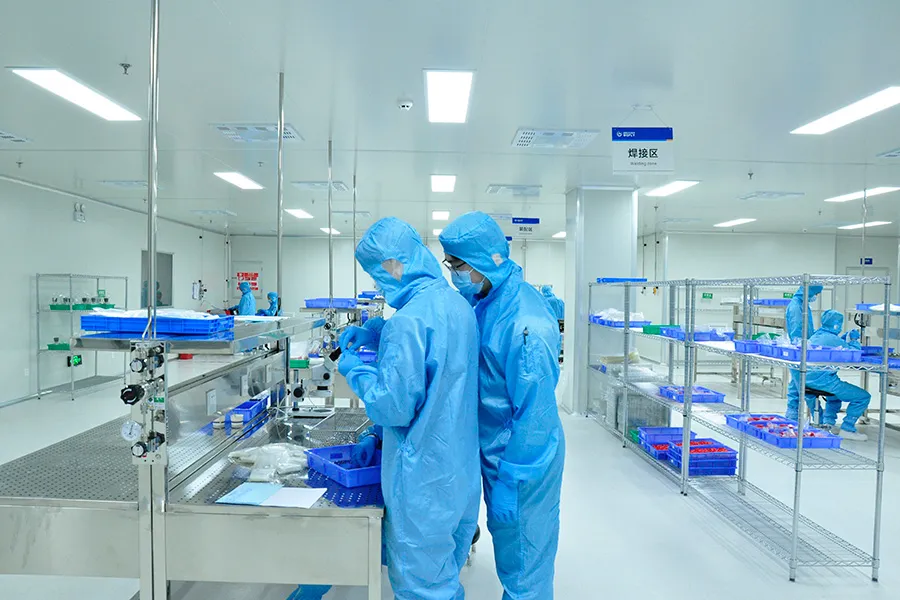

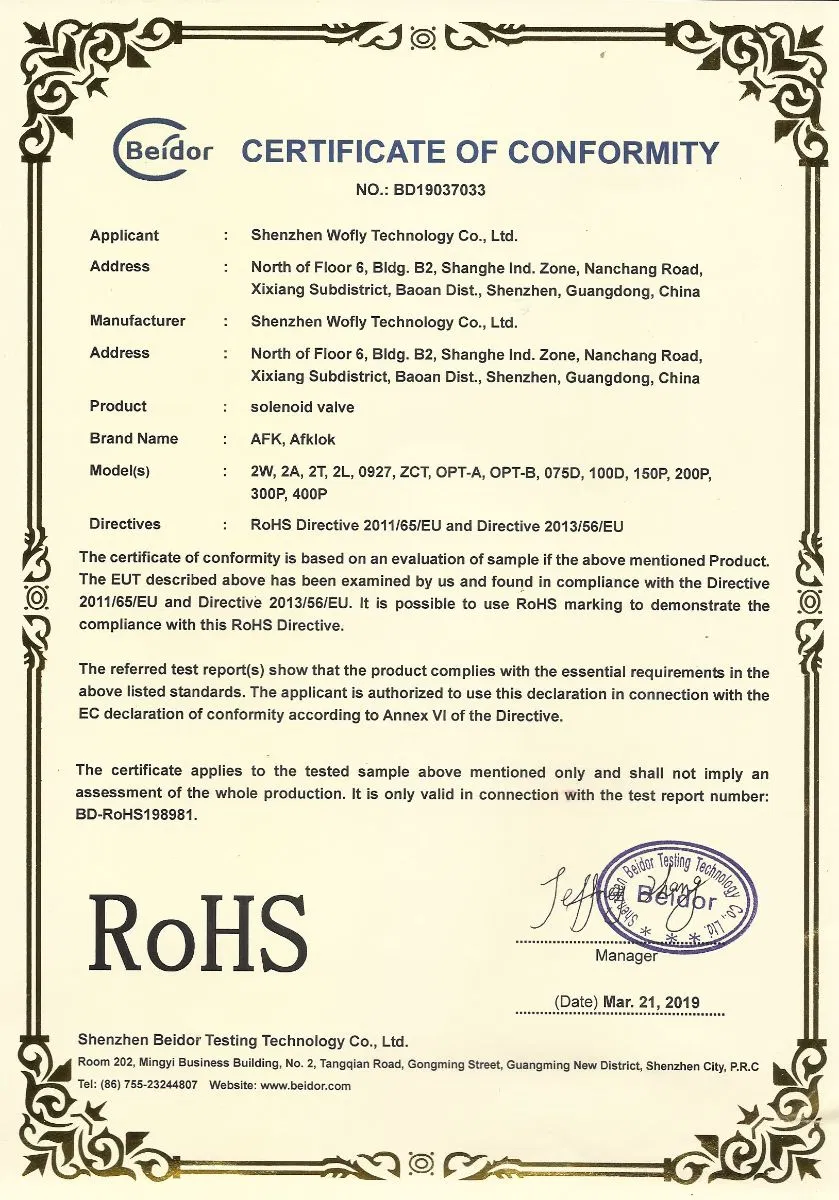

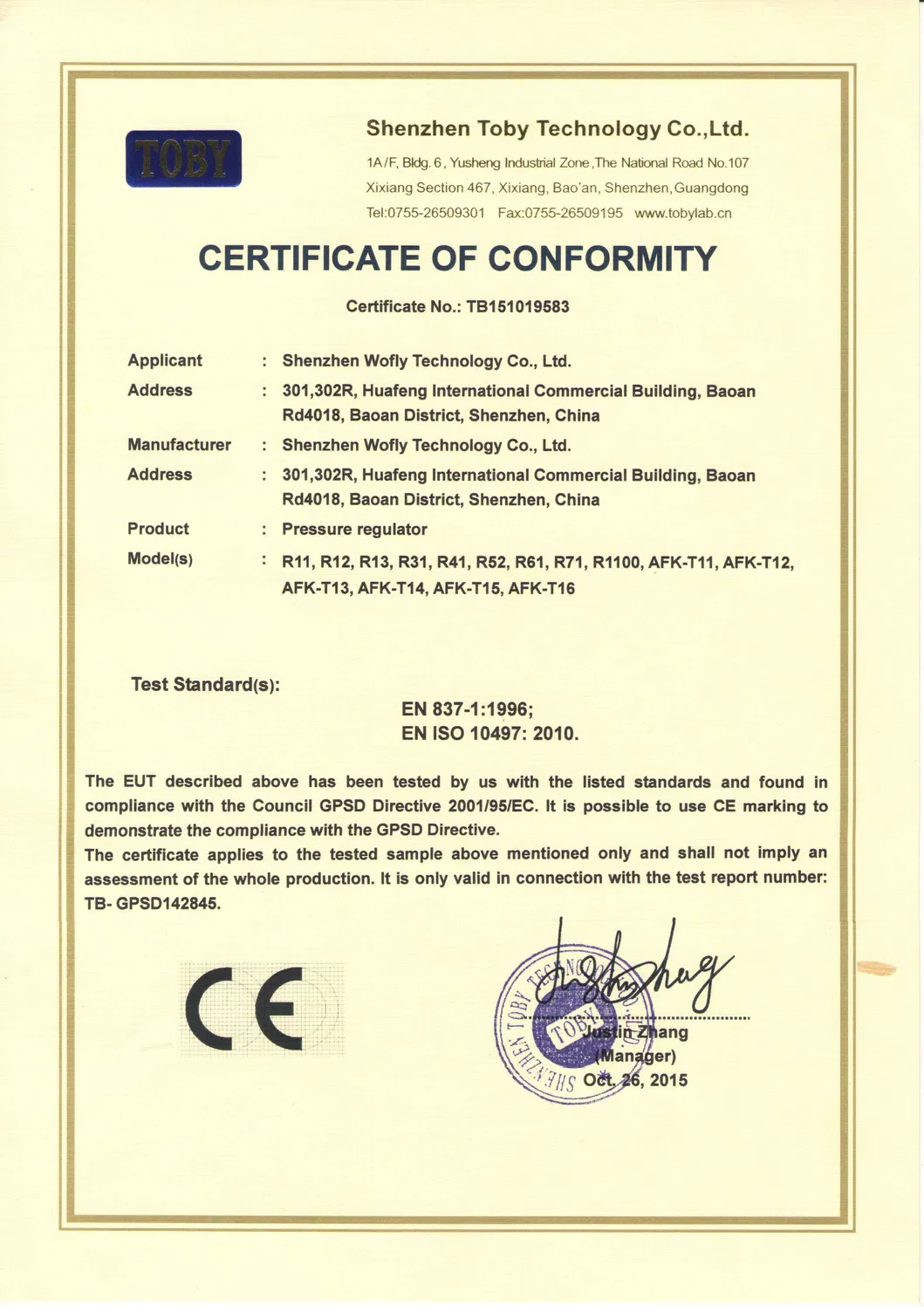

Our products are ISO 9001 certified and comply with CE, RoHS, and SEMI S2 standards. We utilize orbital welding and CNC machining to ensure consistent weld quality and precision finishing.
