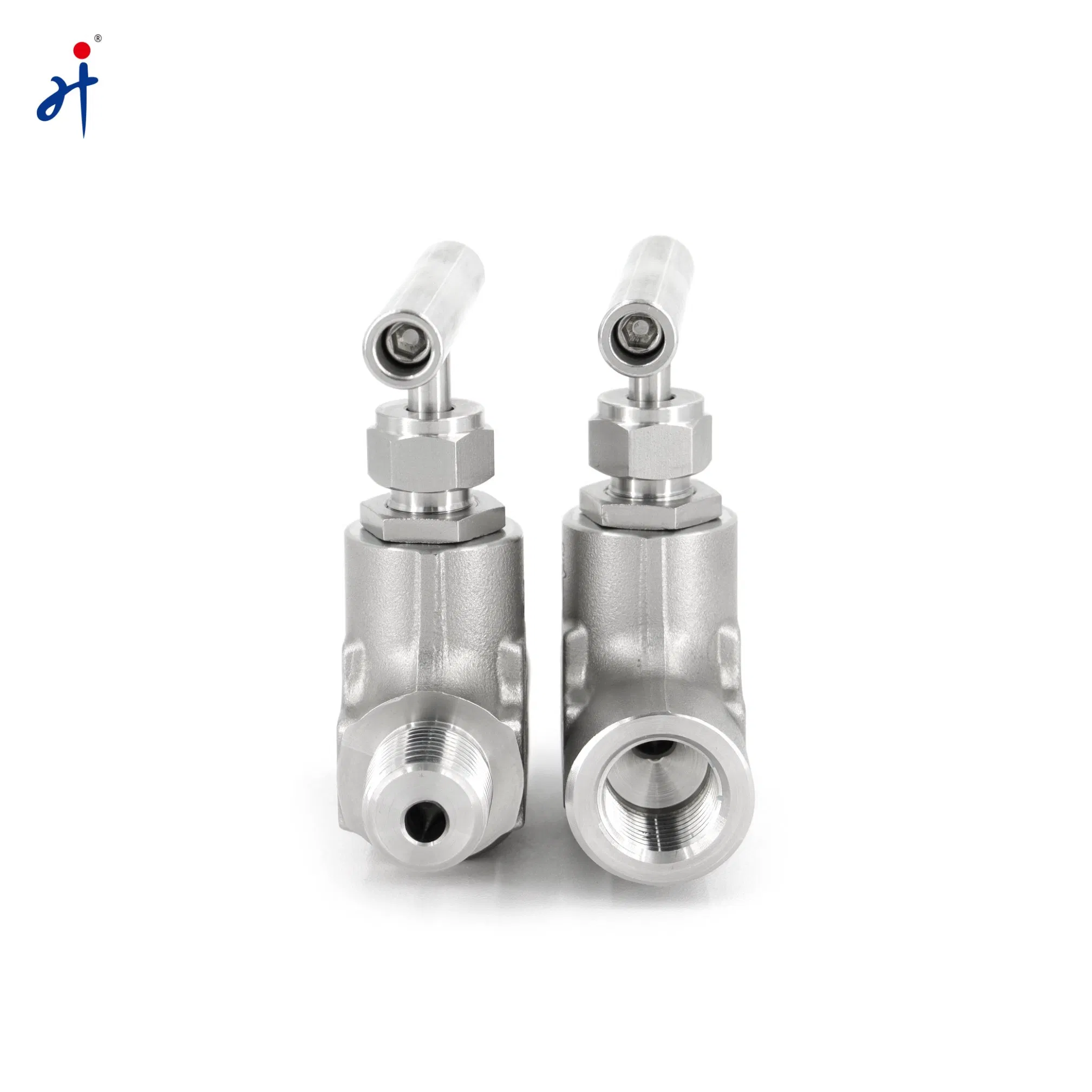

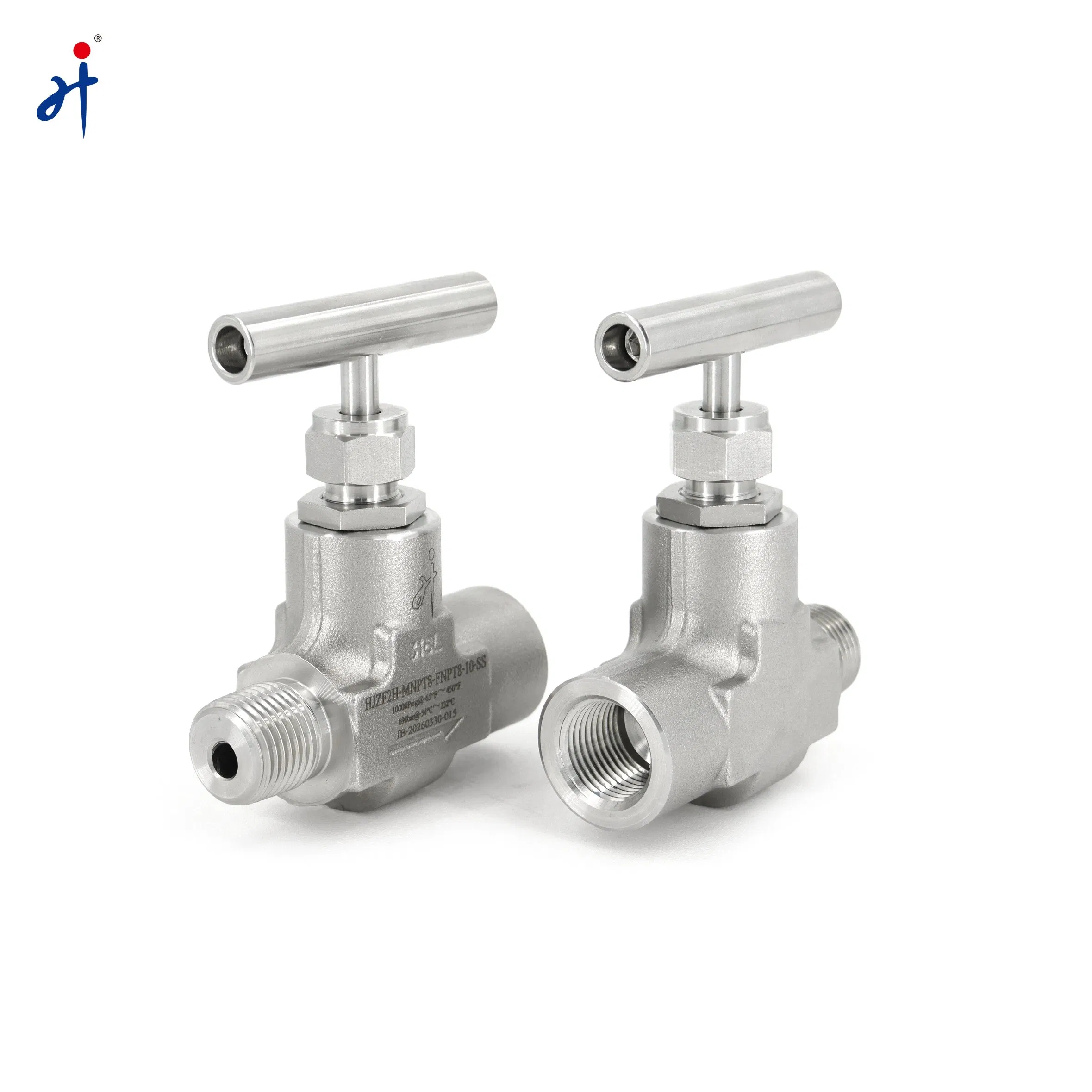

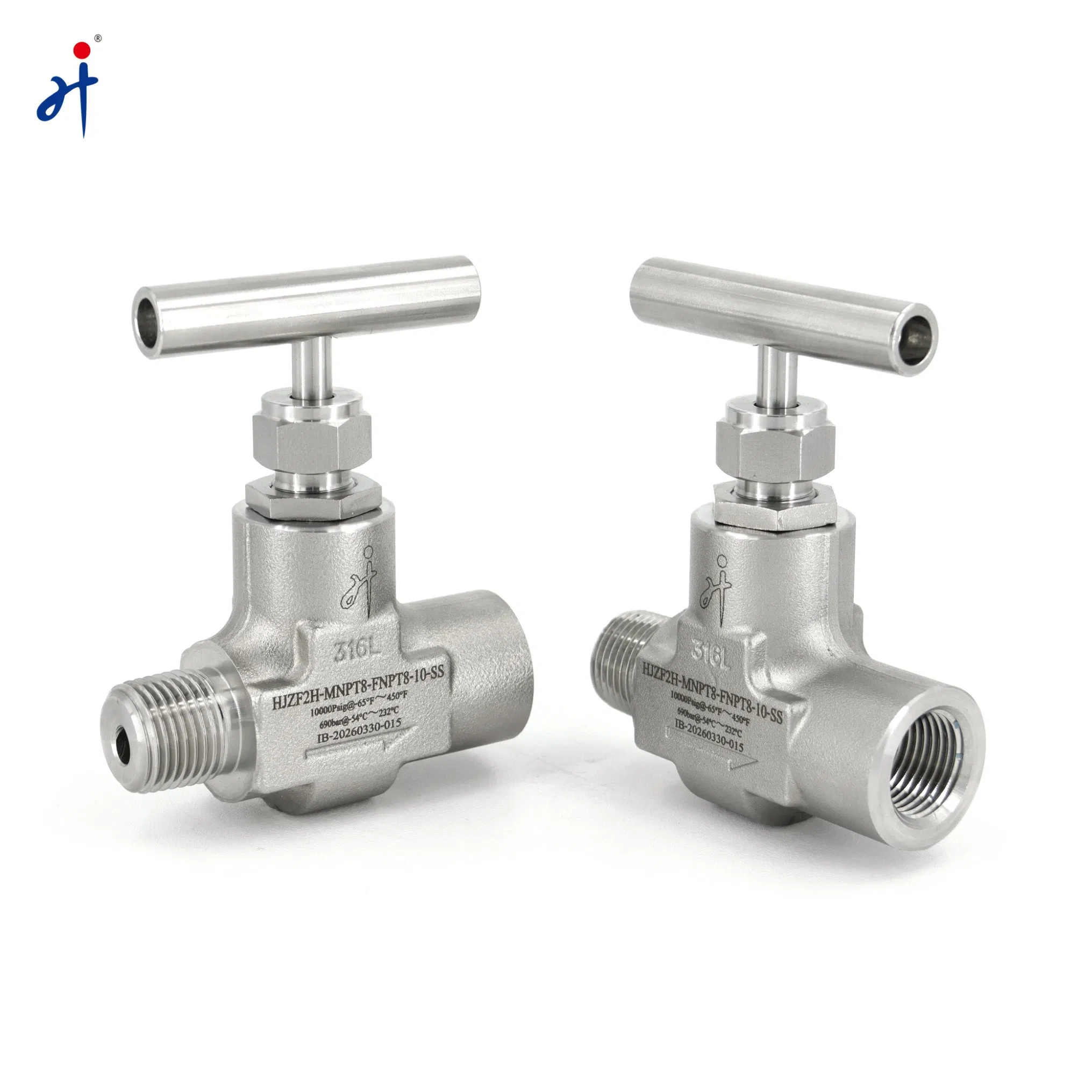

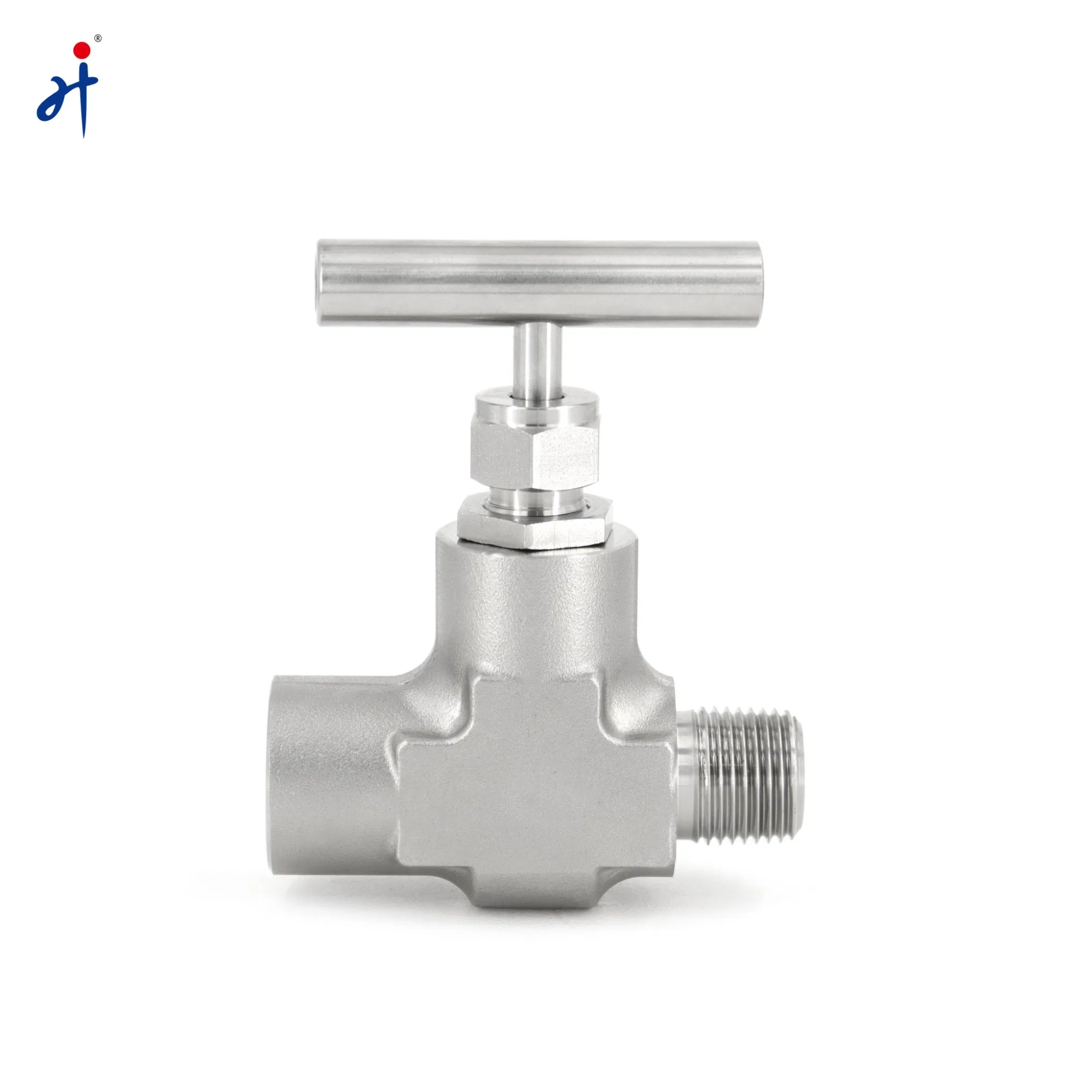

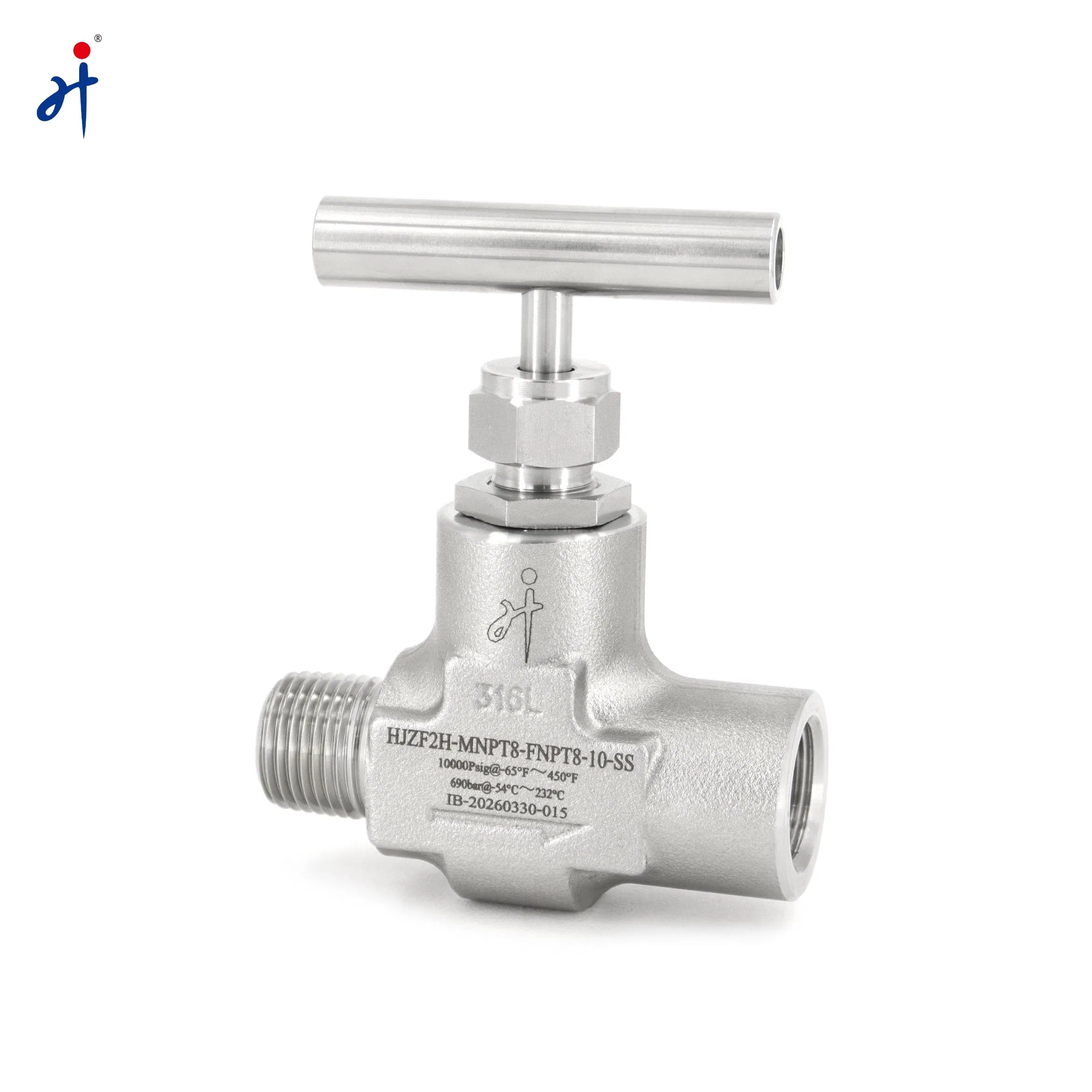

SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
1 / 5
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas
SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas

SS316 Forged Needle Valve 10000psi High Pressure 1/2 NPT Male Female Thread for Oil Gas

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HJZF2H-MNPT8-FNPT8-10-SS
Material
Stainless Steel
Pressure
High Pressure (10000psi)
Media
Gas, Liquid, Steam, Oil
Steel Grade
316, A105/A350, Hc276, Monel400, Incoinel600/625
Temperature
High Temperature
Size Range
NPT1/4, 1/2, 3/4; Od1/8-1
Pack Material
PTFE / Graphite
Connection
Thread / Ferrule / Weld
HS Code
84811000
Product Description

Forged Body Needle Valves

HJZF2 Series: Working pressure up to 6000 psig
HJZF2H Series: Working pressure up to 10000 psig

Needle Valve View 1
Needle Valve View 2

⚙Key Features

  • One-piece forged body for maximum integrity
  • Two-piece stem design: Upper stem threads cold rolled and lower stem hardened for high strength
  • Upper stem thread lubricant isolated from system media
  • Panel mounting available for flexible installation
  • Steady and durable fastening of the handle by double lock-pins
  • Leak tested with Nitrogen or compressed air at maximum allowable working pressure
  • High working temperature range: Graphite up to 1200°F (649°C)
Detailed Photos
Details 1

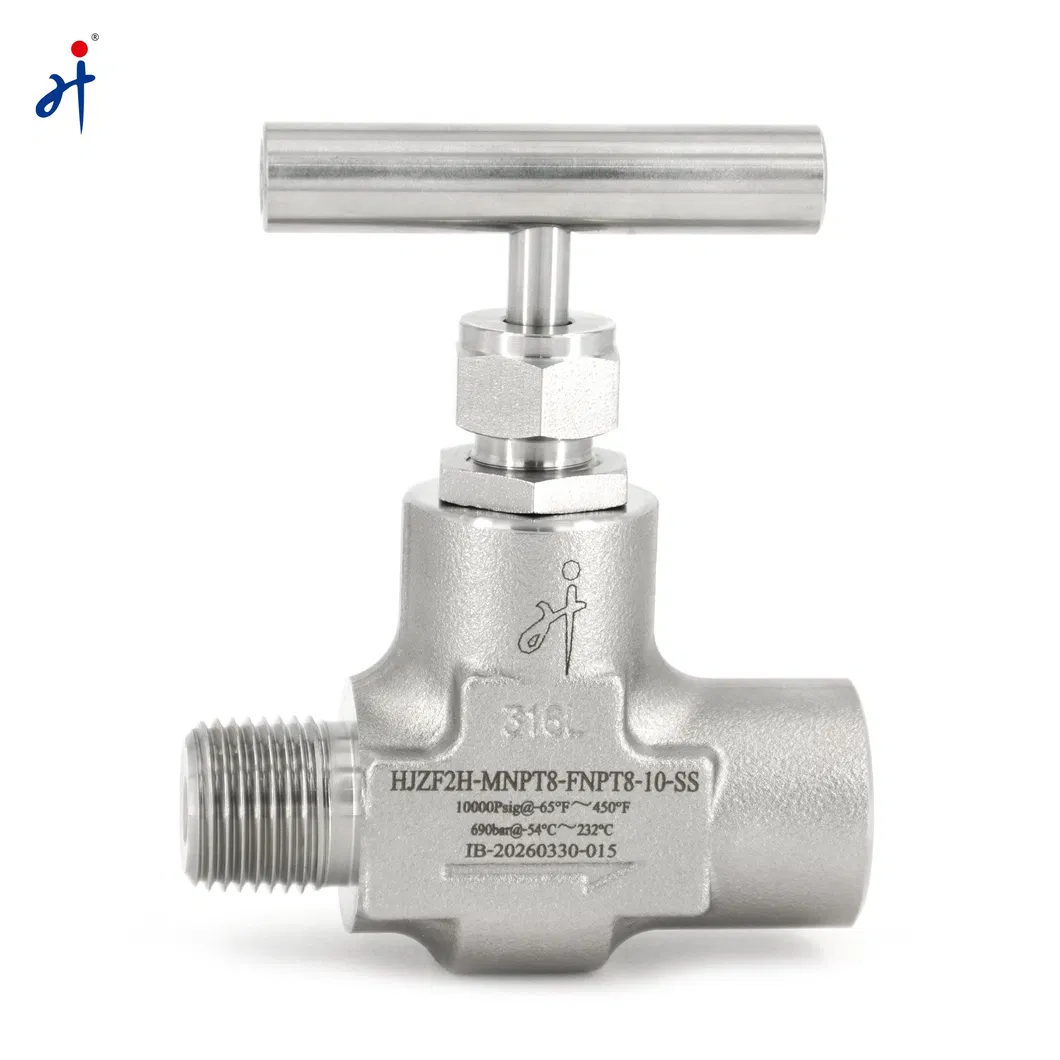

Details 2

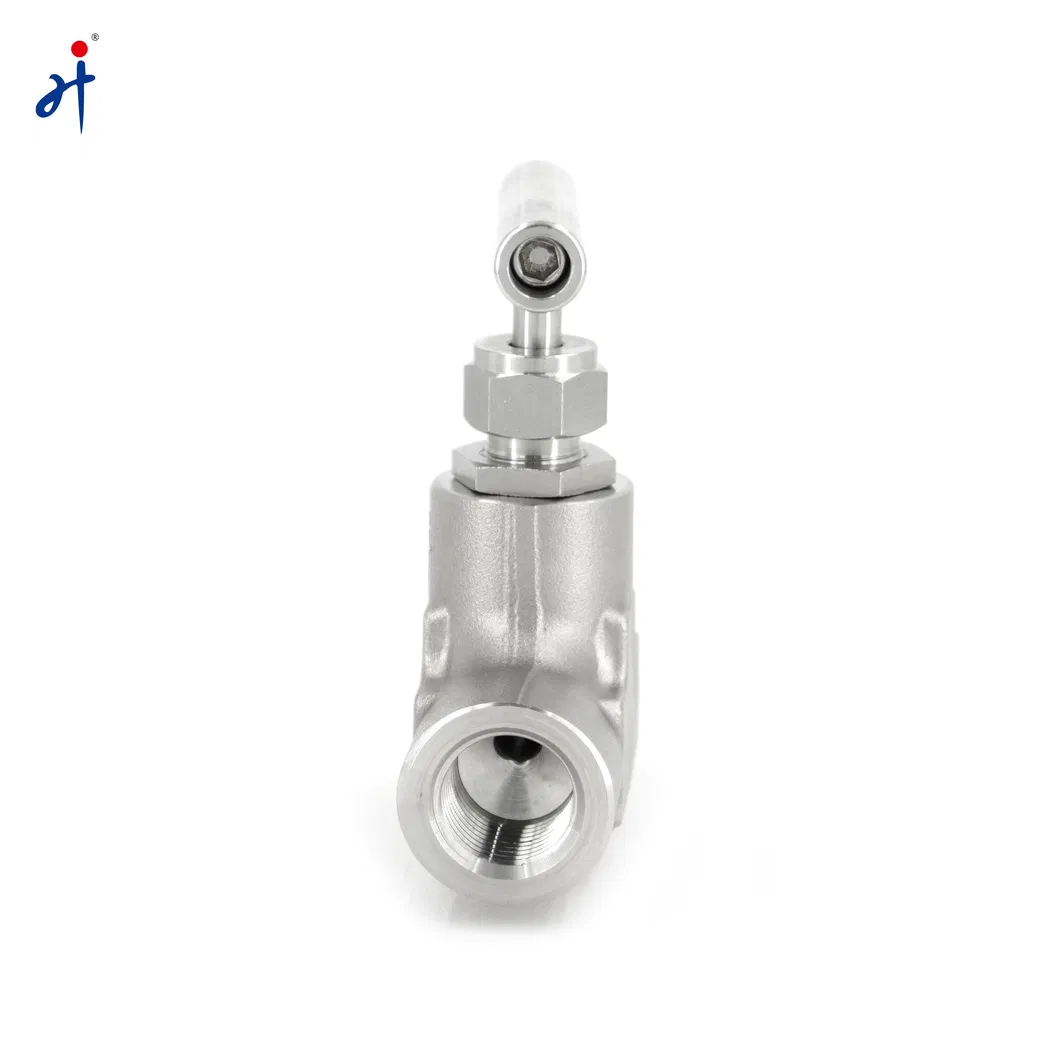

Details 3

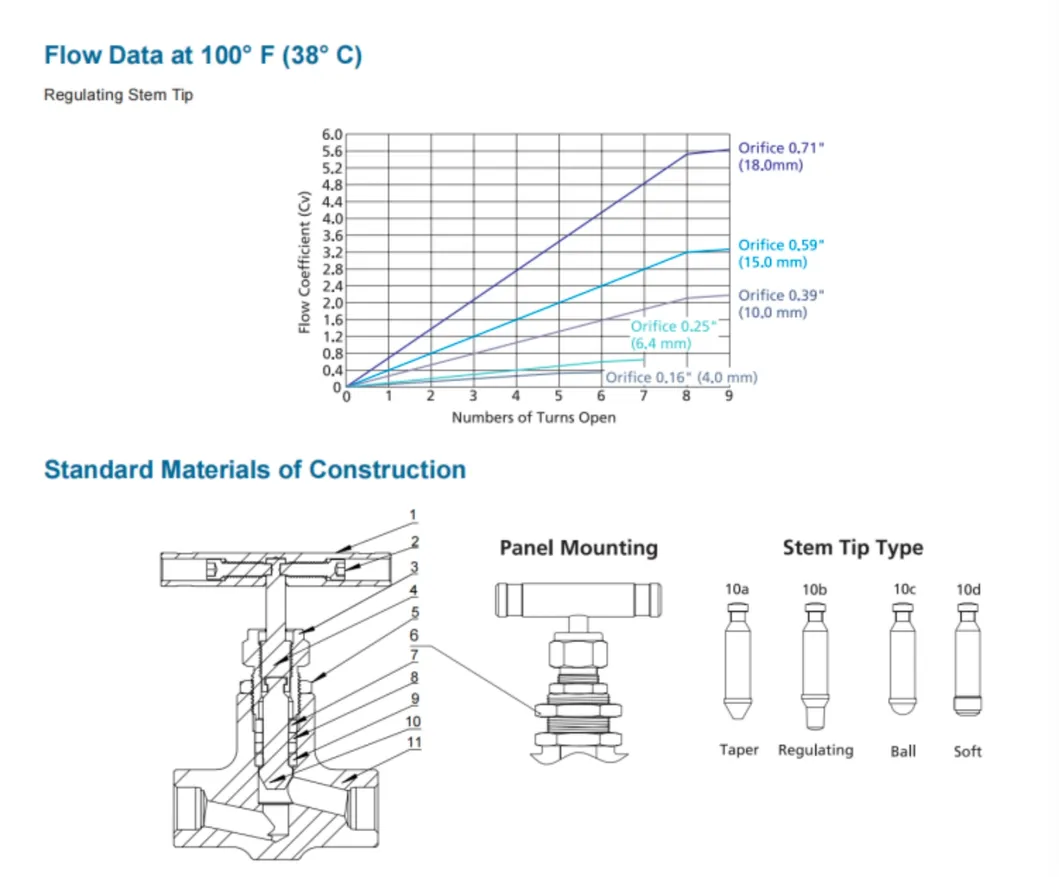

Details 4

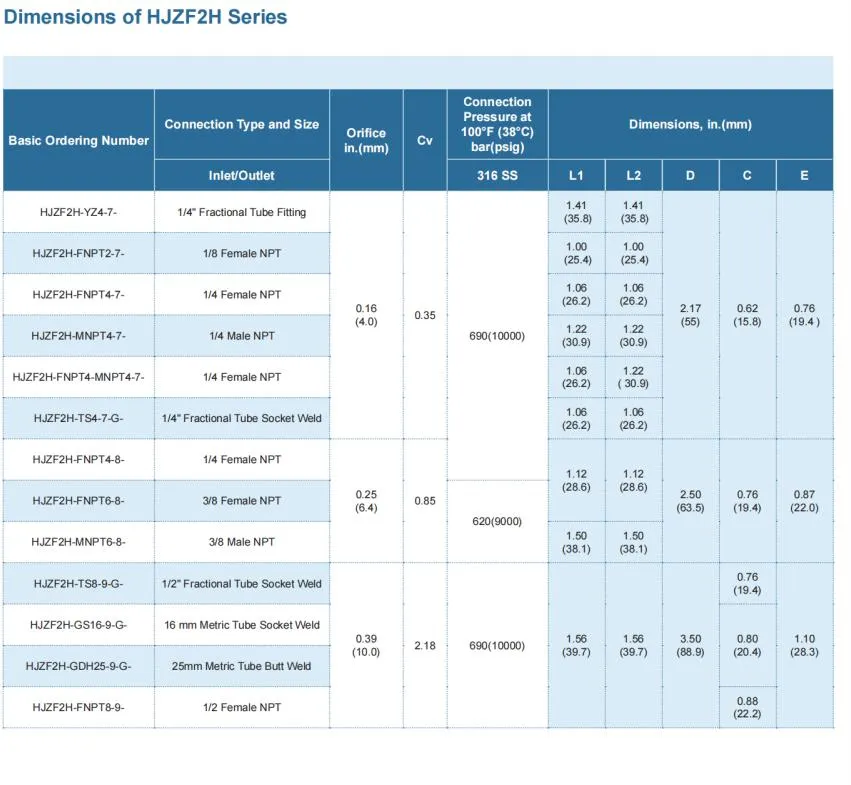

Details 5
Technical Specifications
TypeNeedle Valve Net Weight0.445kg±0.005kg(DN10)
Body Material304, 316L, 321, 201, Alloy etc. ConnectionFemale NPT / FNPT x MNPT / Tube OD
Seal TypeHard Sealing NormsISO/GB/JB/DIN
Pressure RangeUp to 10000 PSI PTFE Temp-54 to 260°C
ThreadBSPP, BSPT, NPT, G, ZG Warranty1 Year
Production Capabilities

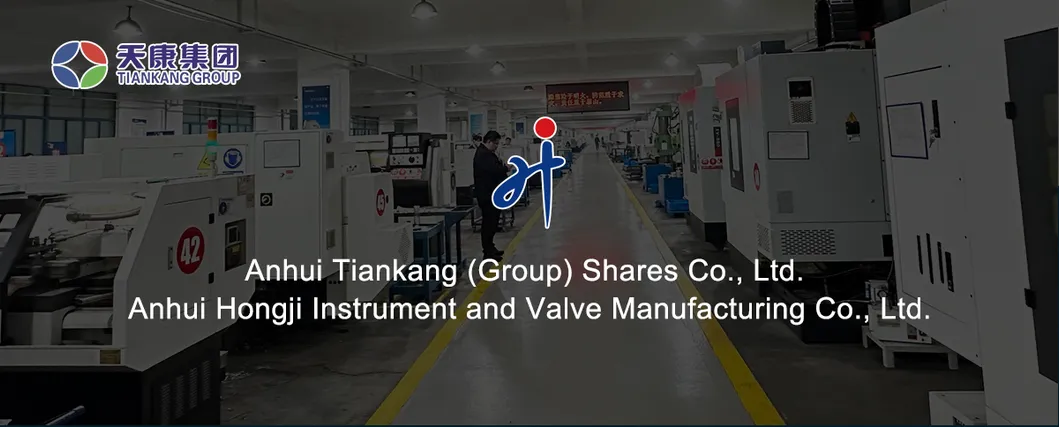

Factory 1

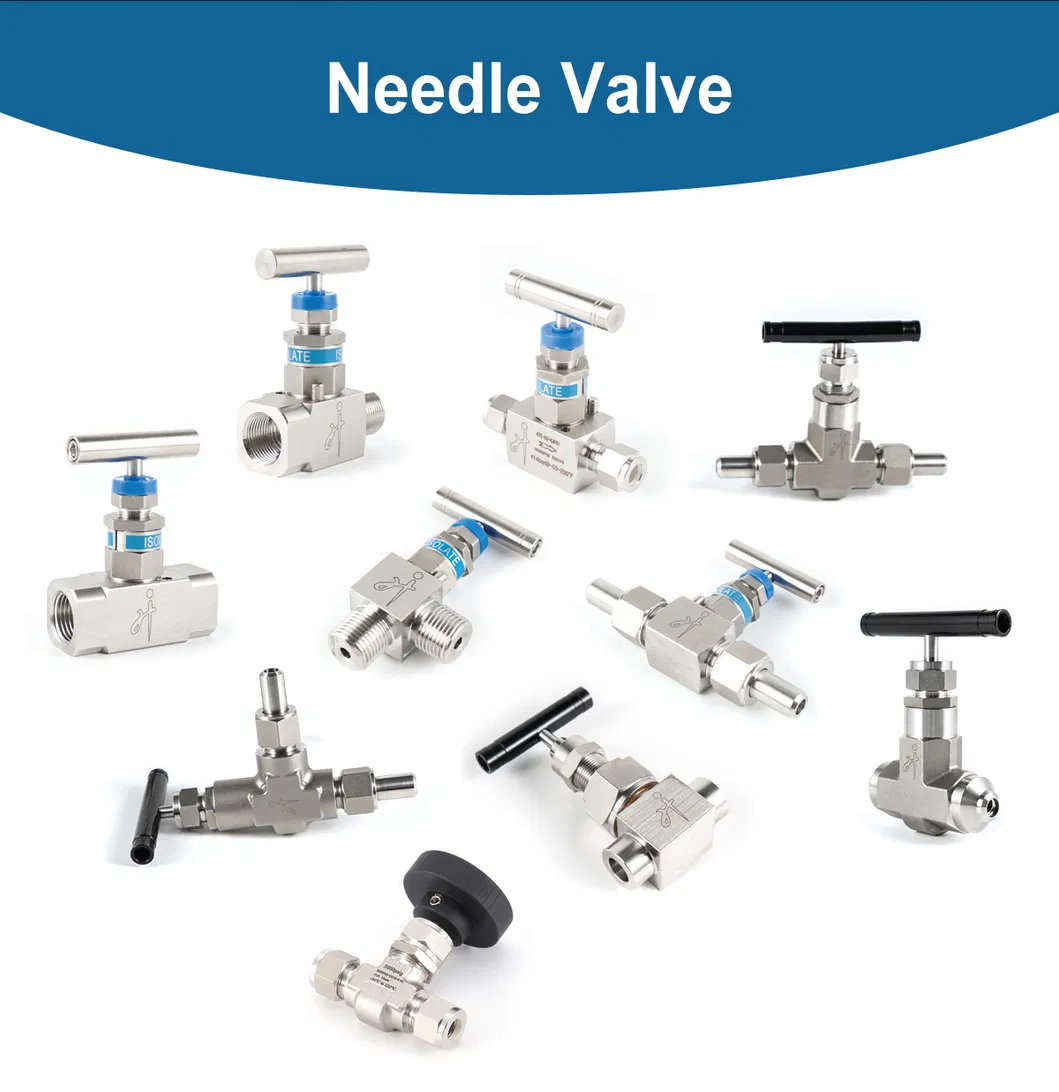

Factory 2

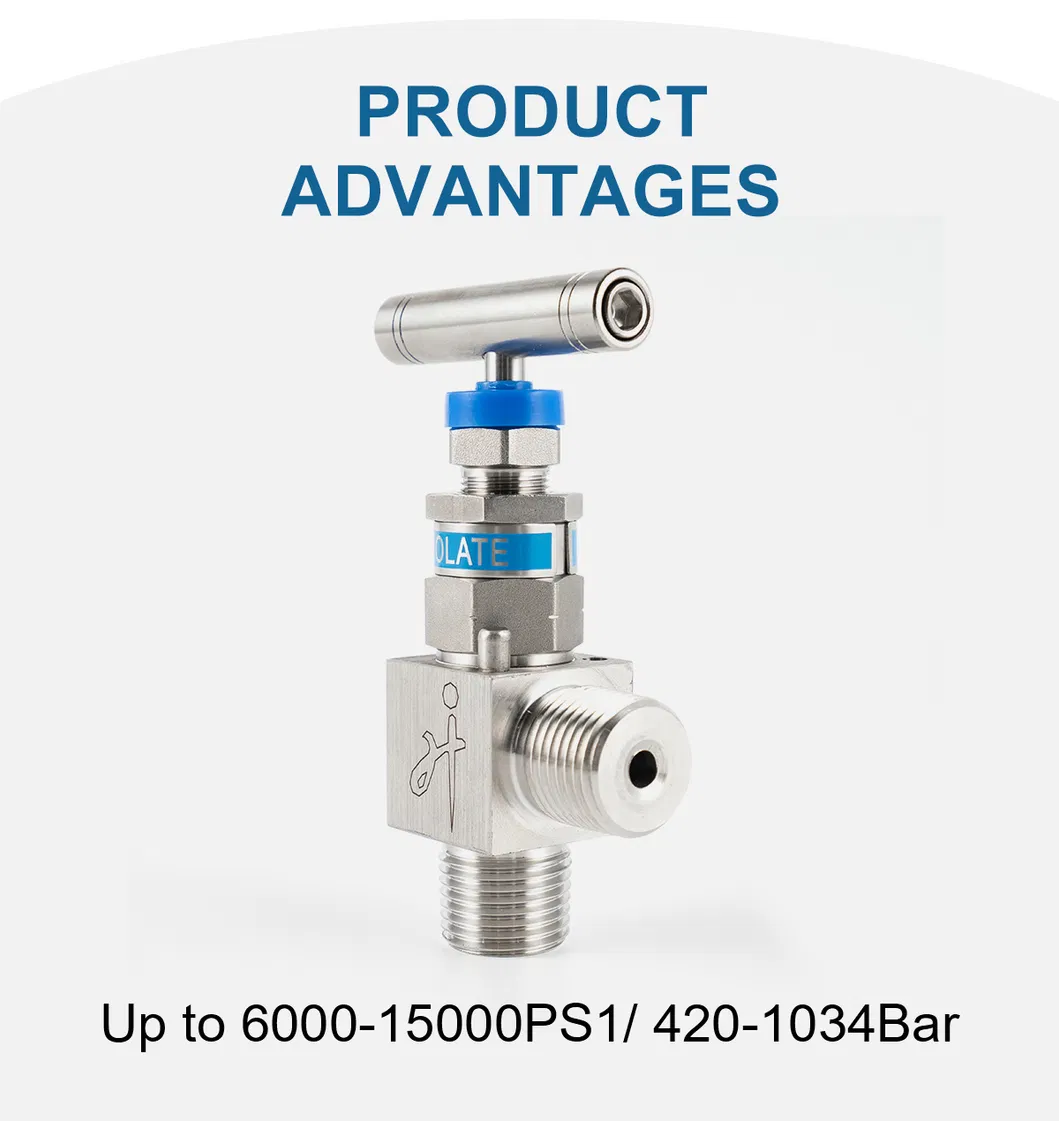

Factory 3

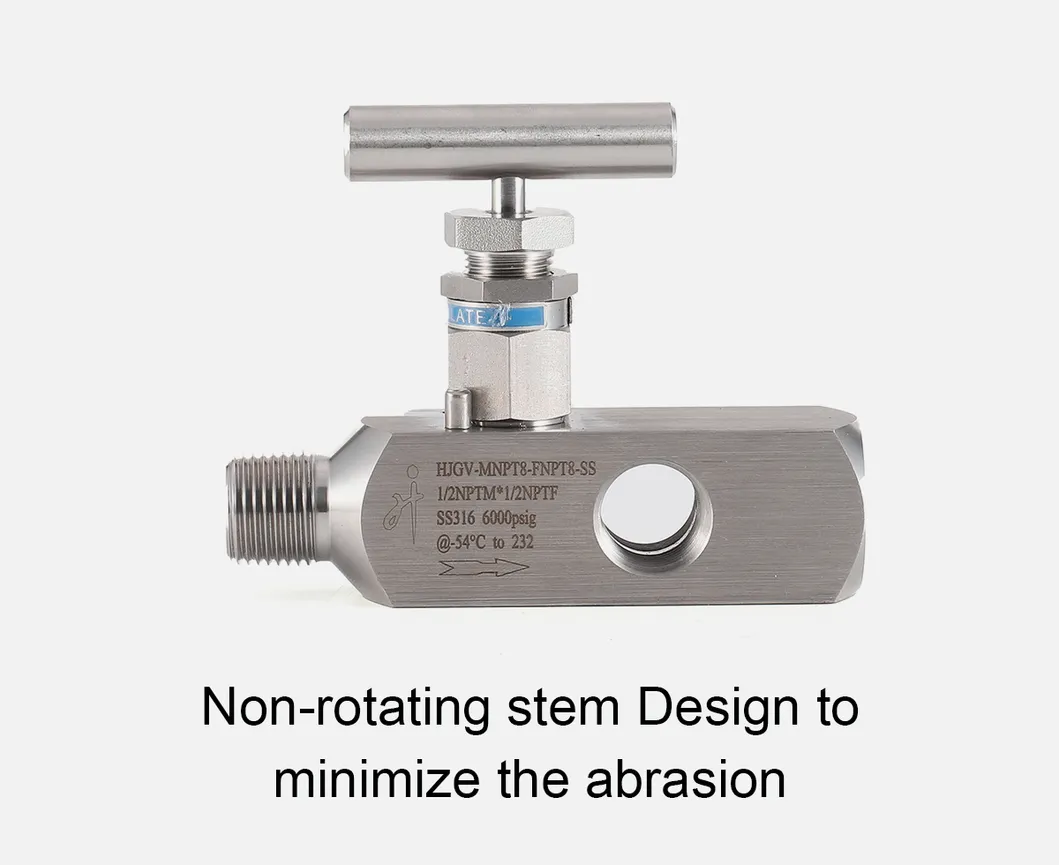

Factory 4

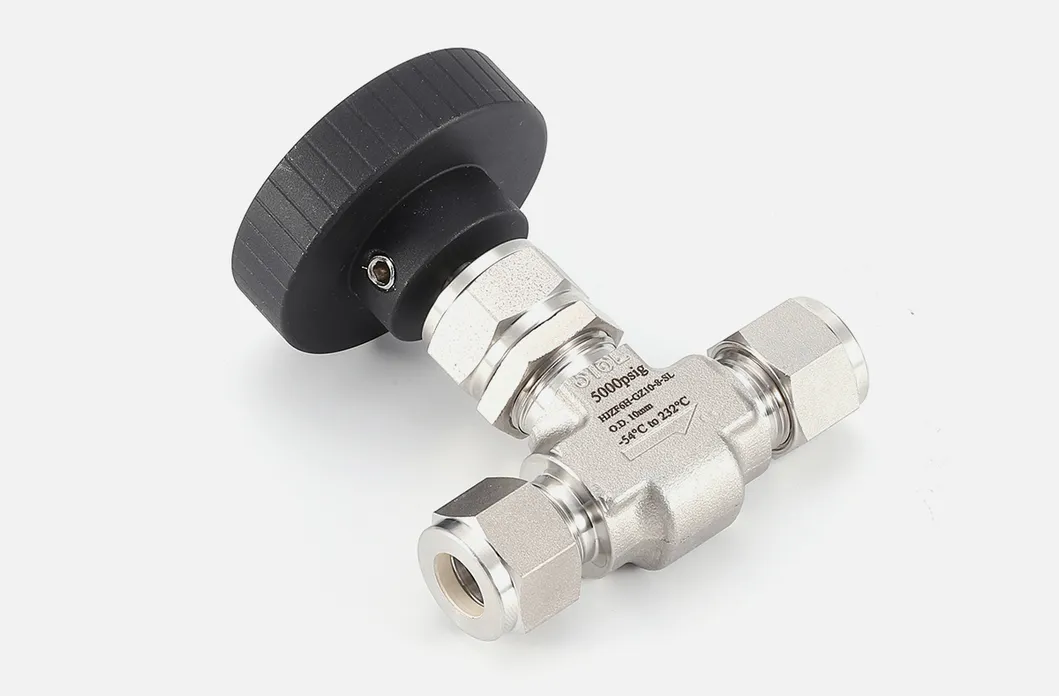

Factory 5

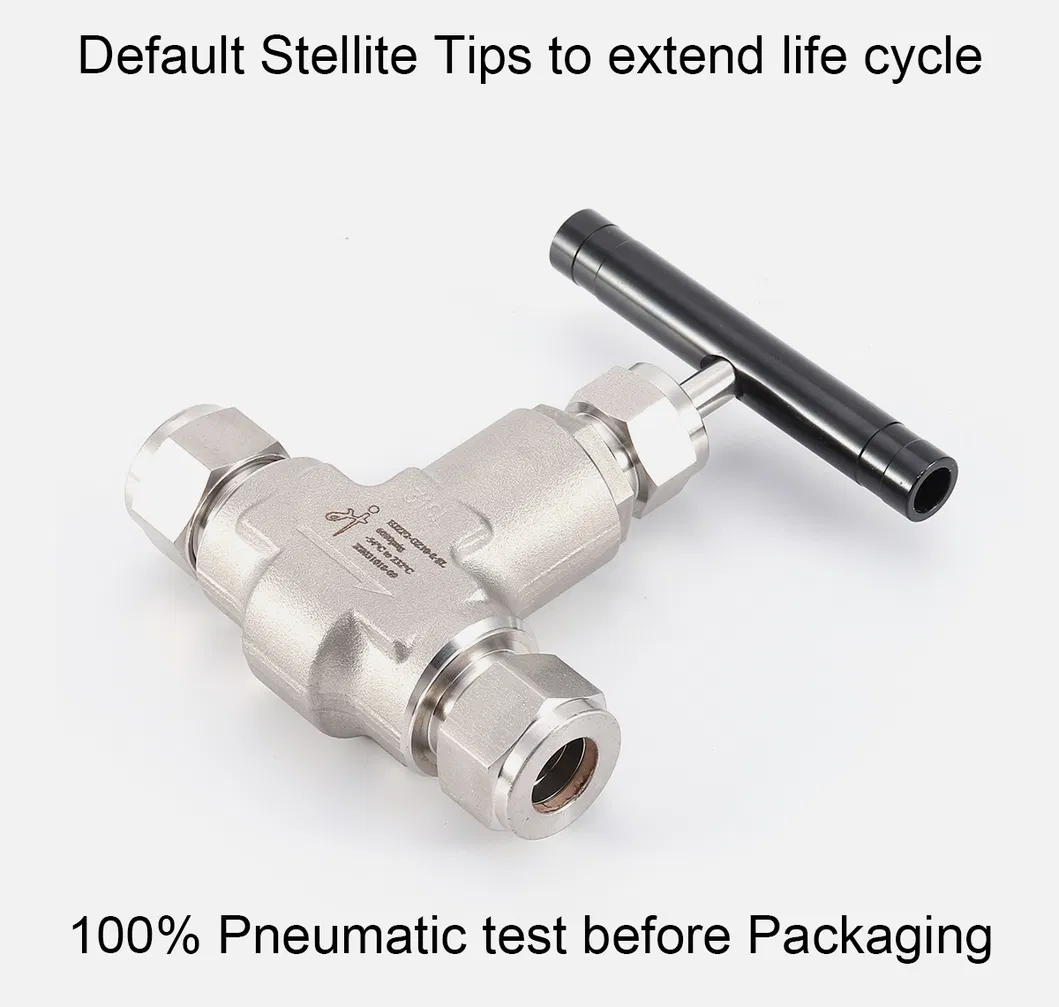

Factory 6
Frequently Asked Questions
Can I get a Sample?
We do provide small specific samples accordingly based on the current process situation.
Do you provide customized products?
Yes, we offer customized services including logo labeling and manufacturing based on specific samples or blueprints.
What is the pressure and temperature range for these valves?
The pressure range is up to 10000 PSI. Temperature ranges from -54°C to 260°C for PTFE packing, and up to 649°C (1200°F) for Graphite packing.
What payment methods are accepted?
We accept L/C, T/T, PayPal, and Western Union.
Why should we choose your products?
We ensure 100% leakage and functionality testing, 15 years of manufacturing experience, high customization flexibility, and direct manufacturer pricing.
What industries are these valves suitable for?
Our needle valves are ideal for Oil & Gas, Power Plants, Nuclear Energy, Petrochemical, Water Treatment, and Semiconductor industries.
