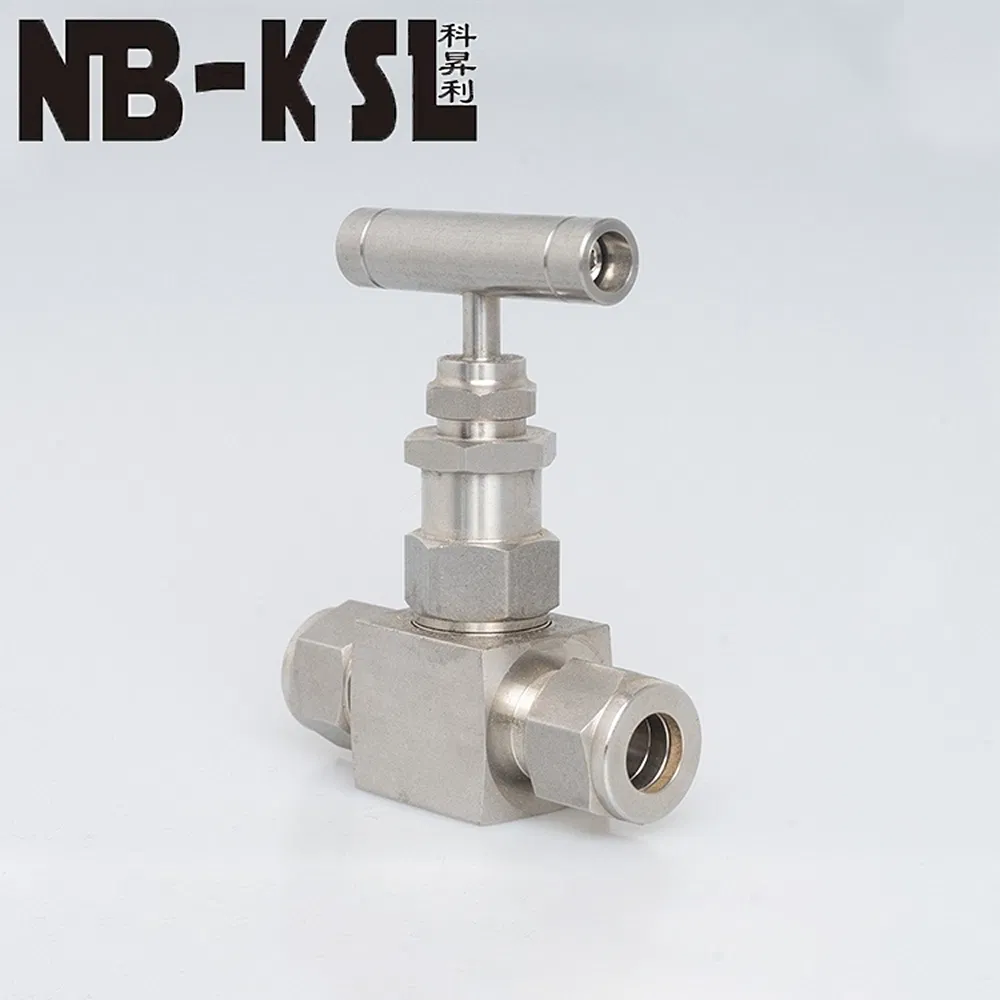

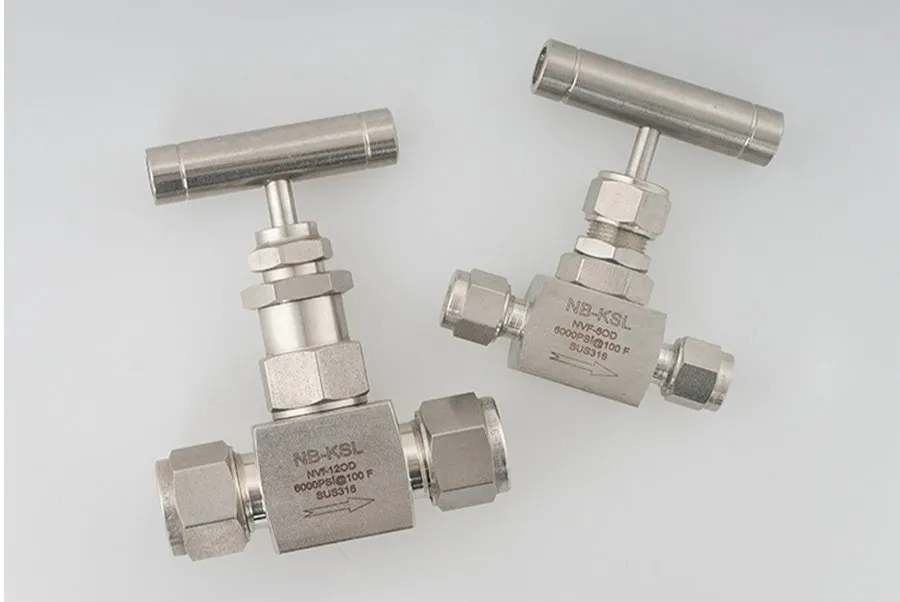

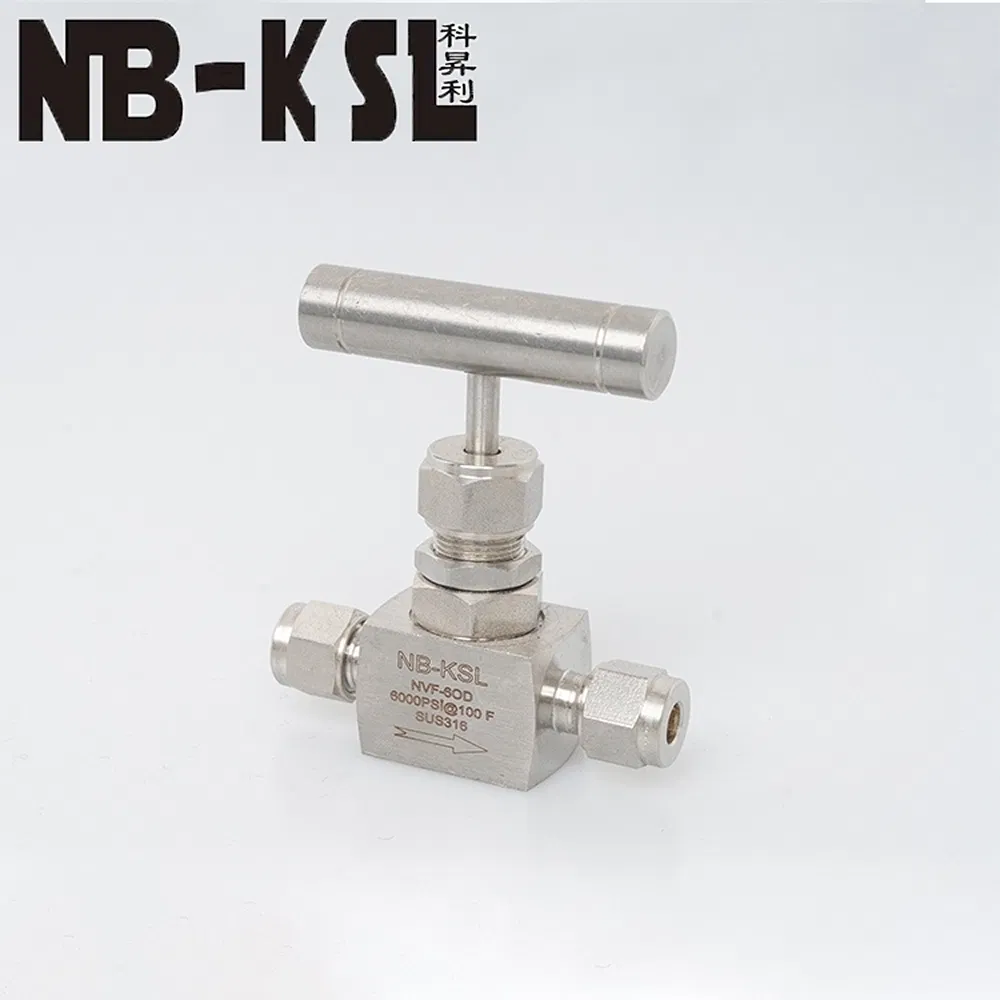

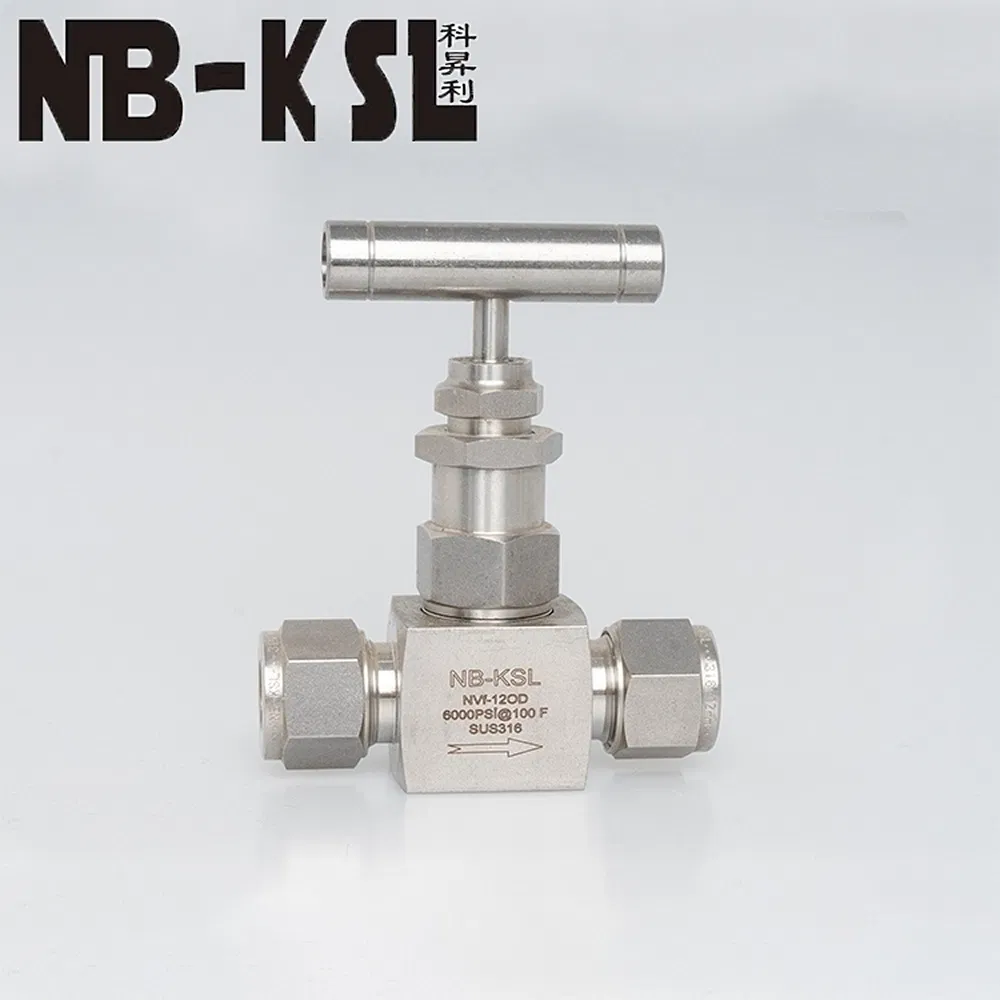

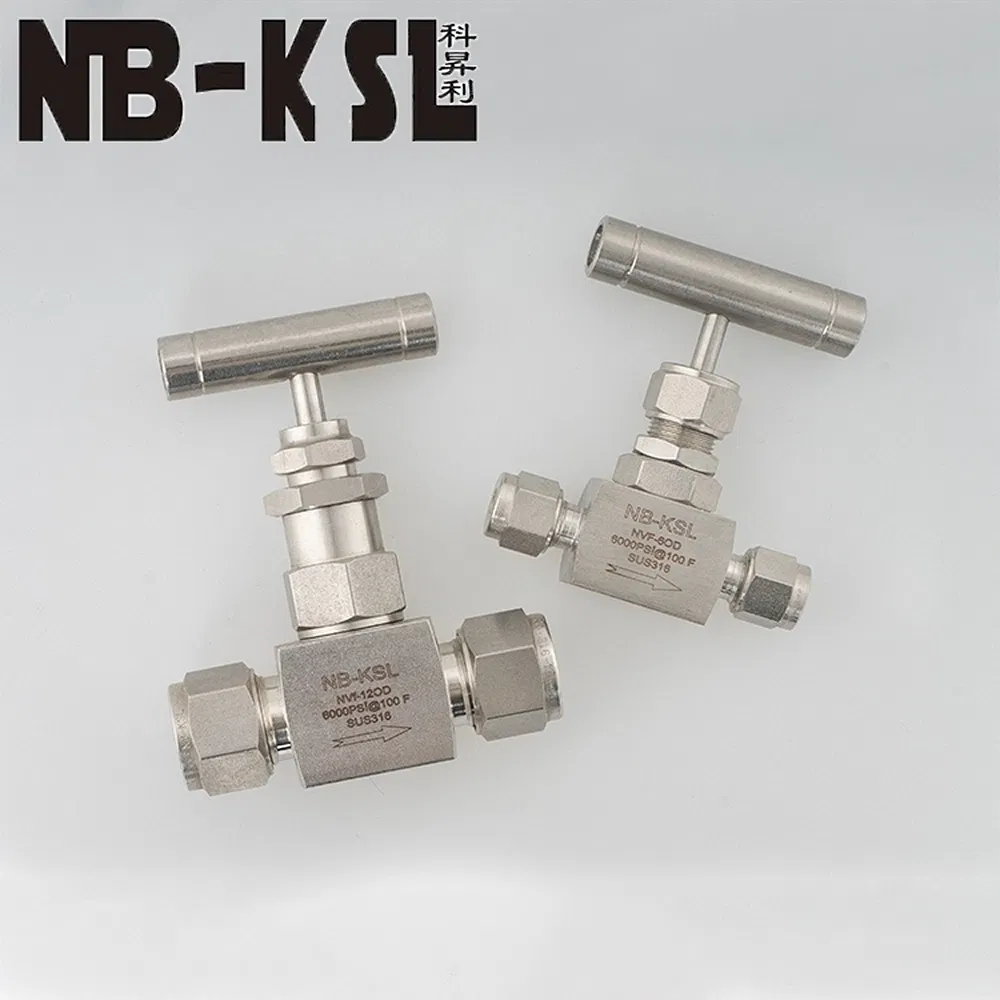

✓FERRULE NEEDLE VALVE
A Ferrule needle valve is a precision-engineered component that achieves accurate flow regulation through a conical valve needle. Utilizing a ferrule connection instead of traditional threads or welding, it is specifically designed for clean pipeline systems that require frequent disassembly and maintenance.
The valve features a double ferrule self-tightening sealing structure. The performance improves as pressure increases, ensuring a reliable seal. The conical valve needle and seat are precisely matched to achieve micro-flow control. Because the ferrule connection requires no welding, it supports rapid assembly and disassembly without specialized tools.
Applications: Widely used in sanitary fluid control systems such as biopharmaceuticals, food, and beverage industries, especially in pipelines requiring regular sterilization and cleaning.
| Parameter Item | Specification Details |
|---|---|
| Product Name | Ferrule Needle Valve |
| Material | Stainless Steel 316L |
| Max Pressure | 6000 psi |
| Size Range | 1/8" to 1/2" |
| Sealing Type | Double Ferrule Tube Connector |
| Customization | OEM & ODM Accepted |

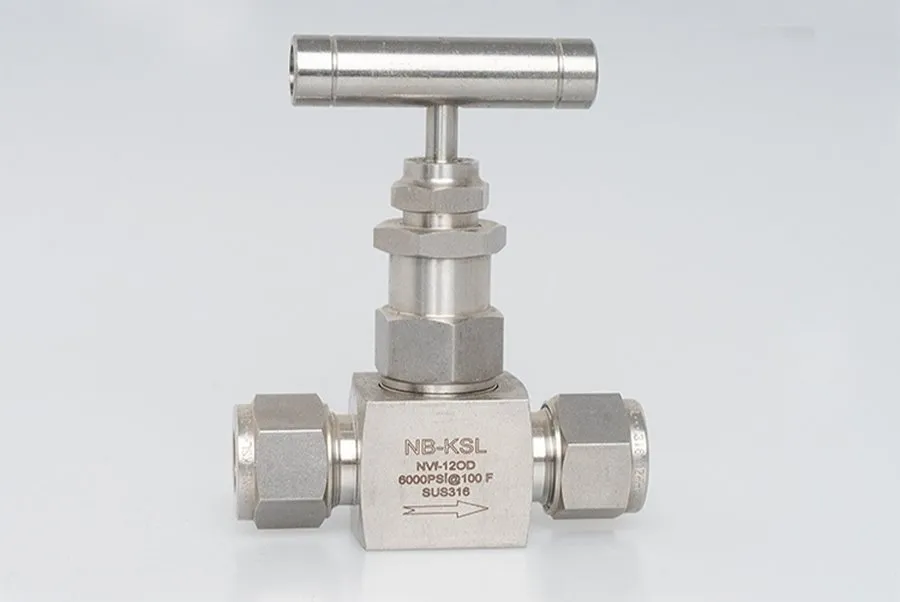

1Pollution-Free Connection
The non-welded clamp connection design avoids contamination risks associated with welding. Fully polished flow channels meet the highest hygiene standards for pharmaceutical and food grade transport.
2Self-Tightening Double Seal

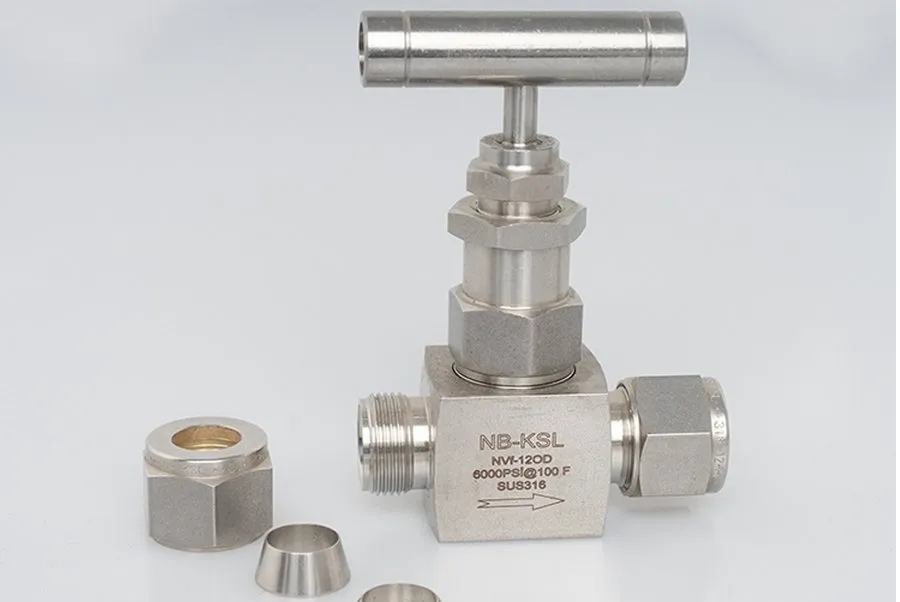

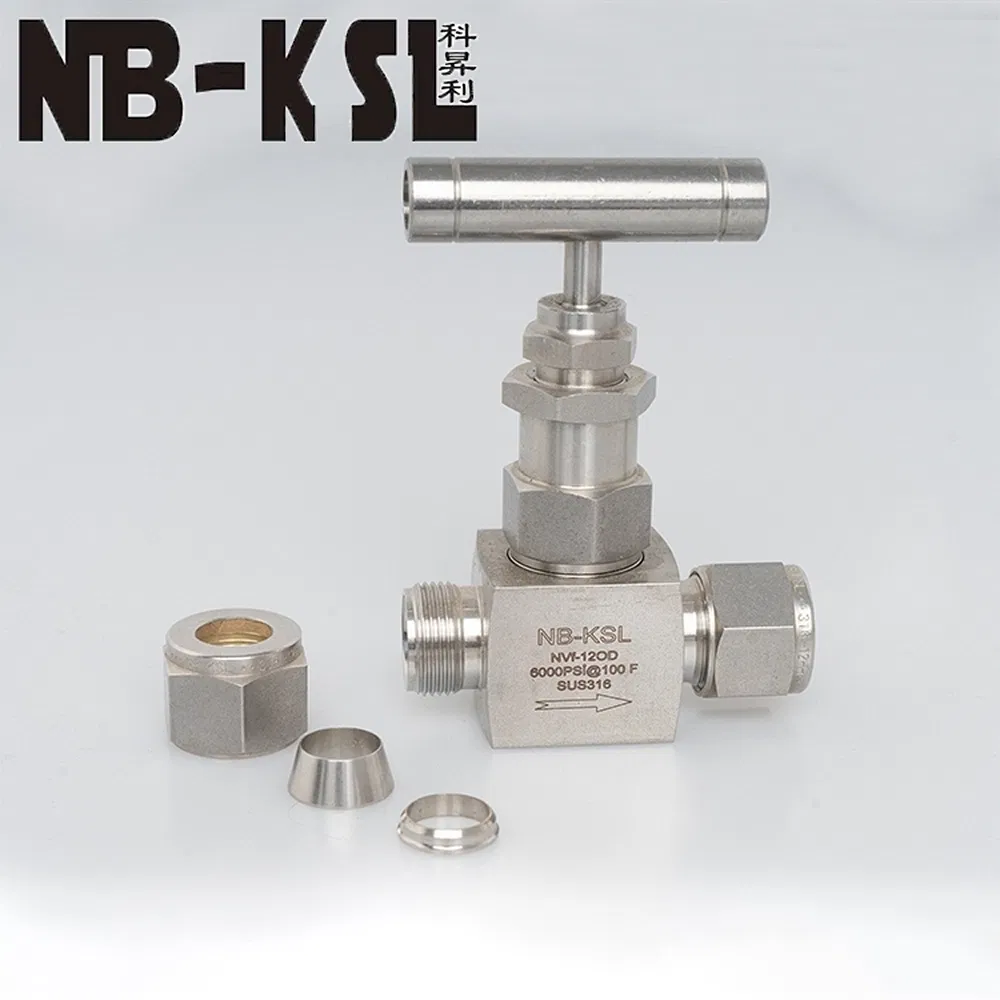

The innovative structure forms a progressive seal. The front ferrule provides a mechanical seal by cutting into the pipe wall, while the rear ferrule offers elastic compensation for zero-leakage performance.
3Precision Flow Regulation
Micron-level flow control is achieved through the precise fit of the conical needle and seat, meeting laboratory-grade high-precision regulation requirements.
