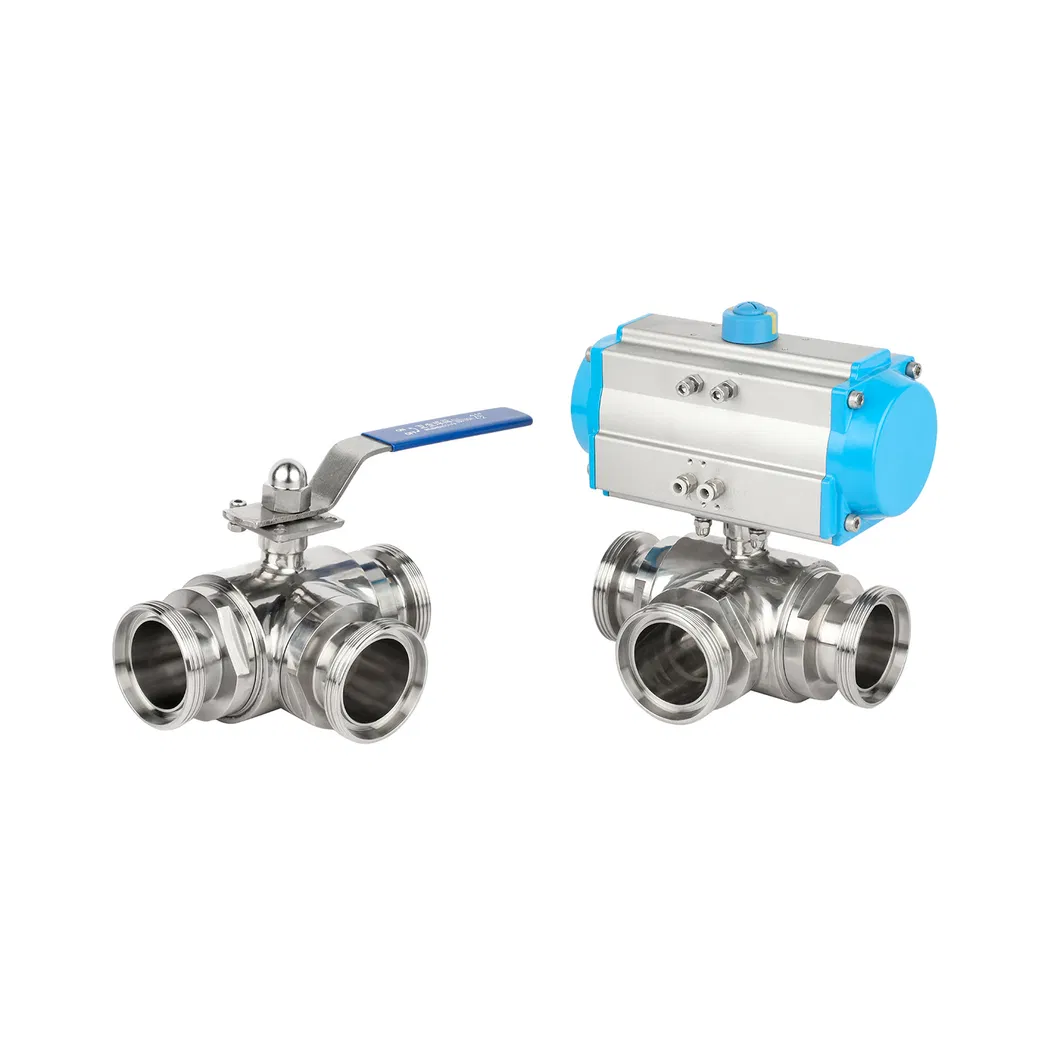

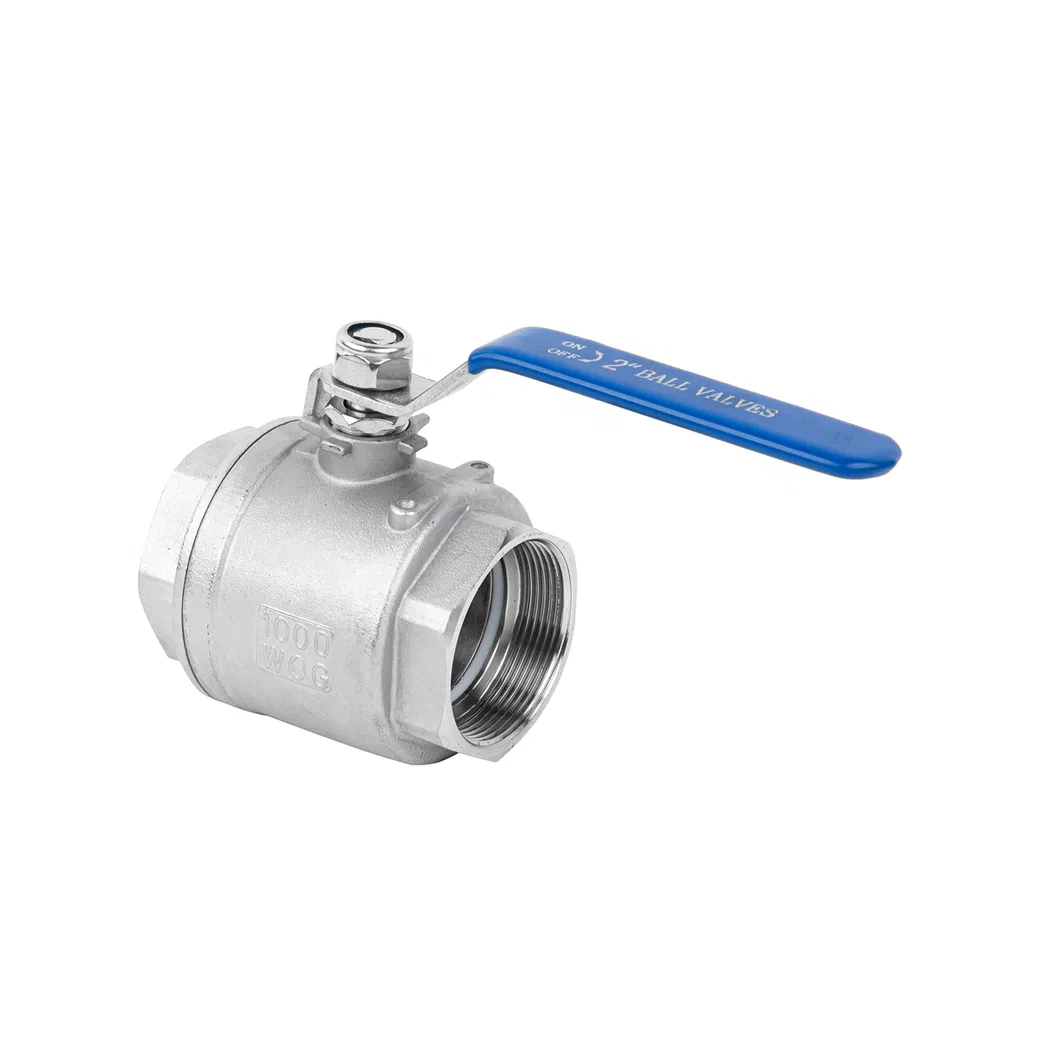

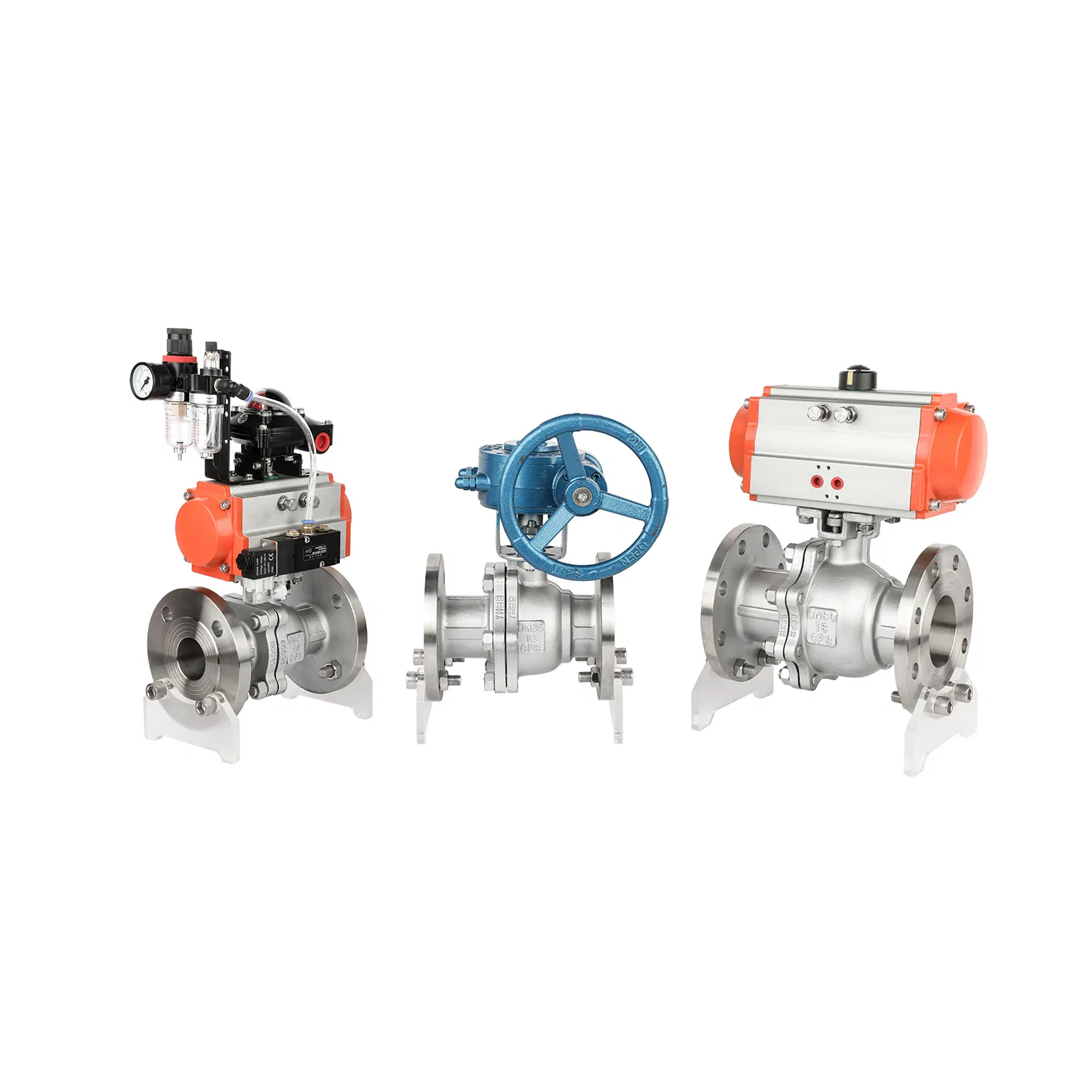

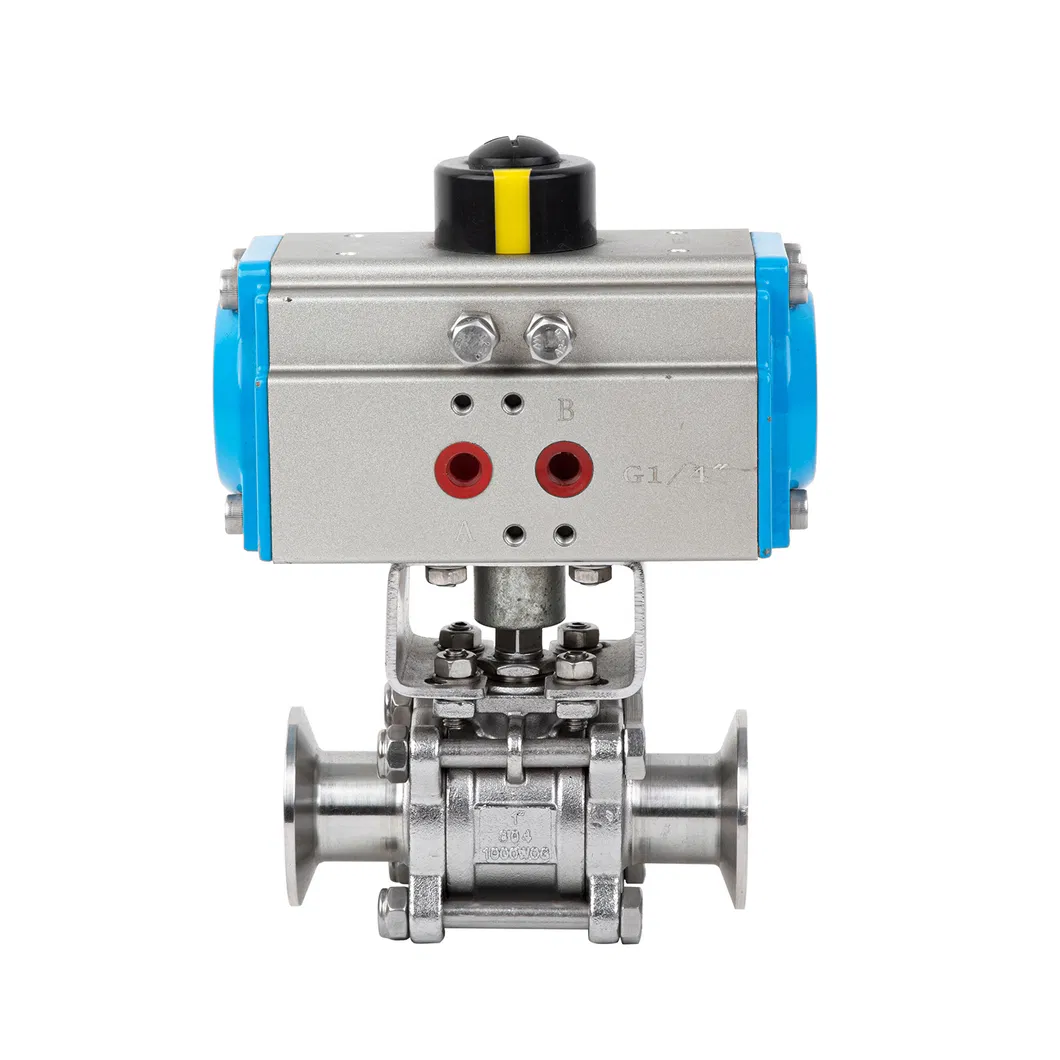

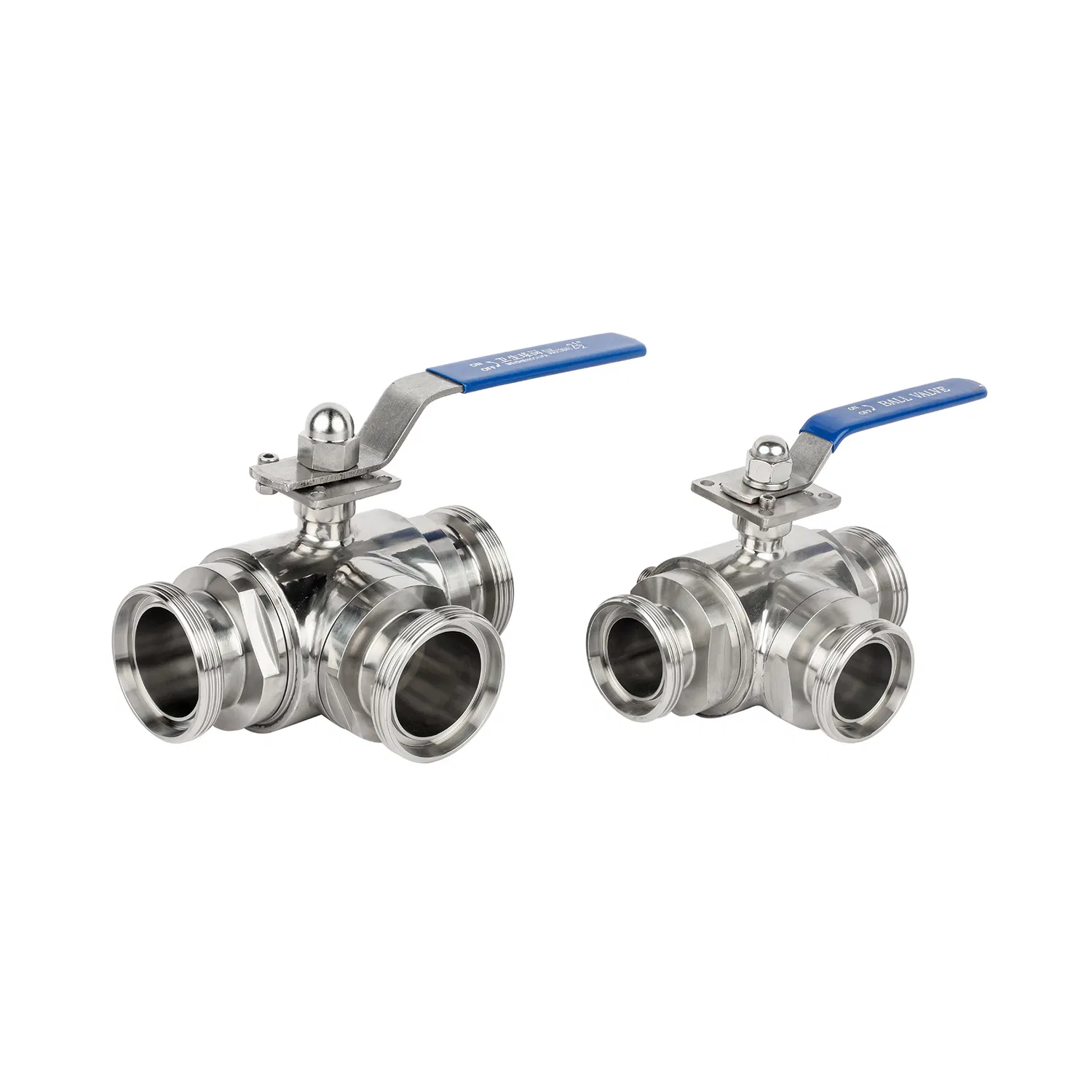

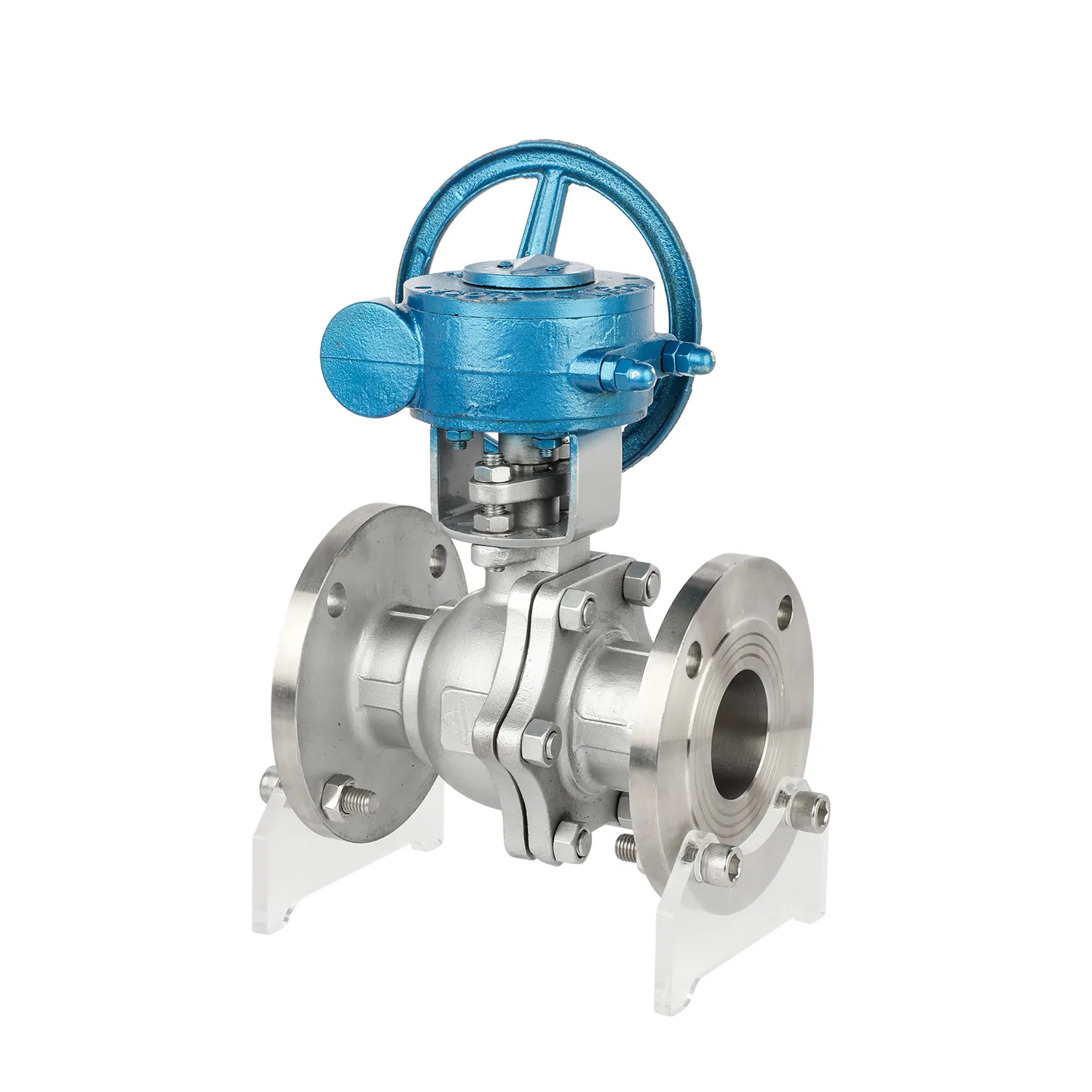

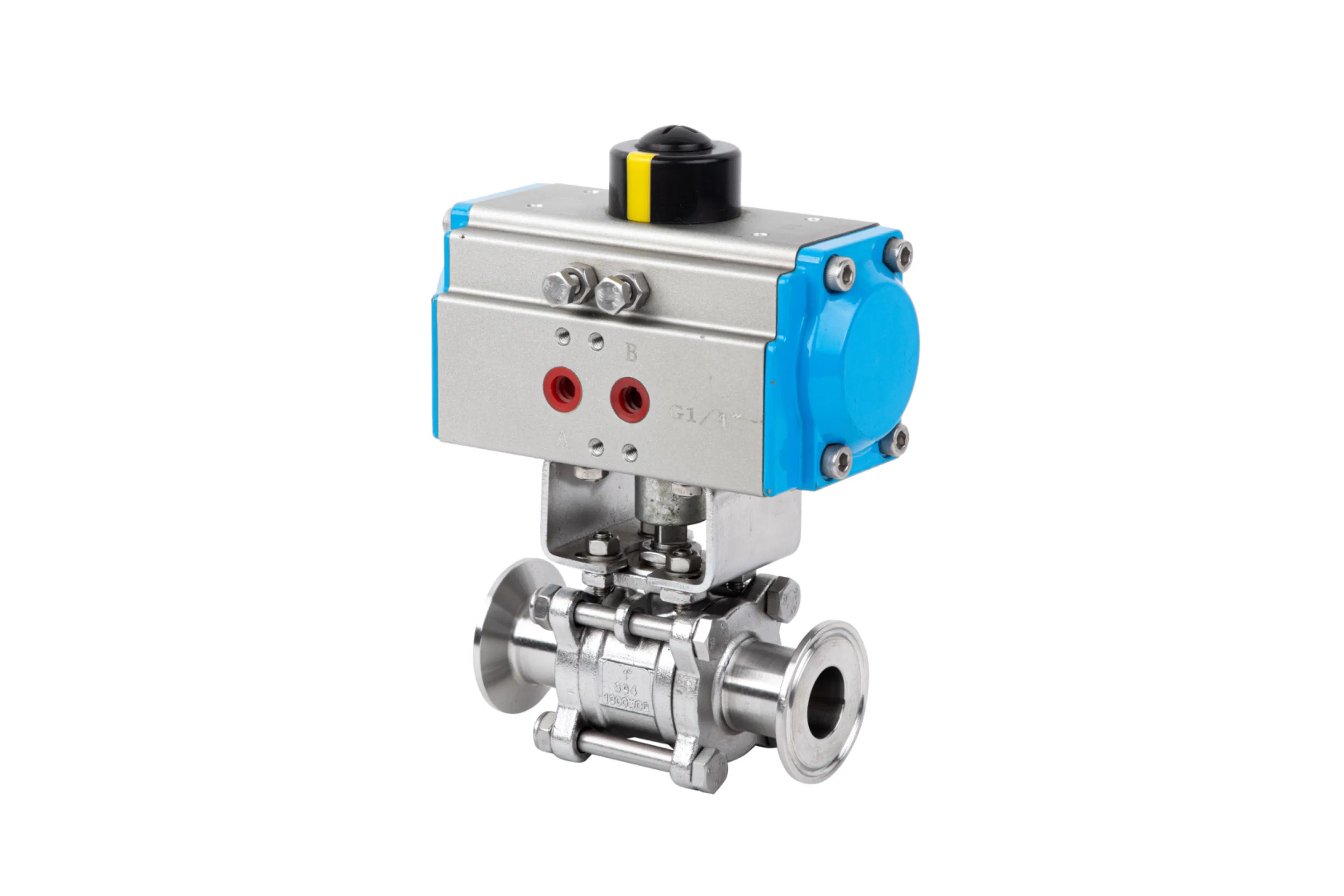

Product Name: Stainless Steel SS304 Sanitary Hygienic Ball & Check & Butterfly Valve

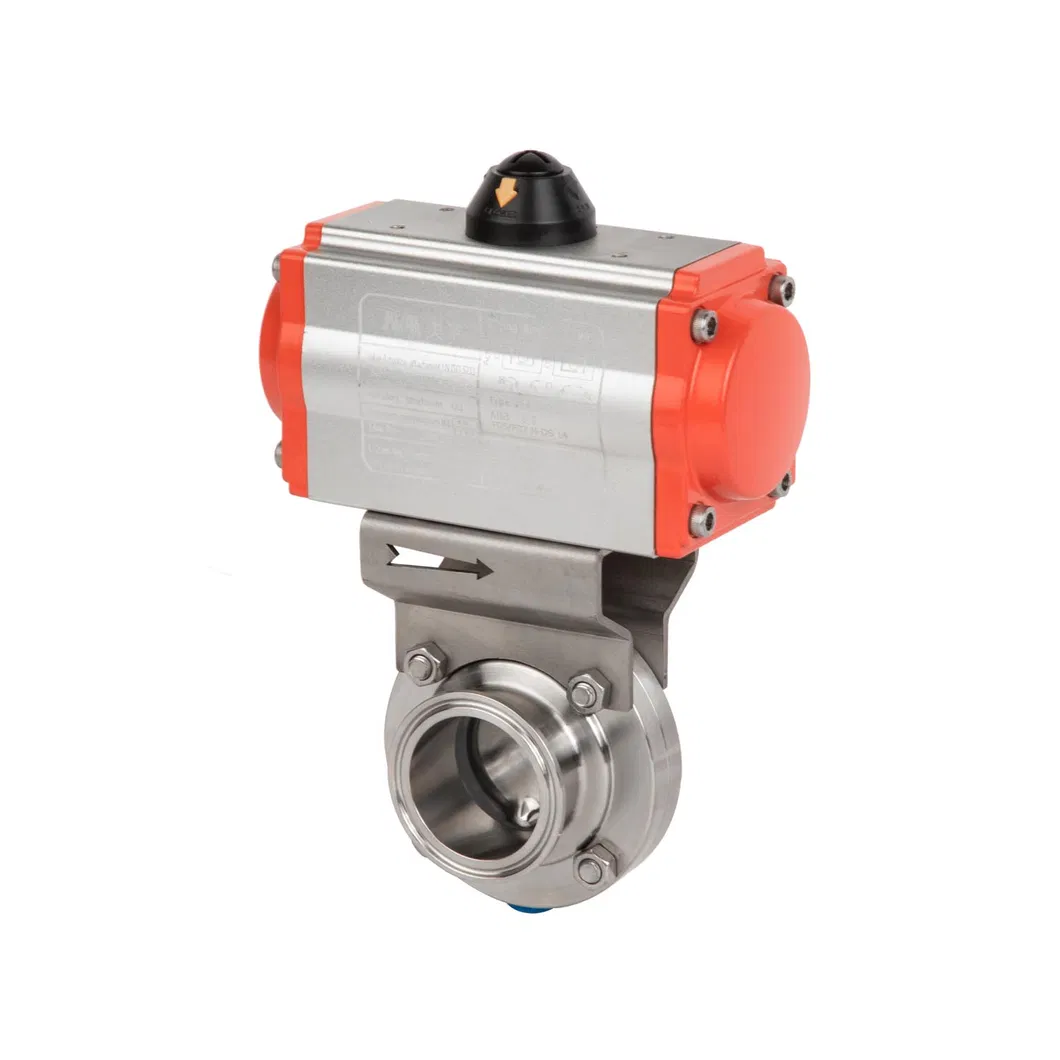

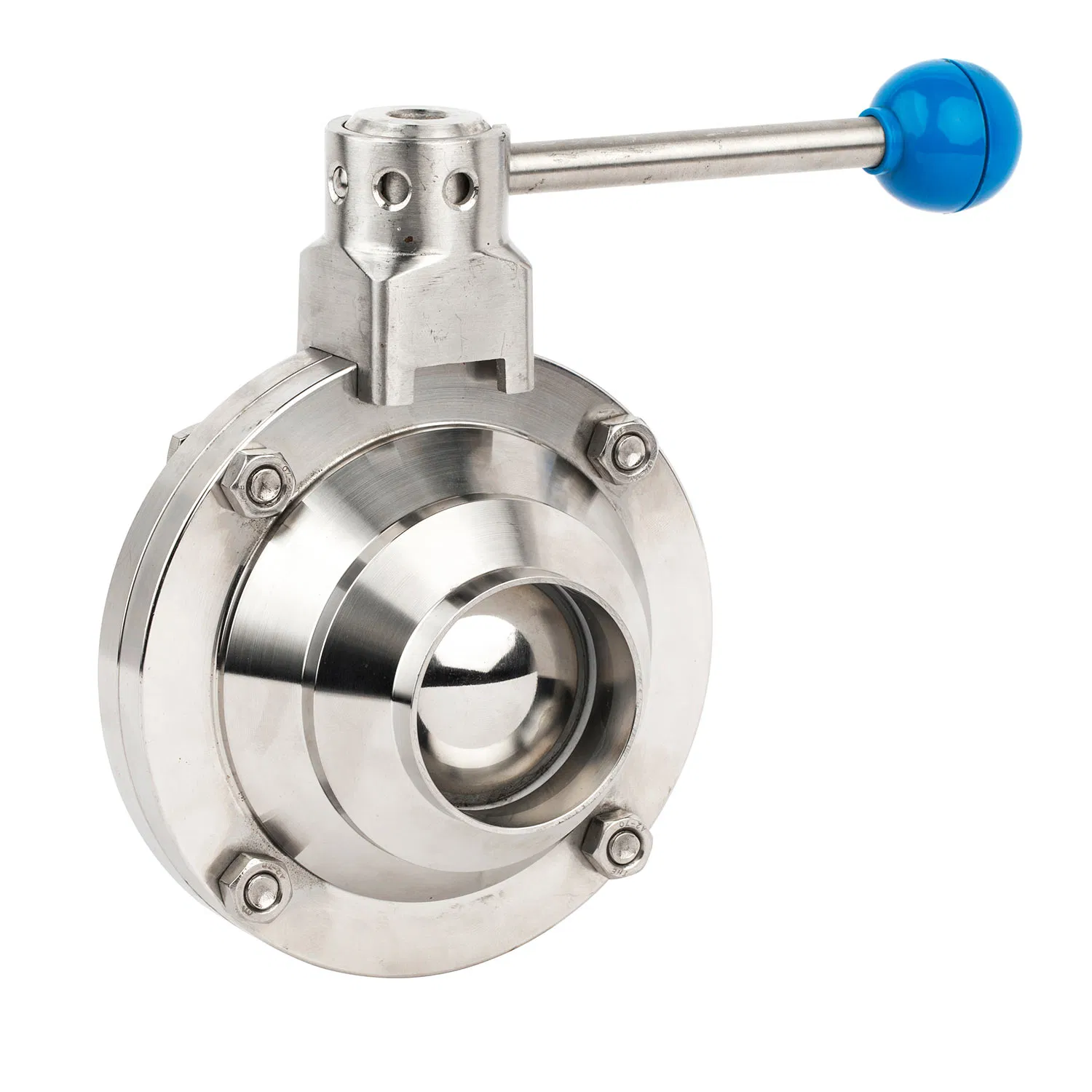

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity. It is widely applied to many fields, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
| Standard | 3A, SMS, DIN, ISO, RJT, IDF | |
| Product wetted steel parts | AISI304 / AISI316L | Provided with material inspection report |
| Other steel parts | AISI304 | |
| Size | 3/4"~6", DN20~DN150, 19mm~152.4mm | |
| Seal material | EPDM / VMQ / FPM | All seals material comply with FDA21CFR117.2600 |
| Working pressure | ≤10bar (145psi) | |
| Supply pressure for air actuator | 5~8 (0~116psi) | |
| Working temperature | EPDM: -14~248ºF (-10~120ºC) | |
| VMQ: -58~356ºF (-50~180ºC) | ||
| FPM: 22~446ºF (-30~230ºC) | ||
| Sterilization temperature | 302ºF (150ºC, max 20min) | |
| Surface treatment (Outside) | Ra16~32uin (0.4~0.8um) | |
| Surface treatment (Inside) | Ra32~64uin (0.8~1.6um) | |
| Connection ends | butt-weld, clamped ends, male ends, flange ends | |
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Ensured timely delivery |
| On Materials | Ensure material purity |
| Sanitary Valves | Butterfly, Check, Ball, Reversal, Diaphragm, Sample, Safety, Control, Relief Pressure |
| Pipe Fittings | Elbow, Tee, Reducer, Cross, Triclamp Ferrule, Cap, Hanger, Hose Joint, Unions |
| Tanks & Cleaning | Cleaning Ball, Sight Glass, Strainer, Manways (Round/Square/Oval), Storage, Fermentation, Mixing |
| Pumps | Centrifugal Pump, Lobe Pump, Self Priming Pump |
| Tubes & Gaskets | Seamless Tube, Weldless Tube, Silicone/EPDM Gaskets for Triclamp/Union/Manhole |
