Basic Information
Nominal Pressure
PN1.0-32.0MPa
Channel
Straight Through Type
Structure
Fixed Ball Valve
Function
Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Production Capacity
Around 500 Sets Per Year
Packaging & Delivery
Package Size
88.00cm * 68.00cm * 24.00cm
Transport Package
Carton Packing
Product Overview
⚙️

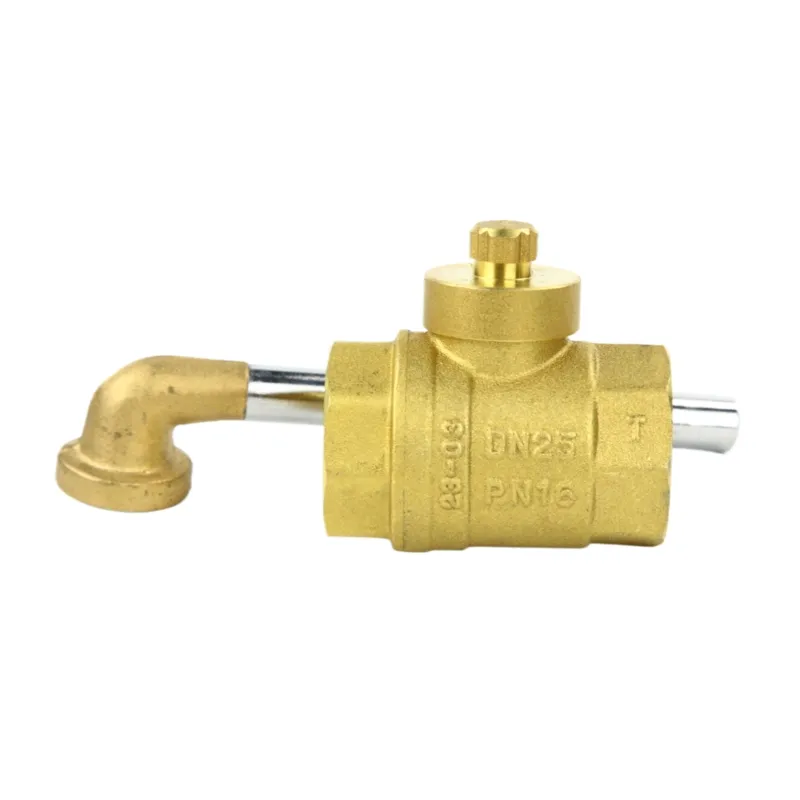

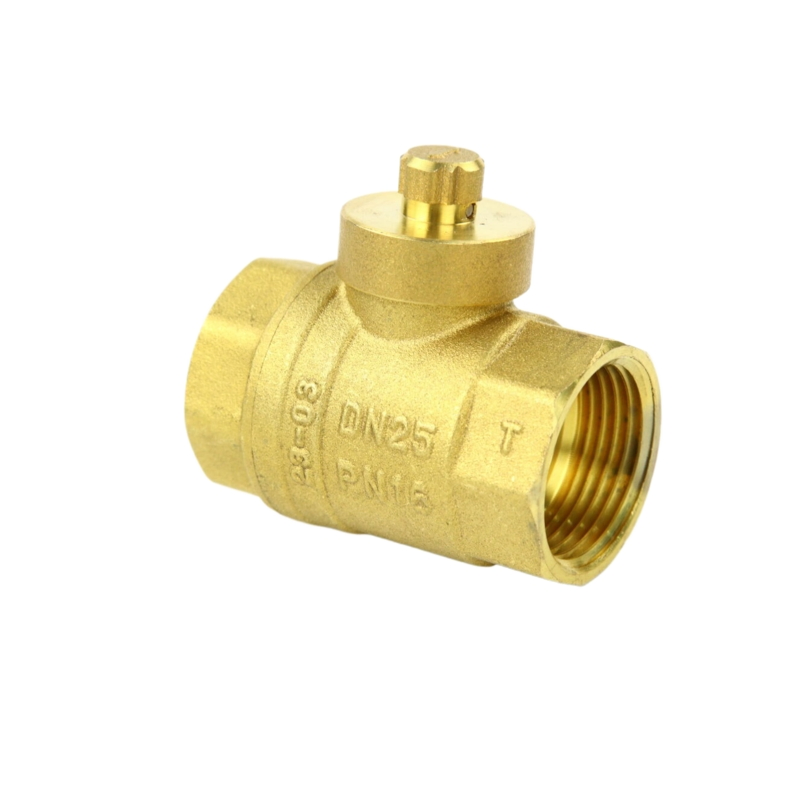

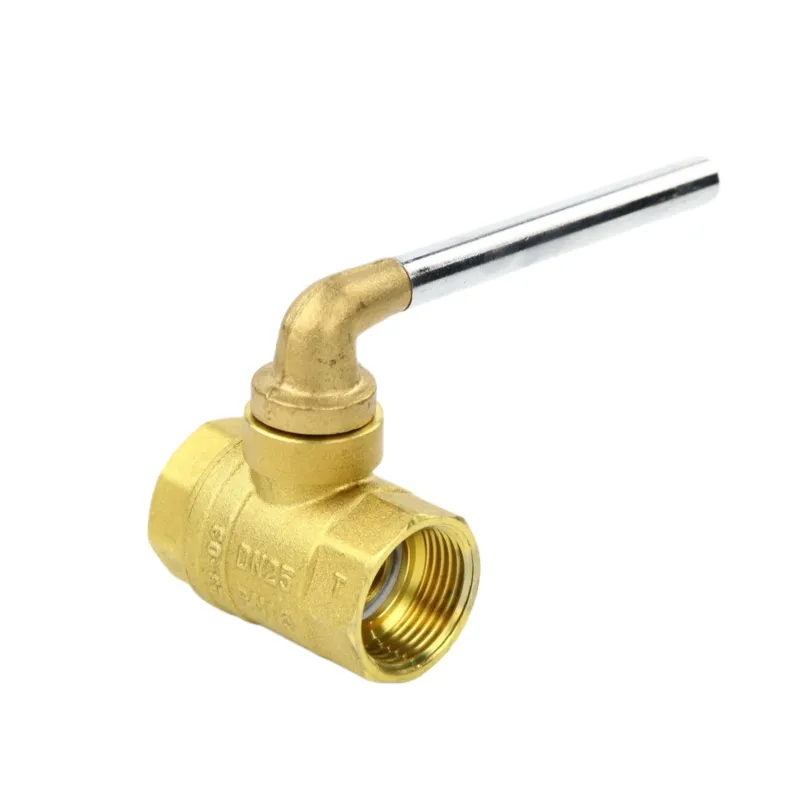

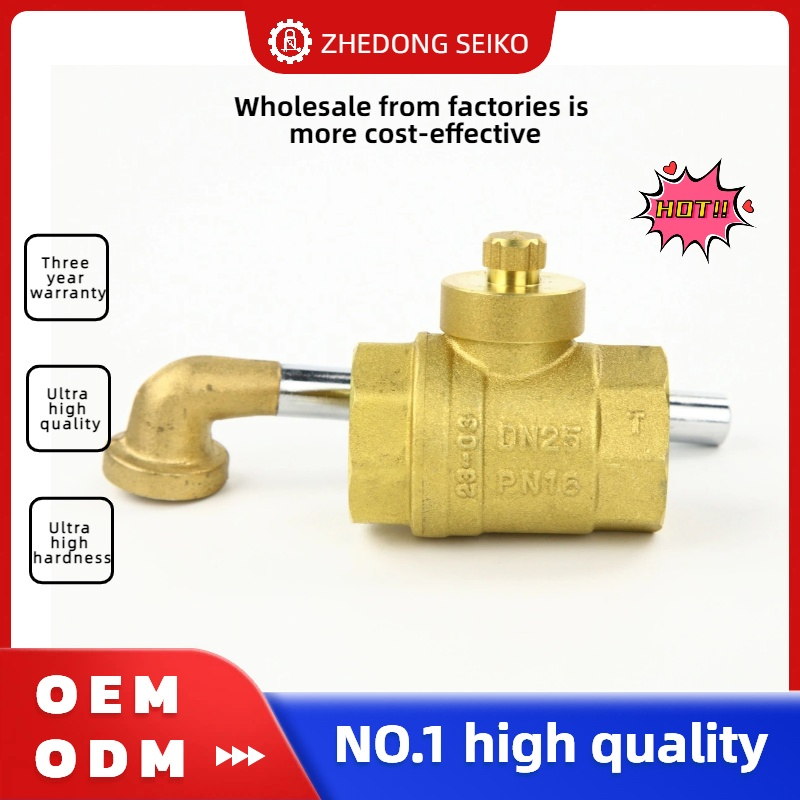

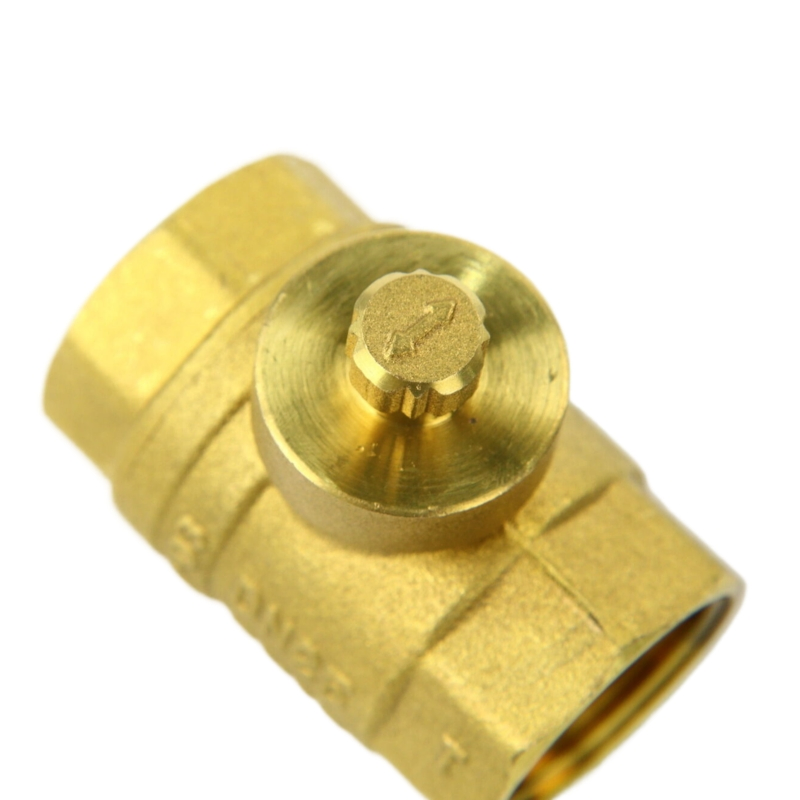

Side lock ball valve
Nominal pressure: 1.6MPa | Main material: Brass Hpb59-1
Applicable temperature: -10ºC < T < 120ºC
Working medium: water, oil, non-corrosive gas
💧
Flow Efficiency & Installation
Large caliber, large flow, sufficient water passage. Sewn thread and chamfer design ensure easy installation without stalling.
🛡️
Durability & Safety
Thickened valve body with high temperature tempering for strength. The bottom chamfer design effectively prevents valve damage caused by installation errors.
Technical Specifications
| Feature | Details |
|---|
| 3C Valve Category | Industrial engineering |
| Structural Style | Two-piece |
| Control Mode | Switching mode |
| Applicable Temperature | Room temperature -29 ~ 120ºC |
| Type of Drive | Hand / Manual |
| Applicable Medium | Non-corrosive gas, Water, Oil |
Specializing in producing various heating and water supply locking anti-theft valves, widely used in construction projects. These valves feature patented technologies and innovative anti-theft methods to make management effective and easy. Designed for energy conservation and emission reduction, maximizing resource value.
Frequently Asked Questions
What is the main material used for this lockable ball valve?
The valve is primarily manufactured using high-quality Forged Brass (Hpb59-1) for superior durability and corrosion resistance.
What is the operating temperature range for this product?
The valve is designed to operate effectively within a temperature range of -10ºC to 120ºC, making it suitable for both cold and hot water applications.
What types of media can this valve handle?
This lockable ball valve is suitable for water, oil, and non-corrosive gas working mediums.

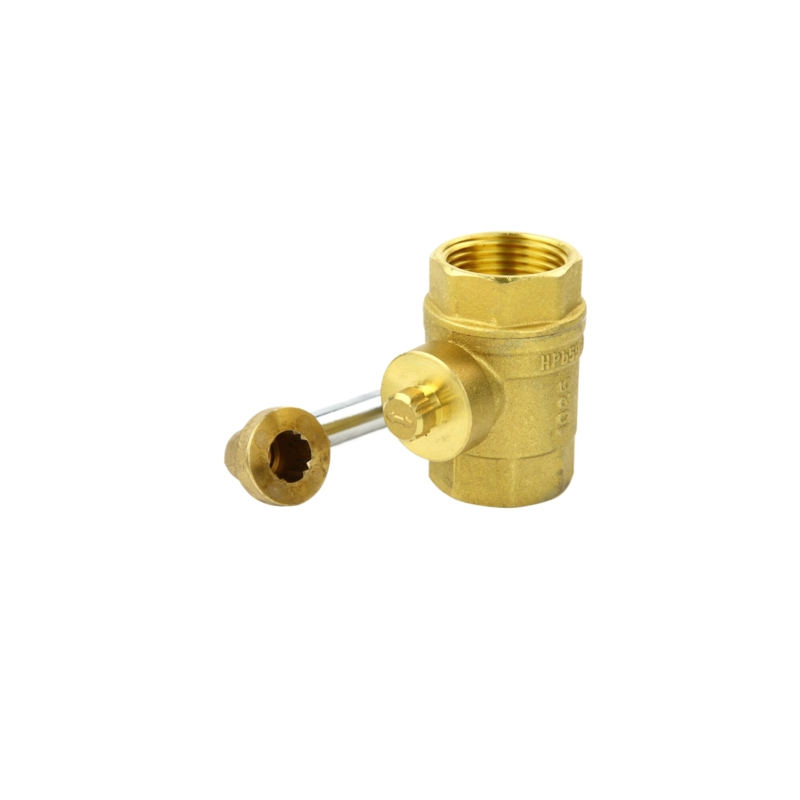

How does the locking mechanism enhance utility management?
The integrated lock and key system provides anti-theft protection and prevents unauthorized operation, which is ideal for heating and water supply management in construction projects.
Is the valve easy to install for industrial applications?
Yes, it features a sewn thread and bottom chamfer design which prevents valve damage during installation and ensures a smooth, stall-free setup.
What are the pressure ratings for this valve series?
The valve supports a nominal pressure of 1.6MPa, with a broad application range between PN1.0 to 32.0MPa depending on the specific configuration.
