Model NO.GADQ41F
Connection FormFlange
Driving ModeManual
Nominal PressureANSI CLASS 150-900
ChannelStraight Through Type
StructureFloating Ball Valve
TypeFloating Ball Valve
FunctionBlow-Down Valve
TemperatureNormal Temperature
StandardANSI
ApplicationIndustrial Usage
Transport PackagePlywood Case
SpecificationISO9001
TrademarkODM, OEM
HS Code8481804090
Production Capacity500 Pieces / Month

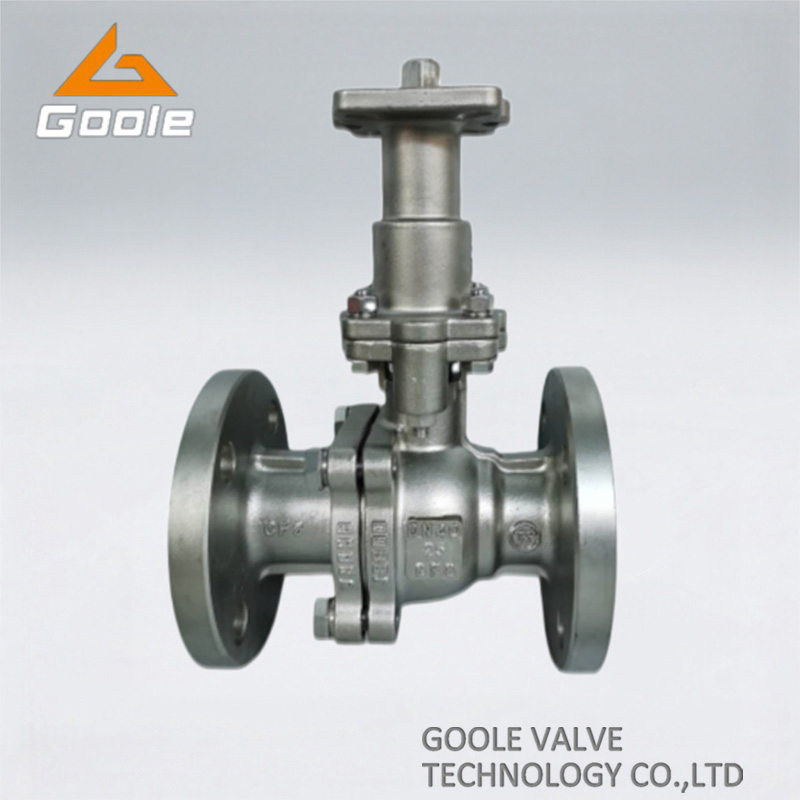

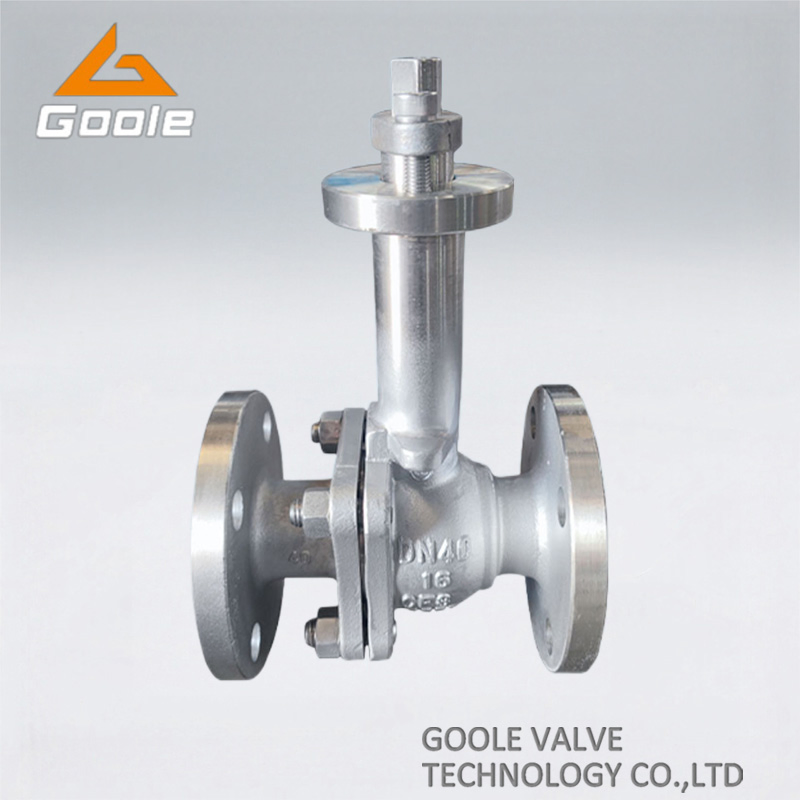

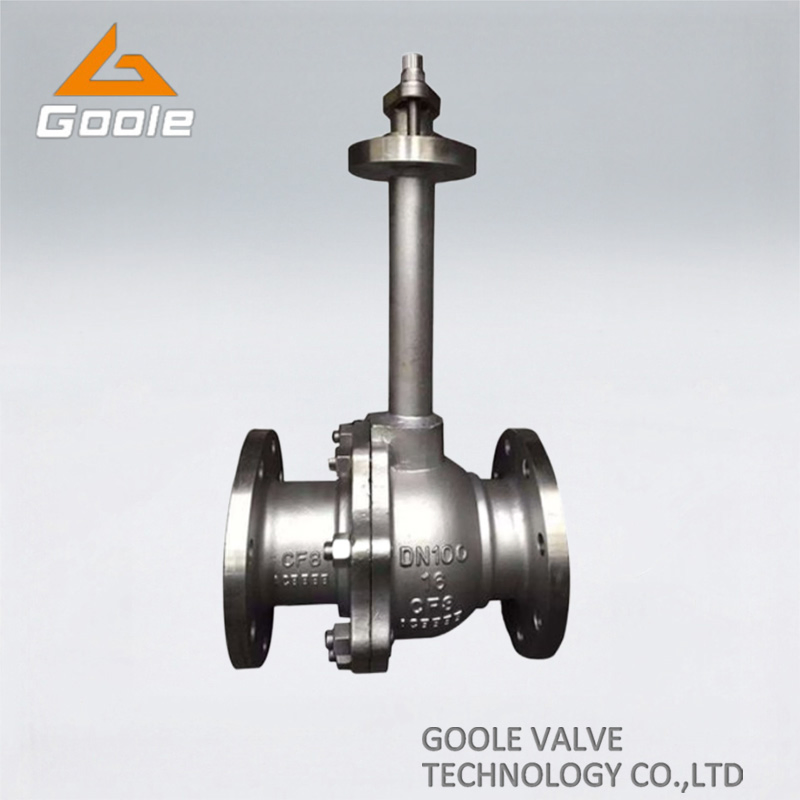

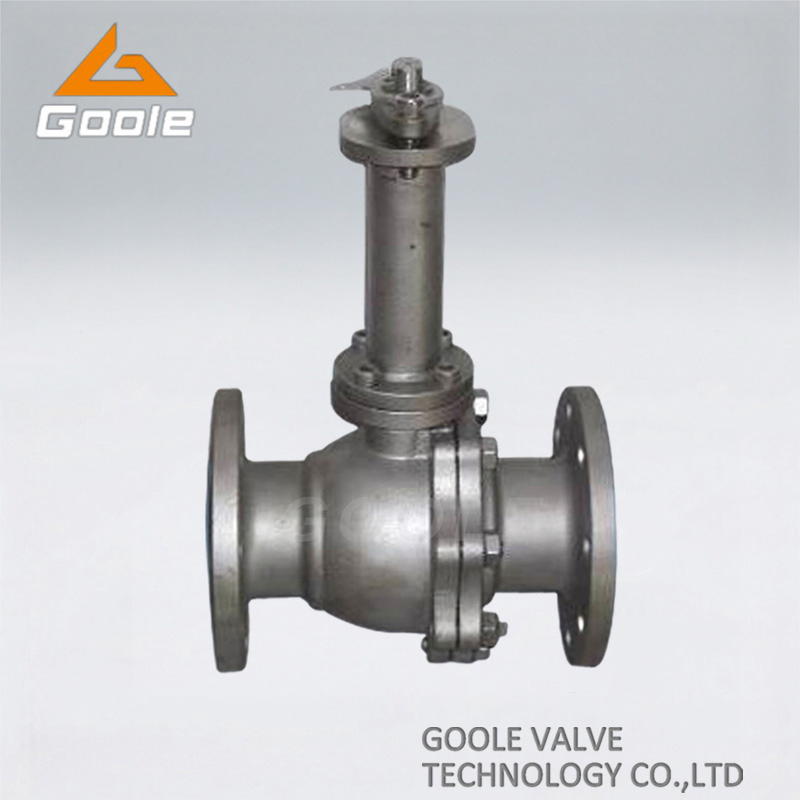

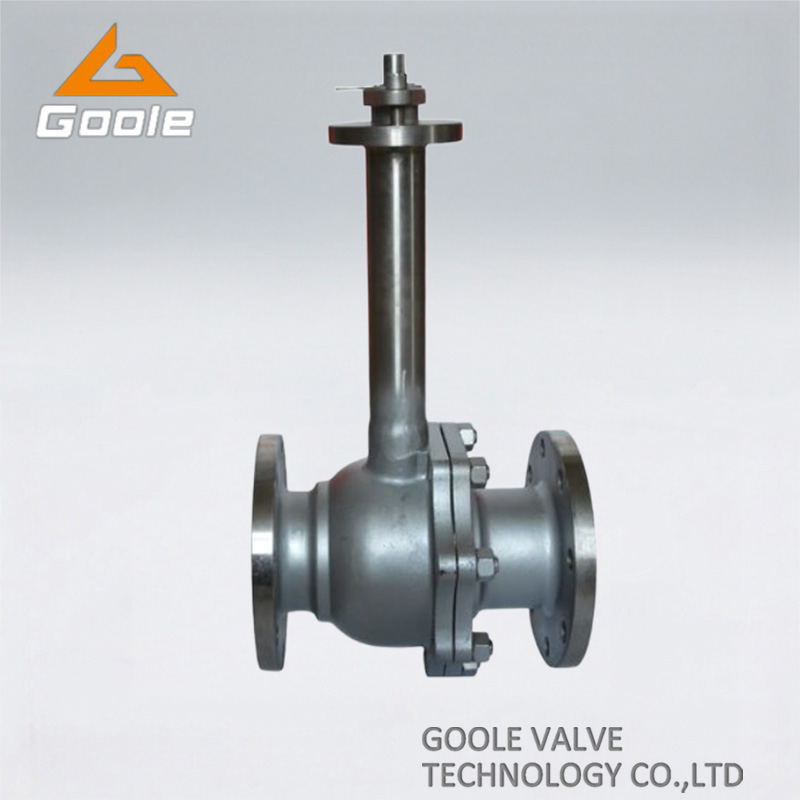

Flange connection Cryogenic ball valve is used for low temperature working condition, especially for some hazard media, such as liquidized natural gas. Applied to LNG plant, LNG receiving station, LNG gasification station and LNG carrier and ship.
?
Frequently Asked Questions
What are the primary applications for this cryogenic ball valve?
It is primarily designed for low-temperature conditions, specifically for handling hazardous media like Liquid Natural Gas (LNG) in plants, receiving stations, and carrier ships.
What is the lowest temperature this valve can handle?
This valve is engineered to operate efficiently at temperatures as low as -196°C, making it suitable for extreme cryogenic applications.

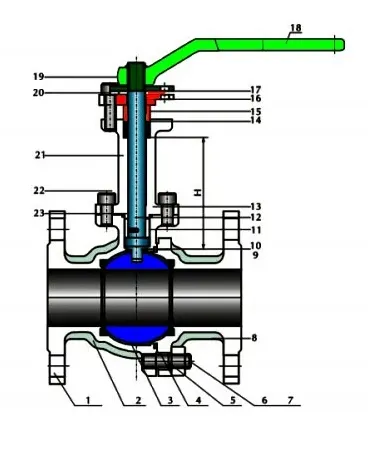

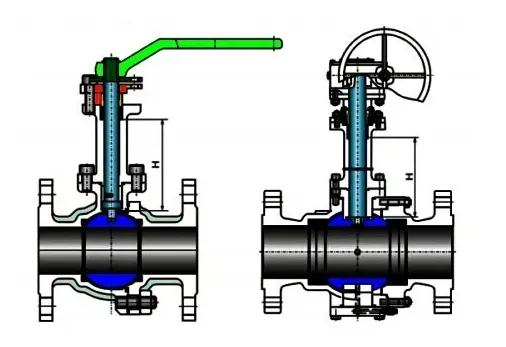

Why does the valve feature an extended stem/bonnet?
The extended bonnet is designed to protect the stem packing from extreme cold by moving it away from the cryogenic fluid, ensuring the valve remains operable and leak-proof.
What materials are used for the valve body?

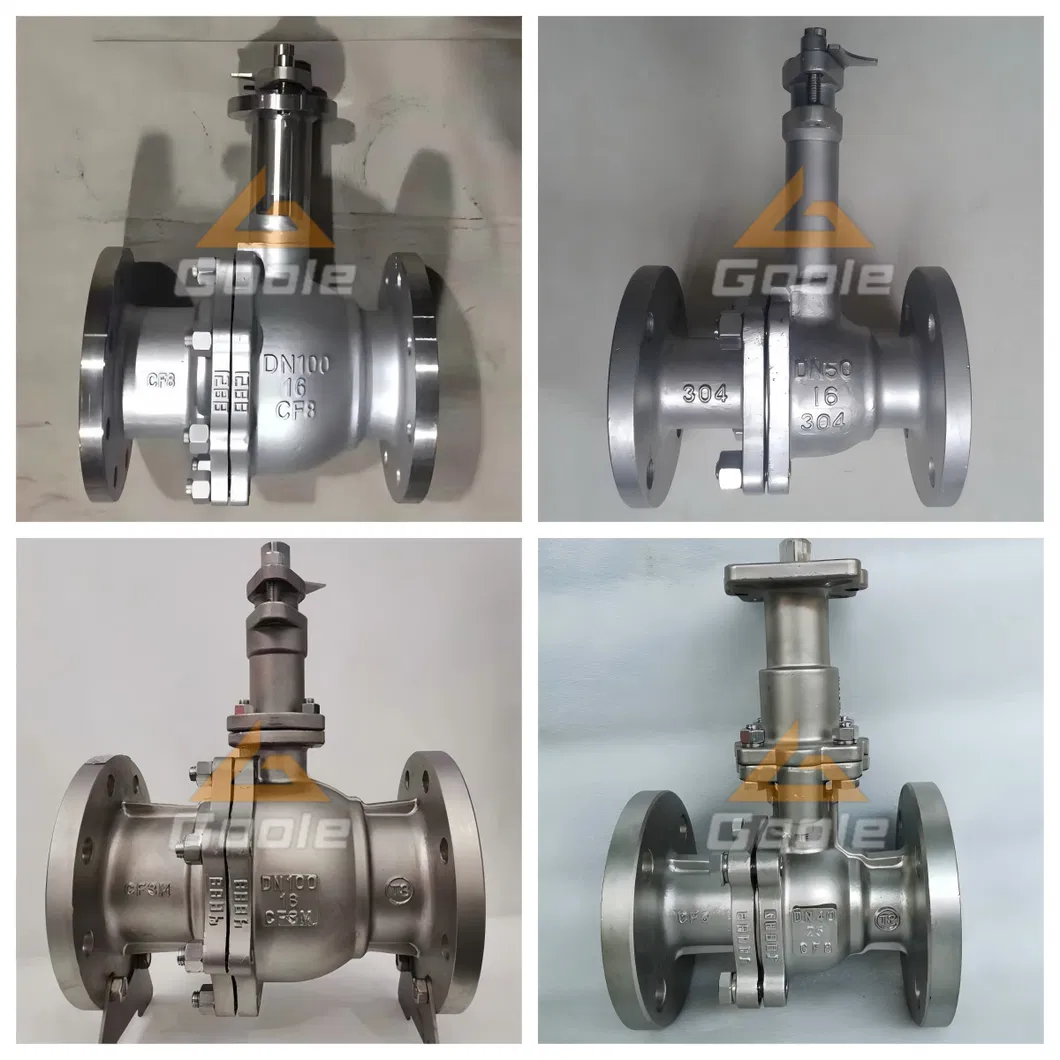

Depending on the temperature requirements, the body is typically made from A352-LCB, LCC, LC3, or stainless steel grades like A351-CF8 and CF8M.
Can these valves be automated?
Yes, while the standard configuration is manual (lever operated), these valves can be equipped with electric actuators for automated industrial processes.
What standards are followed in the manufacturing of these valves?
The valves are manufactured according to ANSI standards and the company maintains ISO9001 certification for quality management.
