🔍 Product Overview

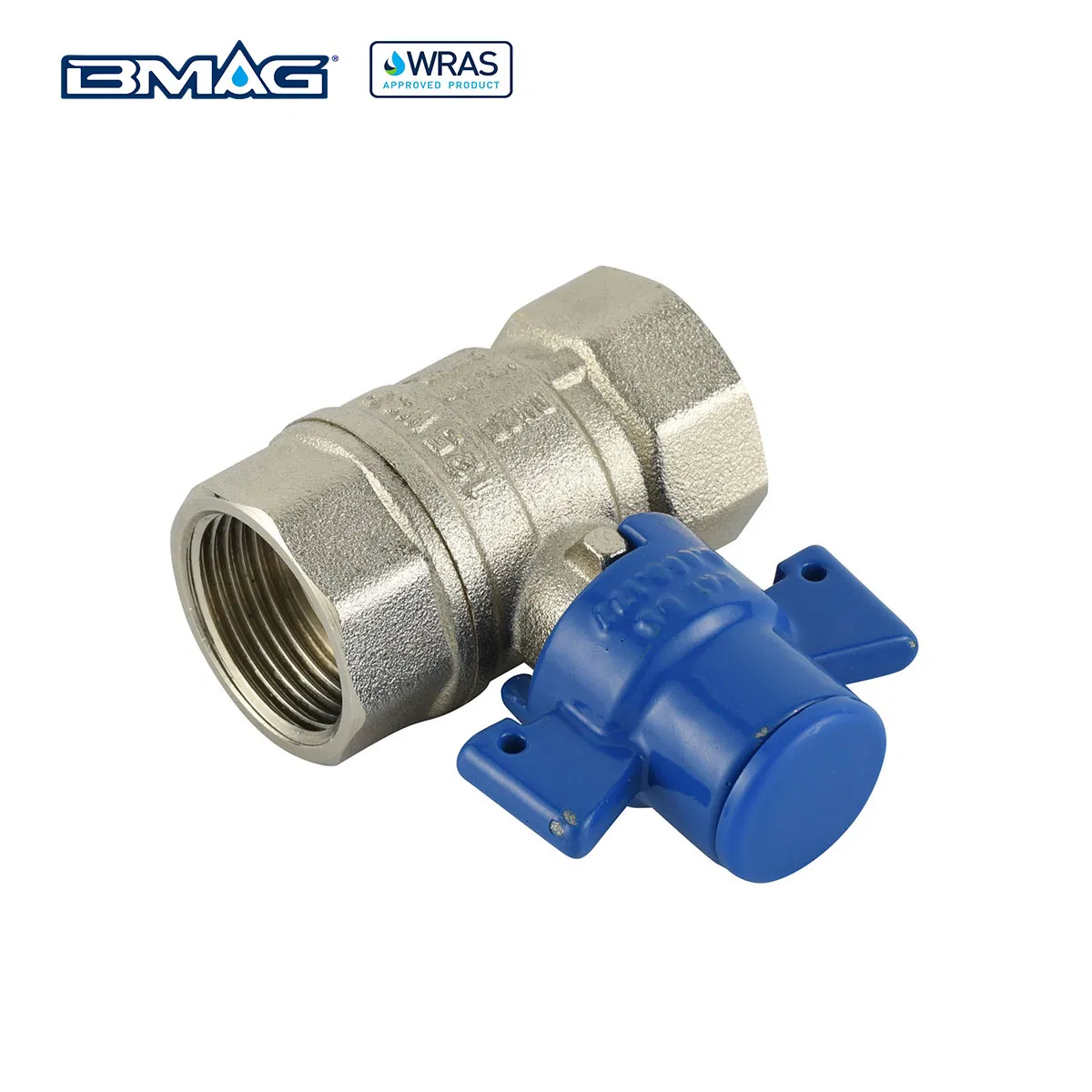

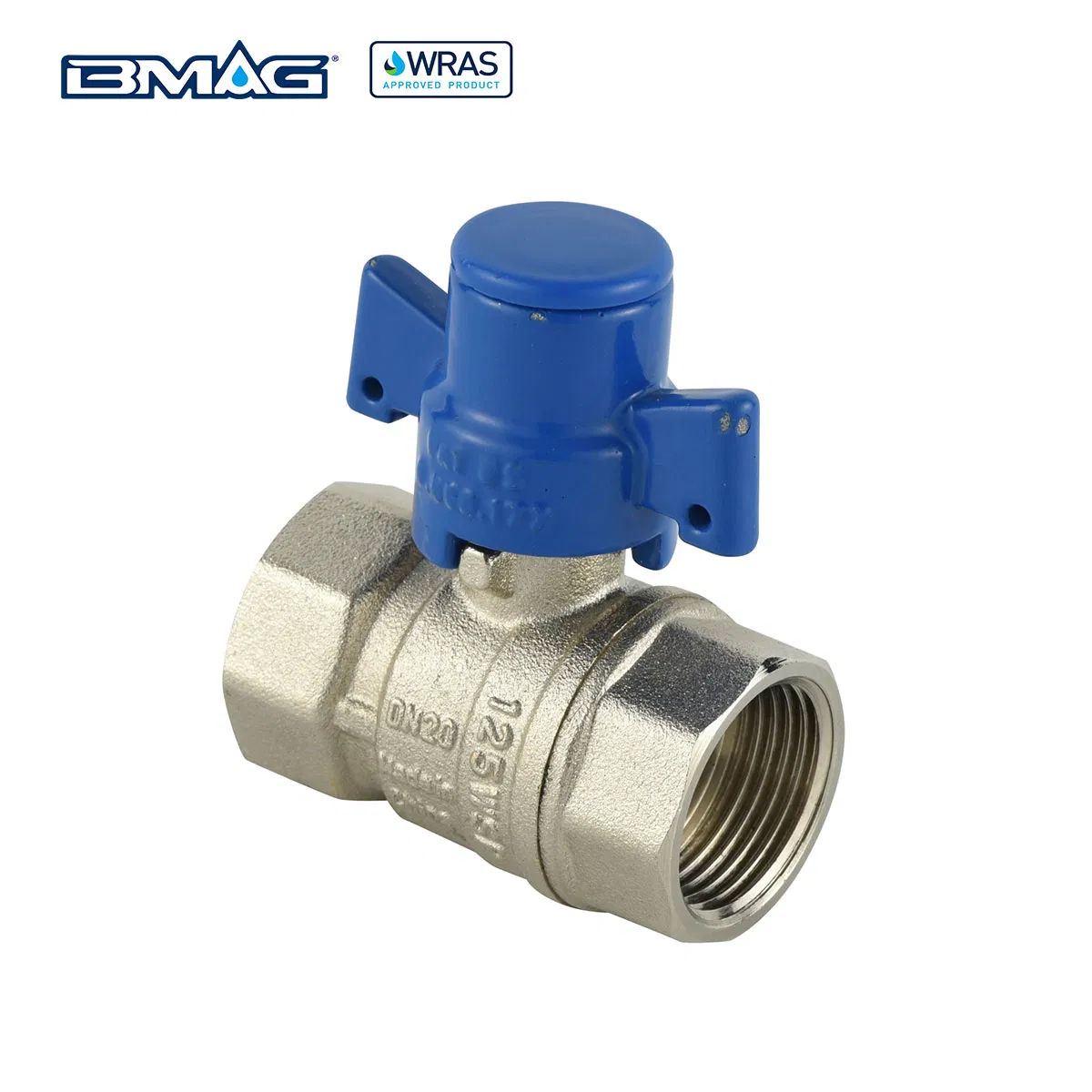

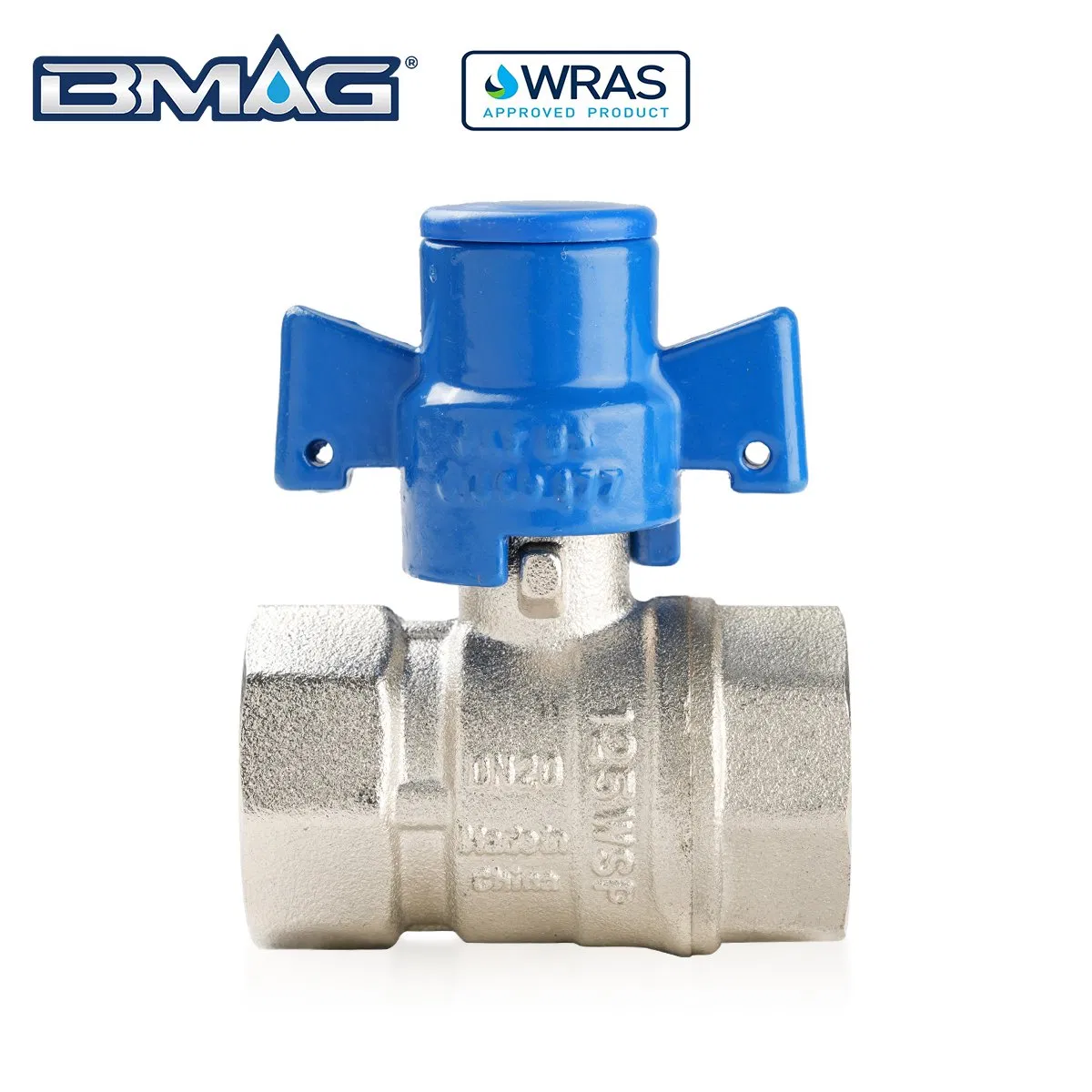

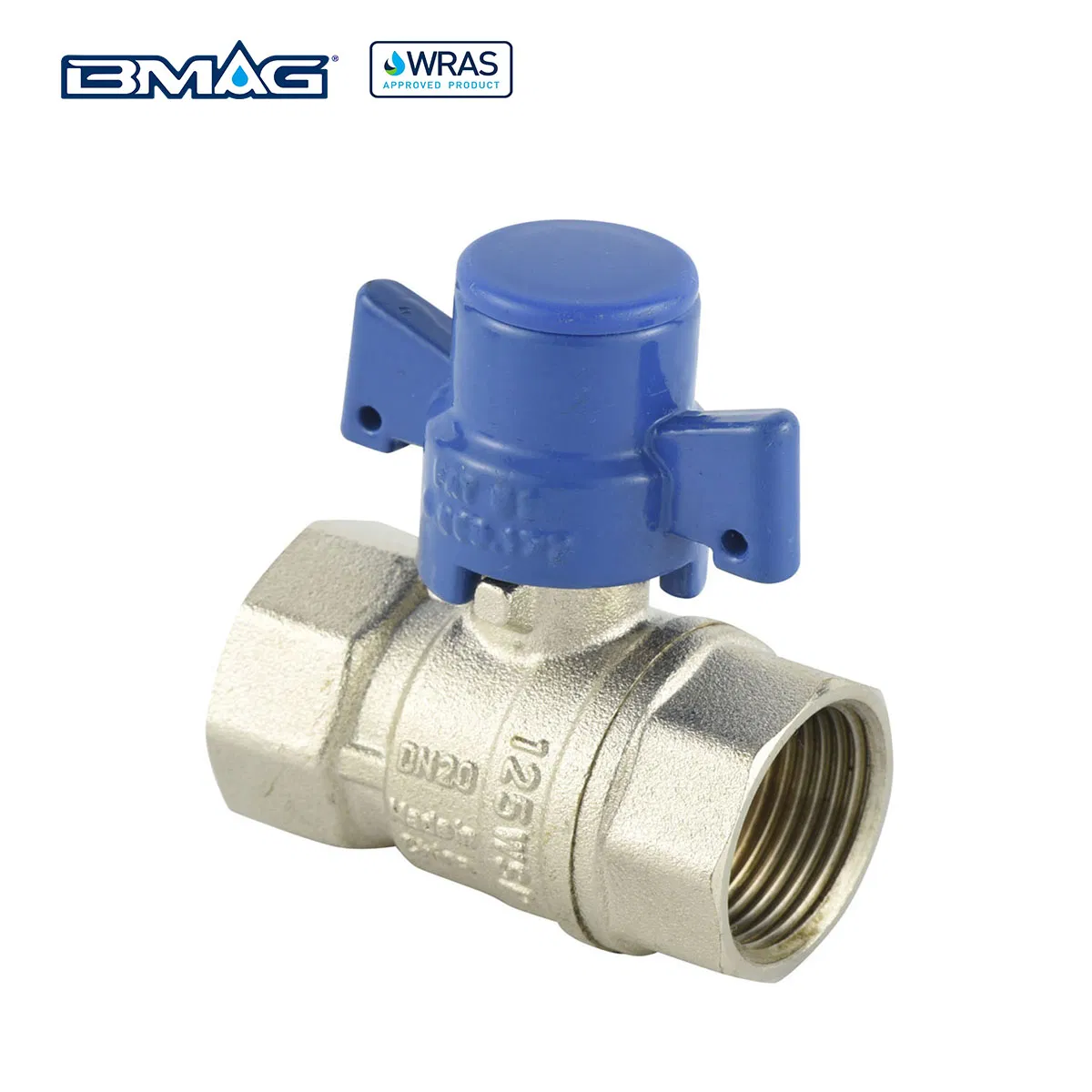

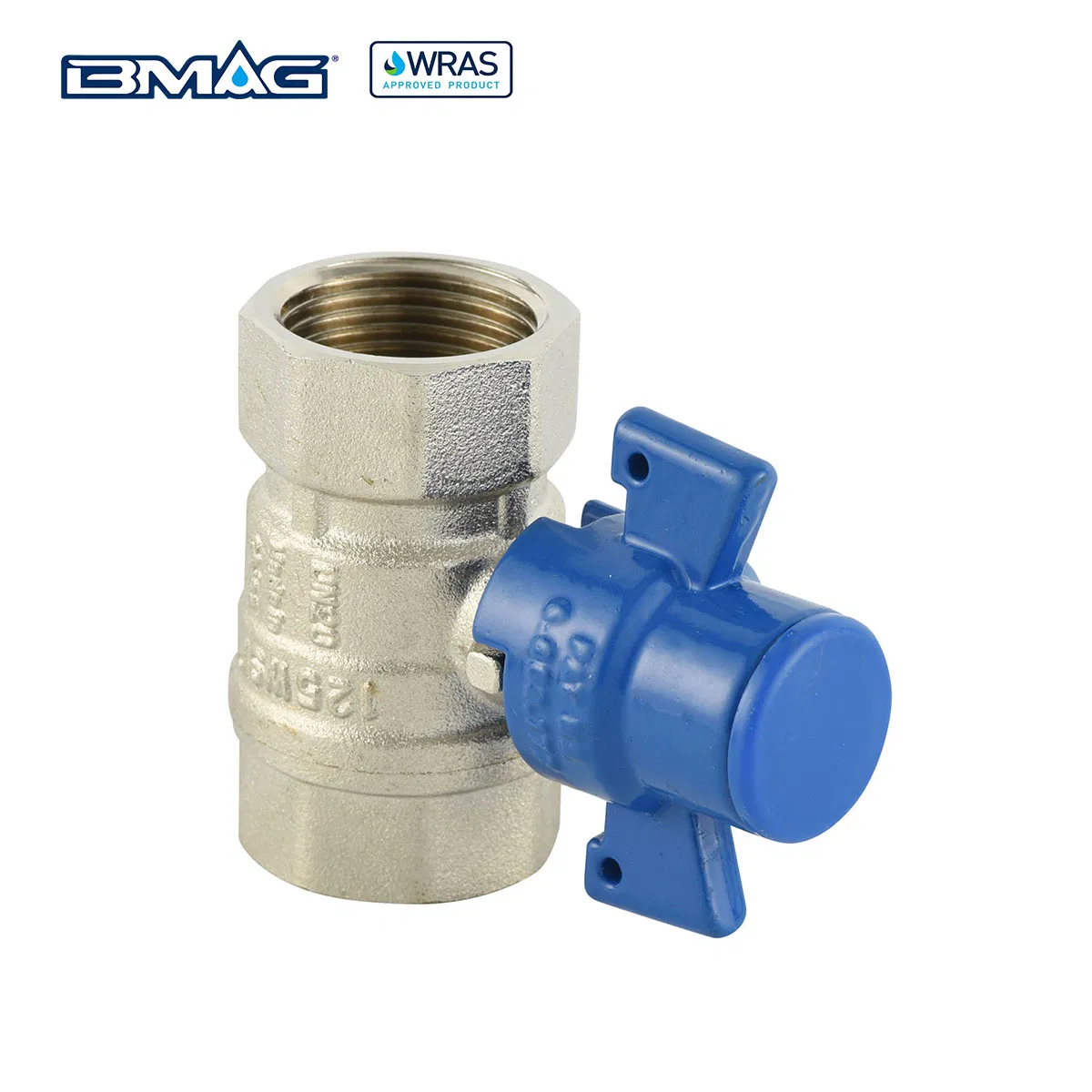

Anti-Theft Water Use Key Lock Nut Safety Ball Valve
Key Features: Factory Price High-end Brass Ball Valve with OEM Acceptable options. Designed for security and durability in water meter applications.
| Material Composition |
Brass Body, Brass Bonnet, Brass Ball, Brass Stem, PTFE seat. Available in CuZn39Pb3, CZ121, C37710, CW614N, CW617N, DZR. |
| Surface Treatment |
Natural brass or Nickel plated |
| Available Sizes |
DN15 x 3/4" x 20mm, DN15 x 3/4" x 25mm, DN15 x 1" x 25mm |
| Testing Standards |
100% tested with 0.6MPa - 0.8MPa by air pressure. |
| Thread Options |
BSP & NPT available |
🛠️ Technical Standards
💎
Working Pressure
2.0Mpa
🌡️
Temperature
-20°C ≤ T ≤ 150°C
🧵
Thread Standard
ISO228
💧
Medium
Water, Oil, Gas

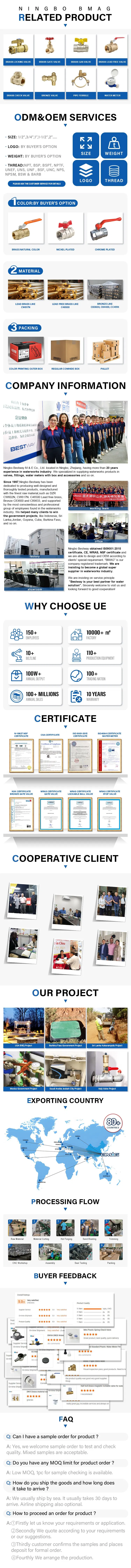

We adhere to strict quality control procedures starting from product design through the end of production. High-end equipment ensures every valve meets technical requirements. Samples are available for testing upon request.
❓ Frequently Asked Questions
What materials are used for the valve body?
The valves are made from high-quality brass, including DZR (Dezincification Resistant) brass and other standards like CW617N or CuZn39Pb3, ensuring long-term durability.

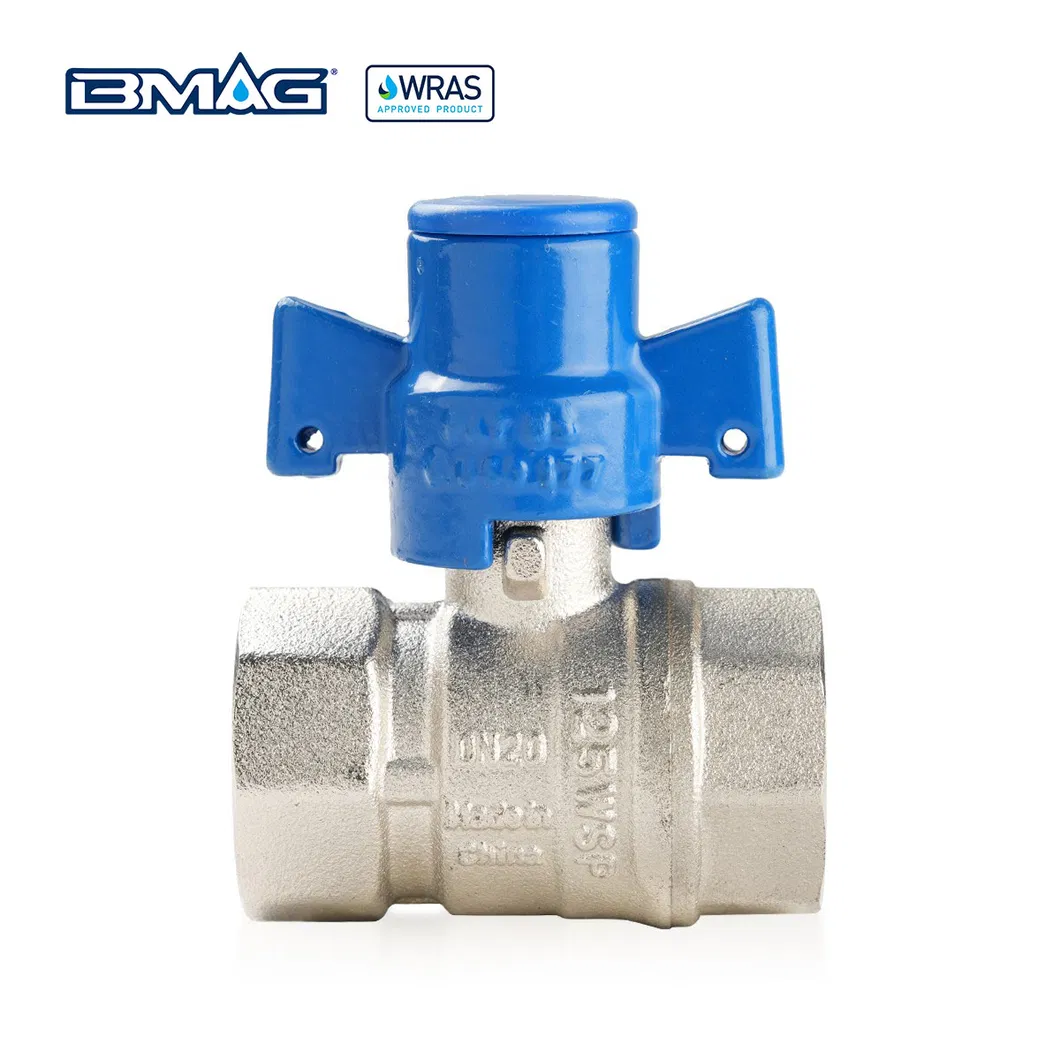

What makes this valve "anti-theft"?

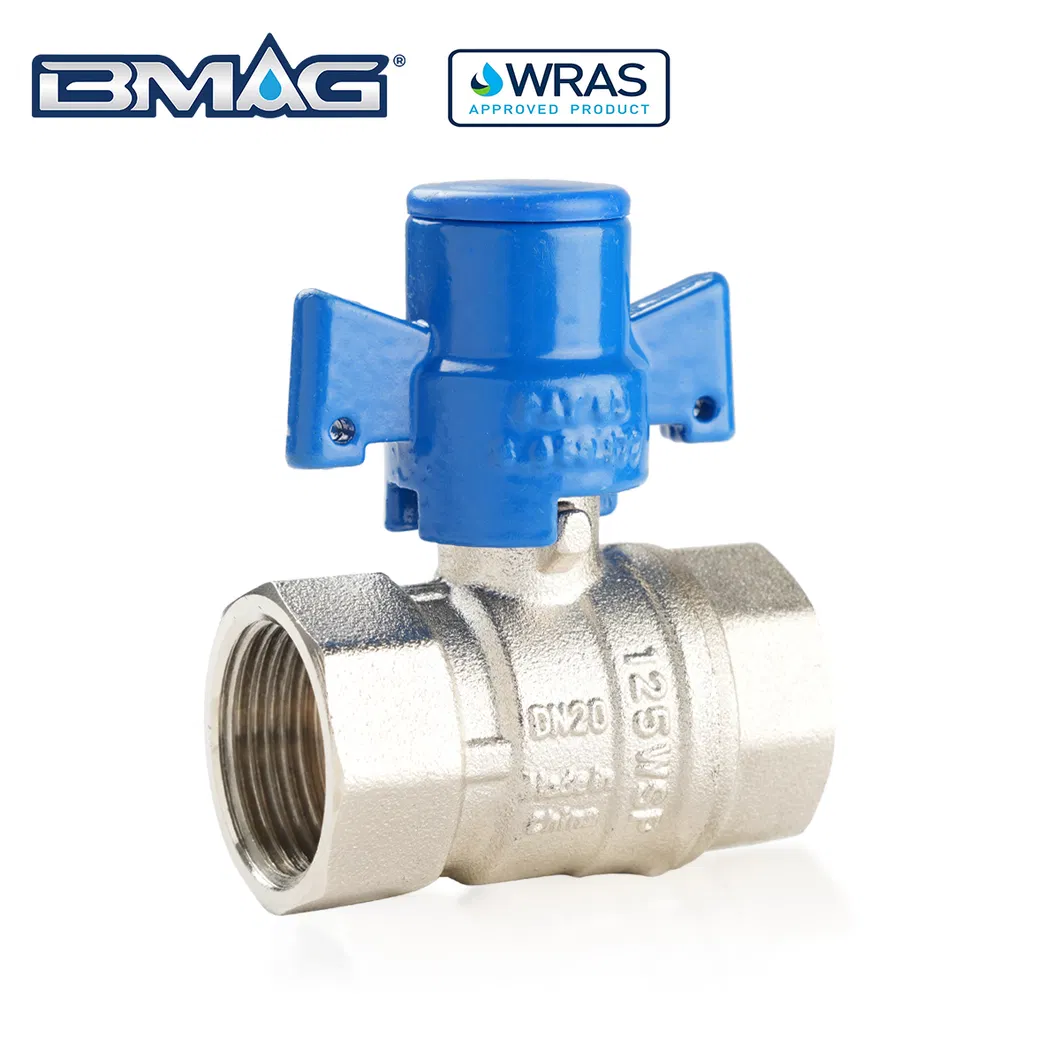

The valve features a lockable nut or a magnetic zinc lock handle mechanism, preventing unauthorized access or adjustment of the water supply.
What is the maximum working pressure and temperature?
The valve is designed for a working pressure of up to 2.0Mpa and can operate in temperatures ranging from -20°C to 150°C.
Are different handle types available?
Yes, we offer magnetic zinc lock handles, long brass handles, and short brass handles to suit different installation requirements.
Do you provide samples for testing?
Yes, samples can be provided for quality verification and technical testing before placing a bulk order.
Can the packaging be customized?
Absolutely. For custom orders, we can design full-color packaging to match specific branding requirements.
